WHEELTRONICS MOT IV Parts Breakdown
Click on the part number for more information

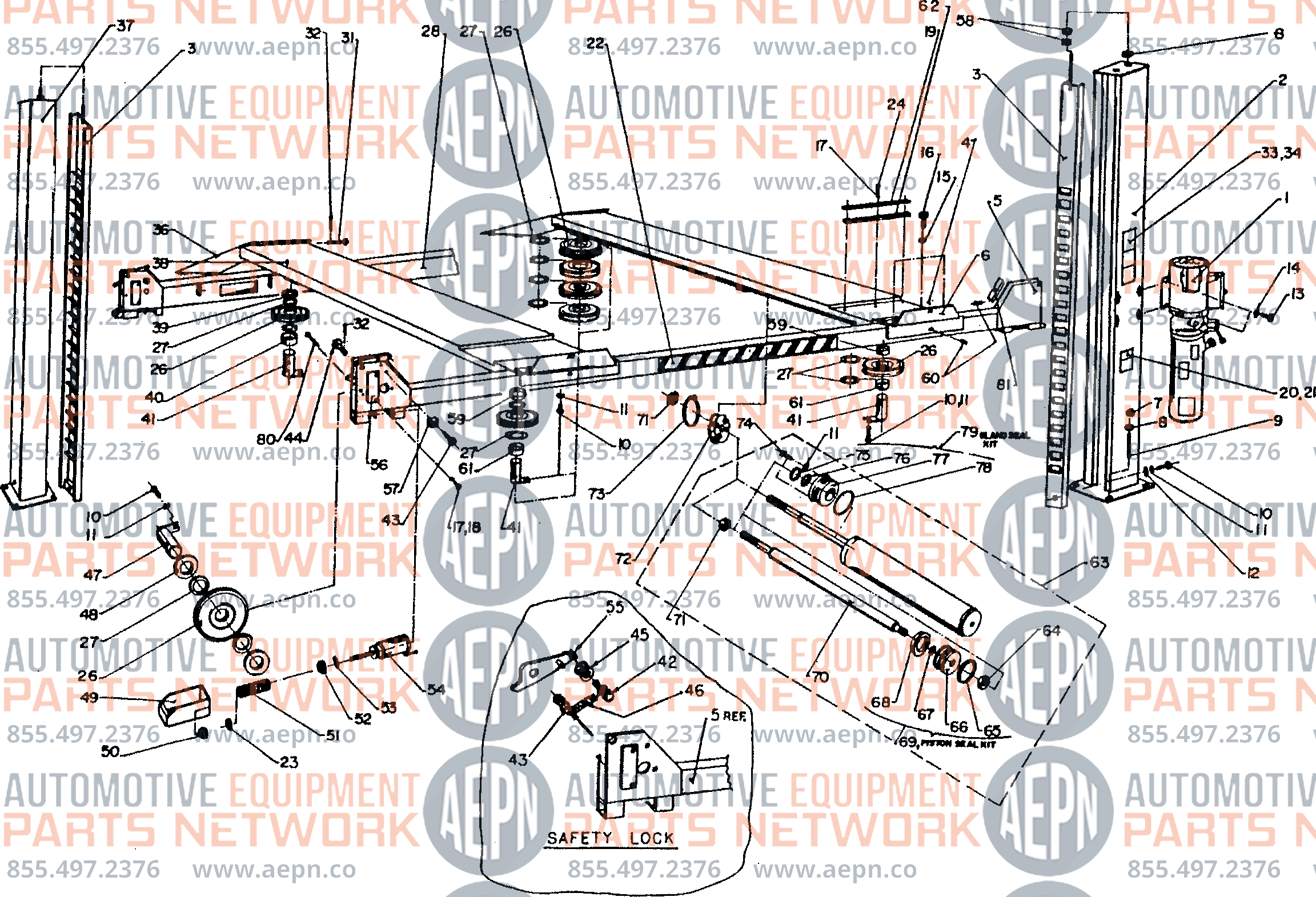

| ITEM | PART NO | DESCRIPTION |
|---|---|---|
| ITEM | PART NO | DESCRIPTION |
| 1 | 6-2250 | Power Pack, 380v/3ph/50hz. |
| 2 | 4-0186 | Power Post |
| 3 | 3-0487 | Safety Rack |
| 4 | 4-0661 | Alignment Deck Wldmt, (Left Side) |
| 5 | 4-0342 | Front Crossmember Weldment |
| 6 | 2-1438 | Front Wheel Stop Weldment |
| 7 | 6-0737 | Hex Nut |
| 8 | 6-0738 | Flat Washer |
| 9 | 6-1379 | Wedge Anchor |
| 10 | 6-0668 | Hex Hd. Bolt |
| 11 | 6-0058 | Lockwasher |
| 12 | 6-0062 | Flat Washer |
| 13 | 6-0293 | Hex Hd. Bolt |
| 14 | 6-0674 | Lockwasher |
| 15 | 6-0059 | Lockwasher |
| 16 | 6-0045 | Hex Hd. Bolt |
| 17 | 6-0056 | Lockwasher |
| 18 | 6-0178 | Hex Hd. Bolt |
| 19 | 2-0635 | Retaining Bar |
| 20 | 6-1114 | Serial Tag |
| 21 | 6-0996 | Ali/Etl Tag |
| 22 | 6-1125 | Caution Tape, (40lg.) |
| 23 | 6-0060 | Flat Washer |
| 24 | 6-0027 | Hex Hd. Bolt |
| 26 | 2-0557 | Sheave Assembly |
| 27 | 1-0757 | Nylon Thrust Washer |
| 28 | 4-0665 | Rear Crossmember Weldment |
| 31 | 1-0095 | Ramp Pin |
| 32 | 6-0115 | Cotter Pin, 1/8 X 2lg. |
| 33 | 6-0988 | Caution, Safety Ins.,, & Warning Decal |
| 34 | 6-1637 | Attention Decal |
| 36 | 3-0697 | Flushmount Ramp Weldment |
| 37 | 3-0347 | Post |
| 38 | 4-0667 | Alignment Deck Wldmt, (Right Side) |
| 39 | 1-0798 | Sheave Spacer, 2 1/2lg. |
| 40 | 1-0788 | Sheave Spacer, 1 1/2lg. |
| 41 | 2-0566 | Deck Sheave Pin |
| 42 | 6-0801 | Shoulder Bolt |
| 43 | 6-0729 | Shoulder Bolt |
| 44 | 1-0769 | Lock Safety Pin |
| 45 | 1-0766 | Cable Roller |
| 46 | 1-0768 | Tension Spring |
| 47 | 1-0771 | Crossmember Sheave Pin |
| 48 | 1-0786 | Sheave Spacer, 3/8lg. |
| 49 | 2-0990 | Safety Shoe Weldment |
| 50 | 6-1563 | Hex Nylon Locknut |
| 51 | 1-0767 | Compression Spring |
| 52 | 6-0662 | Hex Nut |
| 53 | 6-0663 | Internal Tooth Lockwasher |
| 54 | 6-0651 | Air Cylinder, 5 1/2 Rod Lg. (Spr-12) |
| 55 | 2-0567 | Safety Lock Wldmt. Ls |
| 2-1475 | Safety Lock Wldmt. Rs | |
| 56 | 1-0775 | Plastic Bracket |
| 57 | 1-0776 | Plastic Guide |
| 58 | 6-0036 | Hex Nut |
| 59 | 1-0799 | Sheave Spacer, 1 3/4lg. |
| 60 | 6-0726 | Set Screw |
| 61 | 1-0943 | Sheave Spacer, 2lg. |
| 62 | 2-0636 | Spacer Bar |
| 63 | 0-1654 | Hydraulic Cylinder |
| 64 | 6-1160 | Locknut |
| 65 | 6-0004 | Wear Ring |
| 66 | 2-0564 | Piston |
| 67 | 6-1305 | 0 Ring |
| 68 | 6-0003 | Piston Seal |
| 69 | 0-0169 | Piston Seal Kit |
| 70 | 2-0565 | Piston Rod |
| 71 | 6-0664 | Hex Nut |
| 72 | 2-0561 | Cable Flange |
| 73 | 6-0665 | Clamp |
| 74 | 6-0666 | Hex Hd. Bolt |
| 75 | 6-0653 | Rod Wiper |
| 76 | 6-0654 | Rod Seal |
| 77 | 3-0348 | Gland |
| 78 | 6-0655 | O Ring |
| 79 | 0-0170 | Gland Seal Kit |
| 80 | 6-0730 | Hex Hd. Bolt |
| 81 | 2-0575 | Sheave Cover |
Click on the part number for more information

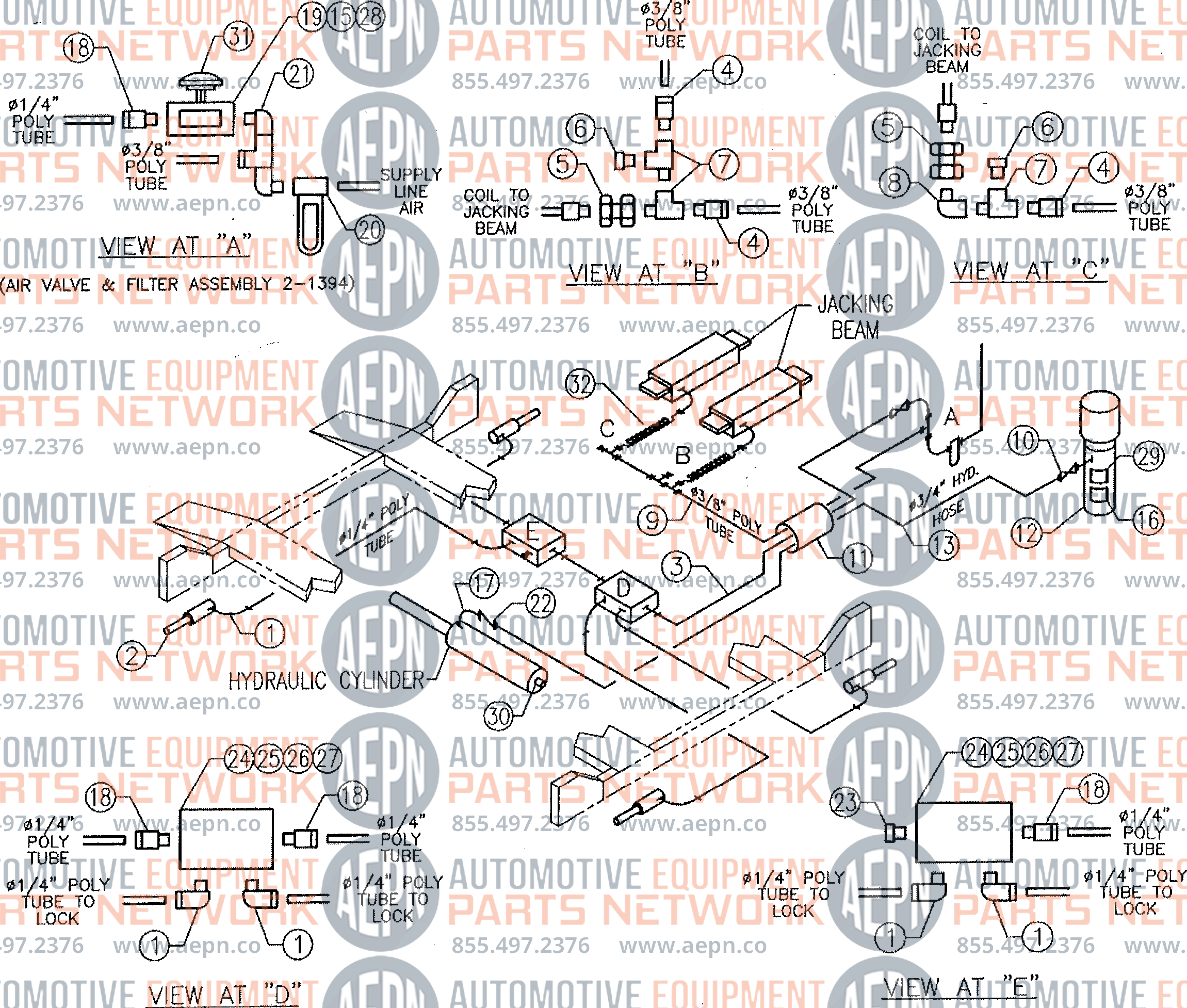

| ITEM | PART NO | DESCRIPTION |
|---|---|---|
| ITEM | PART NO | DESCRIPTION |
| 1 | 6-0709 | 90 Elbow |
| 2 | 6-0651 | Air Cylinder |
| 3 | 6-1396 | 1/4" Dia. Poly Tube |
| 4 | 6-0710 | Adapter, 3/8" Poly Tube X 1/4" Npt |
| 5 | 6-0713 | Terminal Bolt |
| 6 | 6-0282 | Plug |
| 7 | 6-0014 | 1/4" Npt Street Tee |
| 8 | 6-0015 | 1/4" Npt Street Elbow |
| 9 | 6-1400 | 3/8" Dia. Poly Tube |
| 10 | 6-1937 | Flow Control |
| 11 | 6-0714 | Hose Guard |
| 12 | 6-2250 | Power Pack 380v/3 Ph/ 50hz. |
| 13 | 6-1692 | Hyd.Hose Ass'y, 3/8" Jic Female, 16ft Long |
| 14 | 6-0731 | Cable Tie |
| 15 | 6-1095 | Hex Nut |
| 16 | 6-0594 | "Notice" Decal |
| 17 | 6-0796 | 90 Elbow |
| 18 | 6-0708 | Adapter, 1/4" Poly Tube X 1/8" Npt |
| 19 | 6-1775 | Air Valve |
| 20 | 6-0180 | Air Filter |
| 21 | 0-0405 | Air Valve Fitting Kit |
| 22 | 6-1684 | Velocity Fuse 8gpm |
| 23 | 6-0182 | Plug |
| 24 | 1-1057 | Manifold |
| 25 | 6-0177 | Hex Hd.Bolt |
| 26 | 6-0032 | Hex Nut |
| 27 | 6-0056 | Lockwasher |
| 28 | 6-1094 | Phil. Hd. Screw |
| 29 | 6-0593 | "Lift Operation" Decal |
| 30 | 6-0280 | Adapter, 1/8" Npt M X 1/4" Jic M |
| 31 | 6-1777 | Air Valve Pushbutton |
| 32 | 6-0337 | Recoil Hose |
| * | 2-1394 | Air Valve & Filter Assembly |
Click on the part number for more information

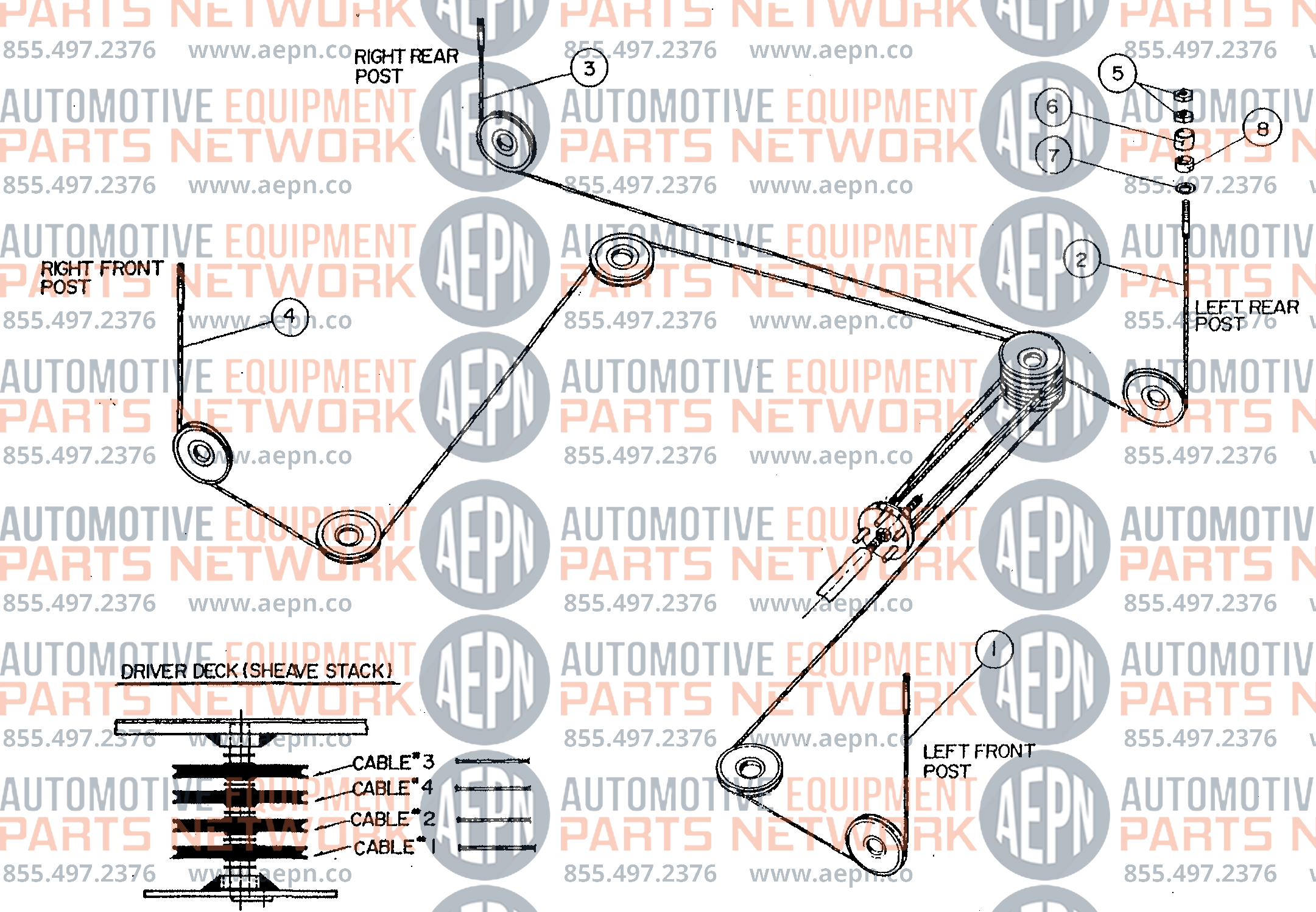

| ITEM | PART NO | DESCRIPTION |
|---|---|---|
| ITEM | PART NO | DESCRIPTION |
| 1 | 1 | Cable Assembly, 314lg. (Left-Front) |
| 2 | 1 | Cable Assembly, 144lg. (Left-Rear) |
| 3 | 1 | Cable Assembly, 194lg. (Right-Rear) |
| 4 | 1 | Cable Assembly, 364lg. (Right-Front) |
| 5 | 8 | Hex Nut |
| 6 | 4 | Cable Spacer, 2lg. |
| 7 | 4 | Flat Washer |
| 8 | 4 | Cable Spacer, 1lg. |
Click on the part number for more information

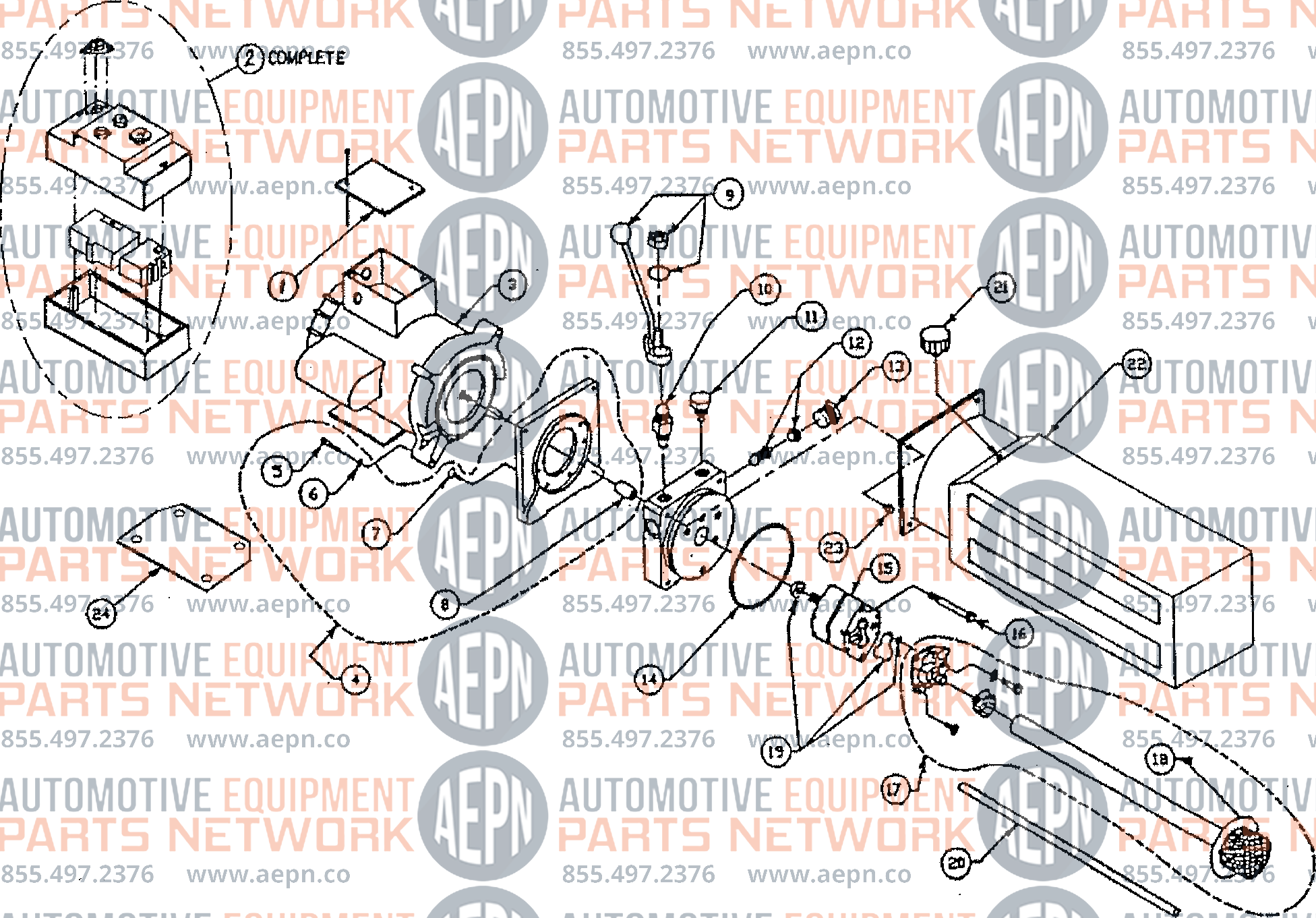

| ITEM | PART NO | DESCRIPTION |
|---|---|---|
| ITEM | PART NO | DESCRIPTION |
| 1 | 6-1289 | Cover |
| 2 | 6-1776 | Contactor Control Box - Complete |
| 3 | 6-1079 | Motor 380v, 3ph, 50 Hz |
| 4 | 0-0197 | Motor Adapter Kit |
| 5 | 6-1085 | Socket Hd.Cap Scw, L/4"-20unc X 5/8"Lg. |
| 6 | 6-0056 | Lockwasher |
| 7 | 6-1086 | Allen Hd. Flat Scw, L/4"-20unc X 3/4"Lg |
| 8 | 6-0774 | Coupling |
| 9 | 6-0776 | Release Bracket & Handle Assembly |
| 10 | 6-0880 | Valve Cartridge Release |
| 11 | 6-1087 | Valve Cartridge Check |
| 12 | 6-1317 | Fixed Relief Valve, Rv17 |
| 13 | 6-1089 | Relief Valve Cap |
| 14 | 6-0875 | Reservoir "0"Ring |
| 15 | 6-2251 | Pump Assembly |
| 16 | 6-1090 | Pump Mounting Bolt |
| 17 | 0-0198 | Inlet Plumbing Kit |
| 18 | 6-0786 | Inlet Hose / Filter Assembly |
| 19 | 0-0199 | Pump "0" Ring Kit |
| 20 | 6-0783 | Return Tube |
| 21 | 6-0873 | Breather-Filler Cap |
| 22 | 6-0871 | Reservoir |
| 23 | 6-1091 | Reservoir Screw |
| 24 | 2-1130 | Contactor Bracket |
Click on the part number for more information

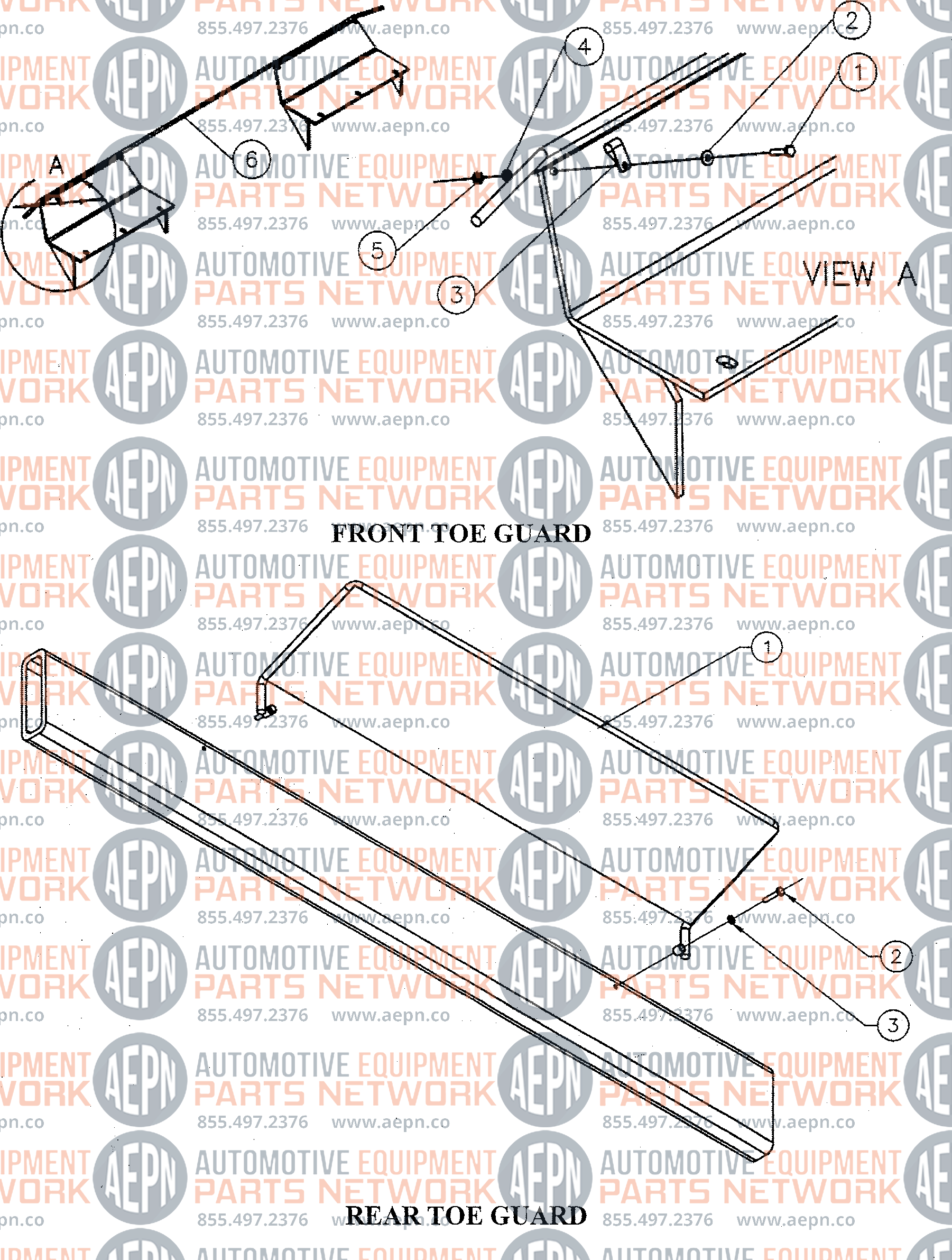

| ITEM | PART NO | DESCRIPTION |
|---|---|---|
| ITEM | PART NO | DESCRIPTION |
| 1 | 6-0027 | 4 |
| 2 | 6-0060 | 4 |
| 3 | 6-1230 | 4 |
| 4 | 6-0056 | 4 |
| 5 | 6-0032 | 4 |
| 6 | 1-1816 | 1 |
| 1 | 2-1436 | 1 |
| 2 | 6-0027 | 2 |
| 3 | 6-0056 | 2 |
