WHEELTRONICS 1969SAE Parts Breakdown
Click on the part number for more information

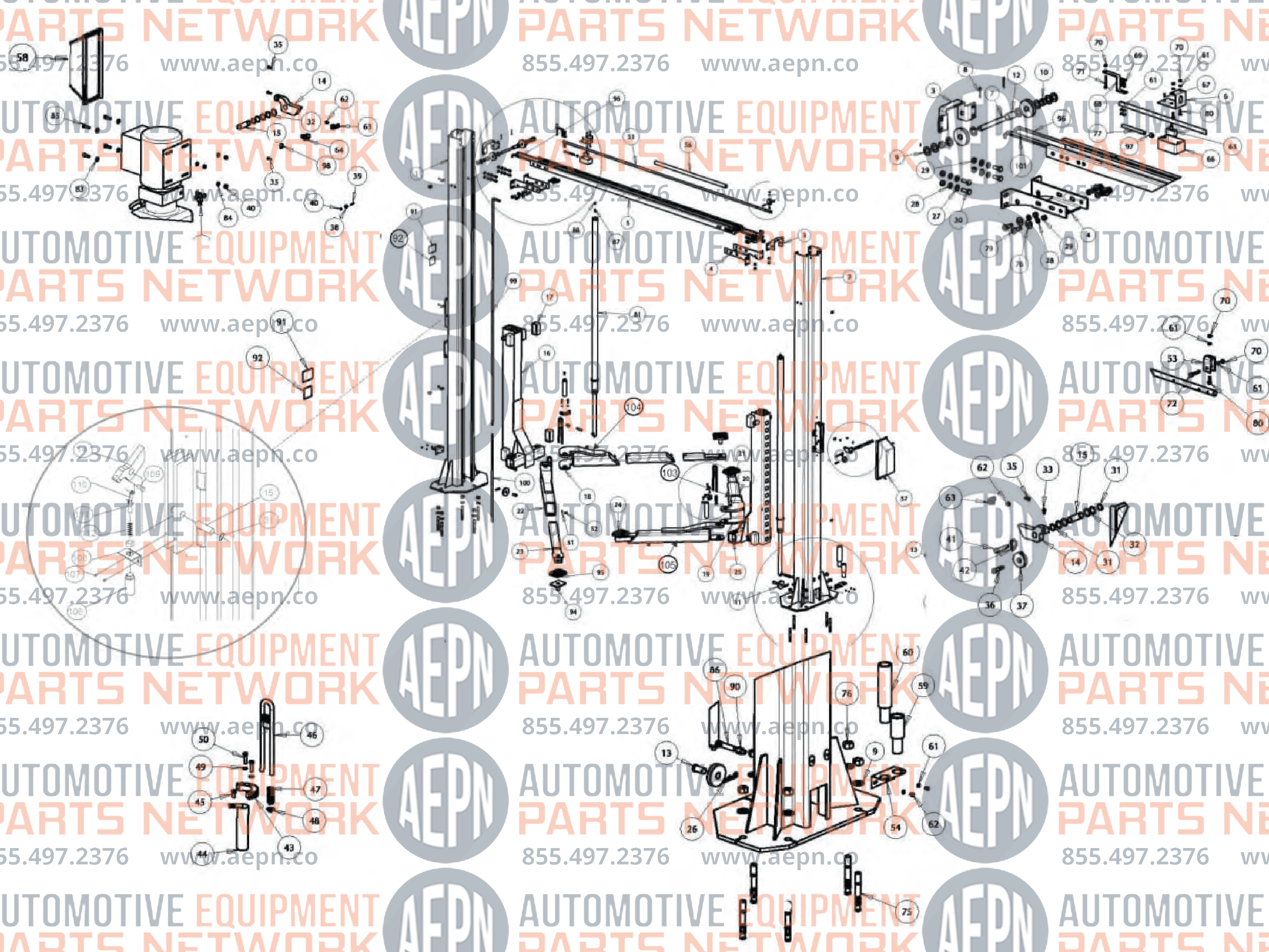

| ITEM | PART NO | DESCRIPTION |
|---|---|---|
| ITEM | PART NO | DESCRIPTION |
| 1 | 4-1125 | Tower Weldment, Power Side |
| 2 | 4-1013 | Tower Weldment, Slave Side |
| 3 | 1-3063 | Crossmember Bracket Cover |
| 4 | 2-2304 | Symmetric Crossmember Brkt |
| 5 | 2-2323 | Crossmember |
| 6 | 2-1143 | Limit Switch Mounting Bracket |
| 7 | 1-3178 | Common Pulley Pin |
| 8 | 6-0978 | Cotter Pin, 1/8 Dia. X 1 / Lg. |
| 9 | 6-0738 | Flat Washer |
| 10 | 1-3495 | Cable Retainer |
| 11 | 1-1898 | Pulley Assembly |
| 12 | 1-1626 | Crossmember Pulley Pipe, 1 Lg. |
| 13 | 1-1887 | Headed Pin |
| 14 | 2-2292 | Safety Dog Weldment |
| 15 | 1-2337 | Safety Lock Pin |
| 16 | 4-1169 | Formed Carriage Weldment |
| 17 | 2-0772 | Slider Block |
| 18 | 4-1145-6 | Telescopic Arm Assy C/W Arm Restraint Pin F.L. |
| 19 | 2-2296 | Outer Tube Weldment Rs |
| 20 | 2-2282 | Intermediate Arm Weldment |
| 21 | 2-2279 | Inner Arm Weldment |
| 22 | 3-0920 | Outer Arm Weldment |
| 23 | 3-0924 | Inner Arm Weldment (Long) |
| 24 | 1-2634 | Stack Pad Assembly |
| 25 | 6-0000 | Grease Nipple |
| 26 | 6-1841 | Hitch Pin, 1/8 Dia. |
| 27 | 6-0248 | Flat Washer |
| 28 | 6-0059 | Lock Washer |
| 29 | 6-0035 | Nut |
| 30 | 6-0046 | Hex Bolt |
| 31 | 6-2445 | Snap Ring Ext |
| 32 | 6-0808 | 3/4 Flat Washer |
| 33 | 6-0169 | Self-Tapping Screw |
| 35 | 6-1134 | Self Tapping Screw |
| 36 | 6-0206 | Shoulder Bolt |
| 37 | 1-0415 | Safety Cable Pulley |
| 38 | 1-1116 | Safety Cable Pulley |
| 39 | 6-0069 | Shoulder Bolt |
| 40 | 6-0294 | Hex Nut |
| 41 | 6-0801 | Shoulder Bolt |
| 42 | 6-2074 | Thimble, 5/32 |
| 43 | 1-2618 | Arm Restraint Gear |
| 44 | 2-1594 | Arm Pin |
| 45 | 6-0423 | Hex Bolt |
| 46 | 1-2914 | Arm Lock Handle Weldment |
| 47 | 1-2942 | Handle Spring |
| 48 | 6-3086 | Spring Retainer Cap |
| 49 | 6-0925 | Flatwasher |
| 50 | 6-2059 | Hex Hd. Bolt |
| 51 | 6-0062 | Flat Washer |
| 52 | 6-0030 | Hex Bolt |
| 53 | 1-1378 | Actuator Mounting Bracket |
| 54 | 1-2012 | Stack Pad Adapter Holder |
| 55 | 1-1439 | Actuator Bar |
| 56 | 6-1404 | Foam Guard |
| 57 | 0-0203 | Safety Cover C/W Decals, Slave Side |
| 58 | 0-0204 | Safety Cover C/W Decals, Power Side |
| 59 | 1-1993 | Stack Pad Adapter 3 |
| 60 | 2-1580 | Stack Pad Adapter 6 |
| 61 | 6-0056 | Lock Washer |
| 62 | 6-1353 | Round Hd. Mach. Screw |
| 63 | 6-0536 | Tube Clamp, 1/2" |
| 64 | 6-1759 | Electrical Cable Clip, 5/8 Id |
| 65 | 6-0916 | Microswitch |
| 66 | 6-1403 | Electrical Utility Box |
| 67 | 6-1466 | 6/32 Screw |
| 68 | 1-2143 | Actuator Extension |
| 69 | 6-0027 | Hex Hd. Bolt |
| 70 | 6-0032 | Hex Nut |
| 71 | 6-0741 | Hex Hd. Bolt |
| 72 | 6-0205 | Hex Hd. Bolt |
| 73 | 1-1113 | Safety Release Handle |
| 74 | 6-1135 | Plastic Knob |
| 75 | 6-1379 | Wedge Anchor |
| 76 | 6-0737 | Hex Nut |
| 77 | 6-1173 | Elec. Cable 12/3 X 117" Lg. |
| 79 | 6-0291 | Hex Bolt |
| 80 | 6-0178 | Hex Bolt |
| 81 | 3-0621 | Hydraulic Cylinder Assembly |
| 82 | 6-2055 | Power Pack, 208-230 V, 1 Ph |
| 83 | 6-0295 | Flat Washer |
| 84 | 6-0674 | Lock Washer |
| 85 | 6-0293 | Hex Bolt |
| 86 | 6-2095 | Male Nipple, Npt |
| 87 | 6-0280 | 1/8 Npt To Npt |
| 88 | 6-1884 | 1/4" Jic Cap |
| 89 | 6-1506 | Branch Tee |
| 90 | 6-1510 | Flow Control |
| 91 | 6-1766 | Capacity Decal |
| 92 | 6-1111 | Serial Number Plate |
| 93 | 6-2094 | Lift Operations Decal |
| 94 | 2-1993 | Rectangular Pad Weldment |
| 95 | 3-0872 | Rubber Pad |
| 96 | 1-2039 | Equalizing Cable |
| 97 | 6-1133 | Cable Connector |
| 98 | 6-2060 | Wire Rope Clip, 1/16 |
| 99 | 1-2040 | Hydraulic Hose (Long) |
| 100 | 2-1230 | Hydraulic Hose (Short) |
| 101 | 1-2058 | Safety Release Cable |
| 102 | 6-0008 | Hex Bolt |
| 103 | 4-1146-6 | 2n1 Telescopic 2 Post Arm |
| 104 | 2-2300 | Outer Tube Weldment Ls |
| 105 | 4-1135-6 | Arm Assy.2 Post Asym. Long |
| 106 | 6-3160 | Tubular Electric Solenoid |
| 107 | 6-1134 | Screw |
| 108 | 1-3027 | Solenoid Mounting Bracket |
| 109 | 6-0423 | Bolt |
| 110 | 1-3028 | Solenoid Linkage |
| 111 | 6-0437 | Roll Pin,1/8 X 1 Lg. |
| 112 | 6-3161 | Compression Spring |
Click on the part number for more information

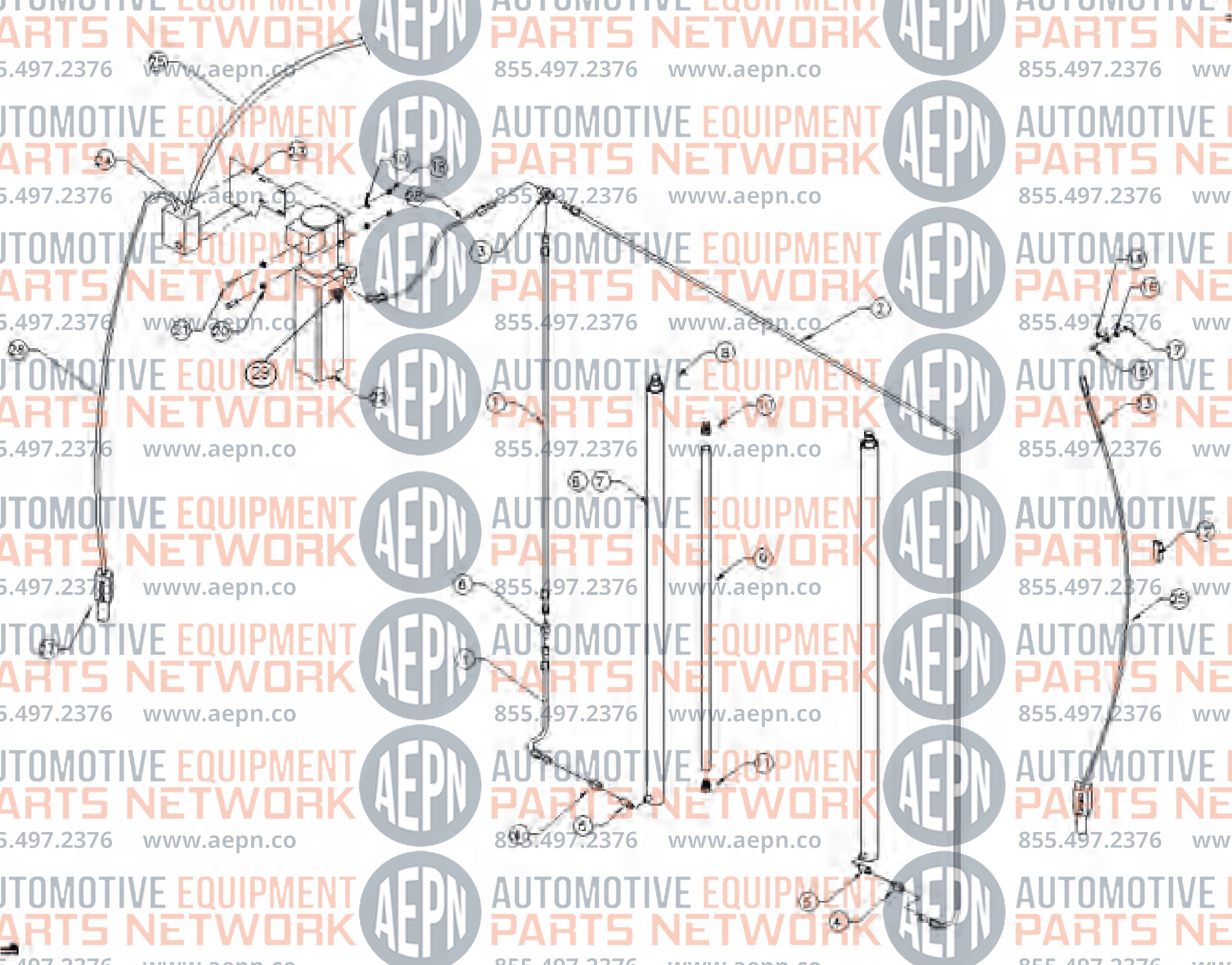

| ITEM | PART NO | DESCRIPTION |
|---|---|---|
| ITEM | PART NO | DESCRIPTION |
| 1 | 2-2634 | Hydraulic Tube Assy |
| 2 | 2-2635 | Hydraulic Tube Assy (12ft) |
| 2-2636 | Hydraulic Hose Assy (14ft) | |
| 3 | 6-1372 | Branch Tee 3/8 Jic |
| 4 | 6-2095 | Male Nipple, Npt |
| 5 | 6-1510 | Flow Control |
| 6 | 3-0621 | Hydraulic Cylinder Assy |
| 7 | 2-1255 | Cylinder Tube |
| 8 | 6-3666 | Bleeder Valve |
| 9 | 1-1467 | Piston |
| 10 | 0-0337 | Piston Seal Kit |
| 11 | 0-0338 | Gland Kit |
| 12 | 6-2460 | Latching Duct |
| 13 | 6-3182 | Cable Strap |
| 14 | 6-3181 | Cable Clamp |
| 15 | 6-1094 | #8-32 Screw |
| 16 | 6-0816 | #10 Flat Washer |
| 17 | 6-1095 | #8-32 Nut |
| 18 | 6-0294 | Hex Nut |
| 19 | 6-0674 | Lock Washer |
| 20 | 6-0295 | Flat Washer |
| 21 | 6-0293 | Hex Bolt |
| 22 | 6-2055 | Power Pack, 208-230v, 1ph |
| 23 | 2-1978 | Contactor Bracket |
| 24 | 6-3252 | Contactor Box |
| 25 | 8-0030 | Cable |
| 26 | 8-0030 | Cable |
| 27 | 6-3158 | Pendant Control (Up/Down/Yellow/E-Stop) |
| 28 | 2-2136 | Hose |
| * | 6-3830 | Spare Keys For Pendant Control (Set Of 2) |
| 29 | 6-0804 | Elbow |
| 6-3867 | Power Unit | |
| 6-2055 | Power Pack, 208-230v, 1ph | |
| 6-2129 | Vi Cartridge | |
| 6-2128 | Coil (Square) 24v Renum |
Click on the part number for more information

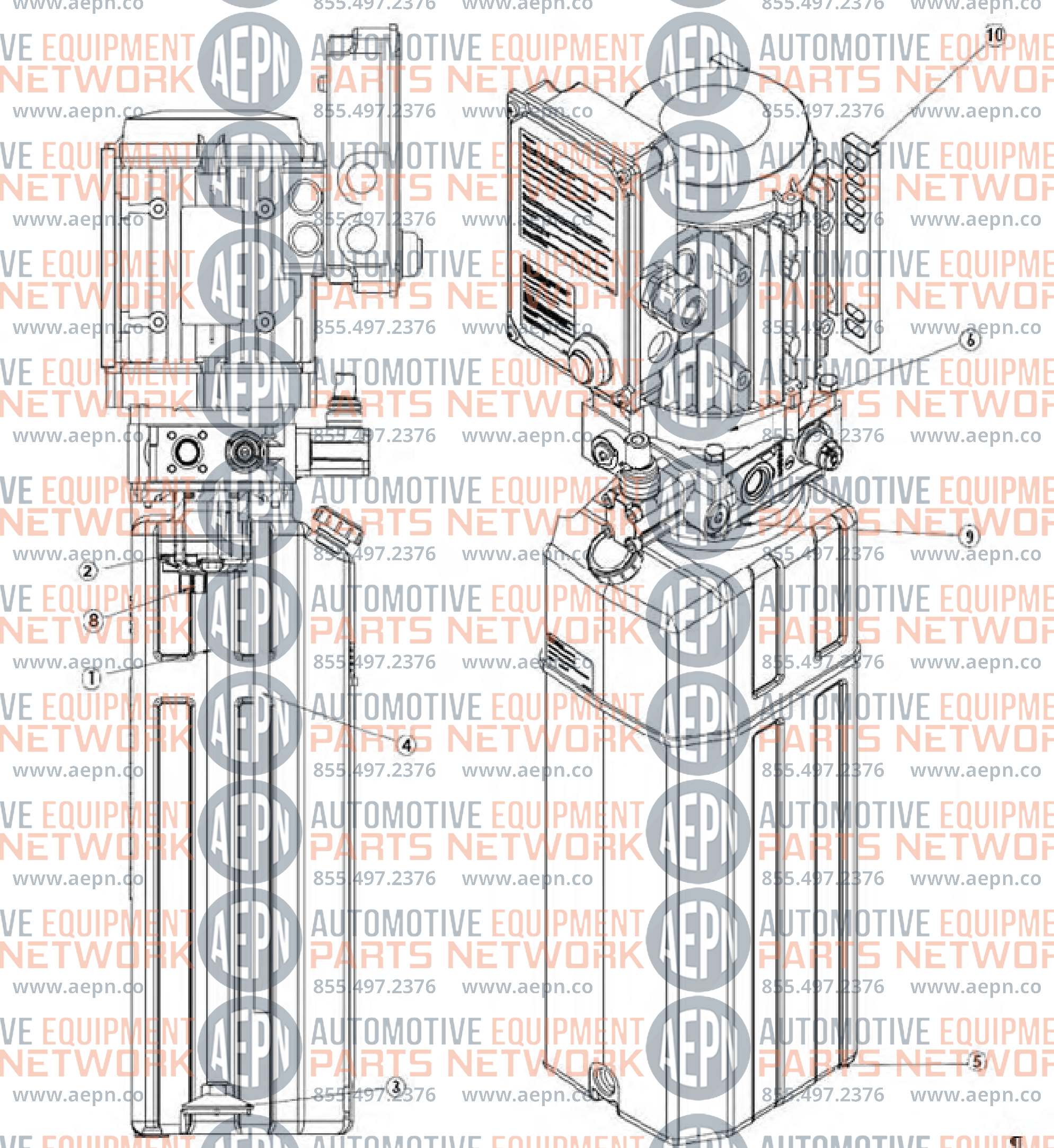

| ITEM | PART NO | DESCRIPTION |
|---|---|---|
| ITEM | PART NO | DESCRIPTION |
| 1 | 6-3442 | Pump 6.7g, 17 Gear |
| 2 | 6-3443 | Suction Pipe 3/8 |
| 3 | 6-3444 | Suction Filter 3/8 Female 15 L/Min |
| 4 | 6-3445 | Return Pipe |
| 5 | 6-3446 | Plastic Tank 12l |
| 6 | 6-3447 | Motor Shaft Coupling Pump |
| 8 | 6-3452 | Start Up Valve |
| 9 | 6-3449 | Tank Bracket With Screw |
| 10 | 6-3450 | Motor Brackets |
| 11 | 6-3451 | Push Button With Microswitch |
