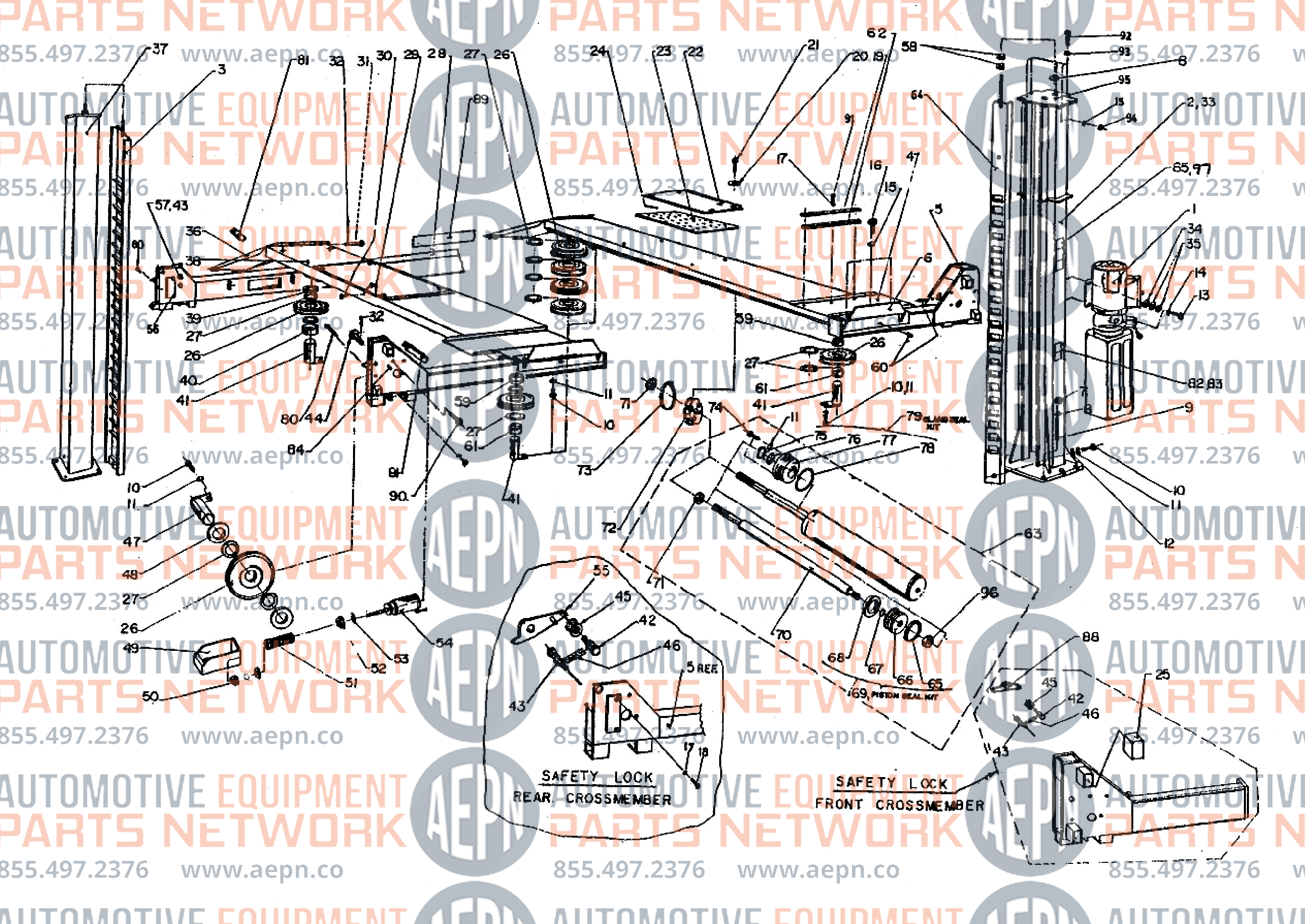

WHEELTRONICS 14407AF Parts Breakdown



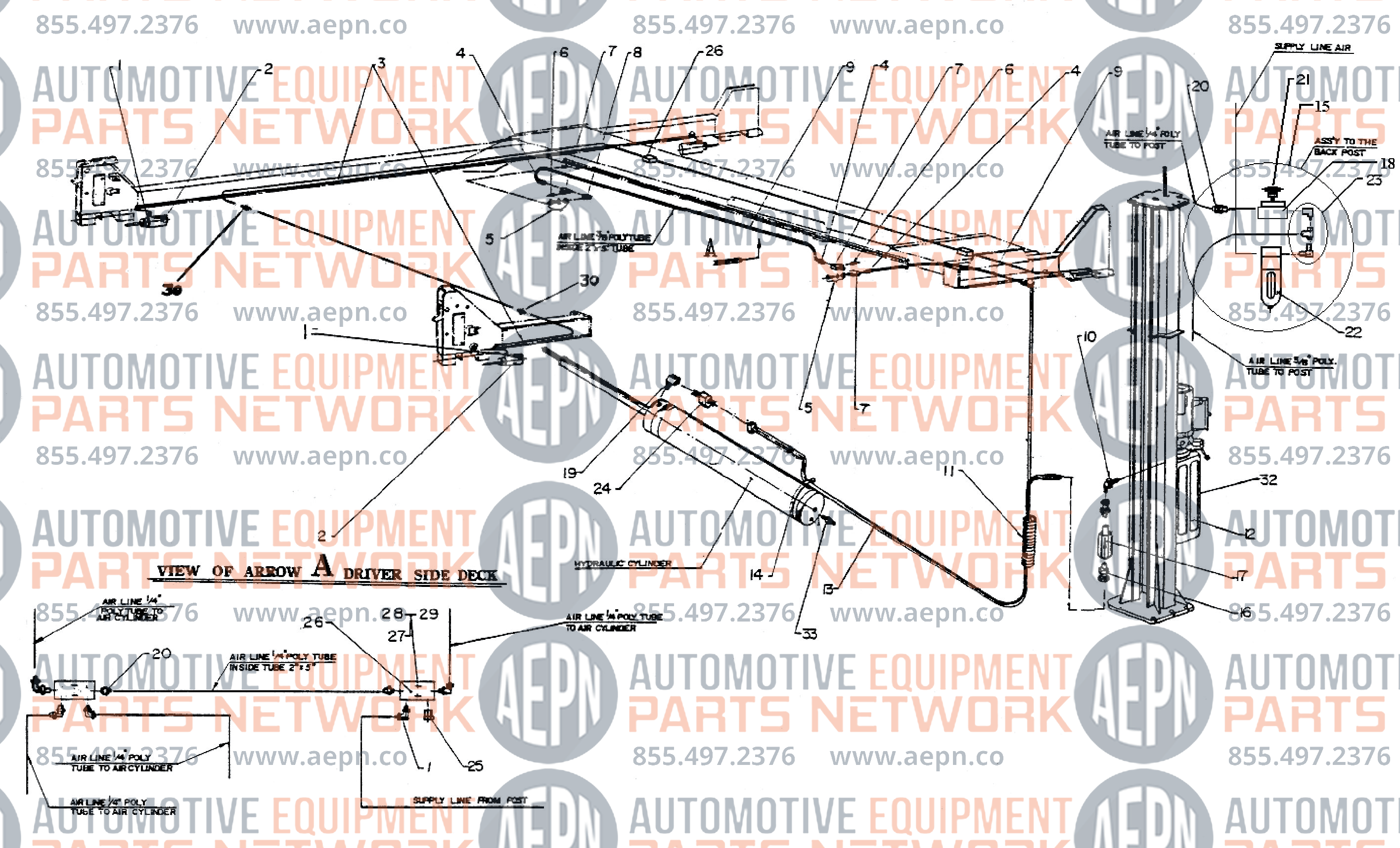

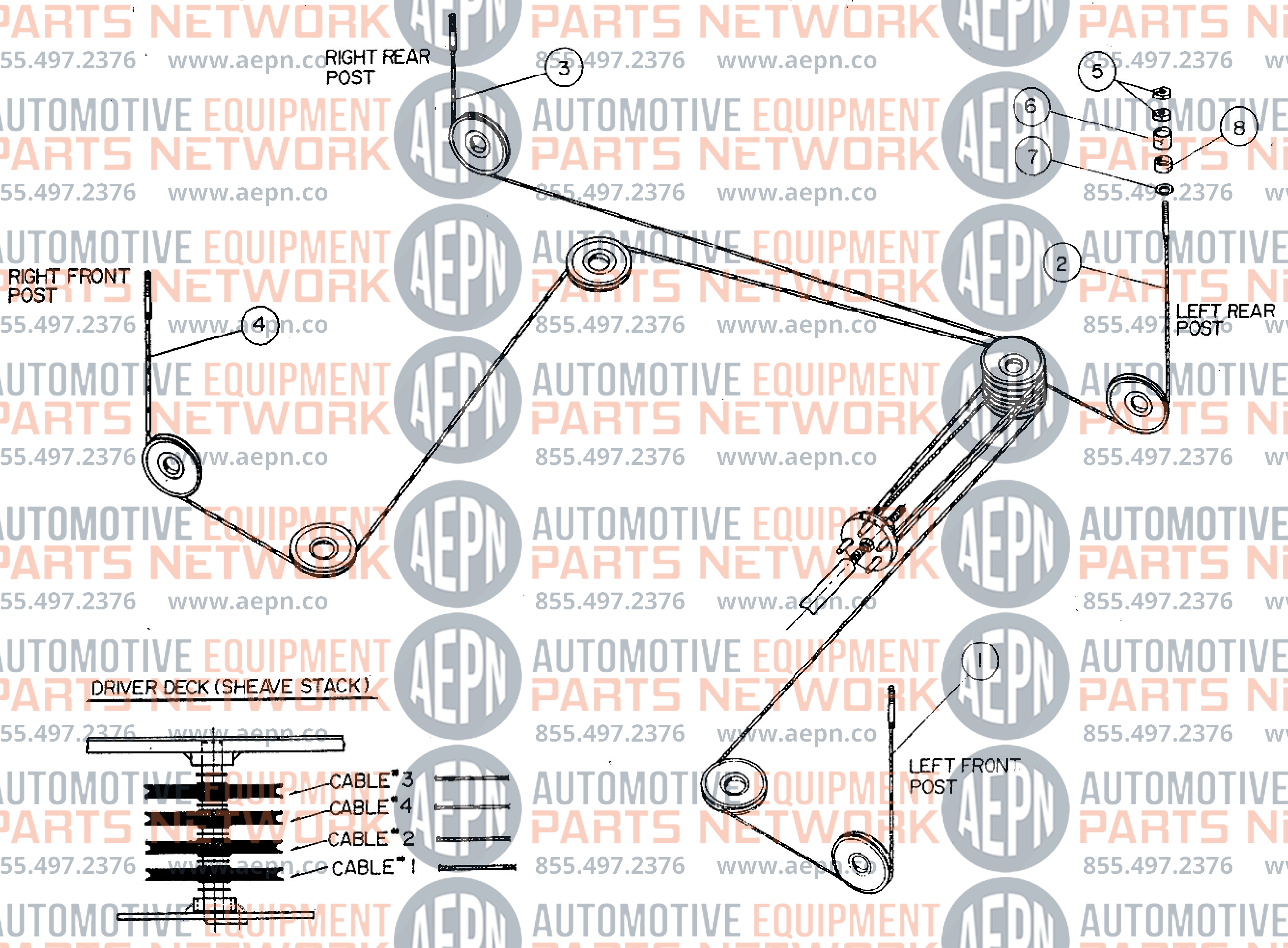

Click on the part number for more information

ITEM PART NO DESCRIPTION
ITEM PART NO DESCRIPTION
1 6-1398 Power Pack, 230v/1ph/3hp
  6-2614 Power Pack AssY, 230v/3ph
2 4-0429 Power Post Welding (L.S.)
3 3-0487 Safety Rack Weldment (Rear)
4 4-0437 Alignment Deck Weldment (Left Side)
5 4-0366 Front Crossmember Weldment (Left Side)
6 2-0998 Front Wheel Stop Weldment
7 6-0737 Hex Nut
8 6-0738 Flat Washer
9 6-1379 Wedge Anchor
10 6-0668 Hex Hd. Bolt
11 6-0058 Lockwasher
12 6-0625 Flat Washer
13 6-0293 Hex Hd. Bolt
14 6-0674 Lockwasher
15 6-0059 Lockwasher
16 6-0045 Hex Hd. Bolt
17 6-0056 Lockwasher
18 6-0178 Hex Hd. Bolt
19 2-1391 Retaining Bar
20 6-0426 Flat Washer
21 6-0069 Shoulder Bolt
22 3-0197 Rear Slip Plate (Full Floating)
23 3-0196 Bearing Cage
24 6-0829 1/4" Ball Bearing
25 2-0772 Glide Bearing
26 2-0557 Sheave Assembly
27 1-0757 Nylon Thrust Washer
28 4-0371 Rear Crossmember (Welding)
29 2-0637 Locking Pin Assembly
30 6-0505 Self Tap Screw
31 1-1887 Ramp Pin
32 6-0978 Cotter Pin, 1/8" X 1 1/2" Lg.
33 4-0430 Post Welding (Front - R.S)
34 6-0294 Hex Nut
35 6-0295 Flat Washer
36 3-0285 Approach Ramp
37 3-0347 Rear Post Welding
38 4-0438 Alignment Deck Weldment, (Right Side)
39 1-0798 Sheave-Spacer 2 1/2"Lg.
40 1-0788 Sheave-Spacer 1 1/4"Lg.
41 2-1008 Deck Sheave Pin
42 6-0206 Shoulder Bolt
43 6-0069 Shoulder Bolt
44 1-1234 Lock Safety Pin (Welding)
45 1-0766 Cable Roller
46 1-0768 Tension Spring
47 1-0771 Crossmember Sheave Pin
48 1-0786 Sheave Spacer, 3/8 Lg.
49 2-0990 Safety Shoe Weldment
50 6-1563 Hex. Nylon Locknut
51 1-0767 Compression Spring
52 6-0662 Hex. Nut
53 6-0663 Internal Tooth Lockwasher
54 6-0651 Air Cylinder (Clippard #Srr-12-2-Sp; 5 1/2" Rod Ext.)
55 2-0567 Lock-Safety Ls
  2-1475 Lock-Safety Rs
56 1-0775 Plastic Bracket
57 1-0776 Plastic Guide
58 6-0673 Hex Nut
59 1-0799 Sheave-Spacer 1 3/4"Lg.
60 6-0726 Set Screw
61 1-0943 Sheave-Spacer 2 "Lg.
62 6-0060 Flat Washer
63 4-0393 Hydraulic Cylinder 3.5"
64 3-0581 Safety Rack Weldment
65 6-0004 Wear Ring 3/8" Wide X 1/8"Thk. X 3 1/2"O.D.
66 2-1035 Piston
67 6-1585 "O" Ring 1 1/4"O.D. X 1"I.D. X 1/8" C/S
68 6-0003 Piston Seal 3 1/2"O.D. X 3"I.D. X 3/8"
69 0-0241 Piston Seal Kit
70 2-1036 Piston Rod (Machined)
71 6-1454 Hex Nut
72 2-1037 Cable Flange
73 6-0665 Hose Clamp 4 1/2"Dia.
74 6-0666 Hex. Bolt
75 6-0001 Rod Wiper 1 1/2" X 1 7/8"
76 6-1304 Rod Seal 1 1/2"I.D. X 1 7/8"O.D. X 5/16"
77 3-0522 Gland
78 6-0655 "O" Ring 3 1/2"O.D. X 1/8 C/S
79 0-0242 Gland Seal Kit
80 6-1386 Hex Hd. Bolt
81 2-0997 Sheave Cover
82 6-1306 Serial Tag
83 6-0988 "Ali" Plate
84 4-0368 Front Crossmember Weldment (Right Side)
85 6-0988 Decal Set, Ali/Wl 200
88 2-0980 Lock Safety Ls
  2-1427 Lock-Safety Rs
89 6-1125 "Caution" Tape, (40" Lg.)
90 6-1381 Hex Hd. Bolt
91 6-0027 Hex Hd. Bolt
92 6-0769 Hex Hd. Bolt
93 6-0248 Flat Washer
94 6-0035 Hex Nut
95 2-1125 Top Plate
96 6-1453 Lock Nut
97 6-1637 Attention Decal
98 1-1766 Keeper Washer



Click on the part number for more information

ITEM PART NO DESCRIPTION
ITEM PART NO DESCRIPTION
1 6-0709 90 Elbow
2 6-0651 Air Cylinder
3 6-0706 1/4" Dia. Poly Tube (50 Lg.)
4 6-0710 Adapter, 3/8" Poly Tube X 1/4"Npt
5 6-0713 Terminal Bolt
6 6-0282 Plug
7 6-0014 1/4" Npt Street Tee
8 6-0015 1/4" Npt Street Elbow
9 6-0707 3/8" Dia. Poly Tube (25 Lg.)
10 6-0804 90 Elbow
11 6-0714 Hose Guard (4 Lg.)
12 6-1398 Power Pack 230v/1 Ph/3 Hp
  6-2614 Power Pack AssY, 230v/3 Ph
13 6-0715 Hyd.Hose Ass'y, 3/8"Swivelx3/8"Jicm, 147"Lg.
14 6-0731 Cable Tie
15 2-1394 Air Valve & Filter AssY
16 6-0797 Adapter, 3/8"Npt M X 3/8"Jic F, Swivel
17 6-0090 Flow Control
18 6-1775 3-Way Air Valve
19 6-0796 90 Elbow
20 6-0708 Adapter, 1/4" Poly Tube X 1/8"Npt
21 6-1777 Air Valve Pushbutton Kit
22 6-0772 Air Filter Assembly
  6-0180 Air Filter Element, (Replacement)
23 0-0405 Air Valve Fitting Kit
24 6-0025 Velocity Fuse
25 6-0182 Plug
26 1-1057 Manifold
27 6-0177 Hex Hd.Cap Screw
28 6-0032 Hex Nut
29 6-0056 Lockwasher
30 6-0747 1/4 Polytube Adapter
32 6-0593 "Lift Operation" Decal
33 6-0280 Adapter, 1/8"Npt M X 1/4"Jic M



Click on the part number for more information

ITEM PART NO DESCRIPTION
ITEM PART NO DESCRIPTION
1 2-1287 Cable Assembly, 387" Lg. (Left-Front)
2 2-1094 Cable Assembly, 178" Lg. (Left-Rear)
3 2-1095 Cable Assembly, 234" Lg. (Right-Rear)
4 2-1288 Cable Assembly, 442" Lg. (Right-Front)
5 6-0724 Hex Nut
6 1-0800 Cable Spacer, 2"Lg.
7 6-0725 Flat Washer
8 1-0801 Cable Spacer, 1"Lg.



Click on the part number for more information

ITEM PART NO DESCRIPTION
ITEM PART NO DESCRIPTION
1 6-0881 Microswitch And Wiring Assembly
2 6-1084 Microswitch Boot
3 6-1959 Motor, 230v Ac, 1 Phase, 60 Hertz, 3hp
  6-1079 Motor, 230v Ac, 3 Phase, 60 Hertz
4 0-0197 Motor Adapter Kit
5 6-1085 Socket Hd.Cap Scw. 1/4"-20unc X 1 5/8"Lg.
6 6-0056 Lock Washer
7 6-1086 Allen Flat Hd.Scw. 1/4"-20unc X 3/4"Lg.
8 6-0774 Coupling
9 6-0776 Release Bracket & Handle Assembly
10 6-0880 Valve Cartridge Release
11 6-1087 Valve Cartridge Check
12 6-1323 Fixed Relief Valve Assembly (Rv 23)
13 6-1089 Relief Valve Cap
14 6-0875 Reservoir "O" Ring
15 6-1958 Pump Assembly, 2.5cc/Rev
16 6-1090 Pump Mounting Bolt
17 0-0198 Inlet Plumbing Kit
18 6-0786 Inlet Hose / Filter Assembly
19 0-0199 Pump "O" Ring Kit
20 6-0783 Return Tube
21 6-0784 Breather Filler Cap
22 6-0785 Reservoir
23 6-1091 Reservoir Screw
