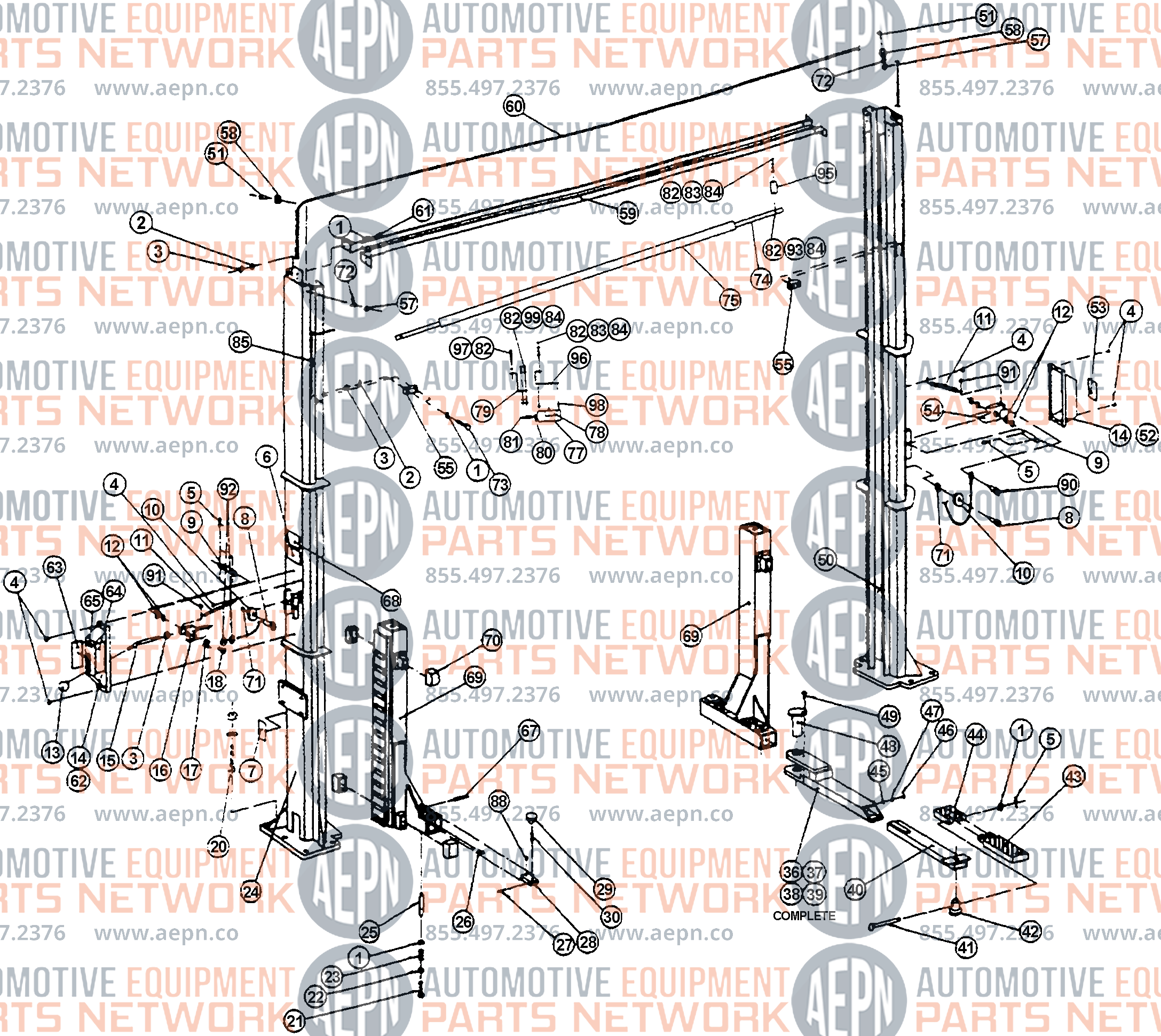

WHEELTRONICS 11168VS Parts Breakdown



Click on the part number for more information

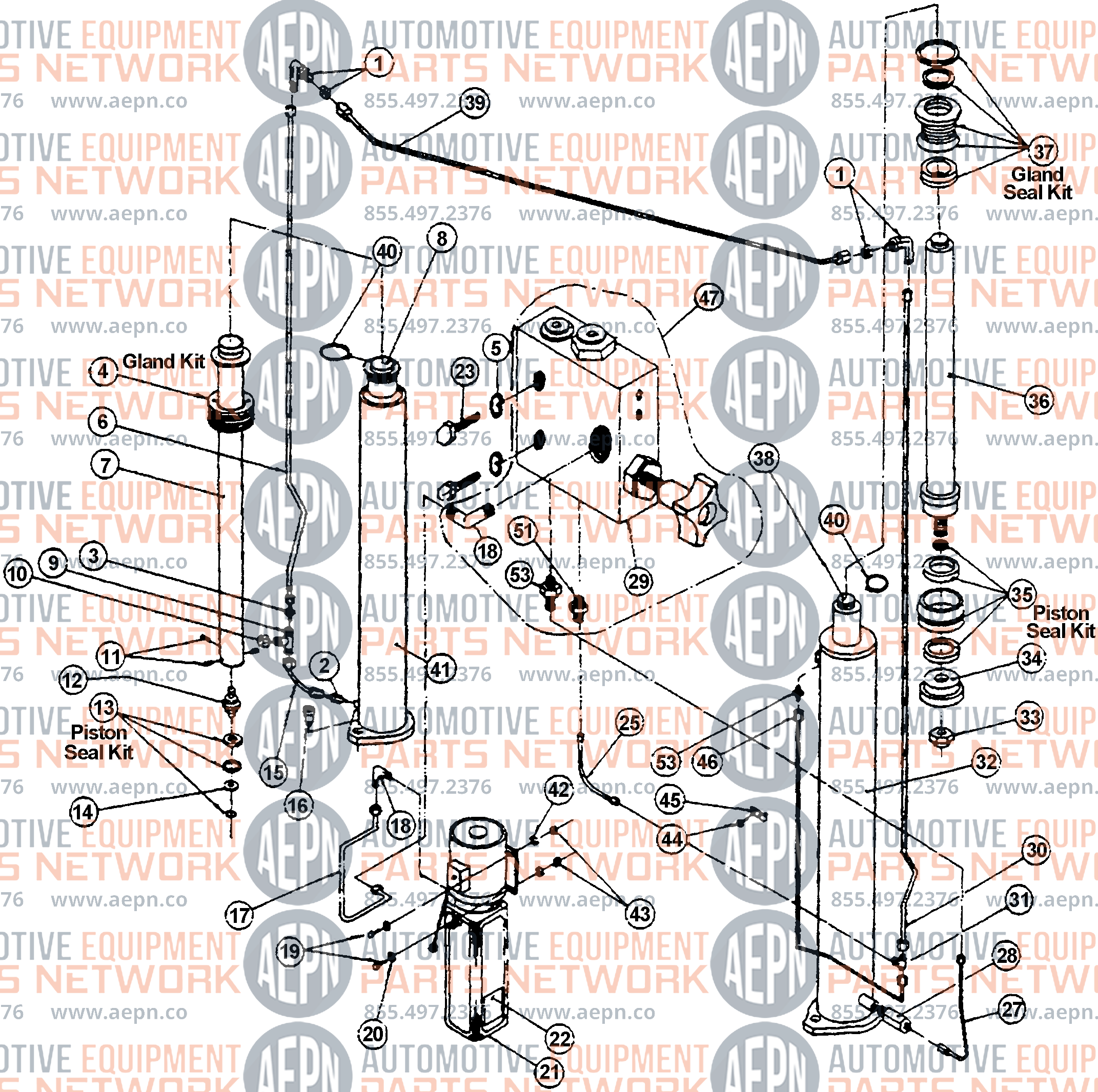

ITEM PART NO DESCRIPTION
ITEM PART NO DESCRIPTION
1 6-0248 Flat Washer, 1/2"
2 6-0059 Lock Washer, 1/2"
3 6-0035 Hex Nut, 1/2"-13
4 6-1134 Self Tap. Screw, #12 x 1/2"
5 6-0267 Cotter Pin, 1/8" x 1"
6 6-0996 ALI/ETL Decal
7 6-1583 "Hydraulic Leveling" Decal
8 6-0206 Shoulder Bolt, 3/8" x 1"
9 1-0938 Safety Pin
10 1-0415 Safety Pulley
11 1-1115 Safety Spring
12 6-0808 Flat Washer, 51/64" x 1" x 1/16" Thk.
13 6-1135 Plastic Knob
14 3-0439 Safety Cover
15 1-1113 Safety Release Handle
16 2-0902 Safety Dog, Power Side
17 1-1291 Cable Connecting Bracket
18 6-0115 Cotter Pin, 1/8" x 2"
20 6-1379 Wedge Anchor, 3/4"-10 x 5-1/2"
21 6-0027 Hex Bolt, 1/4"-20 x 1-1/4"
22 6-0626 1/4" Fender Washer
23 1-0939 Plunger Spring
24 4-0621 Tower, L.H.
25 1-0745 Pivot Plunger
26 6-0000 Grease Fitting
27 6-0437 Roll Pin, 1/8" x 1"
28 2-0249 Rack
29 1-0208 Knob
30 1-1135 Thrd. Rod, 3/8"-16 x 1-1/2"
36 3-0657 Long Outer Arm Tube, F.L., R.R.
37 3-0656 Long Outer Arm Tube, F.R., R.L.
38 4-0616 Long Locking Arm Assy., F.L., R.R.
39 4-0617 Long Locking Arm Assy., F.R., R.L.
40 2-1273 Long Inner Arm
41 1-1099 Center Pin
42 1-1091 Adapter Pin
43 3-0582 High Step Position Adpt.
    Height Ext. Drop-On 6" w/Pad
44 3-0583 Low Position Adpt.
45 6-0062 Flat Washer, 3/8"
46 6-0030 Hex Bolt, 3/8"-16 x 3/4"
47 6-0058 Lock Washer 3/8"
48 2-0929 Arm Pin
49 6-0423 Hex Bolt, 5/16"-18 x 3/4"
50 4-0620 Tower, R.H.
51 6-0069 Shoulder Bolt, 3/8" x 5/8"
52 0-0203 Safety Cover w/Decals, R.H.
53 6-0594 "Safety Instructions" Decal
54 2-0872 Safety Dog, Slave Side
55 1-1119 Carriage Stop
57 6-0294 Hex Nut, 5/16"-18
58 1-1116 Safety Cable Pulley
59 2-1281 Crossmember
60 1-1647 Safety Release Cable, 341-1/2"
61 6-0046 Hex Bolt, 1/2"-13 x 1-1/4"
62 0-0204 Safety Cover w/Decals, Power Side
63 6-0595 "Warning" Decal
64 6-0592 "Caution" Decal
65 6-0603 "Safety Release" Decal
67 1-0333 Pivot Pin
68 6-1172 Serial #Tag
69 4-0613 Carriage
70 2-0772 Glide Bearing
71 6-0295 Flat Washer, 5/16"
72 6-0296 Lock Washer, 5/16"
73 6-0315 Hex Bolt, 1/2"-13 x 2-1/4"
74 1-1439 Actuator Bar
75 6-1404 Foam Guard
77 6-1403 Electrical Utility Box
78 6-0916 Microswitch
79 1-1379 Actuator Extension
80 6-1133 Cable Connector
81 6-1513 Eq. Cable, 16/3 x 141"
82 6-0032 Hex Hd. Nut, 1/4" NC
83 6-0178 Hex Hd. Bolt, 1/4" NC x 3/4"
84 6-0056 Lock Washer, 1/4"
85 6-1230 Electrical Cable Clip, 3/8"
88 6-0438 Set Screw, 1/4"-20 x 1/2"
90 6-0908 Shoulder Bolt, 3/8" x 1-1/4"
91 6-0169 Self-Tap. Screw #10 x 3/8"
92 6-0032 Hex Nut, 1/4" NC
93 6-0205 Hex Hd. Bolt, 1/4" NC x 1-1/8"
95 1-1378 Actuator Mtg. Bracket
96 2-1143 Limit Switch Mtg. Bracket
97 6-0741 Hex Hd. Bolt, 1/4"-20 x 2"
98 6-1466 6/32" Screw (Electrical Box)
99 6-0027 Hex Hd. Bolt, 1/4" x 1-1/4"



Click on the part number for more information

ITEM PART NO DESCRIPTION
ITEM PART NO DESCRIPTION
1 6-0881 Microswitch
2 6-1084 Microswitch Boot
3 6-0773 Motor 230 Vac. 1 PH. 60 Hz.
4 0-0197 Motor Adpt.
5 6-1085 Skt. Hd. Capscrew 1/4" x 5/8"
6 6-0056 Lock Washer 1/4"
7 6-1086 Allen Head Flat Screw 1/4" x 3/4"
8 6-0774 Coupling
9 6-0776 Release Bracket & Handle Assembly
10 6-0880 Valve Cartridge Release
11 6-1087 Valve Cartridge Check
12 6-1324 Fixed Relief Valve (RV24)
13 6-1089 Relief Valve Cap
14 6-0875 Reservoir "O" Ring
15 6-0782 Pump Assembly
16 6-1090 Pump Mounting Bolt
17 0-0198 Inlet Plumbing Kit
18 6-0786 Inlet Hose/Filter Assembly
19 0-0199 Pump "O" Ring Kit
20 6-0783 Return Tube
21 6-1376 Breather-Filler Cap (Plastic)
22 6-1399 Reservoir (Plastic)
23 6-1091 Reservoir Screw
24 6-1133 Cable Connector 3/8"



Click on the part number for more information

ITEM PART NO DESCRIPTION
ITEM PART NO DESCRIPTION
1 6-0012 90 Blk Hd., 3/8" JIC-3/8" JIC
2 6-0345 Adpt., 3/8" NPT-3/8" JIC x 2-1/4"
3 6-0286 Union, 3/8" JIC Male
4 0-0207 Gland Seal Kit, R.H.
5 6-0056 Lock Washer, 1/4"
6 2-1065 Hydraulic Tube Assembly
7 2-0930 Piston Tube, R.H.
8 3-0480 Hydraulic Cylinder Assembly, R.H.
9 6-0284 Tee, 3/8" Swivel Nut JIC Male
10 6-0021 Cap. 3/8" JIC
11 6-0580 Allen Hd. Setscrew, 1/4"-20 x 3/8"
12 2-0619 Piston
13 0-0159 Piston Seal Kit, R.H.
14 1-0725 Keeper Washer
15 1-0102 Hydraulic Tube Assembly
16 6-0425 Shoulder Bolt, 1/2" x 5/8"
17 2-1140 Hydraulic Tube Assembly
18 6-0804 90 9/16" SAE M-3/8" JIC M
19 6-0293 Hex Bolt, 5/16"-18 x 1"
20 6-0061 Flat Washer, 5/16"
21 6-1176 Power Pack
22 6-1266 "Lift Operations" Decal
23 6-0028 Hex Hd. Bolt 1/4" 20 x 1-3/4"
25 1-1341 Hydraulic Hose Assembly
27 2-0886 Hydraulic Tube Assembly
28 6-0422 Velocity Fuse, 4 GPM
29 6-1362 Hydraulic Valve Block
30 2-1064 Hydraulic Tube Assembly
31 6-1372 Branch "T" JIC All Ends
32 3-0428 Cylinder Barrel, L.H.
33 6-0631 Uni-Torque Lock Nut 7/8"-9
34 2-0521 Piston Spigot
35 0-0160 Piston Seal Kit, L.H.
36 2-0793 Piston Rod, L.H.
37 0-0206 Gland Seal Kit, L.H.
38 4-0289 Hydraulic Cylinder Assembly, L.H
39 2-1286 Hydraulic Tube Assembly
40 6-0340 Circlip
41 2-0802 Cylinder Barrel, R.H.
42 6-0674 Lock Washer, 5/16"
43 6-0294 Hex Nut, 5/16"-18
44 6-1353 Rnd. Hd. Bolt, 1/4"-20 x 3/8"
45 6-0170 Tube Clamp
46 2-0887 Hydraulic Tube Assembly
47 6-1389 Hydraulic Valve Blk Assy. (C/W Fittings
51 6-0281 Adpt. 1/4" NPT, M-1/4" JIC M
53 6-0276 Adpt., 1/4" NPT, M-3/8" JIC M
