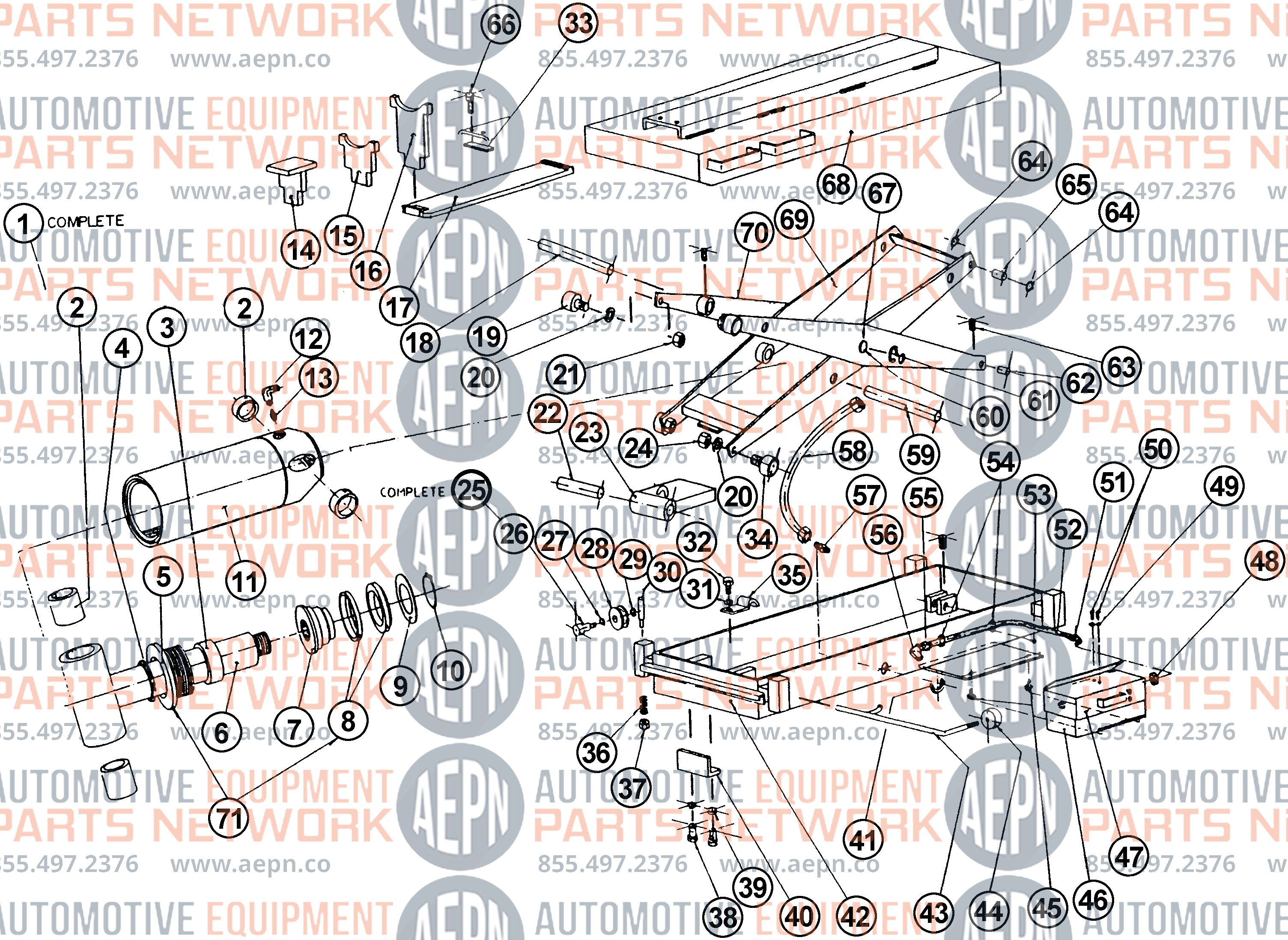

SPACE SAVER SLIDING JACK BEAM 4500 Parts Breakdown



Click on the part number for more information

ITEM PART NO DESCRIPTION
ITEM PART NO DESCRIPTION
1 3-0362 Hydraulic Cylinder Assembly
2 6-0800 Sleeve Bearing
3 6-0799 Sleeve Bearing
4 6-0798 Wiper Ring
5 1-0880 Gland
6 2-0616 Piston Rod
7 1-0881 Piston
8 6-0579 Seal & Wiper Ring
9 1-0725 Keeper Washer
10 6-0581 External Snap Ring
11 2-0614 Cylinder Tube
12 1-0600 90 Elbow
13 6-0911 Velocity Fuse
13 1-1726 Velocity Fuse Assembly
14 2-0264 Neoprene Riser
14 2-1174 Neoprene Riser
15 2-0163 Riser Short
16 2-0164 Riser Tall
17 1-0047 Lifting Arm
18 1-0584 Scissor Pin "B"
19 6-0076 Upper Cam Follower
20 1-0228 Spacer
21 6-0672 Hex Nut, 5/8"-18
22 1-0561 Safety Pin
23 1-0562 Safety Stop
24 6-0040 Jam Nut, 5/8"-18
25 2-0259 Roller Assembly
26 6-0206 Shoulder Bolt, 3/8"x1"
27 6-0223 Thrust Washer, 3/8"
28 2-0098 Track Roller Assembly
29 6-0224 Thrust Washer, 3/8"
30 1-0204 Spring Stem
31 6-0056 Lock Washer, 1/4"
32 6-0178 Hex Bolt, 1/4-20 x 3/4"
33 1-0262 Arm Stop
34 1-0130 Cam Follower
35 6-0671 Clip
36 6-0081 Spring
37 6-0042 Nylon Nut, 3/8"
38 6-0030 Hex Bolt, 3/8"-16 x 3/4"
39 6-0058 Lock Washer, 3/8"
40 1-0608 Keeper Bracket
41 6-0670 Snap-In Grommet
42 4-0154 Bottom Frame
43 1-0589 Lever
44 6-0251 Knob, 3/8"-16
45 6-0178 Hex Bolt, 1/4"x3/4"
46 6-0960 Air/Hydraulic Pump
47 2-0757 Pump Shield
48 6-0968 Jam Nut, 1/4" NPT
49 6-0207 Flat Washer, #10
50 6-0068 Round Hd. Screw, #10 x 1/2"
50 6-1076 Hex Hd. Screw, #10 x 1/2"
51 6-0966 90 Elbow, 1/4" NPT, F-3/8" Poly
52 1-1010 Poly Tube
53 6-0169 Self Tap. Screw, #10 x 3/8"
54 6-0536 Tube Clamp
55 6-0710 Adapter, 3/8" Poly to 1/4" NPT, M
56 6-0967 90 Elbow, 1/4" NPT, F-1/4" NPT, F
57 1-0805 Adapter with Restrictor
58 1-0765 Hydraulic Hose Assembly
59 1-0583 Scissor Pin "B"
60 1-0574 Center Shaft
61 6-0329 Retaining Ring
62 1-0599 Bottom Hinge Pin
63 6-0438 Set Screw, 1/4"-20 x 1/2"
64 6-0072 Retaining Ring
65 1-0598 Top Hinge Pin
66 6-0441 Button Hd. Cap Screw, 1/4"-20 x 3/8"
67 6-0328 Thrust Washer
68 3-0433 Top Cover
69 3-0289 Scissor Arm, Inside
70 3-0288 Scissor Arm, Outside
71 0-0190 Hydraulic Cylinder Seal Kit



Click on the part number for more information

ITEM PART NO DESCRIPTION
ITEM PART NO DESCRIPTION
1 6-0999 Check & Release Valves Assembly
2 6-1000 Release Valve Assembly
3 6-1001 Gasket
4 6-1002 Cover Plate
5 6-1003 "O" Ring
6 6-1004 Spring
7 6-1005 Piston Body
8 6-1006 "O" Ring
9 6-1007 Piston Ring
10 6-1008 Piston
11 6-1009 Spring Guide
12 6-1010 Bumper
13 6-1011 Compression Spring
14 6-1012 Pump Body
15 6-1013 Copper Washer
16 6-1014 Cap Screw
17 6-1015 Relief Valve Assembly
18 6-1016 Hex-Socket Cap Screw
19 6-1017 Lock Washer
20 6-1018 Steel Ball
21 6-1019 Copper Washer
22 6-1020 Filter Adapter
23 6-1021 Filter Assembly
24 6-1022 90 Elbow
25 6-1023 Gasket
26 6-1024 Reservoir
27 6-1025 Copper Washer
28 6-1026 Gasket
29 6-1027 Exhaust Valve Stem
30 6-1028 Piston
31 6-1029 Cylinder
32 6-1030 Retainer
33 6-1031 "U" Cup
34 6-1032 Retaining Ring
35 6-1033 Lock Washer
36 6-1034 Hex-Socket Cap Screw
37 6-1035 Piston Poppet
38 6-1036 Air Cylinder
39 6-1037 Cap Screw
40 6-1038 Backup Ring
41 6-1039 Spring
42 6-1040 Rear Head
43 6-1041 Gasket
44 6-1042 Gasket
45 6-1043 Plug
46 6-1044 Flat Washer
47 6-1045 Screw
48 6-1046 Hex-Socket Cap Screw
49 6-1047 Poly Tube L=10"
50 6-1048 Elbow Fitting
51 6-1049 Rubber Gasket
52 6-1050 Breather Cap
53 6-1051 Hex Socket Set Screw
54 6-1052 Button
55 6-1053 Locknut
56 6-1054 Tooth Lock Washer
57 6-1055 Air Valve
58 6-1056 Plastic Washer
59 6-1057 Straight Fitting
60 6-1058 90 Elbow
61 6-1059 Connector
62 6-1060 Filter
63 6-1061 "O" Ring
64 6-1062 "O" Ring
65 6-1063 Valve Body
66 6-1064 "O" Ring
67 6-1065 Piston
68 6-1066 Hex-Socket Cap Screw
69 6-1067 Valve Body
70 6-1068 Filter
71 6-1069 Tooth Lockwasher
72 6-1070 Straight Adapter
72 1-1079 Flow Control
