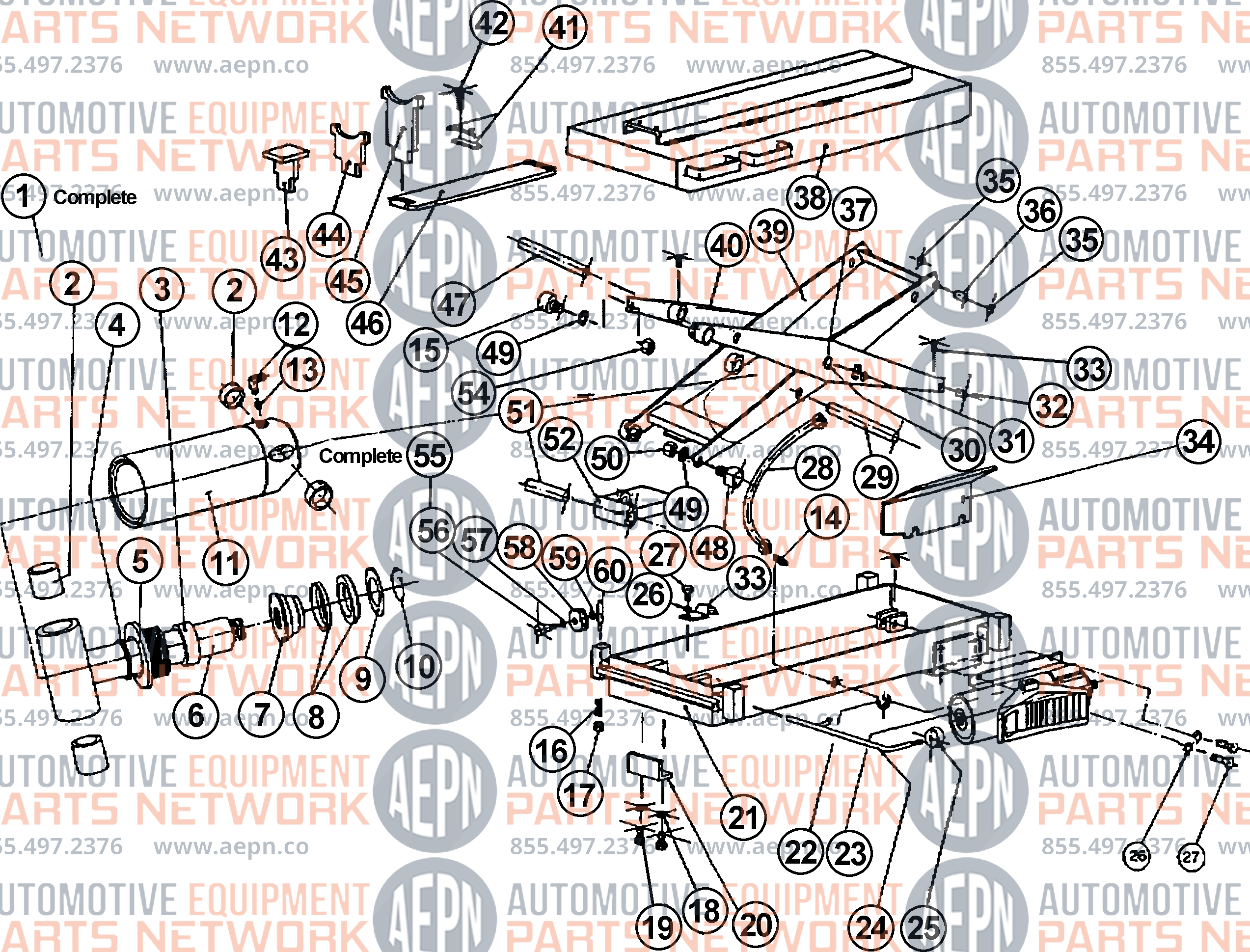

SPACE SAVER 145 SLIDING JACK BEAM Parts Breakdown

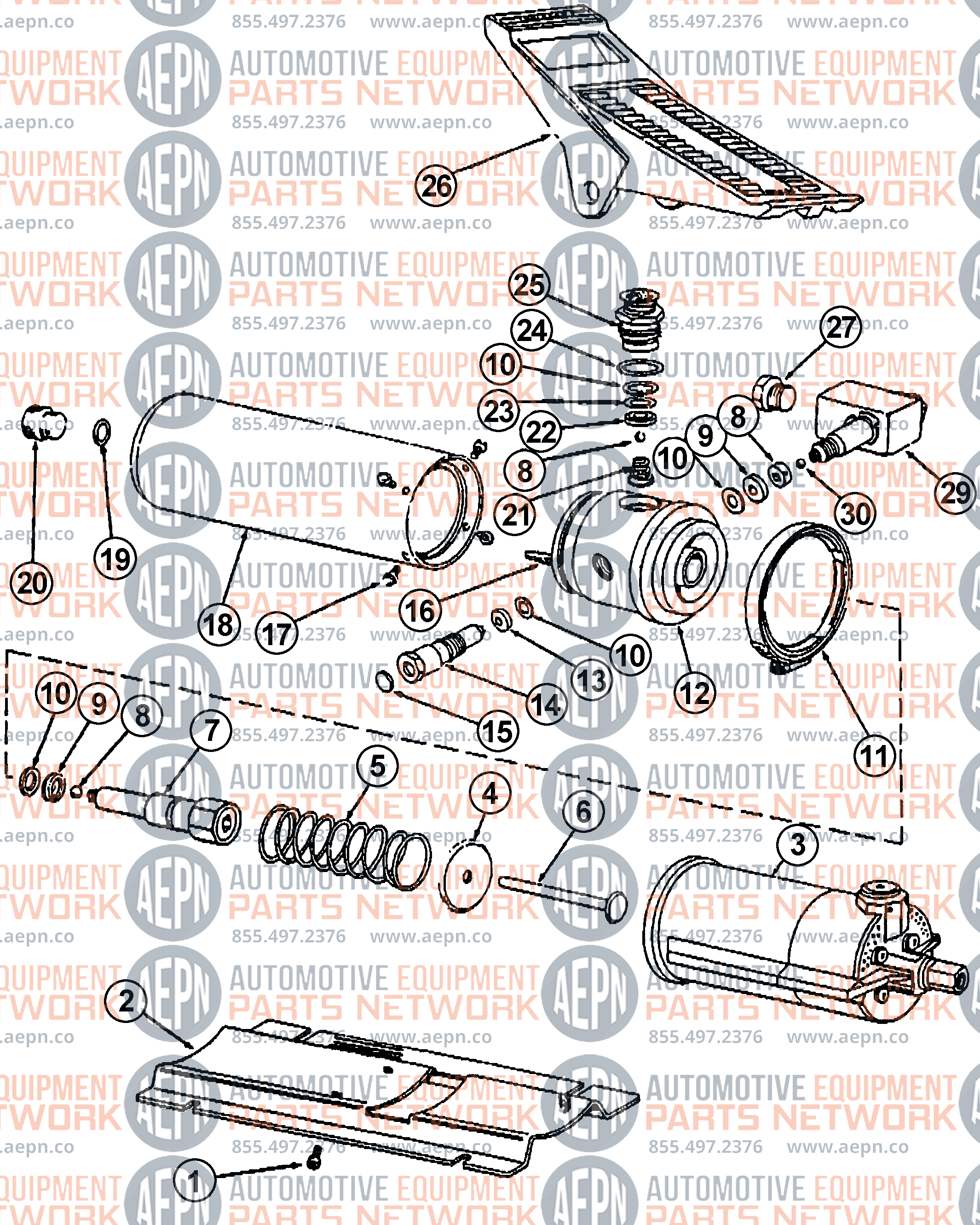

Click on the part number for more information
| ITEM | PART NO | DESCRIPTION |
|---|---|---|
| ITEM | PART NO | DESCRIPTION |
| 1 | 3-0362 | Hydraulic Cylinder Complete |
| 2 | 6-0800 | Sleeve Bearing |
| 3 | 6-0799 | Sleeve Bearing |
| 4 | 6-0798 | Wiper Ring |
| 5 | 1-0880 | Gland |
| 6 | 2-0616 | Piston Rod |
| 7 | 1-0881 | Piston |
| 8 | 6-0579 | Seal and Wiper Ring |
| 9 | 1-0725 | Keeper Washer |
| 10 | 6-0581 | External Snap Ring |
| 11 | 2-0614 | Cylinder Tube |
| 12 | 1-0600 | 90 Elbow |
| 13 | 6-0513 | Velocity Fuse |
| 14 | 6-0011 | Male Adpt., 3/8" JIC to 3/8" M BPT |
| 15 | 6-0076 | Upper Cam Follower |
| 16 | 6-0081 | Spring |
| 17 | 6-0042 | Nylon Nut, 3/8" |
| 18 | 6-0058 | 3/8" Lock Washer |
| 19 | 6-0030 | Hex Bolt, 3/8"-16 x 3/4" |
| 20 | 1-0608 | Keeper Bracket |
| 21 | 4-0154 | Bottom Frame |
| 22 | 6-0670 | Snap-In Grommet |
| 23 | 6-0646 | Air/Hydraulic Pump |
| 0-0174 | Hydraulic Cylinder Seal Kit Includes 4,8 | |
| 24 | 1-0589 | Lever |
| 25 | 6-0251 | 3/8"-16 Knob |
| 26 | 6-0056 | 1/4" Lock Washer |
| 27 | 6-0178 | Hex Bolt, 1/4"-20 x 3/4" |
| 28 | 1-0765 | Hydraulic Hose Assembly |
| 29 | 1-0584 | Scissor Pin "B" |
| 30 | 1-0574 | Center Shaft |
| 31 | 6-0329 | Retaining Ring |
| 32 | 1-0599 | Bottom Hinge Pin |
| 33 | 6-0438 | Set Screw, 1/4"-20 x 1/2" |
| 34 | 1-0609 | Shield |
| 35 | 6-0072 | Retaining Ring |
| 36 | 1-0598 | Top Hinge Pin |
| 37 | 6-0328 | Thrust Washer |
| 38 | 3-0029 | Top Frame Assembly |
| 39 | 3-0289 | Scissor Arm, I.S. |
| 40 | 3-0288 | Scissor Arm, O.S. |
| 41 | 1-0048 | Arm Stop |
| 42 | 6-0441 | 1/4"-28 Button Hd. Capscrew, 3/8" Lg. |
| 43 | 2-0264 | Neoprene Riser |
| 44 | 2-0163 | Small Riser Bracket |
| 45 | 2-0164 | Large Riser Bracket |
| 46 | 1-0047 | Lifting Arm |
| 47 | 1-0583 | Scissor Pin"A" |
| 48 | 1-0130 | Cam Follower |
| 49 | 1-0228 | Spacer |
| 50 | 6-0040 | Jam Nut, 5/8"-18 |
| 51 | 1-0561 | Safety Pin |
| 52 | 1-0562 | Safety Stop |
| 53 | 6-0671 | Clip |
| 54 | 6-0672 | 5/8"-18 Hex Nut |
| 55 | 2-0259 | Roller Assembly |
| 56 | 1-1301 | Shoulder Bolt, 3/8" x 1" |
| 57 | 6-0223 | 3/8" Thrust Washer |
| 58 | 2-0098 | Track Roller Assembly |
| 59 | 6-0224 | 3/8" Thrust Washer |
| 60 | 1-0264 | Spring Stem |
Click on the part number for more information
| ITEM | PART NO | DESCRIPTION |
|---|---|---|
| ITEM | PART NO | DESCRIPTION |
| 1 | 6-0675 | Capscrew |
| 2 | 6-0675 | Base |
| 3 | 6-0677 | Air Motor Assembly |
| 4 | 6-0678 | Spring Cap |
| 5 | 6-0679 | Spring |
| 6 | 6-0680 | Plunger |
| 7 | 6-0681 | Hydraulic Cylinder Assembly |
| 8* | 6-0682 | 7/32" Ball |
| 9* | 6-0683 | Ball Seat |
| 10* | 6-0684 | Gasket |
| 11 | 6-0685 | Body Retainer |
| 12 | 6-0686 | Hydraulic Body Assembly |
| 13 | 6-0687 | Relief Ball Seal |
| 14 | 6-0688 | Relief Valve Assembly |
| 15 | 6-0689 | Safety Valve Plug |
| 16 | 6-0690 | Filter |
| 17 | 6-0691 | Screw |
| 18 | 0-0692 | Reservoir Sub-Assembly |
| 19* | 6-0693 | Back-Up Washer |
| 20 | 6-0694 | Plug |
| 21* | 6-0695 | Spring |
| 22 | 6-0696 | Ball Seat |
| 23* | 6-0697 | Gasket |
| 24* | 6-0698 | "O'-Ring |
| 25 | 6-0699 | Release Plunger @ Roller Assembly |
| 26 | 6-0700 | Treadle |
| 27 | 6-0701 | Plug |
| 28 | 6-0702 | Ball Guide |
| 29 | 6-0703 | Swivel Coupler Assembly |
| 30* | 6-0704 | 1/4" Ball |
| 6-0722 | Repair Kit Includes 8,9,20,29,32,23,24,40 |
