SNAPON EELR358A Parts Breakdown



Click on the part number for more information

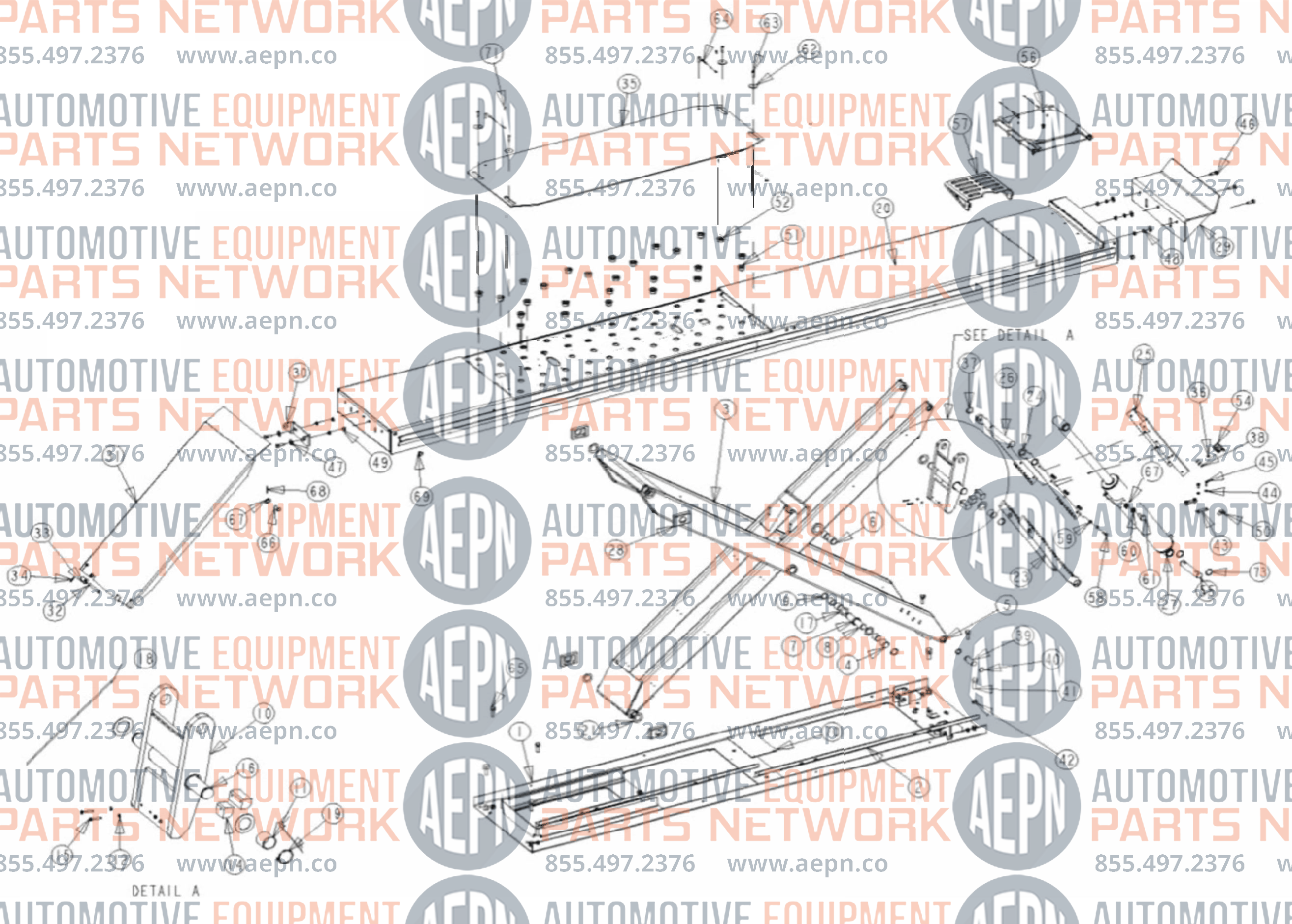

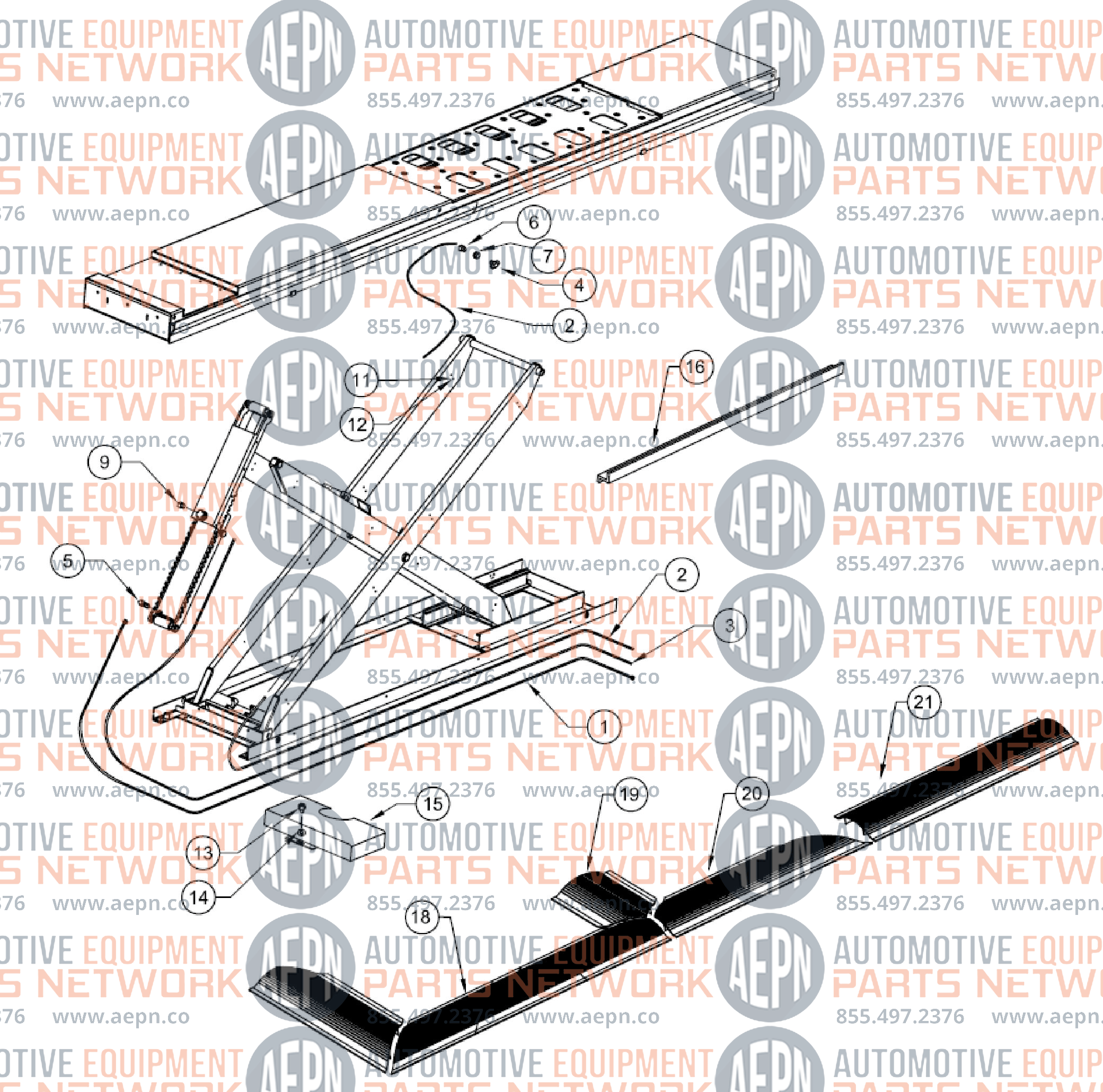

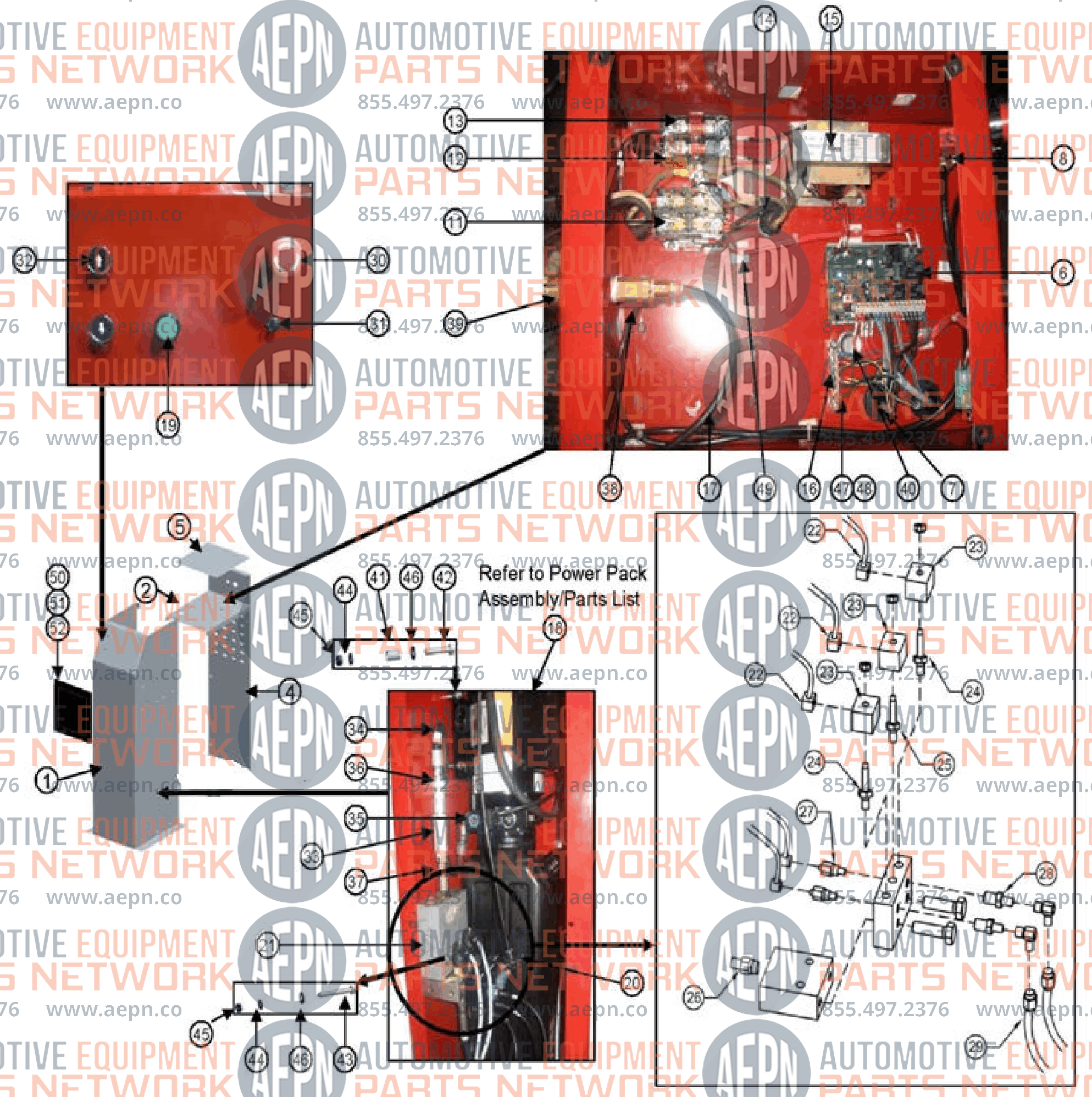

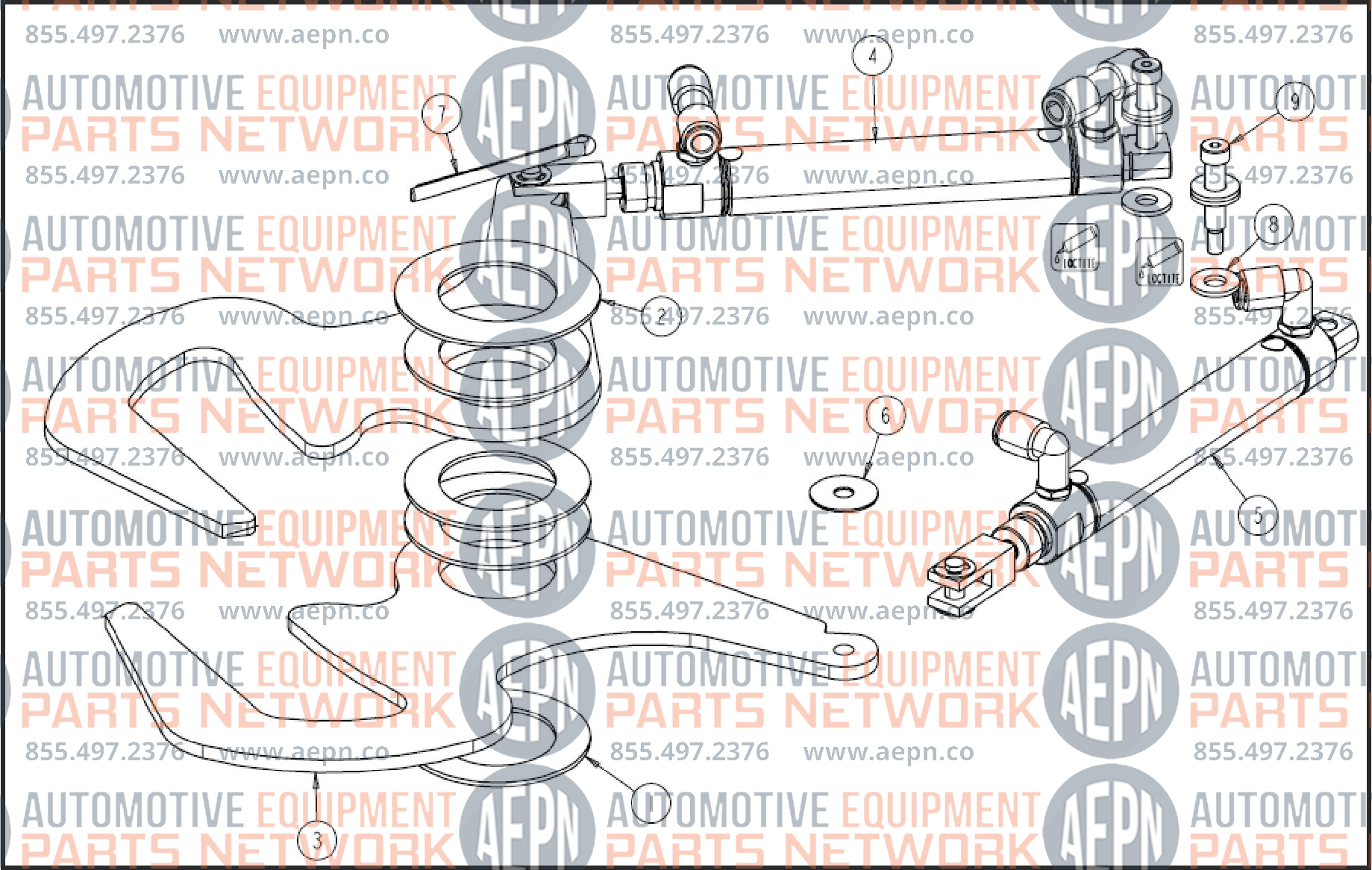

ITEM PART NO DESCRIPTION
ITEM PART NO DESCRIPTION
1 3-0978 Baseframe Weldment
2 2-2301 Base Frame Cover (L)
3 2-2599 Scissor Assembly
4 6-2899 Bushing
5 6-3087 Bushing
6 6-3419 1-5/8 Self-Lubricating Bushing
7 1-2795 Scissor Spacer
8 1-2791 Scissor Pin
9 6-0233 Snap Ring, #5100-150
10 2-2470 Kicker Assembly
11 1-3284 Scissor Spacer 10k
12 6-0816 Flat Washer
14 1-3223 Bearing Block, Inner
15 6-1523 Screw
16 1-3185 Kicker Pivot Pin
17 1-0757 Nylon Thrust Washer
18 1-3171 Thrust Washer
19 6-3418 Snap Ring, #5100-163
20 4-1438 Deck Weldment, Lh (173")
  4-1439 Deck Weldment, Rh (173")
  4-1440 Deck Weldment, Lh (173) - Locking & Lights Option
  4-1441 Deck Weldment, Rh (173) - Locking & Lights Option
  4-1434 Deck Weldment, Lh (155")
  4-1435 Deck Weldment, Rh (155")
  4-1436 Deck Weldment, Lh (155) - Locking & Lights Option
  4-1437 Deck Weldment, Rh (155) - Locking & Lights Option
21 1-3171 Thrust Washer
23 2-2111 Safety Bar Bottom (Laser Cut)
24 2-2112 Safety Bar, Top (Laser Cut)
25 2-2183 Scissor Safety Cover
26 1-3186 Kicker Clevis Pin
27 4-1171 Cylinder Assembly
28 2-2725 Slider Block
29 2-2117 Wheelstop Weldment
30 1-3159 Adaptor Plate
31 3-0905 Approach Ramp Assembly (Surface Mount)
  3-0698 Approach Ramp Assembly (Flush Mount)
32 1-1099 Clevis Pin
33 1-3062 Ramp Roller
34 6-0267 Cotter Pin, 1/8" Dia. X 1" Lg.
35 2-2505 Rear Slip Plate
  2-2721 Rear Slip Plate Weldment - Ls (Locking & Lights)
  2-2740 Rear Slip Plate Weldment - Rs (Locking & Lights)
36 2-1733 Rod End
37 6-0233 Snap Ring, #5100-150
38 6-2281 Philips Screw
39 1-2788 Hinge Pin
40 6-0340 Circlip Tru-Arc #5100-125
41 6-2936 Hex Head Gr5 Bolt
42 80259000 Hex Jam Nut
43 1-2793 Cylinder Retainer
44 6-0058 Lock Washer
45 6-0067 Hex Bolt
46 6-0291 Hex Bolt
47 6-0063 Flat Washer
48 6-0059 Lock Washer
49 6-0035 Nut
50 6-2956 90 Hyd Elbow
51 6-3974 Tranfer Ball Bearing
52 1-3762 Plastic Puck Insert
54 3-0812 Air Cylinder Assembly
55 1-2789 Cylinder Pin
57 2-2119 Workstep
58 6-0666 Hex Bolt
59 6-0034 Hex Nut
60 6-0259 Lock Washer
61 6-2936 Hhcs, 3/4-16 Unf X 1-1/2 Lg
62 6-0426 Flat Washer
63 6-0206 Shoulder Bolt
64 2-0637 Locking Pin Assembly
65 6-1670 Hex Bolt
66 1-1887 Headed Pin
67 6-0738 Flat Washer
68 6-0978 Cotter Pin, 1/8" Dia. X 1 /" Lg.
70 2-2409 Wear Plate
71 6-1134 Self Tapping Screw
72 1-1384 Tube End Cover
73 1-2905 Safety Lock Spacer



Click on the part number for more information

ITEM PART NO DESCRIPTION
ITEM PART NO DESCRIPTION

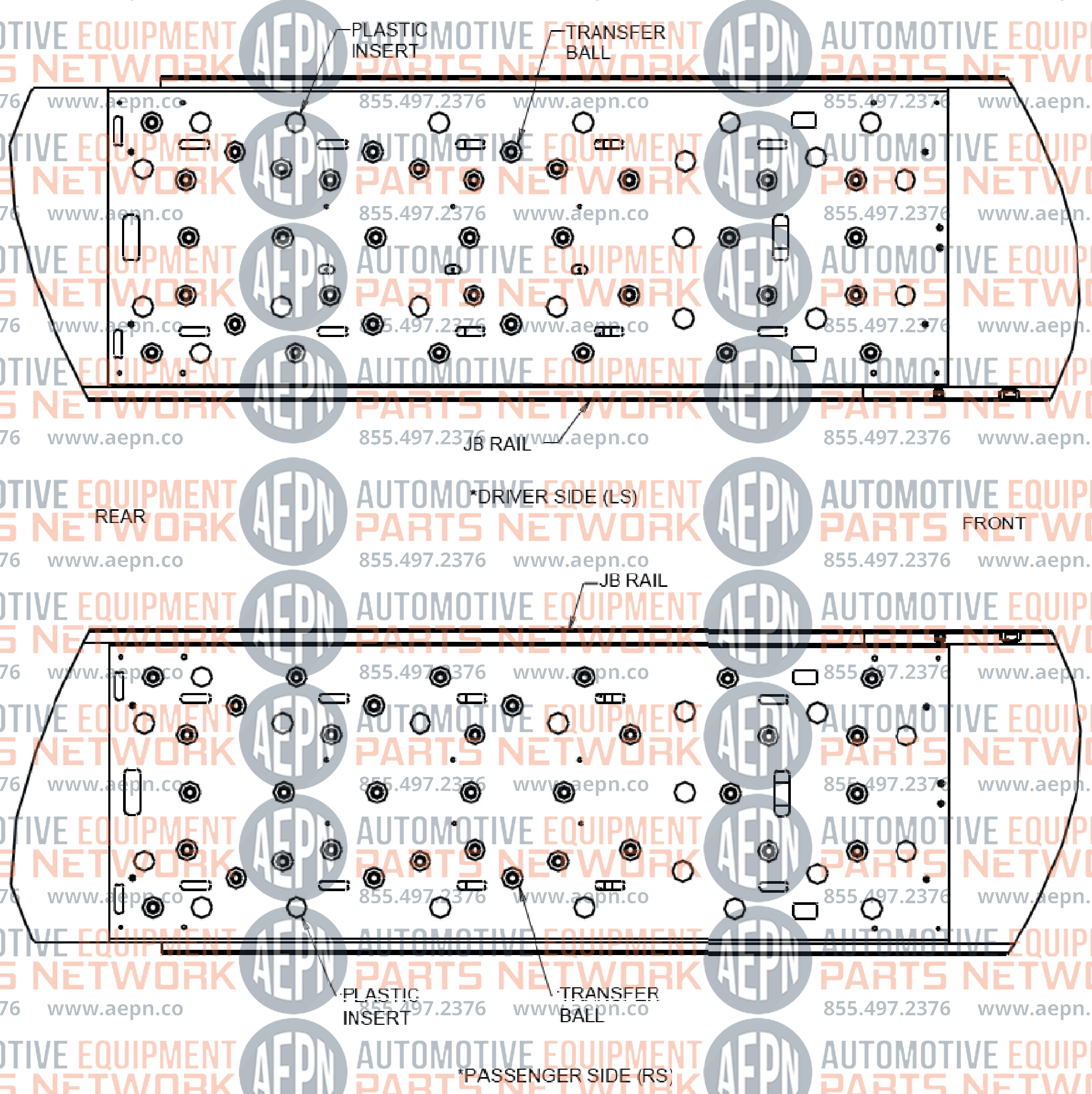

1 1-3762 Plastic Insert
2 6-3974 Transfer Ball



Click on the part number for more information

ITEM PART NO DESCRIPTION
ITEM PART NO DESCRIPTION
1 2-2717 3/8" Hydraulic Hose
2 6-3019 3/8" Polytube, 480" Lg
3 6-3020 1/4" Air Hose, 350" Lg
4 6-3896 Branch Tee Fitting Npt, F-F-M
5 6-2956 Velocity Fuse
6 6-3010 90 Deg Elbow
7 6-0167 Terminal Bolt
9 6-0709 90 Deg Elbow
11 6-0170 Pipe Clamp, 3/8"
12 6-1134 Self Threading Screw
13 6-0178 1/4" Hex Hd Bolt
14 6-0060 1/4" Sae, Flat Washer
15 2-2795 Front Cover
16 2-2519 Baseframe, Line Cover
17 2-2520 Baseframe, Line Cover
18 2-2733 Floor Line Cover A
19 2-2735 Floor Line Cover C
20 2-2734 Floor Line Cover B
21 2-2736 Floor Line Cover D
  6-0141 Nail



Click on the part number for more information

ITEM PART NO DESCRIPTION
ITEM PART NO DESCRIPTION

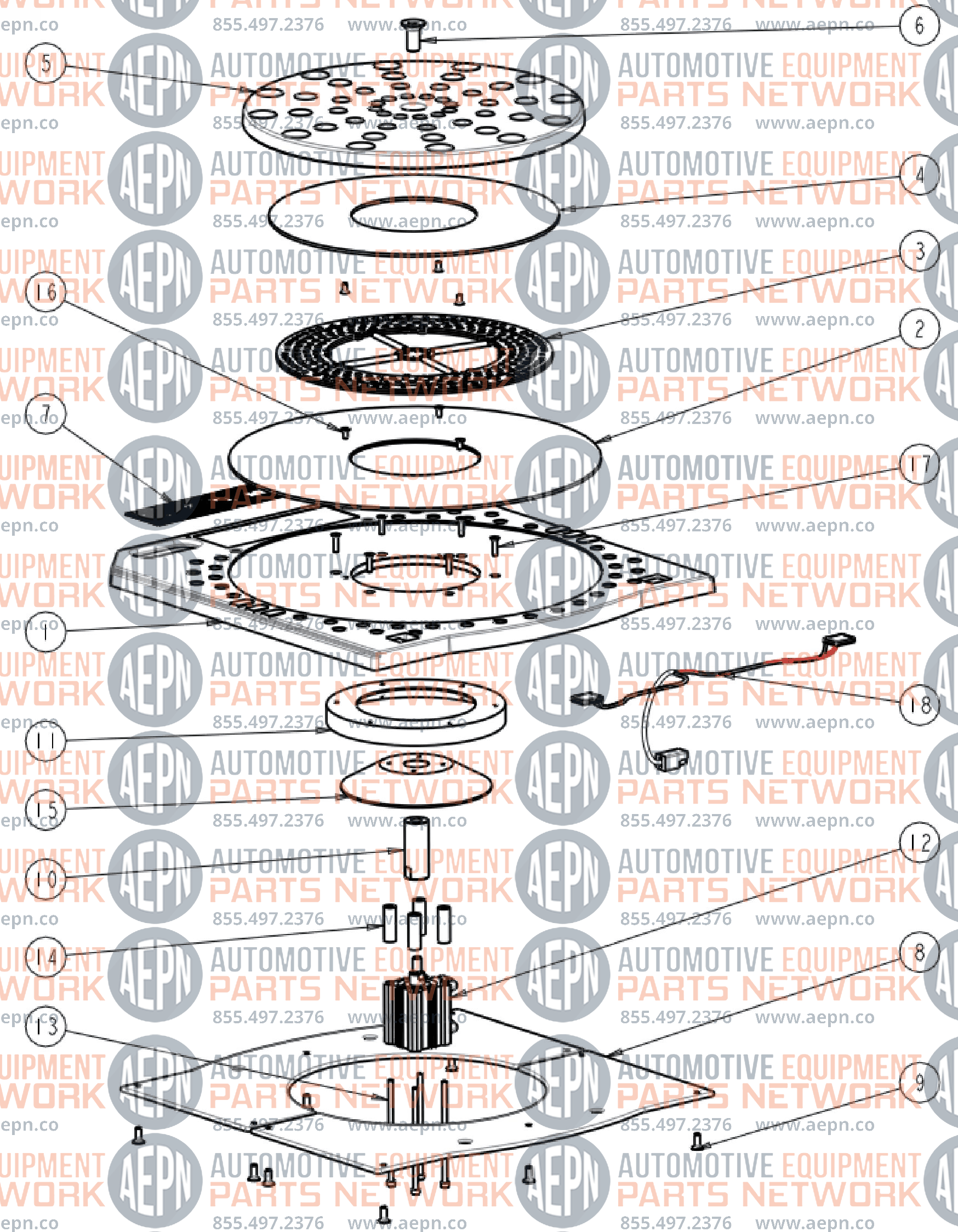

  2-2932 Turnplate Assembly (Complete)
1 M2-2931 Turnplate Base
2 EAM0047J58A Bottom Wear Plate
4 EAM0047J57A Wear Plate, Top
5 EAM0047J60A Turnplate Top
7 1-3719 Label
8 EAM0047J52A Wear Pad, Bottom
9 6-3955 Fhms, Phil Screw
10 1-3678 Stub Shaft
11 2-2711 Centering Ring
12 6-3899 Locking Cylinder Assembly
13 6-3903 Fhcs, #8-32 Unc X , Ss
14 1-3677 Cylinder Stand-Off
15 2-2709 Centering Cone
16 6-3954 Screw
17 6-3904 Fhcs, #10-32 Unf X , Ss
18 6-4101 Led Light & Cable Assembly



Click on the part number for more information

ITEM PART NO DESCRIPTION
ITEM PART NO DESCRIPTION
1 1-0757 Nylon Thrust Washer
2 1-3686 Spacer
3 2-2712 Retainer Jaw
4 6-3900 Cylinder Assembly
5 6-3883 Cylinder Assembly
6 6-3882 Washer
7 6-3929 Cotter Pin, 3/16 X 2 Lg, Ss
8 6-0060 Flat Washer
9 6-3907 Shoulder Bolt



Click on the part number for more information

ITEM PART NO DESCRIPTION
ITEM PART NO DESCRIPTION
1 1-3733 Air Line, Blue, 1/4, 35
2 1-3732 Air Line, Red, 1/4, 35
3 1-3735 Air Line, Blue, 1/4", 7.8
4 1-3734 Air Line, Red, 1/4", 7.8
5 6-3950 Tube Clamp
6 6-2971 Fitting, Tee, 1/4"
7 1-3736 Air Line, Red, 1/4", 3.1
8 1-3737 Air Line, Blue, 1/4", 3.1
9 1-3741 Air Line, Blue, 1/4", 1.1
11 1-3740 Air Line, Red, 1/4", 1.1
12 1-3738 Air Line, Red, 1/4", 8.25
13 1-3739 Air Line, Blue, 1/4", 8.25
14 1-3742 Air Line, Red, 1/4", 5
15 1-3743 Air Line, Blue, 1/4", 7



Click on the part number for more information

ITEM PART NO DESCRIPTION
ITEM PART NO DESCRIPTION
1 2-2721 Rear Slip Plate Weldment, Ls
  2-2740 Rear Slip Plate Weldment, Rs
2 6-4092 Led Light Bar W/ Mounts & Connector (Left Side)
  6-4091 Led Light Bar W/ Mounts & Connector (Right Side)
3 6-3936 Push Retainer
4 6-3940 Adhesive Back Clamps
5 6-4089 Cable Extension Assembly (Ls)
  6-4093 Cable Extension Assembly (Ls)



Click on the part number for more information

ITEM PART NO DESCRIPTION
ITEM PART NO DESCRIPTION

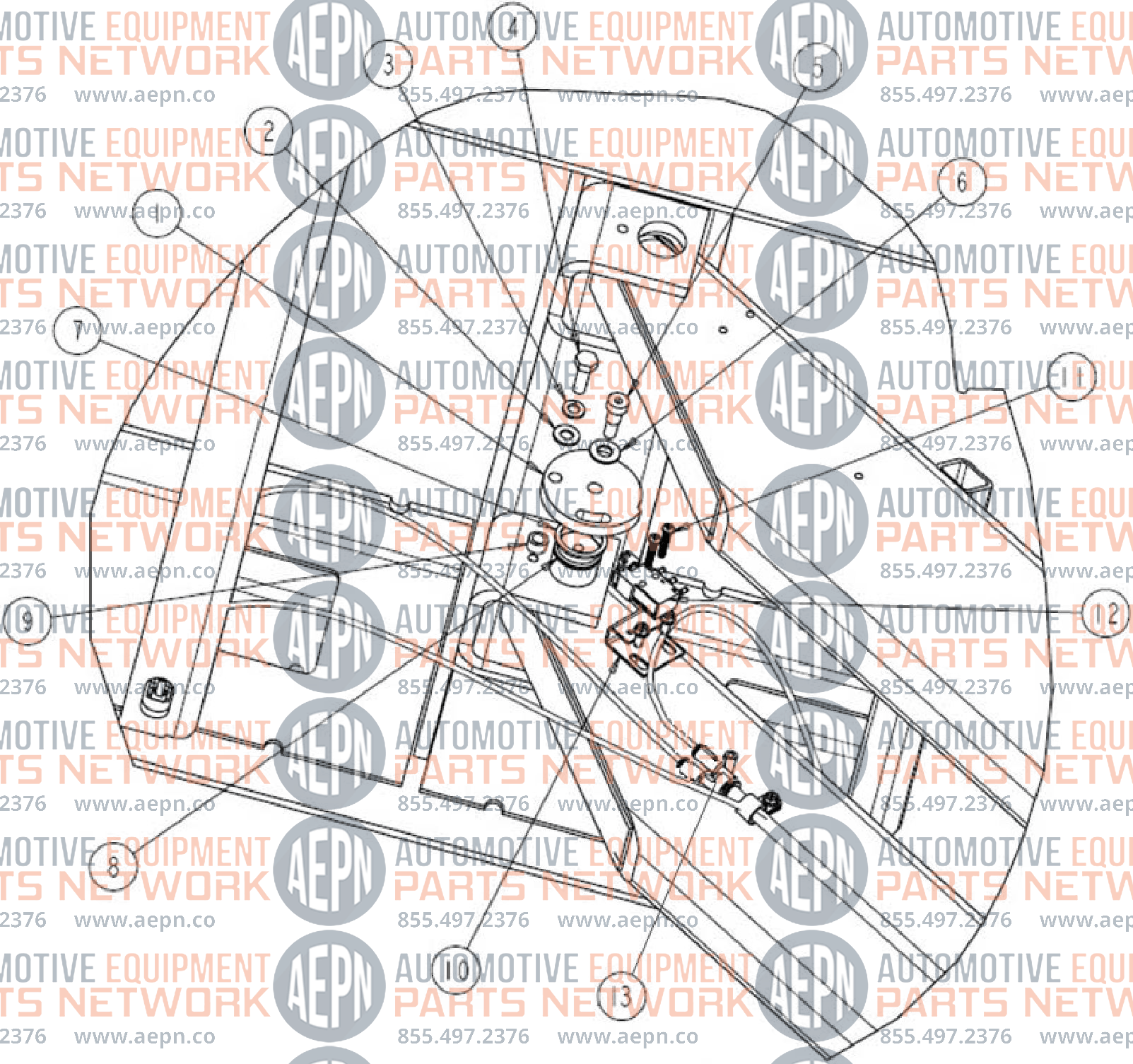

1 2-2757 Plastic Cam
2 6-0295 Flat Washer
3 6-0674 Lock Washer
4 6-0293 Hex Head Bolt
5 6-1792 Shoulder Bolt1/2 Lg.
6 6-0062 Flat Washer
7 6-0340 Circlip
8 1-3754 Hinge Pin, Cam
9 1-3752 Spacer
10 1-3771 Sensor Bracket
11 6-3965 Machine Screw
12 6-3964 Limit Switch W/ Roller Lever
13 6-3944 Union, Y, 5/32 (4mm) Polytube
* 8-0378 4mm Polytube Blue
* 8-0377 4mm Polytube Red



Click on the part number for more information

ITEM PART NO DESCRIPTION
ITEM PART NO DESCRIPTION
1 3-0973 Front Side Panel
2 3-0974 Back Electrical Plate Cover
4 2-2512 Rear Cover
5 2-2513 Top Cover
6 6-2125 Printed Circuit Board
7 6-3409 Multihole, 3 Holes X 7 Mm 189.637
8 6-0709 Elbow
11 6-3406 Contactor Tayco P/N 3100-20
12 6-3266 Fuse Holder 2-Pole Open Style
13 6-3597 Fuse, 1a 250v
14 6-3410 Bushing
15 6-2126 Transformer
16 6-3415 Grounding Bar
17 8-0141 1/4" Polytube, 2 Ft.
18 6-3720 Powerpack Assy. 230v/1ph/60hz
19 6-3580 Green Led Pilot Lamp
20 6-2971 1/4" Polytube Tee Pushlock
21 6-3665 Flow Divider C/W Solenoids
22 1-3625 Din Connector High Body Small Conduit
23 6-2128 Coil S8 24vdc
24 6-2129 Cartridge Valve N/C With Manual Override
25 6-1364 Cartridge Valve Equalize Vei Dt
26 6-2553 Filter Fitting 1/2 Bsp #6 Jic C/W Bonded Seal
27 6-3684 Pressure Sw 80 Psi
28 6-2127 Filter Fitting 3/8 Bsp #6 Jic C/W Bonded Seal
29 2-2717 Hydraulic Hose
30 6-2922 Emergency Pushbutton Contact
31 6-1055 Air Release Button
32 6-1247 Pushbutton
33 6-0090 Flow Control
34 2-2592 Hydraulic Hose AssY
35 6-0804 Elbow
36 6-0011 Adapter, 3/8" M Npt X 3/8" M Jic
37 6-0797 Adapter 3/8" Npt M X 3/8"
38 6-0710 Adapter 3/8" X 3/8" Polytube
39 6-0713 Terminal Bolt
40 6-2314 Electrical Knockout Plug
41 1-3282 Power Pack Mounting Spacer
42 6-3421 Screw
43 6-3422 Screw
44 6-0674 Washer
45 6-0294 Nut
46 6-0295 Washer
47 6-3423 Screw
48 6-3424 Screw
49 6-3305 Hold Down Adhesive Mount Base
50 6-0988 Decal Set, Ali/Wl 200
51 6-2481 Decal, Elec 208- 230, 60 Hz 1ph 20a
52 6-1766 Decal, Capacity 10000lb/4550kg



Click on the part number for more information

ITEM PART NO DESCRIPTION
ITEM PART NO DESCRIPTION
1 0-1693 Water Separator / Regulator / Lubricator Kit
2 6-1055 Control Valve
3 6-3729 Union Y, Poly
4 6-0015 90 Elbow
5 6-0709 Swl Elbow
6 6-3730 Swl Tee Adapter, 3/8 Poly X 3/8 Poly X Npt



Click on the part number for more information

ITEM PART NO DESCRIPTION
ITEM PART NO DESCRIPTION

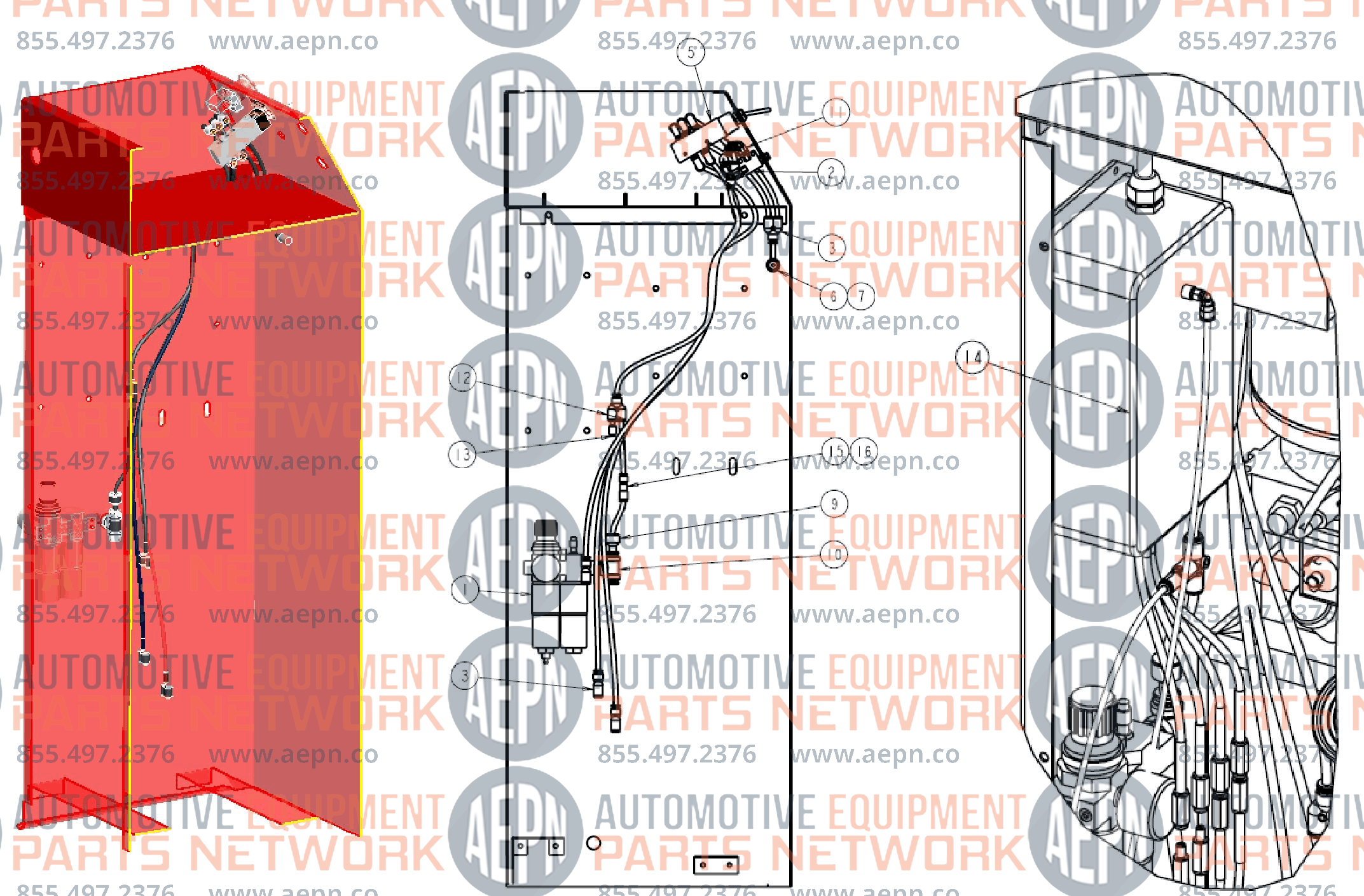

1 6-4142 Water Separator/Regulator/Lubricator AssY
2 6-1055 Control Valve (Safety Release)
3 6-3729 Union Y, Poly
5 6-3905 Valve Assembly (Locking Plates)
6 6-0708 Adapter, 1/8 Npt - Poly
7 6-3977 Breather - Female 1/8 Npt
9 6-3731 Reducer, 3/8 Stem X Poly
10 6-3730 Swivel Tee Adapter, Npt X 3/8 Poly
11 6-0709 Swivel Elbow
12 6-3729 Union Y, Poly
13 6-3928 Reducer, Stem X 5/32 (4mm) Poly
14 6-4088 Led Driver Box Assembly
15 6-3952 Check Valve, Poly
16 6-0015 90 Elbow



Click on the part number for more information

ITEM PART NO DESCRIPTION
ITEM PART NO DESCRIPTION

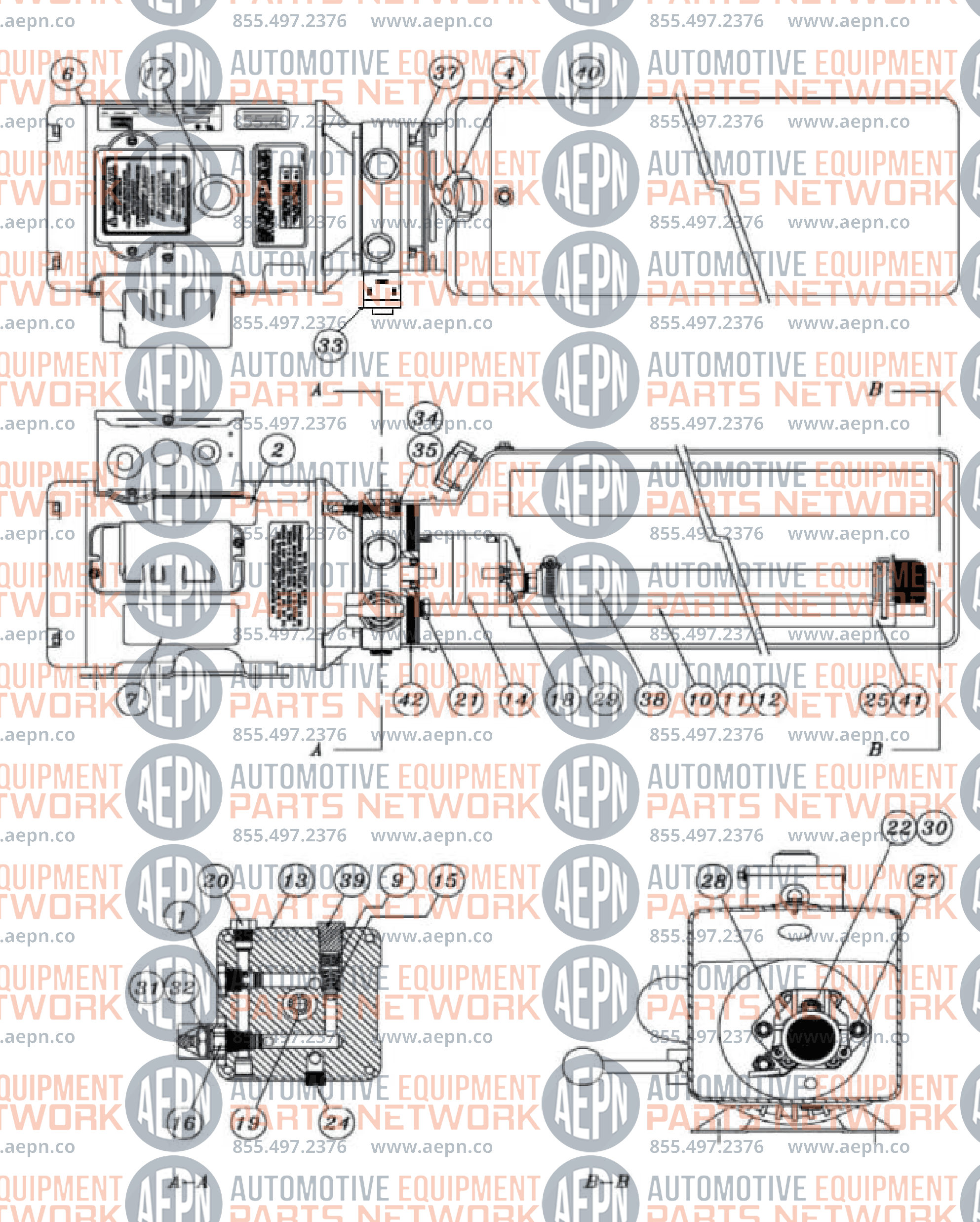

1 6-1087 Valve Cartridge Check
2 6-2136 Label Installation Autohoist
4 6-1376 Breather Cap & Bladder
6 6-2139 Motor Ac 208-230v. 2hp/1ph/60hz, Blk
  6-1079 Motor Ac 208-230v. 2hp/3ph/60hz, Blk
7 6-2149 Label Warning Autohoist
9 6-2151 Spring 0.480 X 0.063 X 0.42 Comp
10 6-2152 Return Hose 3/8 Od X 21.5
11 6-2153 Compression Tube Nut
12 6-2154 Compression Tube Sleeve
13 6-2155 Endhead Universal Autohoist
14 6-1958 Pump Ass'y 2.5 Cc/Rev. Short Sline
15 6-1319 Relief Assembly Fixed 190 Bar
16 6-0880 Valve Cartridge Release Manual
17 6-2156 Wiring Assembly Ac 1ph Fenner
18 6-1090 Bolt
19 6-0774 Coupling Sae 9t-20/40 1.260
20 6-2157 Plumbing Plug
21 6-2158 Seal Shaft 0.500 X 1.00 X 0.25
22 6-2159 Washer
24 6-2161 Plumbing Plug
25 6-2162 Plumbing Magnet
27 6-2164 Screw
28 6-2165 Cover Ass'y Suction
29 6-2166 Plumbing Clamp Hose Adj. Inlet
30 6-1392 Bolt
31 6-2167 Nut
32 6-2168 Washer
33 6-2129 Cartridge
  6-2128 Coil 24v
34 6-2169 Bolt
35 6-2170 Washer
37 6-1091 Bolt
38 6-0786 Plumbing Ass'y Inlet 17.24 (3)
39 6-1089 Relief Valve Cap Assembly
40 6-1399 Tank Plastic 6.7 Os 22.50 Blk
41 6-1846 Cable Tie 8 Long White
42 6-0875 O-Ring 2-348 Buna
