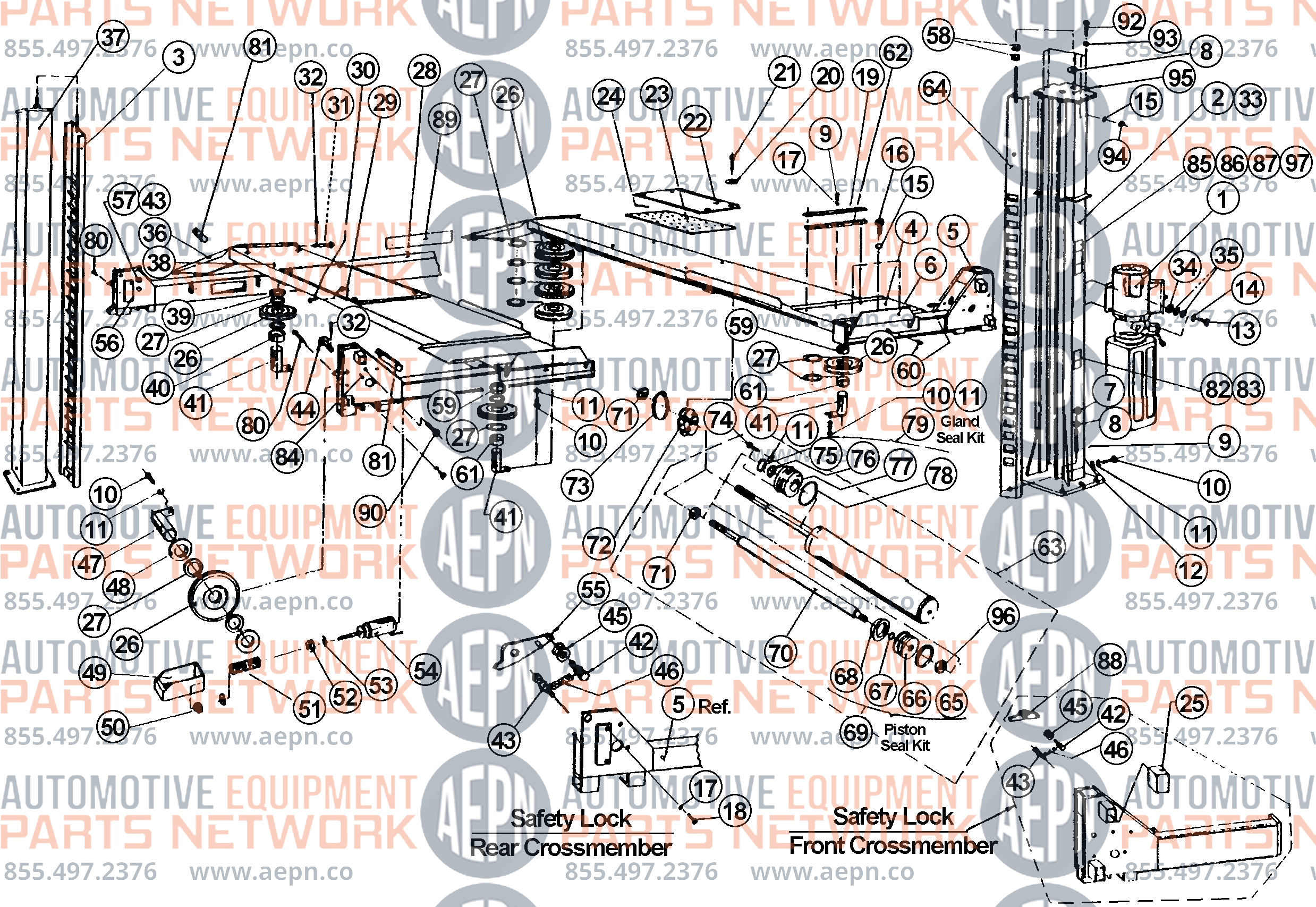

QUAD RACK ORACLE 14407 Parts Breakdown



Click on the part number for more information

ITEM PART NO DESCRIPTION
ITEM PART NO DESCRIPTION
1 6-0650 Power Pack, 230V/1PH
1 6-1398 Power Pack, 230 V/1PH/3HP
2 4-0429 L.H. Power Post
3 3-0487 Safety Rack (Rear)
4 4-0437 L.H. Alignment Deck
5 4-0366 L.H. Front Crossmember
6 2-0998 Front Wheel Stop
7 6-0737 Hex Nut, 3/4"-10
8 6-0738 Flat Washer, 3/4"
9 6-1379 Wedge Anchor, 3/4"-10 x 5-1/2"
10 6-0668 Hex Hd. Bolt 3/8"-16 x 1" Gr. 8
11 6-0058 Lock Washer, 3/8"
12 6-0062 Flat Washer, 3/8"
13 6-0293 Hex Hd. Bolt, 5/16"-18 x 1"
14 6-0674 Lock Washer, 5/16"
15 6-0059 Lock Washer, 1/2"
16 6-0045 Hex Hd. Bolt, 1/2"-13 x 1"
17 6-0056 Lock Washer, 1/4"
18 6-0178 Hex Hd. Bolt, 1/4"-20 x 3/4"
19 2-0635 Retaining Bar
19 2-1391 Retaining Bar
20 6-0426 Flat Washer, 2" x 13/32" x 3/32"
21 6-0069 Shoulder Bolt, 3/8" x 5/8"
22 3-0197 Full Floating Rear Slip Plate
23 3-0196 Bearing Cage
24 6-0829 1/4" Ball Bearing
25 2-0772 Glide Bearing
26 2-0557 Sheave Assembly
27 1-0757 Nylon Thrust Washer
28 4-0371 Rear Crossmember
29 2-0637 Locking Pin Assembly
30 6-0505 Self Tap. Screw, #10 x 1/2"
31 1-0095 Ramp Pin
32 6-0115 Cotter Pin, 1/8" x 2"
33 4-0430 Post Weldment, F.R.
34 6-0294 Hex Nut, 5/16" Gr. 8
35 6-0295 Flat Washer, 5/16"
36 3-0285 Approach Ramp
37 3-0514 Rear Post
38 4-0438 Alignment Deck, R.H.
39 1-0798 Sheave Spacer, 2-1/2"
40 1-0788 Sheave Spacer, 1-1/4"
41 2-0566 Deck Sheave Pin
41 2-1008 Deck Sheave Pin
42 6-0801 Shoulder Bolt, 3/8" x 1-1/2"
43 6-0729 Shoulder Bolt, 3/8" x 3/4"
44 1-1234 Lock Safety Pin
45 1-0766 Cable Roller
46 1-0768 Tension Spring
47 1-1237 Crossmember Sheave Pin
48 1-0786 Sheave Spacer, 3/8"
49 2-0990 Safety Shoe Weldment
50 6-1563 Hex Nylon Locknut, 1/4"-28
51 1-0767 Compression Spring
52 6-0662 Hex Nut, 5/8"-18
53 6-0663 5/8" Int. Tooth Lock Washer
54 6-0651 Air Cyl. (Clippard #SRR-12-2-SP: 5-1/2" Rod Ext.)
55 2-0567 Lock Safety
55 2-0567 Lock Safety L.S.
55 2-1475 Lock Safety R.S.
56 1-0775 Plastic Bracket
57 1-0776 Plastic Guide
58 6-0673 Hex Nut, 5/8"-11 Gr. 8
59 1-0799 Sheave Spacer, 1-3/4"
60 6-0726 Set Screw, 1/2"-13 x 1" Gr. 8
61 1-0943 Sheave Spacer, 2"
62 2-0636 Spacer Bar
62 6-0060 Flat Washer, 1/4" x 3/4", Plated
63 4-0393 Hydraulic Cylinder, 3.5"
64 3-0581 Safety Rack
65 6-0004 Wear Ring, 3/8" x 1/8" x 3-1/2"
66 2-1035 Piston
67 6-1585 "O" Ring, 1-1/4" x 1" x 1/8"
68 6-0003 Piston Seal, 3-1/2" x 3" x 3/8"
69 0-0241 Piston Seal Kit
70 2-1036 Piston Rod (Machined)
71 6-1454 Hex Nut, 1-1/4"-12 UNF-2A
72 2-1037 Cable Flange
73 6-0665 Hose Clamp, 4-1/2"
74 6-0666 Hex Bolt, 3/8"-16 x 1-1/4" Gr. 8
75 6-1303 Rod Wiper, 1-1/2" x 1-7/8"
75 6-0001 Rod Wiper, 1-1/2" x 1-7/8"
76 6-1304 Rod Seal, 1-1/2" x 1-7/8" x 3/16"
77 3-0522 Gland
78 6-0655 "O" Ring, 3-1/2" x 1/8"
79 0-0242 Gland Seal Kit
80 6-1386 Hex Hd. Bolt, 3/8"-16 x 3
81 2-0997 Sheave Cover
82 6-1306 Serial Tag
83 6-0988 "ALI" Plate
84 4-0368 R.H. Front Crossmember
85 6-0592 "Caution" Decal
86 6-0351 "Safety Instructions" Decal
87 6-0595 "Warning" Decal
88 2-0980 Lock Safety
88 2-0980 Lock Safety, L.S.
88  2-1426 Lock Safety, R.S.
89 6-1125 "Caution" Table, (40" Lg.)
90 6-1381 Hex Hd. Bolt, 1/2"-13 x 3"
91 6-0027 Hex Hd. Bolt, 1/4"-20 x 1-1/4"
92 6-0769 Hex Hd. Bolt, 1/2"-13 x 2"
93 6-0248 Flat Washer, 1/2"
94 6-0035 Hex Nut, 1/2"-13
95 2-1125 Top Plate
96 6-1453 Lock Nut, 1-1/4"-12
97 6-1637 "Attention" Decal
98 1-1766 Keeper Washer, 2" x 1/4"



Click on the part number for more information

ITEM PART NO DESCRIPTION
ITEM PART NO DESCRIPTION

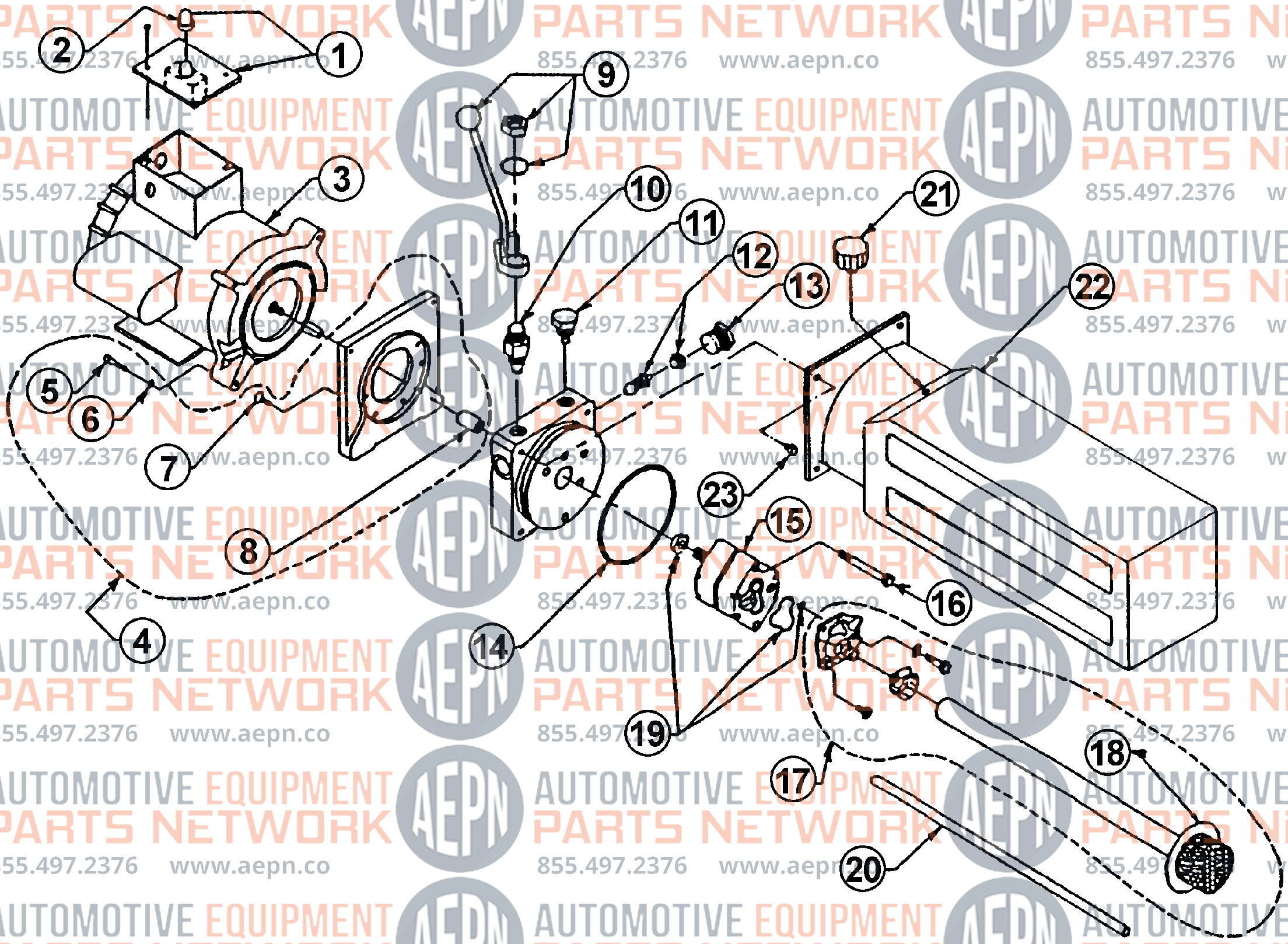

1 6-0881 Microswitch & Wire Assembly
2 6-1084 Microswitch Boot
3 6-0773 Motor 230 V AC, 1PH 60 Hz.
4 0-0197 Motor Adapter Kit
5 6-1085 Skt. Hd. Capscrew, 1/4"-20 x 1-5/8"
6 6-0056 Lock Washer, 1/4"
7 6-1086 Allen Hd. Flat Screw 1/4"-20 x 3/4"
8 6-0774 Coupling
9 6-0776 Release Bracket & Handle Assembly
10 6-0880 Valve Cartridge Release
11 6-1087 Valve Cartridge Check
12 6-1317 Fixed Relief Valve (RV 17)
13 6-1089 Relief Valve Cap
14 6-0875 Reservoir "O" Ring
15 6-0782 Pump Assembly
16 6-1090 Pump Mounting Bolt
17 0-0198 Inlet Plumbing Kit
18 6-0786 Inlet Hose/Filter Assembly
19 0-0199 Pump "O" Ring Kit
20 6-0783 Return Tube
21 6-0784 Breather-Filler Cap
22 6-0785 Reservoir
23 6-1091 Reservoir Screw





Click on the part number for more information

ITEM PART NO DESCRIPTION
ITEM PART NO DESCRIPTION

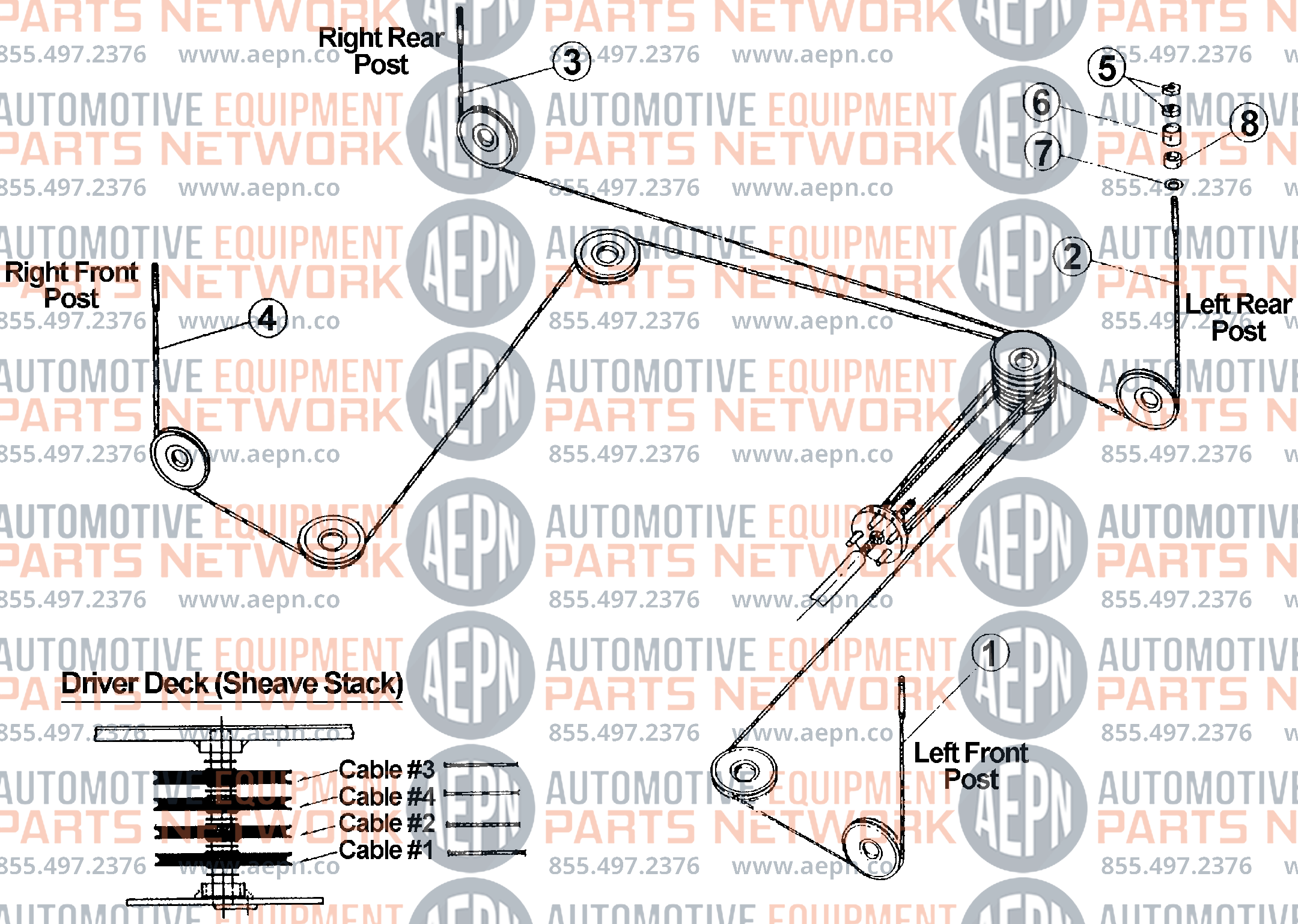

1 2-1287 Cable Assembly, 387" L.F.
2 2-1094 Cable Assembly, 178" L.R.
3 2-1095  Cable Assembly, 234" R.R.
4 2-1288  Cable Assembly, 442" R.F.
5 6-0724  Hex Nut, 7/8"-14 UNF, Gr. 8
6 1-0800  Cable Spacer, 2"
7 6-0725  Flat Washer, 7/8"
8 1-0801  Cable Spacer, 1"



Click on the part number for more information

ITEM PART NO DESCRIPTION
ITEM PART NO DESCRIPTION

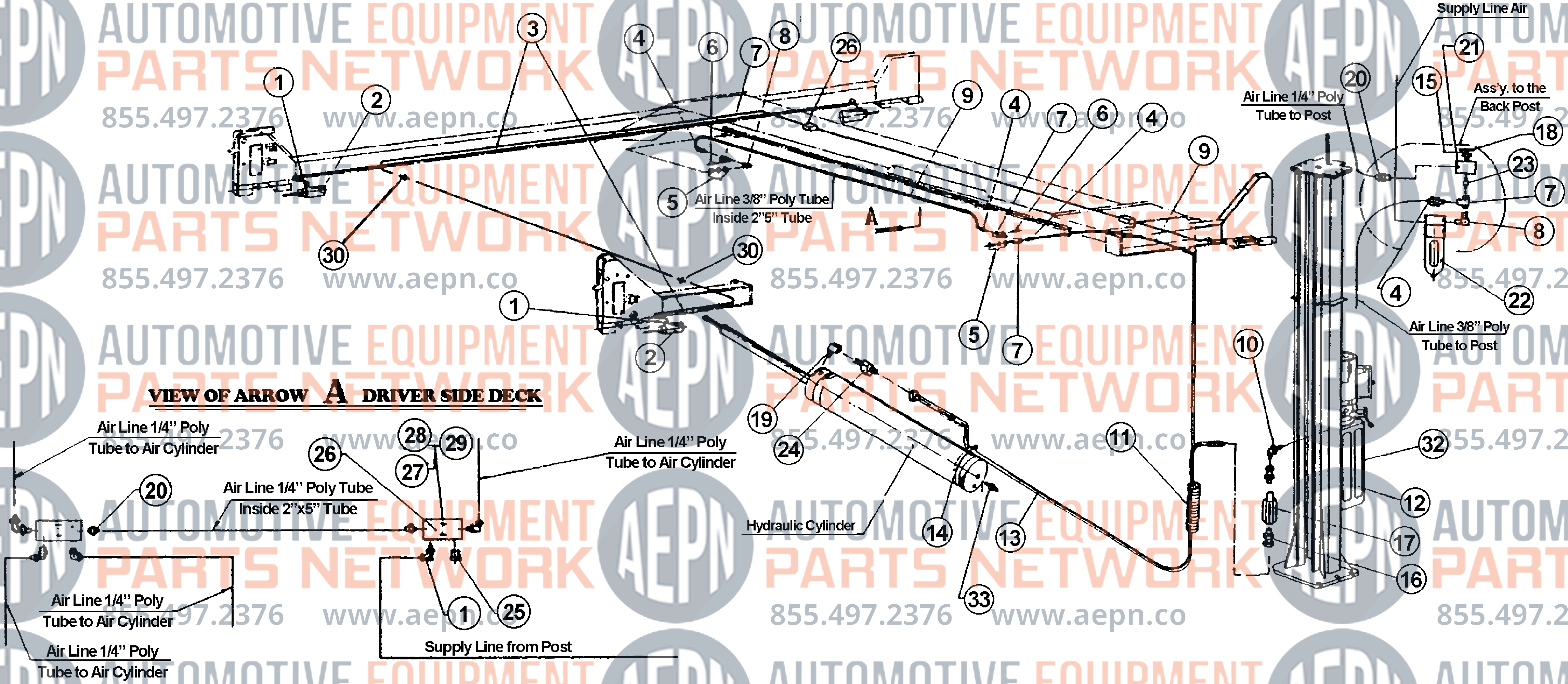

1 6-0709 90 Elbow, 1/8" NPT x 1/4" Poly Tube
2 6-0651 Air Cylinder
3 6-0706 1/4" Poly Tube
4 6-0710 Adapter, 3/8" Poly Tube x 1/4" NPT
5 6-0713 Terminal Bolt, 3/4"
6 6-0282 Plug, 1/4" NPT
7 6-0014 1/4" NPT Street Tee
8 6-0015 1/4" NPT Street Elbow
9 6-0707 3/8" Poly Tube
10 6-0804 90 Elbow, 3/8" JIC M x 9/16" M
11 6-0714 Hose Guard
12 6-0650 Power Pack 230V/1PH
12 6-1398 Power Pack 230V/1PH/3PH
13 6-0715 Hyd. Hose Assy., 3/8" Swivel x 3/8" JIC M, 147"
14 6-0731 Cable Tie
15 6-1051 Socket Hd. Set Screw
15 2-1394 Air Valve & Filter Assy.
16 6-0797 Adpt. 3/8" NPT M x 3/8" JIC F Swivel
17 6-0090 Flow Control
18 6-1052 Button
18 6-1775 Air Valve
19 6-0796 90 Elbow, 1/4" NPT M x 3/8" NPT F
20 6-0708 Adpt., 1/4" Poly Tube x 1/8" NPT
21 6-1055 Air Valve Assembly
21 6-1777 Air Valve Pushbutton Kit
22 6-0180 Air Filter
23 6-1382 Adpt., 1/4" NPT M x 1/8" NPT M
23 0-0405 Air Valve Fitting Kit
24 6-0025 Velocity Fuse
25 6-0182 Plug, 1/8" NPT
26 1-1057 Manifold
27 6-0177 Hex Hd. Capscrew, 1/4"-20 x 2"
28 6-0032 Hex Nut, 1/4"-20
29 6-0056 Lock Washer, 1/4"
30 6-0747 1/4" Poly Tube Adpt.
32 6-0593 "Lift Operation" Decal
33 6-0280 Adpt. 1/8" NPT M x 1/4" JIC M
