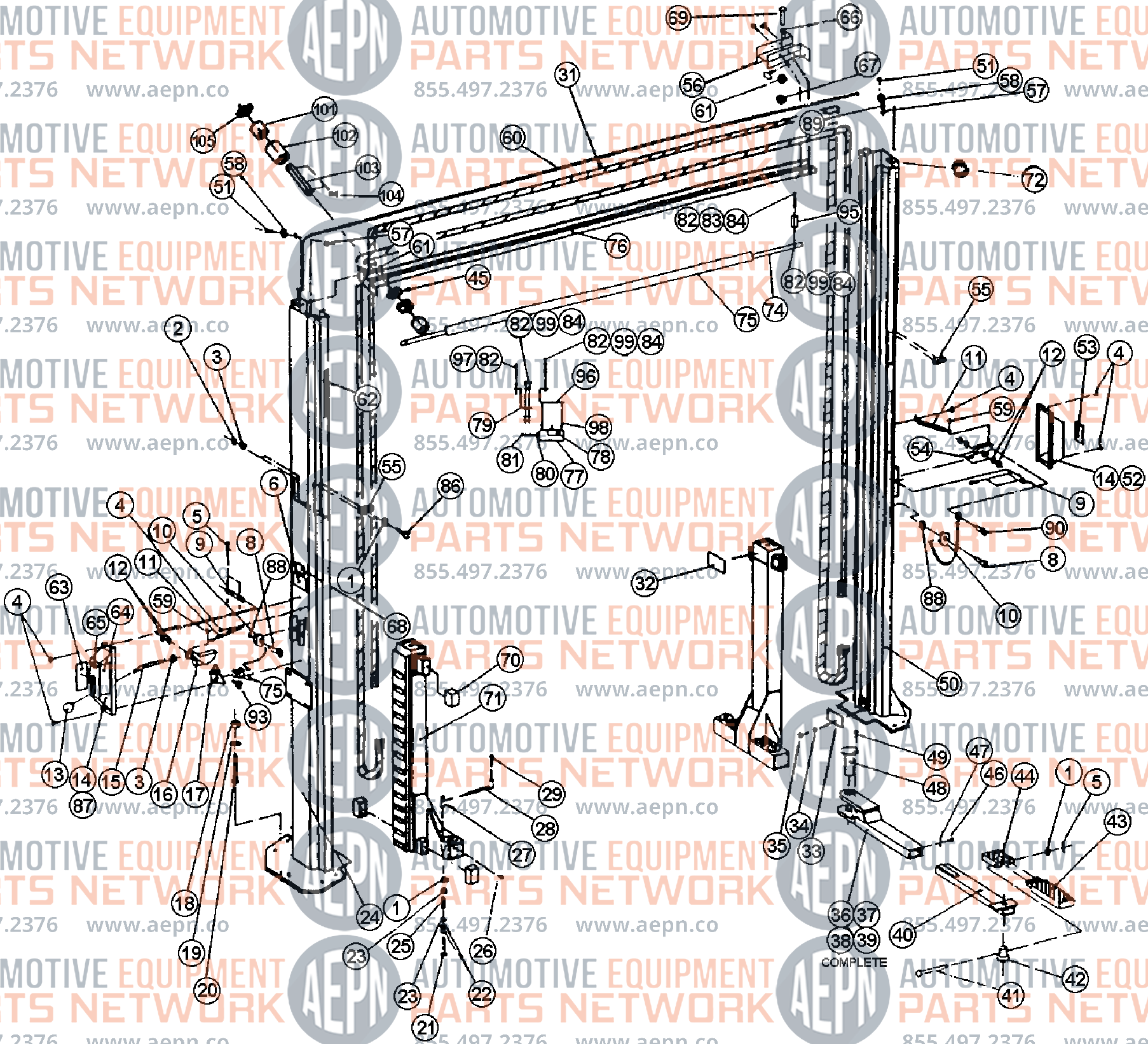

MAGNUM 81776S Parts Breakdown



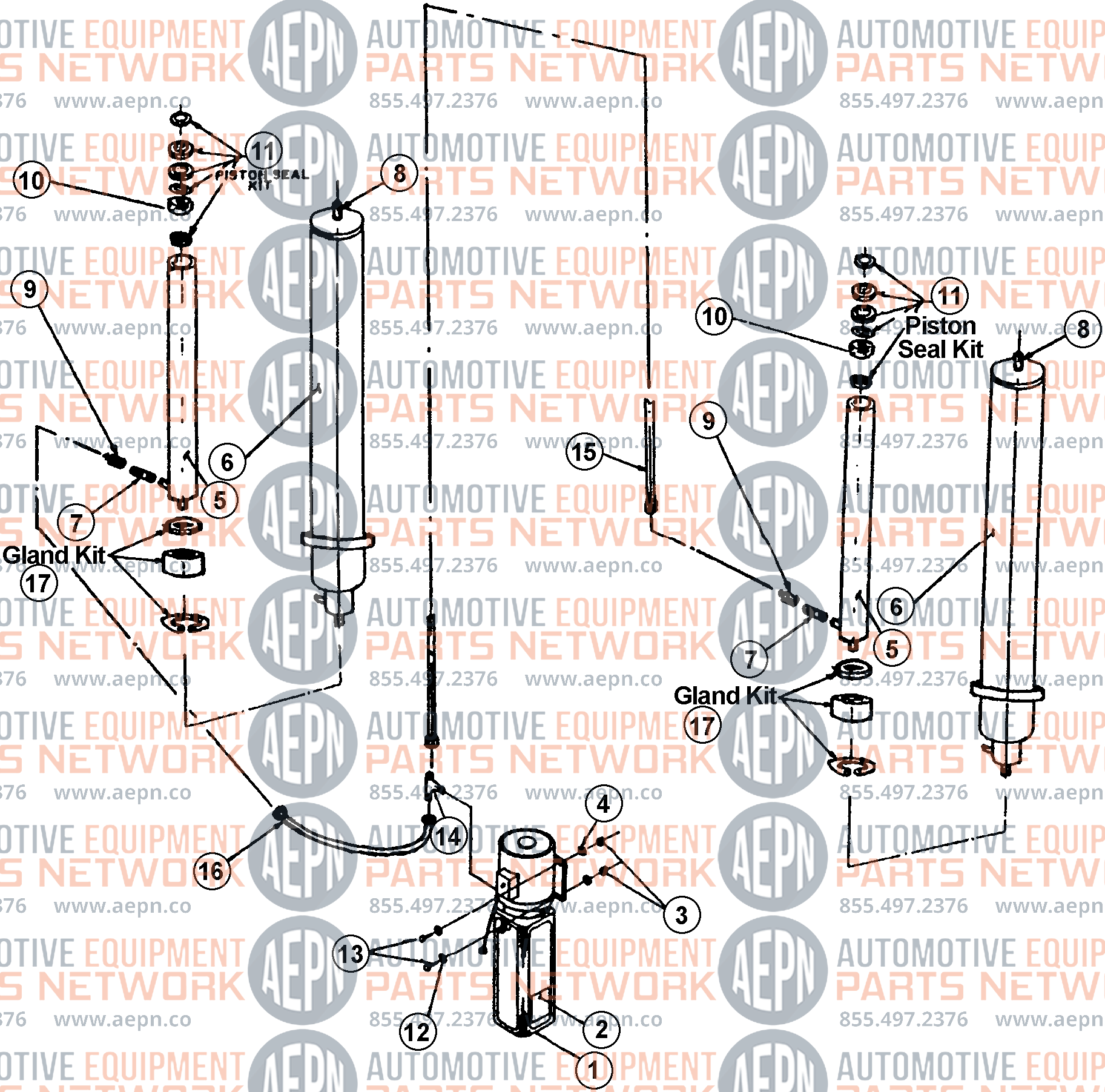

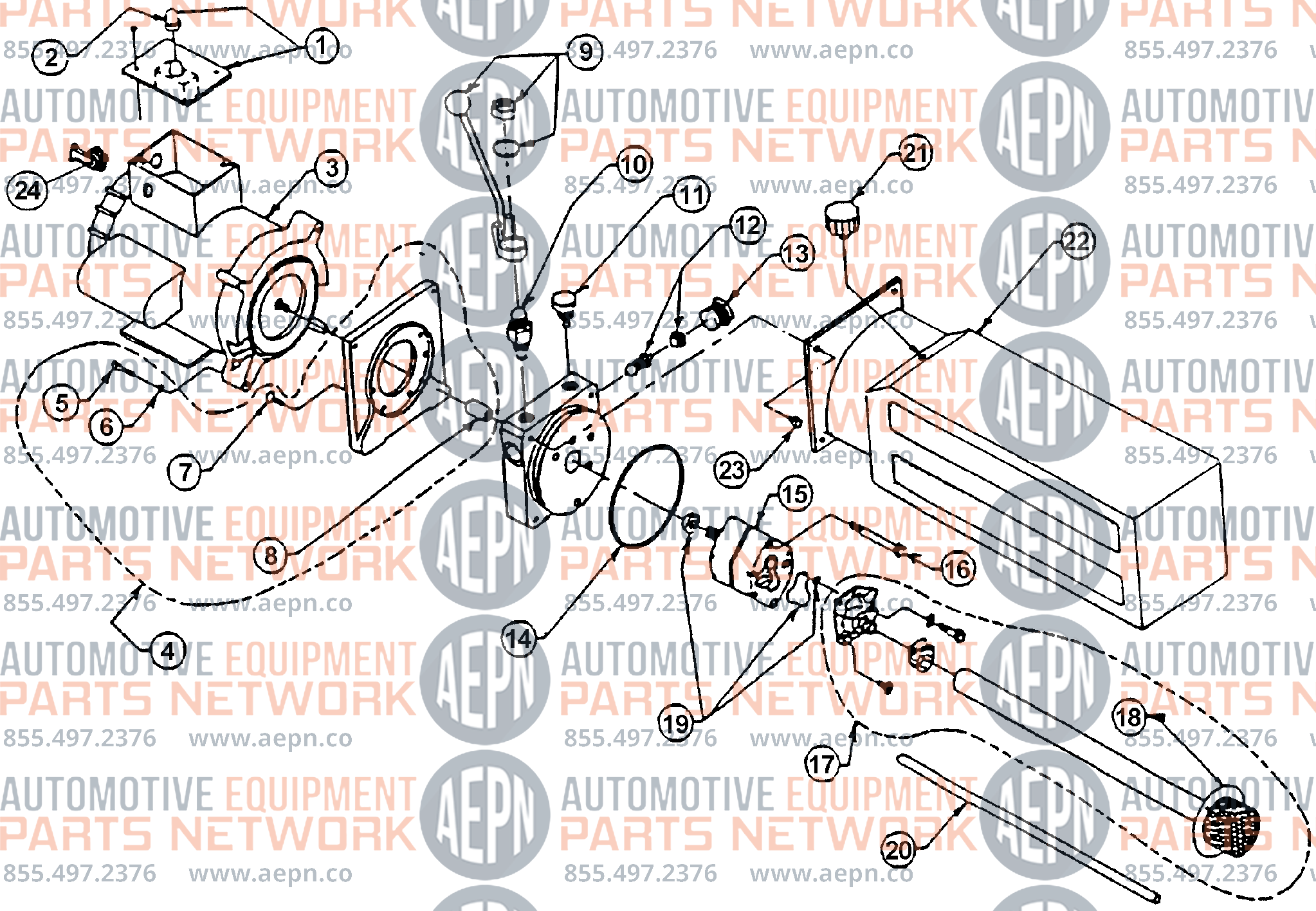

Click on the part number for more information

ITEM PART NO DESCRIPTION
ITEM PART NO DESCRIPTION
1 6-0248 Flat Washer, 1/2"
2 6-0059 Lock Washer, 1/2"
3 6-0035 Hex Nut, 1/2"-13
4 6-1134 Self-Tap. Screw, #12 x 1/2"
5 6-0267 Cotter Pin, 1/8" x 1"
6 6-0996 ALI Decal
8 6-0206 Shoulder Bolt, 3/8" x 1"
9 1-0938 Safety Pin
10 1-0415 Safety Pulley
11 1-1115 Safety Spring
12 6-0808 Flat Washer, 51/64"x1"x1/16" Thk
13 6-1135 Plastic Knob
14 3-0439 Safety Cover
15 1-1113 Safety Release Handle
16 2-0902 Safety Dog, L.H.
17 1-1291 Cable Con. Bracket
18 6-0737 Hex Nut, 3/4"-10
19 6-0738 Flat Washer, 3/4"
20 6-1379 Wedge Anchor 3/4"-10 x 5-1/2"
21 1-1097 3/8"-16x6" Lg. Thrd. Plunger Bolt
22 6-0034 Hex Nut, 3/8"-16
23 6-0062 Flat Washer, 3/8"
24 4-0512 L.H. Tower
25 1-1546 Plunger Spring
26 6-000 Grease Fitting
27 1-1095 Plunger
28 1-1546 Rod
29 1-0382 Shoulder Bolt, 1/2" x 1"
31 1-1473 Equalizing Cable
32 1-1534 Carriage Cover
33 1-1458 Cover Plate
34 6-0626 Fender Washer, 1/4" x 1"
35 6-0126 1/4"-20 NC x 1/2" Deep Bolt
36 3-0623 Outer Arm Tube, R.R., L.F.
37 3-0622 Outer Arm Tube, L.R., R.F.
38 4-0528 Locking Arm Assembly, R.R., L.F.
39 4-0527 Locking Arm Assembly, LR., R.F.
40 2-1177 Inner Arm
41 1-1099 Center Pin
42 1-1091 Adapter Pin
43 3-0582 High Step Position Adpt.
    Height Ext. Drop-On 6" w/Pad
44 3-0583 Low Position Adapter
45 1-1451 2-Post Pulley
46 6-1512 Hex Bolt, 3/8" x 5/8"
47 6-0058 Lock Washer, 3/8"
48 2-0439 Arm Pin
49 6-0423 Hex Bolt, 5/16"-18 x 3/4"
50 4-0511 R.H. Tower
51 6-0069 Shoulder Bolt, 3/8" x 5/8"
52 0-0203 Safety Cover with Decal, R.H.
53 6-0594 "Safety Instructions" Decal
54 2-0872 R.H. Safety Dog
55 1-1119 Carriage Stop
56 2-1197 Crossmember Bracket
57 6-0294 Hex Nut, 5/16"-18
58 1-1116 Safety Cable Pulley
59 6-0169 Self-Tap. Screw, #10 x 3/8"
60 1-1551 Safety Release Cable, 293-1/2"
61 6-0625 3/8" Flat Washer
62 6-1230 3/8" Clip
63 6-0595 "Warning" Decal
64 6-0592 "Caution" Decal
65 6-0603 "Safety Release" Decal
66 6-0058 3/8" Lock Washer
67 6-0054 3/8" 16 Nut
68 6-1120 Serial # Tag
69 6-0067 Hex Head Bolt, 3/8"-16 x 1"
70 2-0772 Glide Bearing
71 4-0524 Carriage
72 6-1507 Rubber Grommet
74 1-1380 Actuator Bar
75 6-1404 Foam Guard
76 2-1258 Crossmember
77 6-1403 Electrical Utility Box
78 6-0916 Microswitch
79 1-1379 Actuator Extension
80 6-1133 Cable Connector
81 6-1173 Eq. Cable 16/3 x 117"
82 6-0032 Hex Hd. Nut 1/4" NC
83 6-0178 Hex Hd. Bolt, 1/4" NC x 3/4"
84 6-0056 Lock Washer 1/4"
86 6-0315 Hex Bolt, 1/2"-13 x 2-1/4"
87 0-0204 Safety Cover with Decals, L.H.
88 6-0295 Flat Washer 5/16"
89 6-0296 Lock Washer, 5/16"
90 6-0908 Shoulder Bolt, 3/8" x 1-1/4"
93 6-0185 Shoulder Bolt, 5/16" x 1/4"
95 1-1378 Actuator Mtg. Bracket
96 2-1143 Limit Switch Mtg. Bracket
97 6-0177 Hex Hd. Bolt, 1/4" NC x 2"
98 6-1466 6/32 Screw (Electrical Box)
99 6-0027 Hex Hd. Bolt, 1/4" NC x 1-1/4"
100 6-0030 Hex Hd. Bolt, 3/8"-16 x 3/4"
101 1-1623 1/2" Lg. Crossmemeber Pulley Pipe
102 1-1624 2" Lg. Crossmember Pulley Pipe
103 2-1251 Crossmember Pulley Shaft
104 6-0267 Cotter Pin, 1/8" x 1"
105 6-0738 Flat Washer, 3/4"



Click on the part number for more information

ITEM PART NO DESCRIPTION
ITEM PART NO DESCRIPTION
1 6-0881 Microswitch
2 6-1084 Microswitch Boot
3 6-0773 Motor 230 Vac. 1 PH. 60 Hz.
4 0-0197 Motor Adapter Kit
5 6-1085 Skt., Hd. Capscrew 1/4"-20 x 5/8"
6 6-0056 Lock Washer, 1/4"
7 6-1086 Allen Hd. Flat Screw, 1/4" x 3/4"
8 6-0774 Coupling
9 6-0776 Release Bracket & Handle Assembly
10 6-0880 Valve Cartridge Release
11 6-1087 Valve Cartridge Check
12 6-1319 Fixed Relief Valve (RV19)
13 6-1089 Relief Valve Cap
14 6-0875 Reservoir "O" Ring
15 6-0782 Pump Assembly
16 6-1090 Pump Mounting Bolt
17 0-0198 Inlet Plumbing Kit
18 6-0786 Inlet Hose/Filter Assembly
19 0-0199 Pump "O" Ring Kit
20 6-0783 Return Tube
21 6-1376 Breather-Filler Cap (Plastic)
22 6-1399 Reservoir (Plastic)
23 6-1091 Reservoir Screw
24 6-1133 Cable Connector 90, 3/8"



Click on the part number for more information

ITEM PART NO DESCRIPTION
ITEM PART NO DESCRIPTION
1 6-1310 Power Pack
2 6-1265 "Lift Operation" Decal
3 6-0294 Hex Nut, 5/16"-18
4 6-0674 Lock Washer, 5/16"
5 1-1469 Piston Rod, 1-1/4" x 1/4" x 72-11/16"
6 1-1465 Cylinder Tube Machined
7 6-1509 Male Nipple, 1/4" NPT
8 6-1511 1/8" NPT Sq. Head Plug
9 6-1510 Flow Control
10 1-1467 Piston
11 0-0337 Piston Seal Kit
12 6-0061 Flat Washer, 5/16"
13 6-0293 Hex Bolt, 5/16"-18 x 1"
14 6-1506 Branch Tee
15 2-1231 Hydraulic Hose (Long)
16 2-1230 Hydraulic Hose (Short)
17 0-0338 Gland Kit
