JOHN BEAN 217 Parts Breakdown
Click on the part number for more information

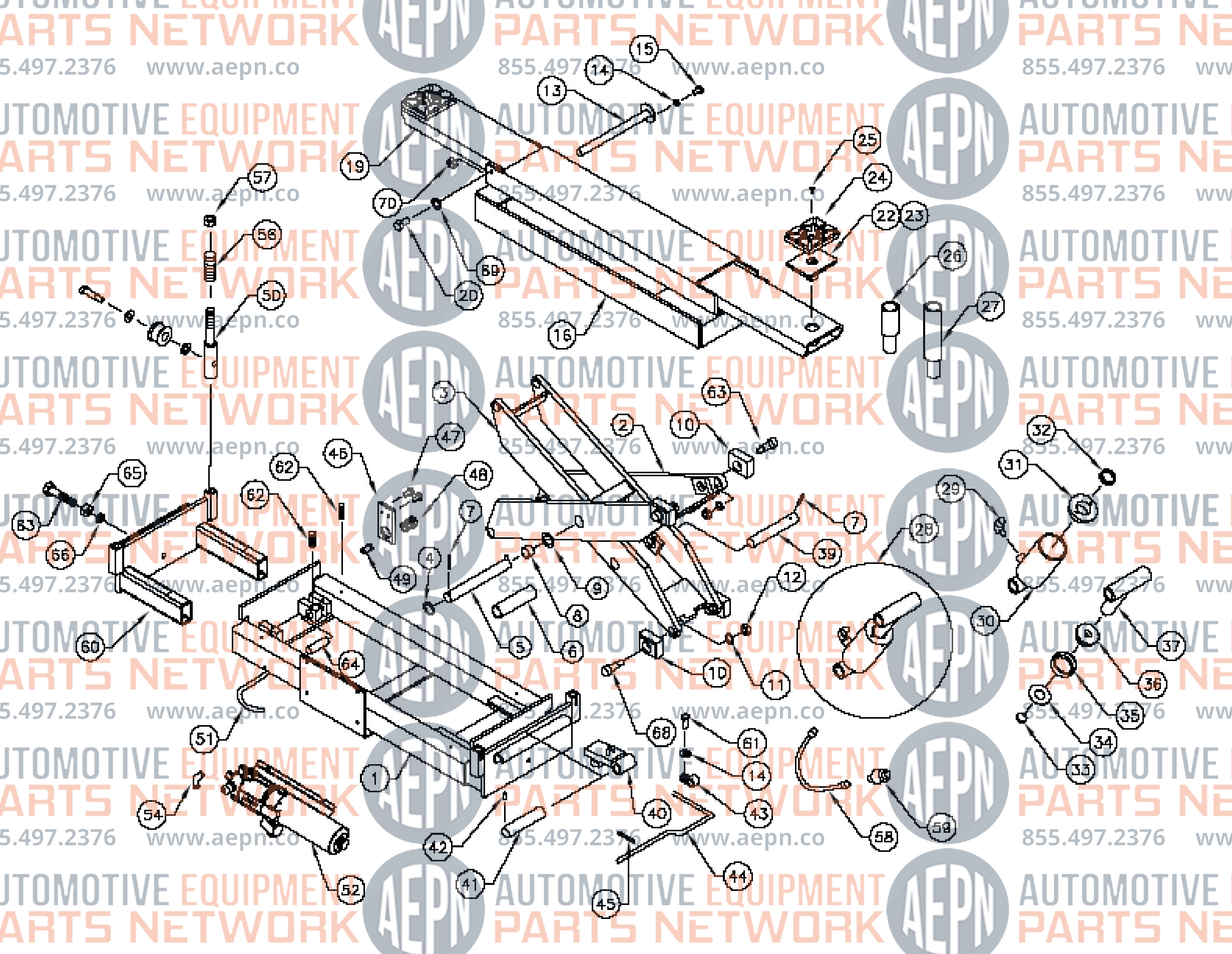

| ITEM | PART NO | DESCRIPTION |
|---|---|---|
| ITEM | PART NO | DESCRIPTION |
| 1 | 3-0842 | Base Frame Weldment |
| 2 | 3-0824 | Outer Scissor Weldment |
| 3 | 3-0825 | Inner Scissor Weldment |
| 4 | 6-0807 | Washer |
| 5 | 1-2270 | Scissor Center Shaft |
| 6 | 1-0575 | Center Pipe Spacer |
| 7 | 6-0146 | Spring Pi, 3/16" X 2" Lg |
| 8 | 6-2320 | Bushing |
| 9 | 6-0807 | Washer |
| 10 | 1-3674 | Plastic Glide Block |
| 11 | 6-1401 | Washer |
| 12 | 6-1553 | Nylon Locknut |
| 13 | 1-1999 | Upper Scissor Pin |
| 14 | 6-0056 | Lockwasher |
| 15 | 6-0438 | Set Screw |
| 16 | 3-0171 | Top Weldment |
| 19 | 2-1572 | Lifting Arm Weldment |
| 20 | 6-0030 | Hex Hd Bolt |
| 22 | 1-3278 | Stack Pad Assembly Complete |
| 23 | 2-2514 | Stack Pad Weldment |
| 24 | 3-0872 | Rubber Pad |
| 25 | 6-1086 | Allen Hd Flat Screw |
| 26 | 1-3280 | Stack Pad Adapter, 3" |
| 27 | 2-1580 | Stack Pad Adapter, 6" |
| 28 | 3-0474 | Cylinder Assembly Complete |
| * | 3-1069 | Cylinder Assembly (Alternate) |
| 29 | 1-1726 | Velocity Fuse |
| * | 6-3861 | Flow Control (Alternate) |
| * | 6-0974 | Adapter, 3/8" Jic F - 14" Jic M (Alternate) |
| 38 | 1-1158 | Outside Cylinder Shaft |
| 39 | 1-1163 | Inside Cylinder Shaft |
| 40 | 2-1577 | Safety Stop Weldment |
| 41 | 1-0561 | Safety Pin |
| 42 | 6-0438 | Set Screw |
| 43 | 6-3959 | Safety Lever Clamp |
| 44* | 1-3203 | Safety Lever Arm |
| 45* | 6-0146 | Roll Pin |
| * | 1-3203 | Safety Lever Assembly |
| 46 | 1-3648 | Air Jack Bracket |
| 47 | 6-0126 | Hex Head Bolt |
| 48 | 6-0713 | Terminal Bolt |
| 49 | 6-0710 | Adapter 3/8" Poly - 14" Npt |
| 50 | 2-2720 | Roller Assembly Complete |
| 51 | 8-0142 | 3/8" Polytube |
| 52 | 6-1428 | Air/Hydraulic Pump Complete |
| 54 | 6-3010 | Elbow |
| 56 | 6-0081 | Spring |
| 57 | 6-0042 | Nylon Locknut |
| 58 | 1-0765 | Hydraulic Hose |
| 59 | 6-0011 | Adapter, 3/8"Npt-M X 3/8"Jic-M |
| 60 | 3-0914 | Roller Adapter |
| 61 | 6-2565 | Button Hd Screw |
| 62 | 6-0438 | Set Screw |
| 63 | 6-0047 | Hex Hd. Bolt |
| 64 | 1-2361 | Lower Scissor Pin |
| 65 | 6-0035 | Hex Nut |
| 66 | 6-0059 | Lock Washer |
| 68 | 6-3958 | Shoulder Bolt |
| 69 | 6-0062 | Flatwasher |
| 70 | 6-3369 | Nut |
| 3-0826 | Scissor Assembly Complete | |
| 6-3240 | Seal Kit (Cylinder Assembly3-0474) |
Click on the part number for more information

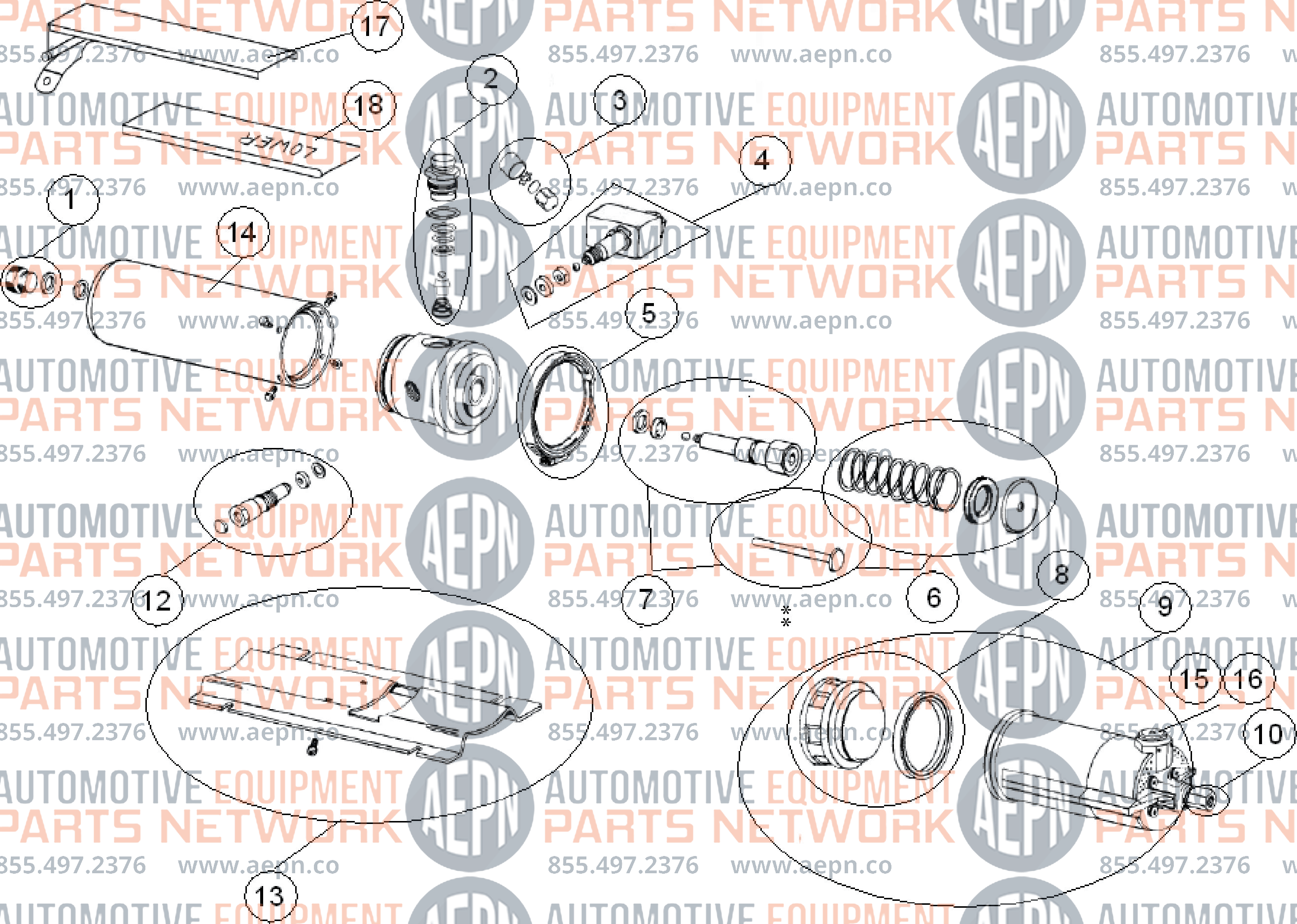

| ITEM | PART NO | DESCRIPTION |
|---|---|---|
| ITEM | PART NO | DESCRIPTION |
| 1 | 6-3348 | Resevoir Cap Assembly |
| 2 | 6-3349 | Release Guide Assembly |
| 3 | 6-3350 | Flow Restrictor Assembly |
| 4 | 6-3351 | Coupler Assembly |
| 5 | 6-3352 | Coupling V-Retainer |
| 6 | 6-3353 | Plunger & Spring Kit |
| 7 | 6-3354 | Hydraulic Cylinder Assembly |
| 8 | 6-3355 | Air Piston Assembly |
| 9 | 6-3356 | Air Motor Assembly |
| 10 | 6-3357 | Coupler Kit |
| 12 | 6-3359 | Relief Valve Assembly |
| 13 | 6-3360 | Base |
| 14 | 6-3361 | Reservoir |
| 15 | 6-3365 | Poppet Guide Assembly |
| 16 | 6-3368 | Boot |
| 17 | 6-3366 | Handle |
| 18 | 6-3367 | Rubber Sleeve |
