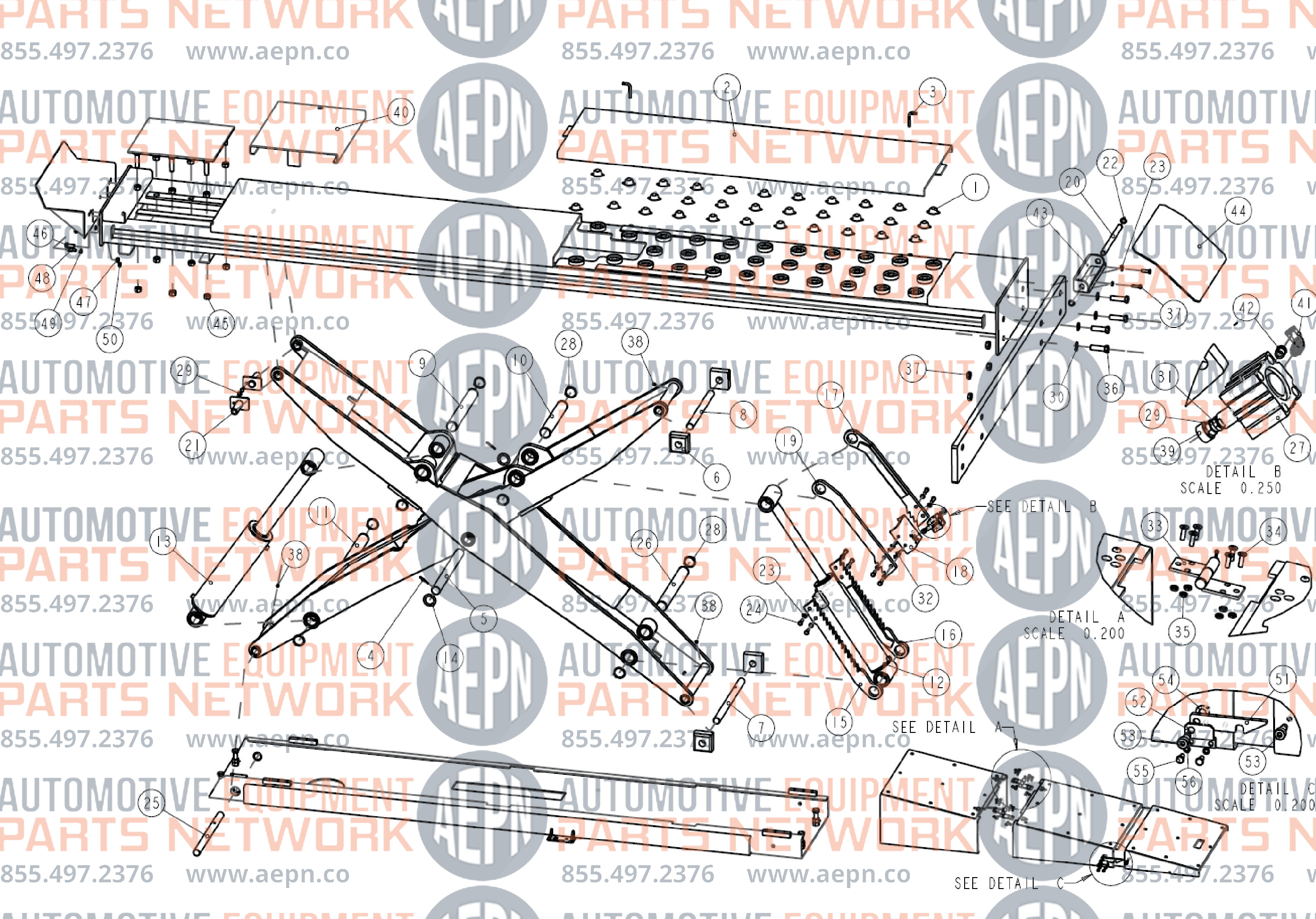

HOFMANN EELR709 Parts Breakdown

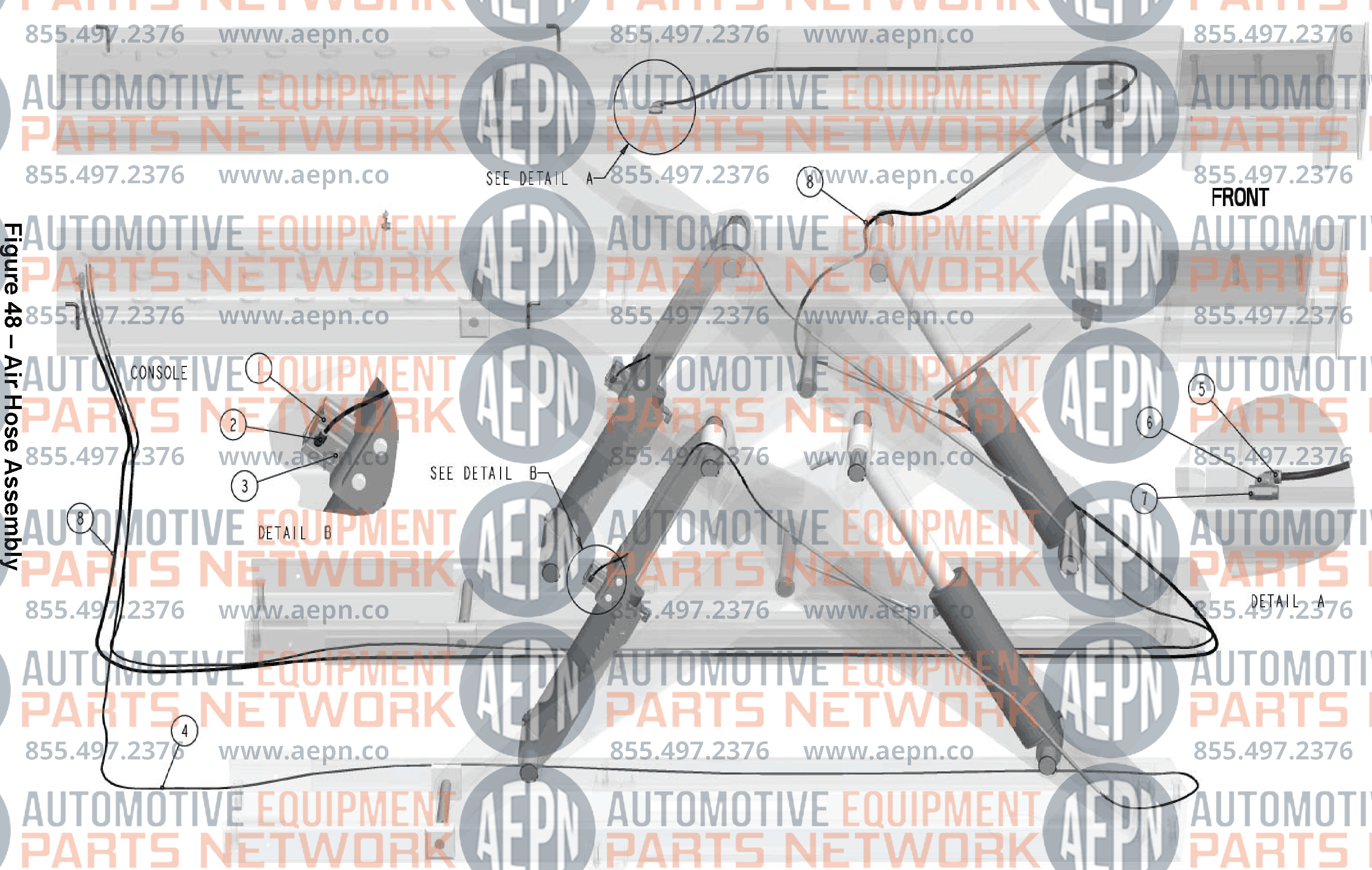

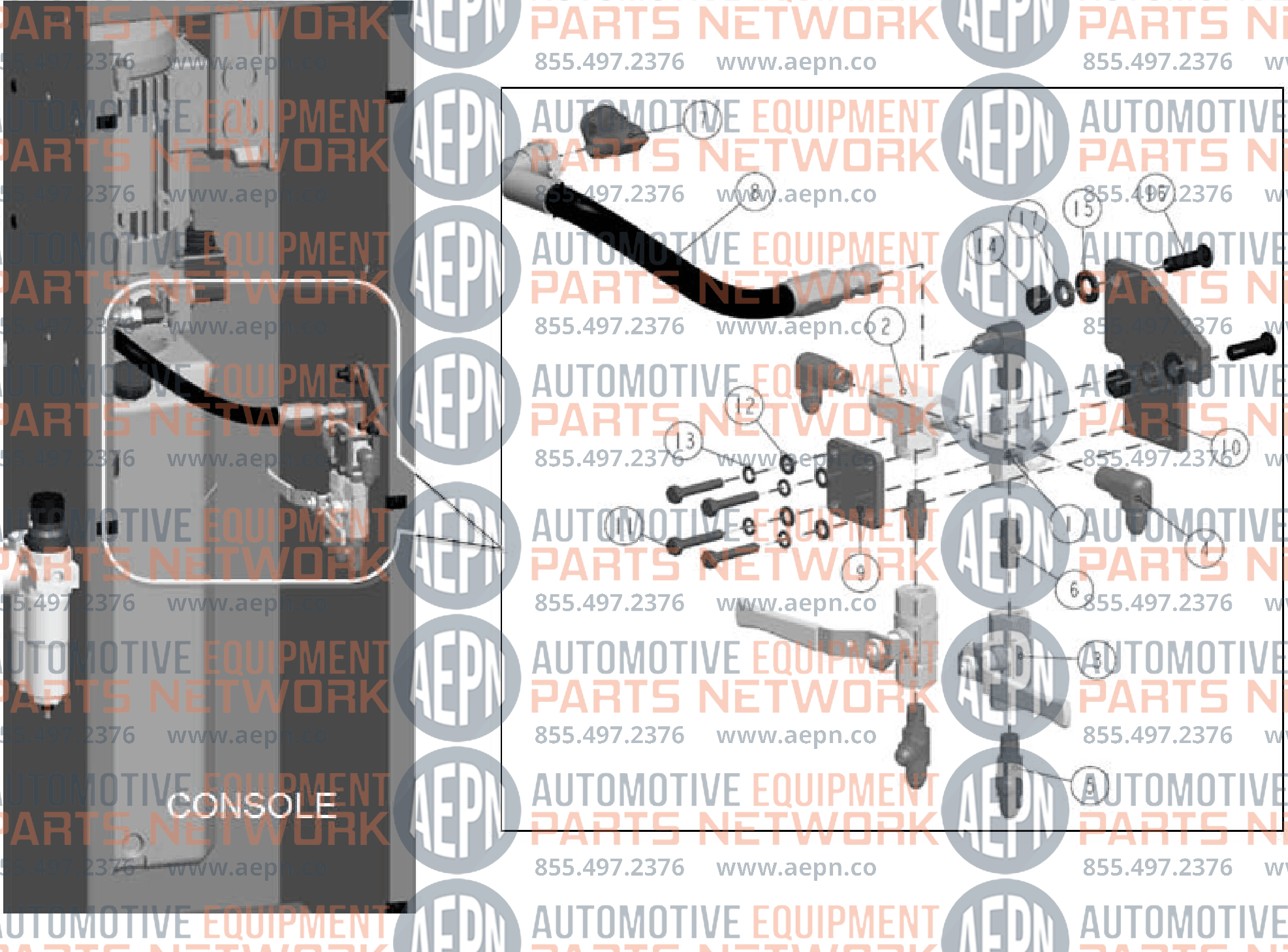

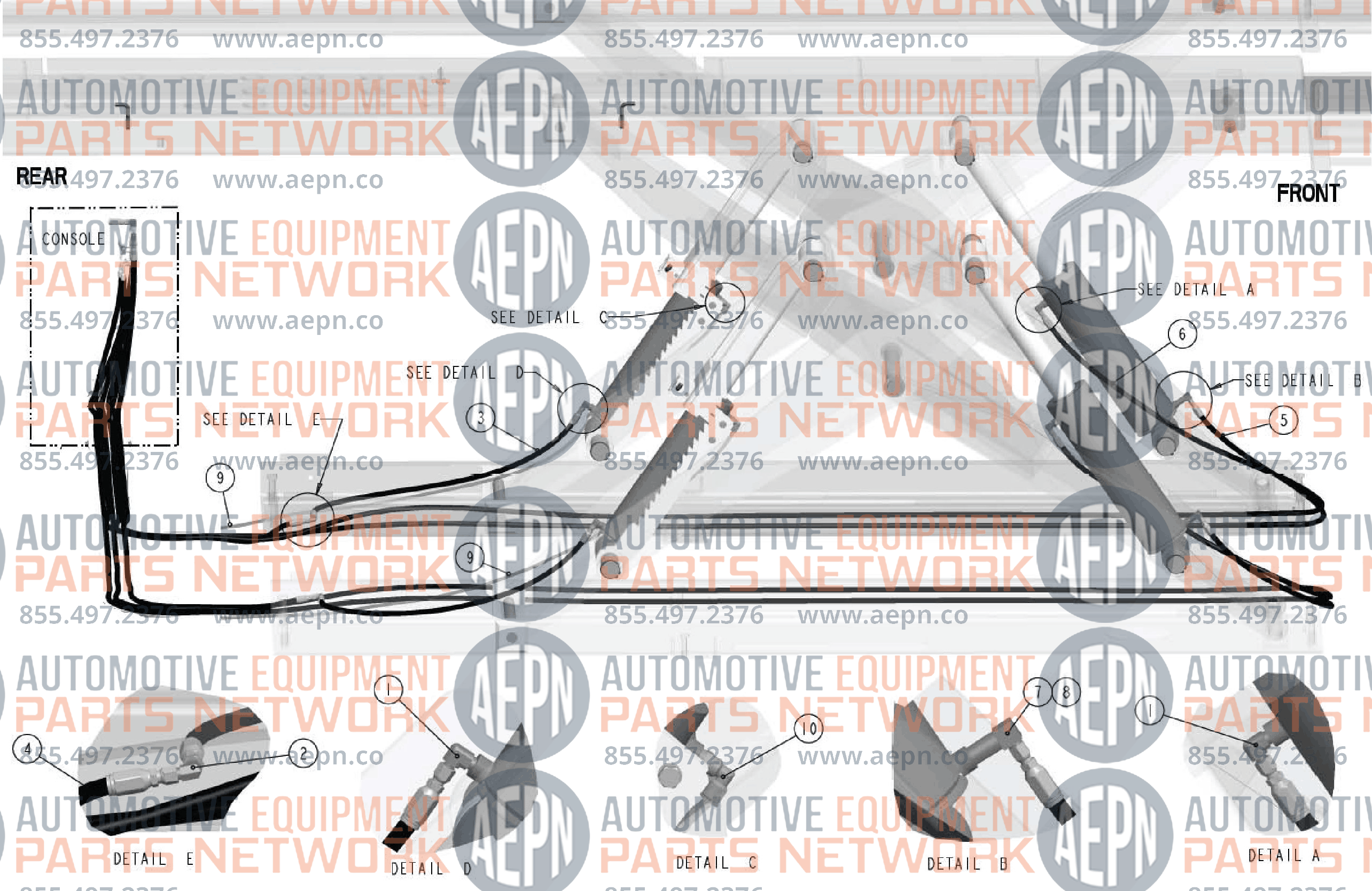

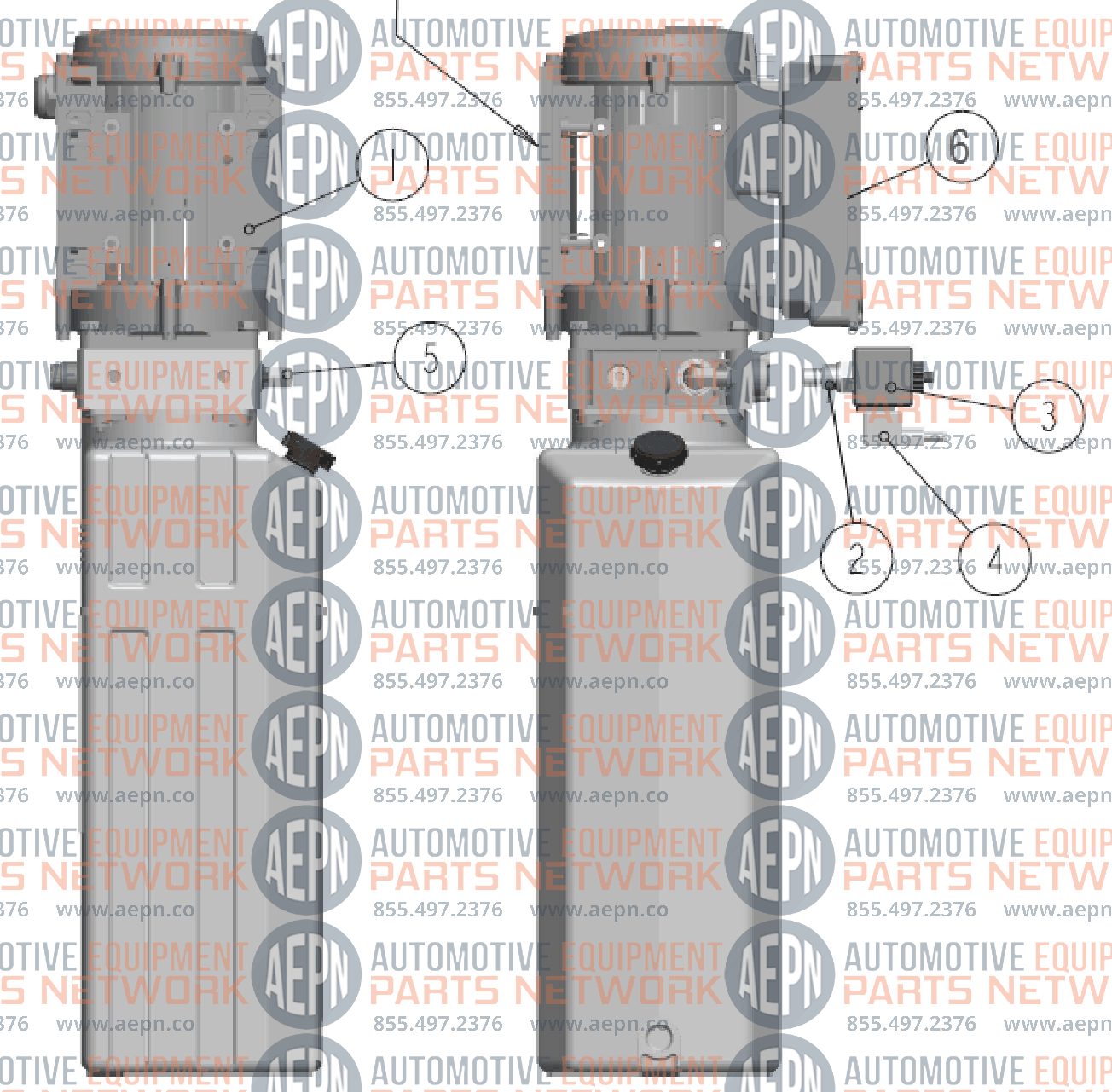

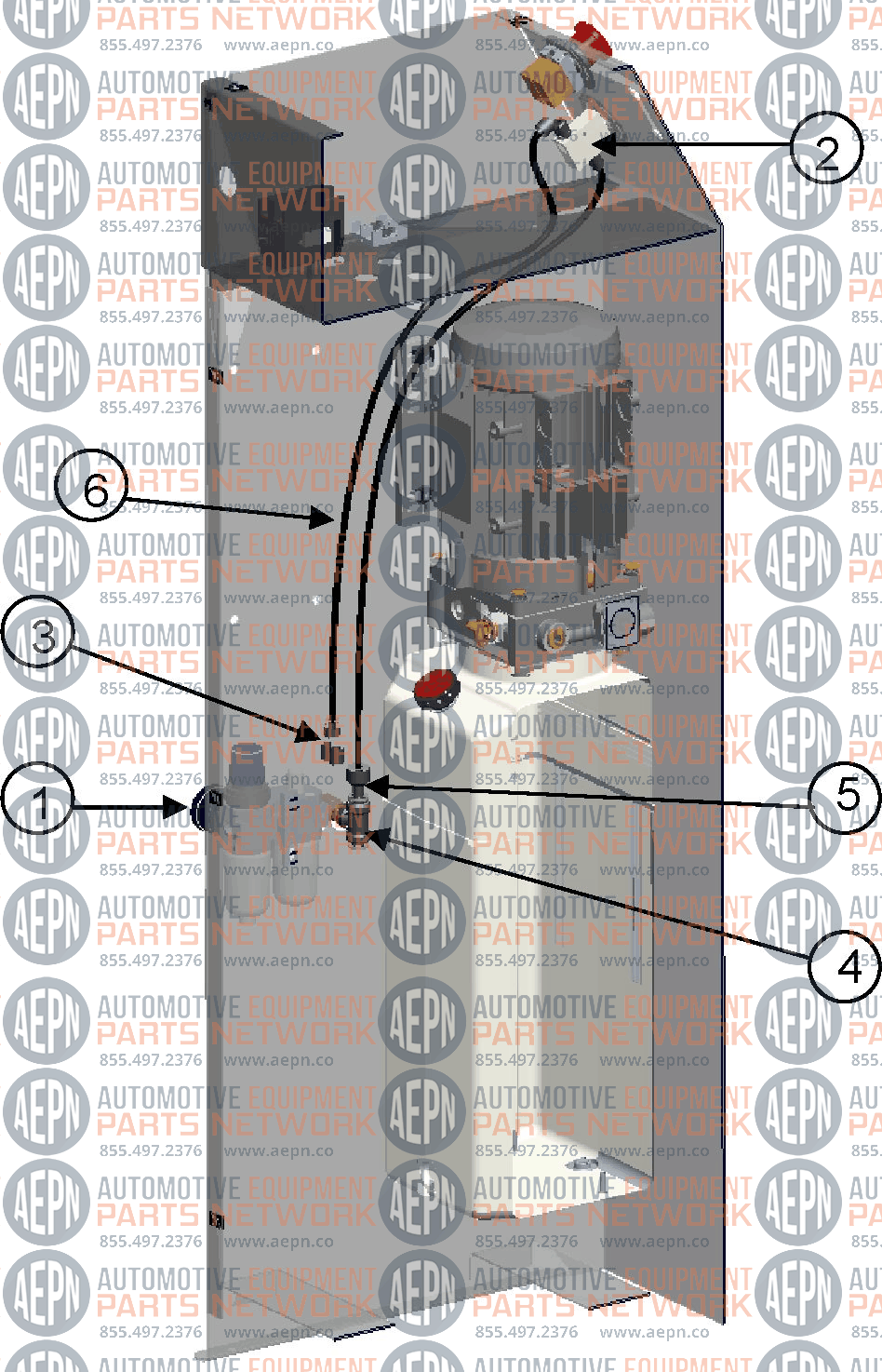

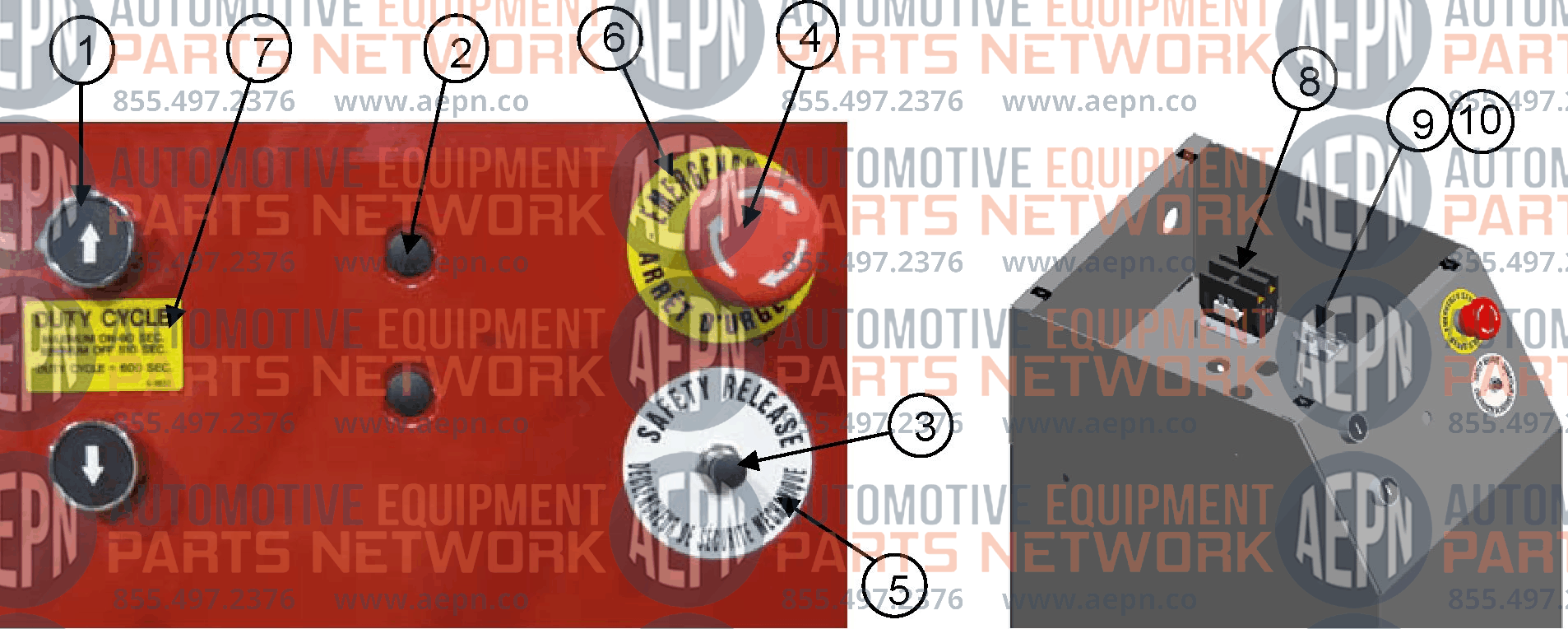

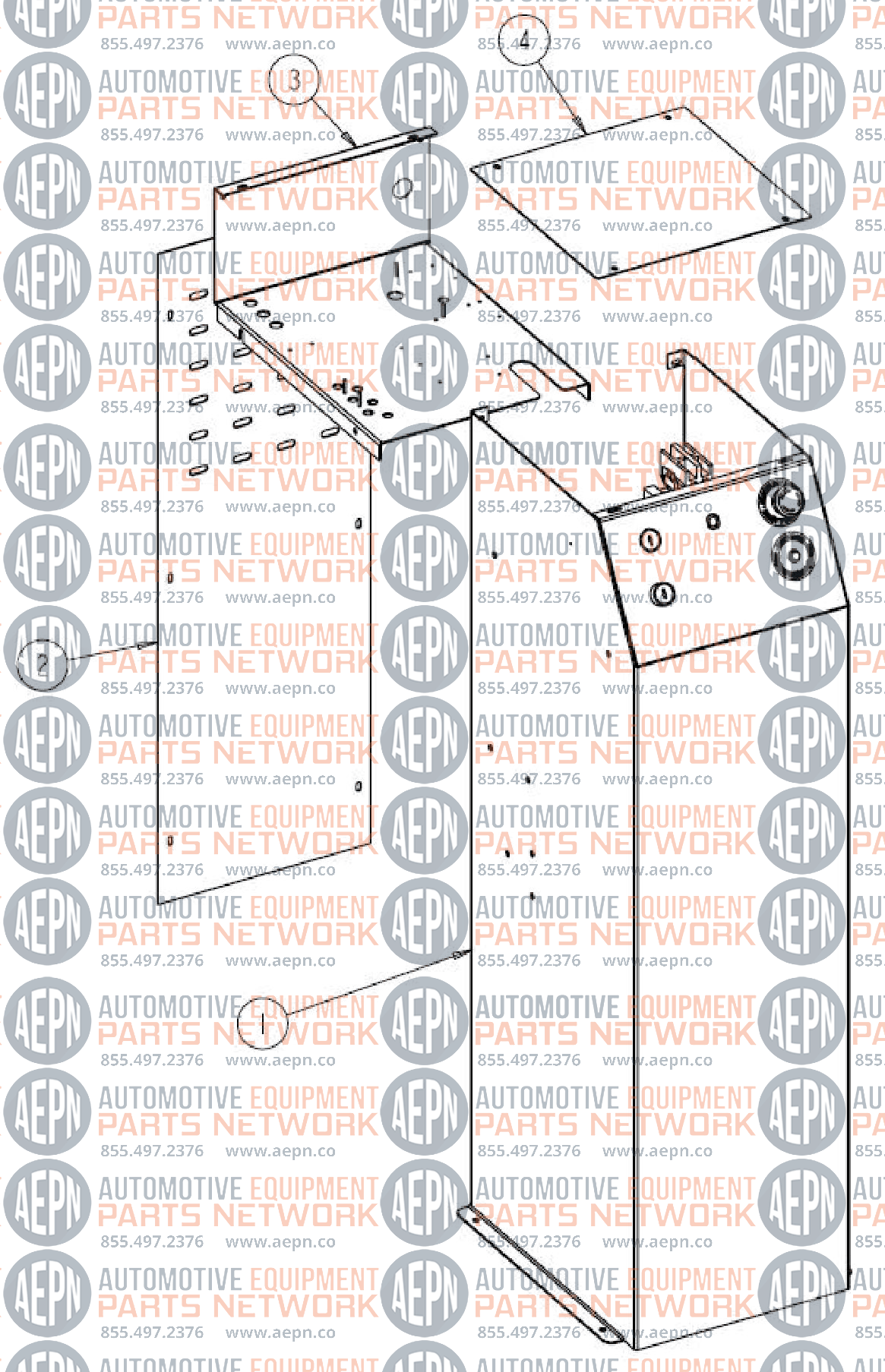

Click on the part number for more information
| ITEM | PART NO | DESCRIPTION |
|---|---|---|
| ITEM | PART NO | DESCRIPTION |
| 1 | 9-0284 | Ball Transfer, Flange, Ball 025mm |
| 2 | 9-0287 | Top Deck Removable Weldment |
| 3 | 9-0288 | Pin Locking - Slip Plate |
| 4 | 9-0316 | Spring Pin 05x55 Lg |
| 5 | 9-0340 | Pin Center |
| 6 | 9-0343 | Nylon Block Top |
| 7 | 9-0344 | Pin Sliding End Bottom |
| 8 | 9-0345 | Pin Sliding End Top |
| 9 | 9-0346 | Pin Primary Cylinder Top |
| 10 | 9-0347 | Pin - Secondary Cylinder Top |
| 11 | 9-0348 | Pin - Primary Cylinder Bottom |
| 12 | 9-0349 | Secondary Cylinder |
| 13 | 9-0350 | Primary Cylinder |
| 14 | 9-0351 | Washer |
| 15 | 9-0352 | Safety Lock Weldment-Lh Bottom |
| 16 | 9-0353 | Safety Lock Weldment-Rh Bottom |
| 17 | 9-0378 | Safety Lock Weldment - Rh Top |
| 18 | 9-0379 | Bracket-Safety Lock Top |
| 19 | 9-0380 | Safety Lock Weldment - Lh Top |
| 20 | 9-0401 | Flip Up Pin |
| 21 | 9-0405 | Pin Weldment-Fixed End Top |
| 22 | 9-0417 | Circlip Dia 25 |
| 23 | 9-0418 | Spring Washer |
| 24 | 9-0419 | Hex Bolt |
| 25 | 9-0426 | Pin-Fixed End Bottom |
| 26 | 9-0429 | Pin - Secondary Cylinder Bottom |
| 27 | 9-0510 | Pnuematic Actuator |
| 28 | 9-0517 | Circlip Dia 55 |
| 29 | 9-0518 | Hex Bolt |
| 30 | 9-0545 | Plain Washer |
| 31 | 9-0573 | Hexjam Nut |
| 32 | 9-0574 | Hex Nut |
| 33 | 9-0437 | Hinge Asm-Ramp |
| 34 | 9-0438 | M6x1 Csk Screw |
| 35 | 9-0439 | M6x1 Nut |
| 36 | 9-0432 | Hex Bolt |
| 37 | 9-0433 | Hex Nut |
| 38 | 9-0420 | Grub Screw |
| 39 | 9-0516 | Head Cap_Nylon Mc907 Od22 X10 |
| 40 | 9-0292 | Pullout Step |
| 41 | 9-0675 | Swivel Elbow |
| 42 | 9-0628 | Exhaust Muffler, 1/4" Npt-M |
| 43 | 9-0398 | Mounting Bracket |
| 44 | 9-0402 | Transition Ramp |
| 45 | 9-0414 | Hex Nut |
| 46 | 9-0423 | Hex Bolt |
| 47 | 9-0315 | Hex Nut |
| 48 | 9-0422 | Hex Bolt |
| 49 | 9-0286 | Flat Washer |
| 50 | 9-0568 | Hex Nut |
| 51 | 9-2101 | Locking Hook |
| 52 | 9-2102 | Guide Bracket |
| 53 | 9-2103 | Shoulder Screw |
| 54 | 9-0564 | Flat Washer |
| 55 | 9-0667 | Hex Bolt |
| 56 | 9-0131 | Spring Washer |
Click on the part number for more information
| ITEM | PART NO | DESCRIPTION |
|---|---|---|
| ITEM | PART NO | DESCRIPTION |
| 1 | 9-0588 | Elbow |
| 2 | 9-0594 | 90 Elbow |
| 3 | 9-0602 | Hydraulic Hose -Rear Cylinder |
| 4 | 9-0603 | Hydraulic Hose -Base Fitting |
| 5 | 9-0604 | Hydraulic Hose -Pri. Cyl. Bott |
| 6 | 9-0605 | Hydraulic Hose -Pri. Cyl. Top |
| 7 | 9-0606 | Flow Restrictor 3/8" Npt-F / Jic-06-M |
| 8 | 9-0607 | Elbow |
| 9 | 9-0624 | 010 Polytube Pu10*6.5, 1.8m (6ft) |
| 10 | 9-0678 | Elbow |
Click on the part number for more information
| ITEM | PART NO | DESCRIPTION |
|---|---|---|
| ITEM | PART NO | DESCRIPTION |
| 9-0590 | Hydraulic Equalization Circuit | |
| 1 | 9-0585 | Cross -3/8" Npt-F |
| 2 | 9-0586 | Run Tee, 3/8" Npt 1 F. - 2 M. |
| 3 | 9-0587 | Ball Valve -3/8" Npt-F |
| 4 | 9-0588 | Elbow |
| 5 | 9-0591 | Run Tee 3/8" Npt-M / Jic-06 M |
| 6 | 9-0592 | Coupler -3/8" Npt Male |
| 7 | 6-0804 | 90 Elbow |
| 8 | 9-0601 | Hydraulic Hose - Power Pack |
| 9 | 9-0656 | Hyd. Circuit Mount Top |
| 10 | 9-0657 | Hyd. Circuit Mount Bottom |
| 11 | 9-0658 | Hex. Bolt |
| 12 | 9-0659 | Flat Washer |
| 13 | 9-0660 | Spring Washer |
| 14 | 6-0294 | Hex Nut |
| 15 | 6-0295 | Flat Washer |
| 16 | 6-3421 | Bhcs, 5/16-18 Unc X 1 Lg |
| 17 | 6-0674 | Lock Washer |
Click on the part number for more information
| ITEM | PART NO | DESCRIPTION |
|---|---|---|
| ITEM | PART NO | DESCRIPTION |
| 1 | 9-0572 | Air Cylinder, Sda 50-30, Max. Pressure 0.7 Mpa |
| 2 | 9-0675 | Swivel Elbow |
| 3 | 9-0628 | Exhaust Muffler 1/4" Npt-M |
| 4 | 9-0623 | 06 Polytube Pu 6*4, 10m (33ft) |
| 5 | 9-0629 | Swivel Elbow |
| 6 | 9-0621 | Terminal Bolt |
| 7 | 9-0672 | Branch Tee Fitting-1/4" Npt- 3f |
| 8 | 9-0625 | 010 Polytube Pu 10*6.5, 15m (50ft) |
Click on the part number for more information
| ITEM | PART NO | DESCRIPTION |
|---|---|---|
| ITEM | PART NO | DESCRIPTION |
| 1 | 6-1247 | Push Button Head With Arrow, Rb2b A335 |
| 1 | 6-1248 | Push Button Contact No, Rb2b E-101 |
| 2 | 6-2314 | Plastic Plug |
| 3 | 9-0614 | Air Control Valve, Tac2-41p |
| 3 | 9-0619 | Swivel Elbow |
| 3 | 9-0620 | Adapter Epc0601 (1/8" Npt-M X 06 Poly) |
| 4 | 6-2921 | Emergency Stop Push Button, Rb2b S54 |
| 4 | 6-2922 | Emergency Stop Contact Nc, Rb2b E10200 |
| 5 | 6-3558 | Safety Release Decal |
| 6 | 6-3557 | Emergency Stop Decal |
| 7 | 6-3623 | Duty Cycle Decal |
| 8 | 9-0679 | Contactor, 230v / 1 Ph |
| 9 | 6-3595 | Fuse Holder - 2 Pole, 20a/250v |
| 10 | 6-3597 | Fuse 1a, 250v Time Delay 6x32 |
Click on the part number for more information
| ITEM | PART NO | DESCRIPTION |
|---|---|---|
| ITEM | PART NO | DESCRIPTION |
| 1 | 9-0669 | Frl Assembly With Elbow |
| 9-0613 | Frl (Filter / Regulator / Lubricator) , Jac2000-02 | |
| 9-0615 | 90 Elbow | |
| 2 | 9-0670 | Air Valve Assembly |
| 9-0614 | Air Control Valve, Tac2-41p | |
| 9-0619 | Swivel Elbow | |
| 9-0620 | Adapter Epc0601 (1/8" Npt-M X 06 Poly) | |
| 3 | 9-0618 | Union Y', Epy06 (06 Poly) |
| 4 | 9-0616 | Swivel T', Epb1002 (1/4" Npt M X 010 Poly) |
| 5 | 9-0617 | Reducer, Epgj1006 (010- 06 Poly) |
| 6 | 9-0622 | 06 Polytube Pu 6*4, 0.9m (35") |
Click on the part number for more information
| ITEM | PART NO | DESCRIPTION |
|---|---|---|
| ITEM | PART NO | DESCRIPTION |
| 1 | 3-0973 | Console Front/Side Panel |
| 2 | 2-2512 | Console Rear Panel |
| 3 | 3-0974 | Electrical Panel |
| 4 | 2-2513 | Top Cover |
| 6-0141 | Concrete Nail | |
| 6-3075 | Screw | |
| 6-3074 | U-Type Fastener | |
| 6-0816 | Flat Washer |
Click on the part number for more information
| ITEM | PART NO | DESCRIPTION |
|---|---|---|
| ITEM | PART NO | DESCRIPTION |
| 1 | 9-0680 | Powerpack Assembly |
| 2 | 6-2129 | Cartridge Valve |
| 3 | 6-2502 | Coil 230v |
| 4 | 6-3737 | Moulded Din Connector |
| 5 | 6-0804 | Elbow |
| 6 | 8-0030 | Electrical Cable 3x12, 2ft |
| 1 | 6-0294 | Hex Nut |
| 2 | 6-0295 | Flat Washer |
| 3 | 6-3421 | Bhcs, 5/16-18 Unc X 1 Lg |
| 4 | 6-0674 | Lock Washer |
Click on the part number for more information

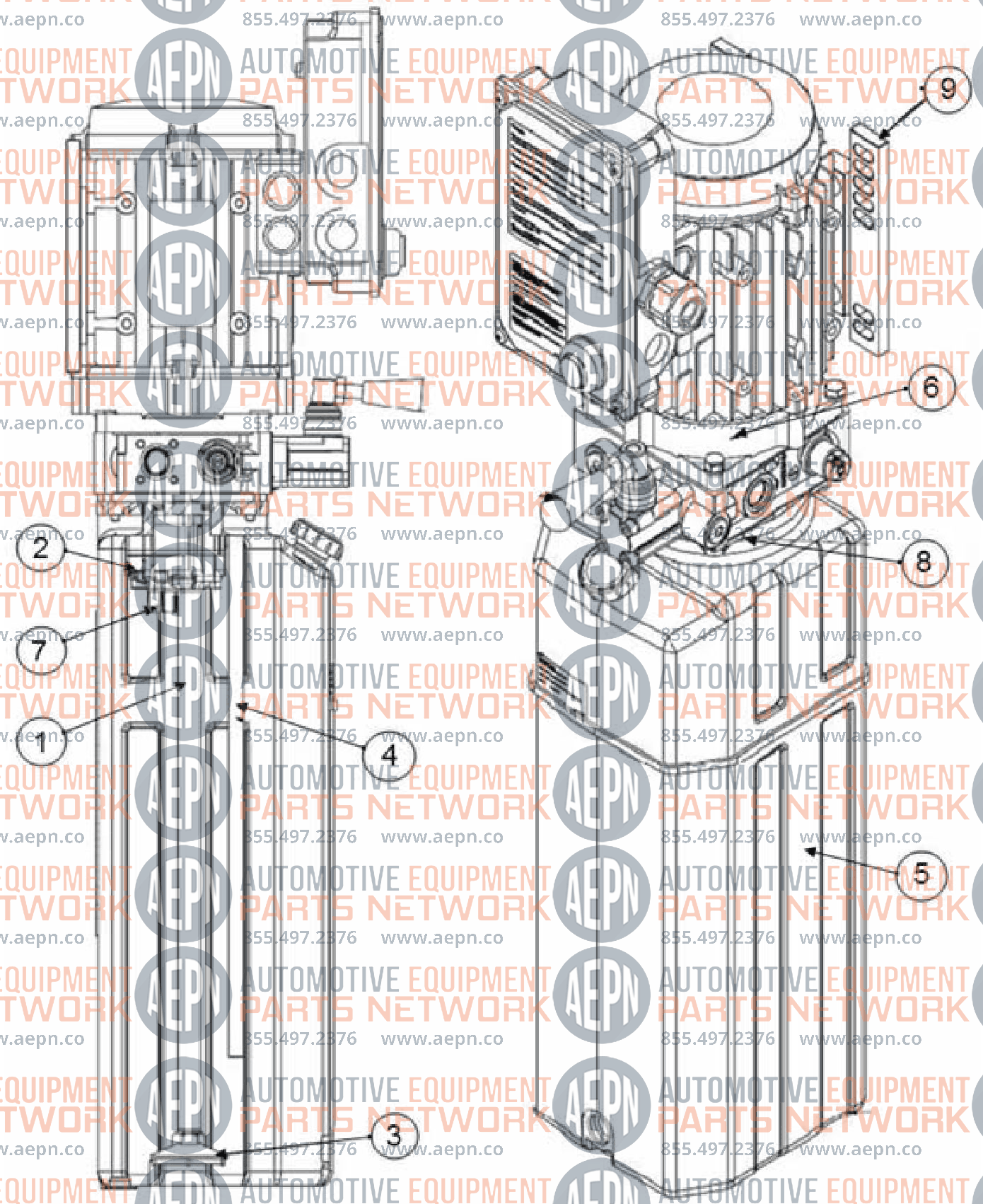

| ITEM | PART NO | DESCRIPTION |
|---|---|---|
| ITEM | PART NO | DESCRIPTION |
| 1 | 6-3442 | Pump 6.7g, 16 Gear |
| 2 | 6-3443 | Suction Pipe 3/8 |
| 3 | 6-3444 | Suction Filter 3/8 Female 15 L/Min |
| 4 | 6-3445 | Return Pipe |
| 6 | 6-3446 | Plastic Tank 121- |
| 6 | 6-3447 | Motor Shaft Coupling Pump |
| 7 | 6-3452 | Start Up Valve |
| 8 | 6-3449 | Tank Bracket With Screw |
| 9 | 6-3450 | Motor Brackets |
| 1 | 2-2733 | Line Cover "A" |
| 2 | 2-2734 | Line Cover "B" |
| 3 | 2-2735 | Line Cover "C" |
| 4 | 2-2736 | Line Cover "D" |
| 5 | 6-0141 | Concrete Nail |
| 1 | 6-1379 | Wedge Anchor |
| 2 | 6-0140 | Wedge Anchor |
| 1 | EAK0289J05 | Turntable (Optional) |
| 1 | EELR512A | 6k Jack Beam |
| 2 | 9-0626 | Recoil Hose 08 Pu 8*6, 1/4" Npt-M, 12ft |
| EAK0299T19A | Hose Extension Kit (Optional) | |
| 1 | 2-1049 | Hydraulic Hose 252" Lg |
| 2 | 6-0922 | 90 Elbow |
| 3 | 2-2997 | Hydraulic Hose 250" Lg, M-F |
| 4 | 8-0385 | Polytube 10mm Od |
| 5 | 6-4190 | 10mm Pushlock Union |
| 6 | 8-0384 | Polytube 6mm Od |
| 7 | 6-4187 | 6mm Pushlock Union |
| EAK0299T41A | Scissor Lift Shim Kit (Included) |
