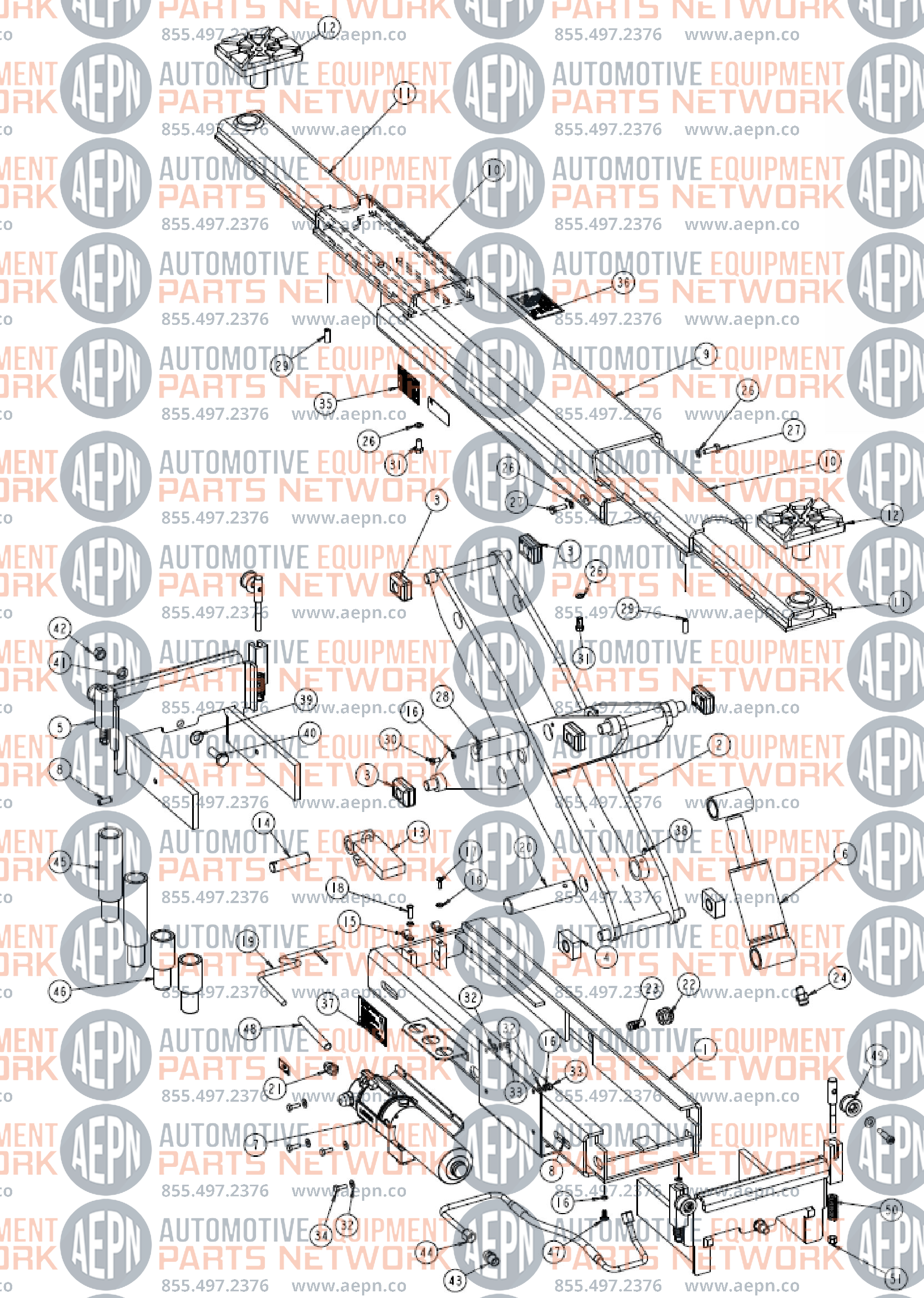

HOFMANN EELR701A Parts Breakdown
Click on the part number for more information
| ITEM | PART NO | DESCRIPTION |
|---|---|---|
| ITEM | PART NO | DESCRIPTION |
| 1 | 3-1131 | Base Weldment |
| 2 | 3-1098 | Scissor Assembly |
| 3 | 1-3836 | Glide Block |
| 4 | 1-4030 | Fixed Glide Block W/ Bushing |
| 5 | 3-1099 | Roller Adapter Weldment |
| 6 | 3-1075 | Hydraulic Cylinder Assembly |
| 7 | 6-1428 | Air/Hydraulic Pump |
| 8 | 6-3061 | Set Screw |
| 9 | 3-1100 | Top Cover Weldment |
| 10 | 2-2639 | Outer Arm Weldment |
| 11 | 2-2640 | Inner Arm Weldment |
| 12 | 1-3665 | Stack Pad Assembly |
| 13 | 2-2950 | Safety Weldment |
| 14 | 1-3966 | Safety Pin |
| 15 | 6-3959 | Loop Clamp, 3/8" |
| 16 | 6-0056 | Lock Washer |
| 17 | 6-2565 | Button Head Cap Screw |
| 18 | 6-3036 | Button Head Cap Screw |
| 19 | 1-3951 | Safety Lever Assembly |
| 20 | 1-3841 | Upper Cylinder Pin |
| 21 | 6-3010 | Pneumatic 90 Elbow |
| 22 | 6-0713 | Terminal Bolt |
| 23 | 6-0710 | Adapter, 1/4" Npt-M X 3/8" Poly |
| 24 | 6-4072 | Flow Restrictor |
| 25 | 8-0142 | Polytube, 3/8 |
| 26 | 6-0674 | Lock Washer |
| 27 | 6-0293 | Hex Bolt |
| 28 | 1-3949 | Upper Cylinder Pin |
| 29 | 6-3487 | Roll Pin, 1/4" X 1-3/4"Lg |
| 30 | 6-0126 | Hex Bolt |
| 31 | 6-0423 | Hex Bolt |
| 32 | 6-0060 | Flat Washer |
| 33 | 6-0032 | Hex Nut |
| 34 | 6-0178 | Hex Bolt |
| 35 | 6-3970 | Decal, Raise & Lowering Warning |
| 36 | 6-3688 | Decal, Capacity 5000 Lbs. |
| 37 | 6-3863 | Decal, Safety Release |
| 38 | 6-0438 | Set Screw |
| 39 | 6-0248 | Flat Washer |
| 40 | 6-0291 | Hex Bolt |
| 41 | 6-0059 | Lock Washer |
| 42 | 6-0035 | Hex Nut |
| 43 | 6-4070 | Adapter, 3/8" Npt M X 3/8 Orf M |
| 44 | 2-2910 | Hydraulic Tube Assembly, 3/8" Jic |
| 45 | 2-2724 | Stack Pad Adapter, 5-1/2" |
| 46 | 1-3711 | Stack Pad Adapter, 2-1/2" |
| 47 | 6-0335 | Pan Hd Mc Screw |
| 48 | 6-3862 | Rubber Grip Handle |
| 49 | 2-0259 | Roller Assembly |
| 50 | 6-0081 | Spring |
| 51 | 6-0042 | Nylon Lock Nut |
| 53 | 6-3031 | Decal, "Up" |
Click on the part number for more information
| ITEM | PART NO | DESCRIPTION |
|---|---|---|
| ITEM | PART NO | DESCRIPTION |
| 1 | 6-3348 | Reservoir Cap Assembly |
| 2 | 6-3349 | Release Guide Assembly |
| 3 | 6-3350 | Flow Restrictor Assembly |
| 4 | 6-3351 | Coupler Assembly |
| 5 | 6-3352 | Coupling V-Retainer |
| 6 | 6-3353 | Plunger & Spring Kit |
| 7 | 6-3354 | Hydraulic Cylinder Assembly |
| 8 | 6-3355 | Air Piston Assembly |
| 9 | 6-3356 | Air Motor Assembly |
| 10 | 6-3357 | Coupler Kit |
| 12 | 6-3859 | Relief Valve Assembly |
| 13 | 6-3360 | Base |
| 14 | 6-3361 | Reservoir |
| 15 | 6-3365 | Poppet Guide Assembly |
| 16 | 6-3368 | Boot |
| 17 | 6-3366 | Handle |
| 18 | 6-3367 | Rubber Sleeve |
