HOFMANN EELL705A Parts Breakdown



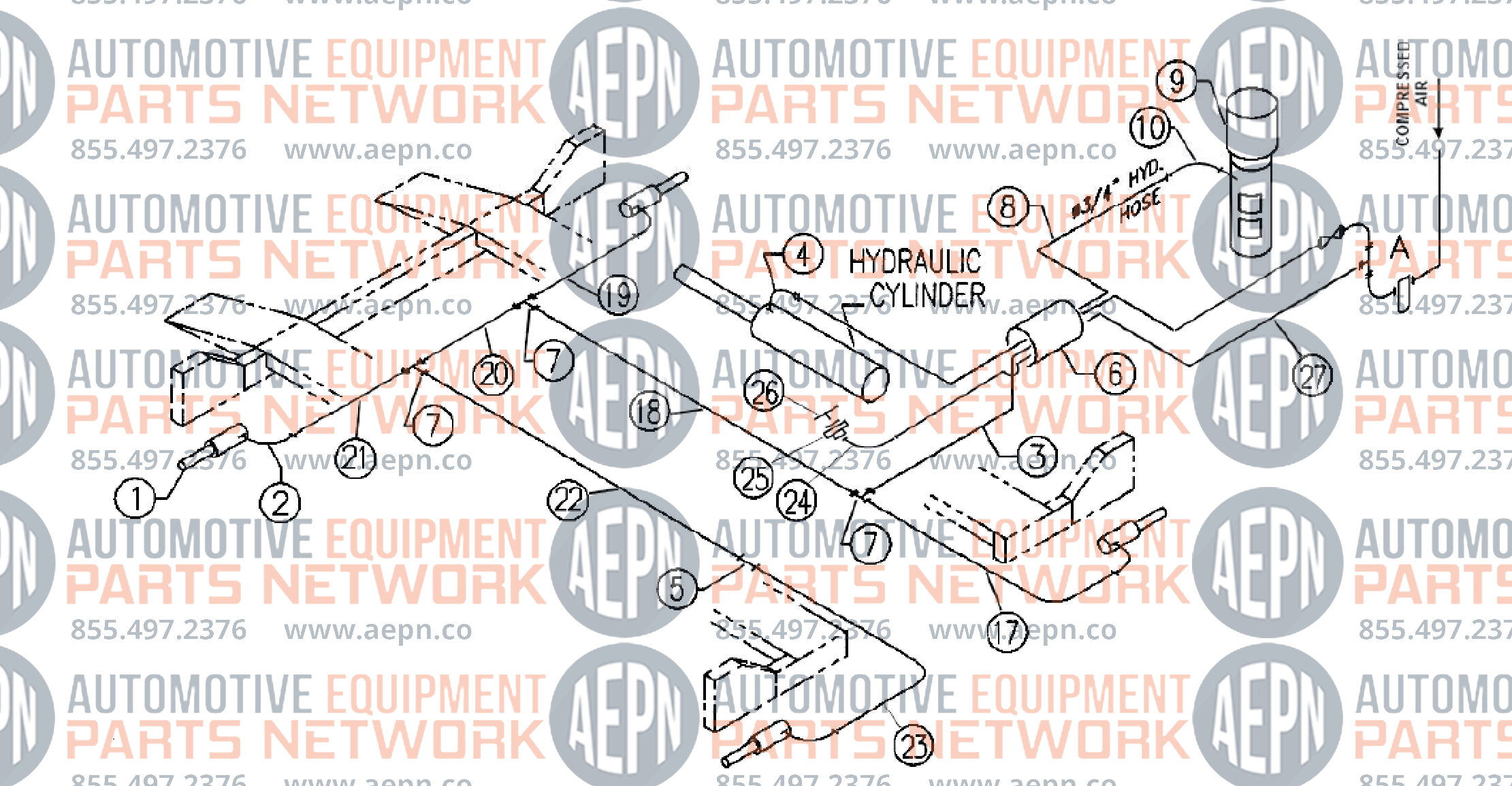

Click on the part number for more information

ITEM PART NO DESCRIPTION
ITEM PART NO DESCRIPTION

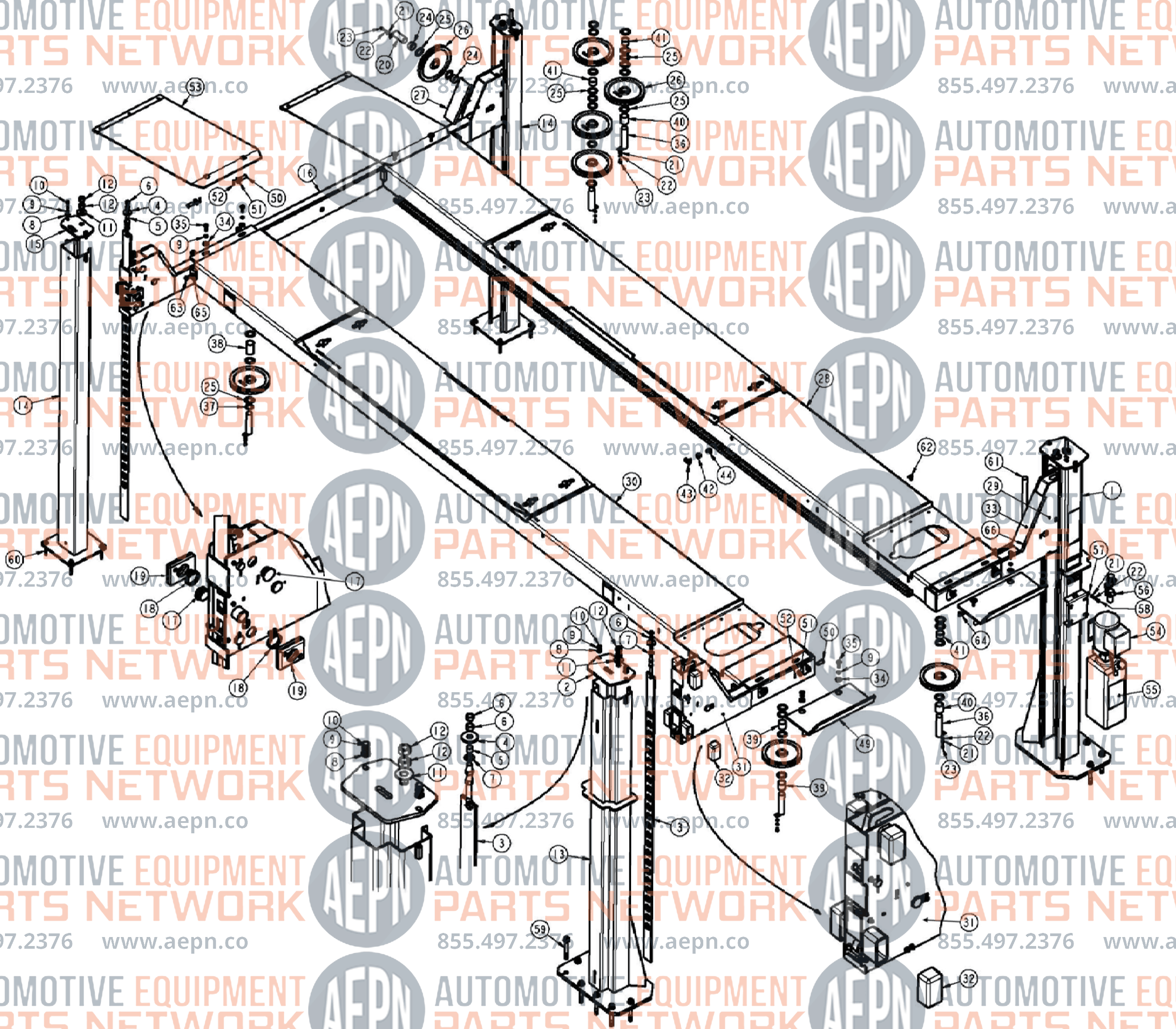

1 3-1083 Tower Assembly, Front, Power
2 1-3810 Top P Late - Flamccut
3 3-1082 Safety Rack Weld Ment
4 1-3932 Washer
5 1-3931 Spacer
6 6-0673 5/3" Hex Mut, Grade 8
7 6-1401 Washer
8 6-0248 Flat Washer
9 6-0059 Lock Washer
10 6-0047 Hex H D Bolt
11 6-0725 7/3 Id Flat Washer
12 6-0724 Ll-Ex Nut
12 4-1331 Front Post Weldrvl't, Slave
Is 2-2928 Rcafttowcrwcldmcnt
Ib 2-2856 Top Plate - Flamecut
16- 4-1423 Rear Traverse Beam Assembly
17 1-4002 Plastic Insert
Ib 1-3872 Spacer, Rear Slider
19 2-2725 Glide Block
20 1-3862 Crossmem&Cr Sheave Pin
21 6-0295 Fiat Washer
22 6-0674 Lock Washer
23 6-0423 Hex Bolt
24 1-3863 Sheave Spacer, 7/3", Cross-Member
25 1-0757 Nylon Thrust Washer
26 2-2927 Sheave Assembly, 10'
27 2-2852 Pulleycover, Rear
2a 4-1334 Deck Assembly, Ld, Alignment
29- 4-1327 Front Crossmember Assy, Ls
30 4-1333 Deck Asse Mbly, Rs, Alignment
31 4-1326 Front Crossmember Assy, Rs
32 2-0772 Slider Block
33 2-2348 Pulley Cover, Front
34 6-0063 Flat Washer
35 6-0291 Hex Bolt
36 2-0566 Deck Sheave Pin
37 1-3875 Sheave Spacer
33 1-3874 Sheave Spacer
39 1-3876 Spacer, Front Rs, Top
40 1-3873 Sheave Spacer
41 1-3936 Sheave Spacer 1 1/8' Ec
42 6-0713 Terminal Bolt
43 6-3896 Pneumatic Tee Fitting
44 6-3010 90 Deg. Elbow
46 2-2914 Lcft Front Cable, 398-1/4 ' Lg, Right Lay
46 2-2933 Left Rear Cable, 165-1/2" Lg. Right Lay
47 2-2916 Right Rear Cable, 221 3/411 Lg, Right Lay
48 2-2917 Right Front Cable, 4s0 1/1 Lg, Right Lay
49 2-2863 Wheel Stop Weldment
50 1-1887 Headed Pin
51 6-0733 Flat Washer
52 6-0267 Cotter Pin
53 3-1089 Approach Ramp Ass'y
54 6-1398 Rower Pack, 208-230 V, 1 Ph
55 6-4045 Four Post Operating Instructions
56 2-1394 Air Valve Ft Air Filter Assy.
57 6-0294 Hex Nut
58 6-0293 Hex Head Bolt
59 6-4044 Wedge Anchor
60 6-0140 Wedge Anchor
61 6-0714 Hose Guard
62 6-3998 Tree Mount Cable Tie, SL≪3.
63 6-0769 1/2-13 X2 1 Hex Hd Bolt
64 6 2971 Fitting, Tee, 1/1' Polyture, Push-Lock
65 6-129S Nut
66 6-1134 Screw



Click on the part number for more information

ITEM PART NO DESCRIPTION
ITEM PART NO DESCRIPTION

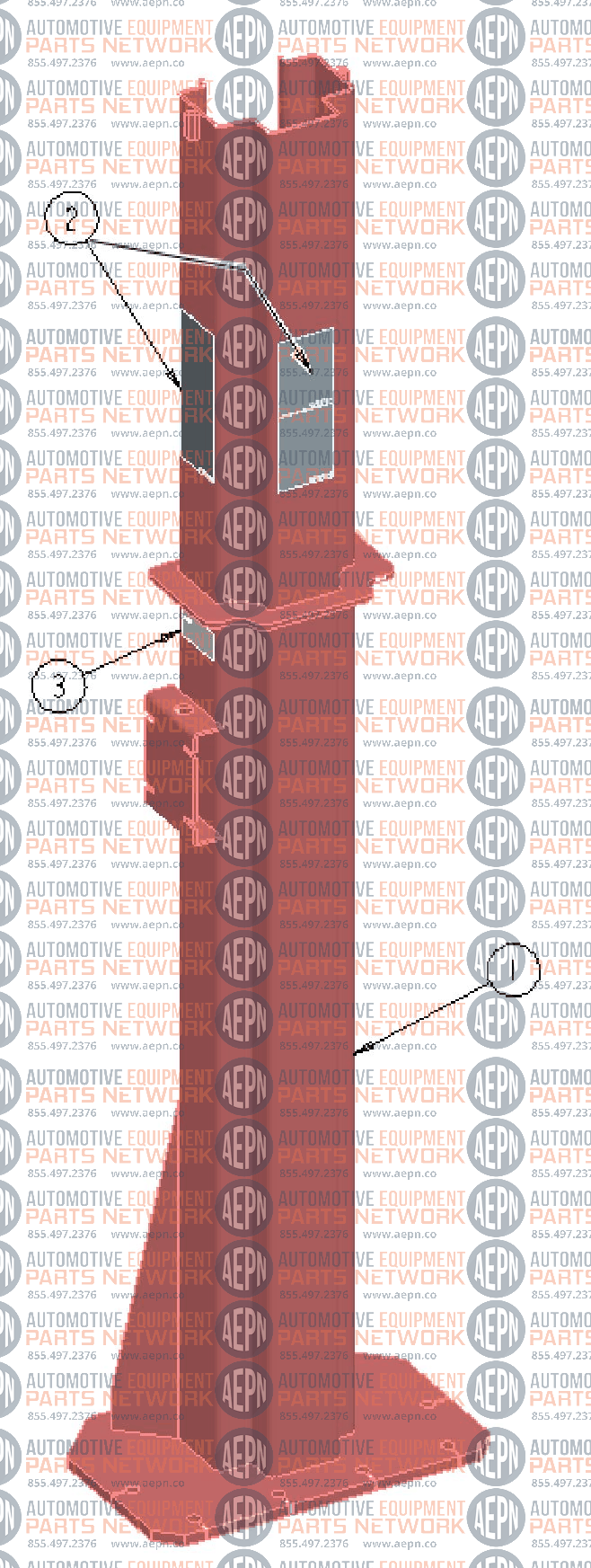

1 4-1330 Front Post Weldm't, Power
2 6-0988 Decal Set, Al1/Wl 300
3 6-1637 Safety Decal



Click on the part number for more information

ITEM PART NO DESCRIPTION
ITEM PART NO DESCRIPTION

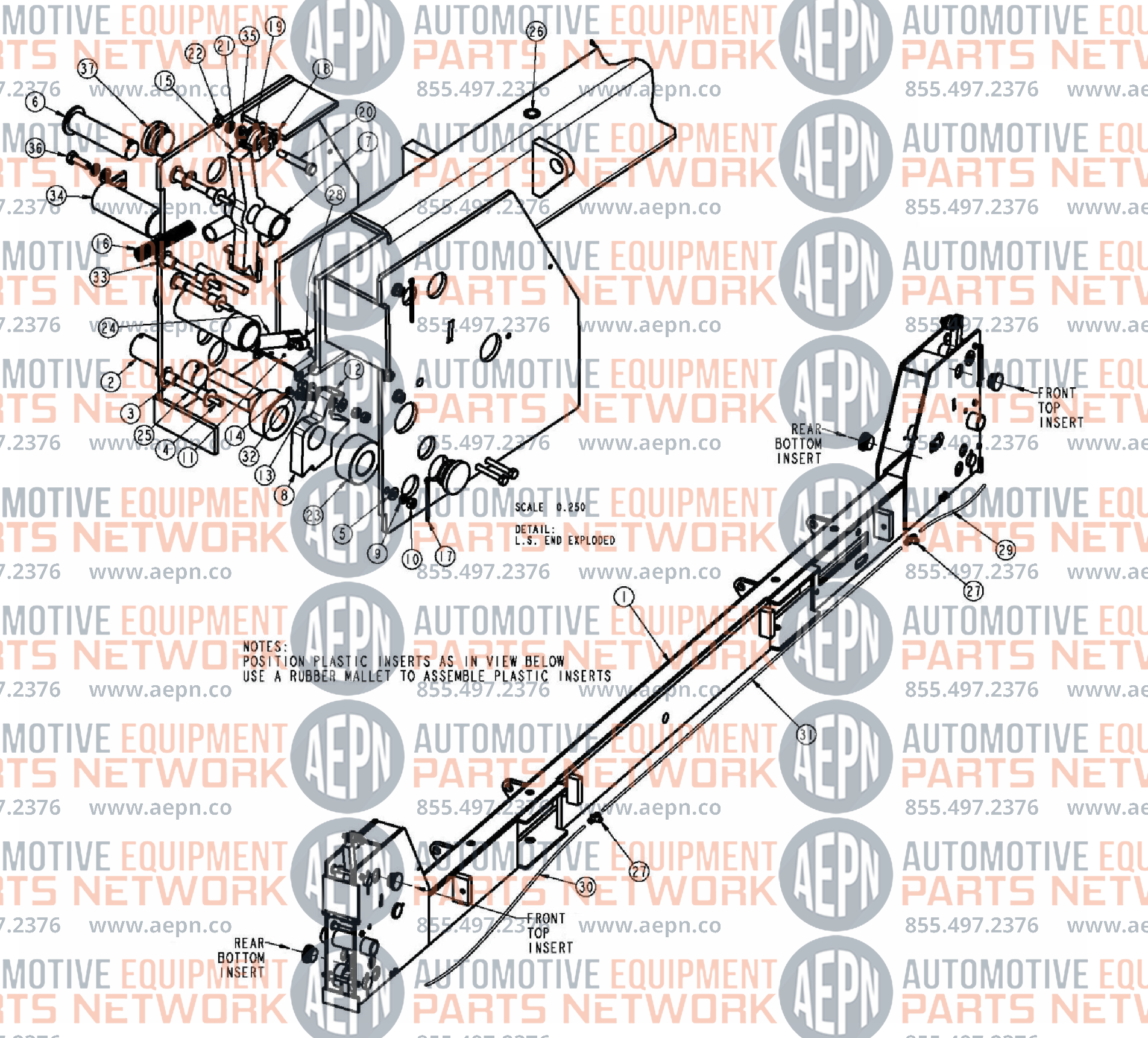

1 4-1422 Rear Crossmember, Weldment
2 1-3891 Lock Safety Pin
3 6-3990 Roller, Safety Ladder
4 6-3997 Hex Hd. Bolt
5 6-0060 Flat Washer
6 1-3865 Lock Safety Pin
7 1-3812 Safety Spacer
8 2-2847 Safety Dog
9 6-0056 Lock Washer
10 6-0032 Hex Nut
11 2-2898 Cylinder Mount, Welded
12 1-3935 Rod Clevis
13 1-1115 Safety Spring
14 6-0169 Screw
15 2-2854 Aux. Safety Weldment, Rear
16 6-4050 Safety Spring
17 6-0115 Cotter Pin, 1/8 Dia X 2 Lg
18 6-0062 Flat Washer
19 1-3953 Cable Roller Assembly
20 6-0801 Shoulder Bolt
21 6-0674 Lock Washer
22 6-0294 Hex Nut
23 1-3798 Roller Retainer
24 6-3989 Safety Cylinder
25 1-3868 Polytube Spacer
26 6-2432 Threaded Insert, 1/2-13 Unc, 215-112
27 6-2971 Fitting, Tee, 1/4" Polytube, Push-Lock
28 6-4040 Elbow
29 8-0141 Polytube, 1/4" Dia X 0.038" Wall X 19" Lg.
30 8-0141 Polytube, 1/4" Dia X 0.038" Wall X 30" Lg.
31 8-0141 Polytube, 1/4" Dia X 0.038" Wall X 64" Lg
32 6-0028 Hex Hd Cs,L/4 20uncxl 3/4"Lg
33 6-3882 Washer
34 1-3862 Crossmember Sheave Pin
35 6-0295 Flat Washer
36 6-0293 Hex Head Bolt
37 1-4002 Plastic Insert



Click on the part number for more information

ITEM PART NO DESCRIPTION
ITEM PART NO DESCRIPTION

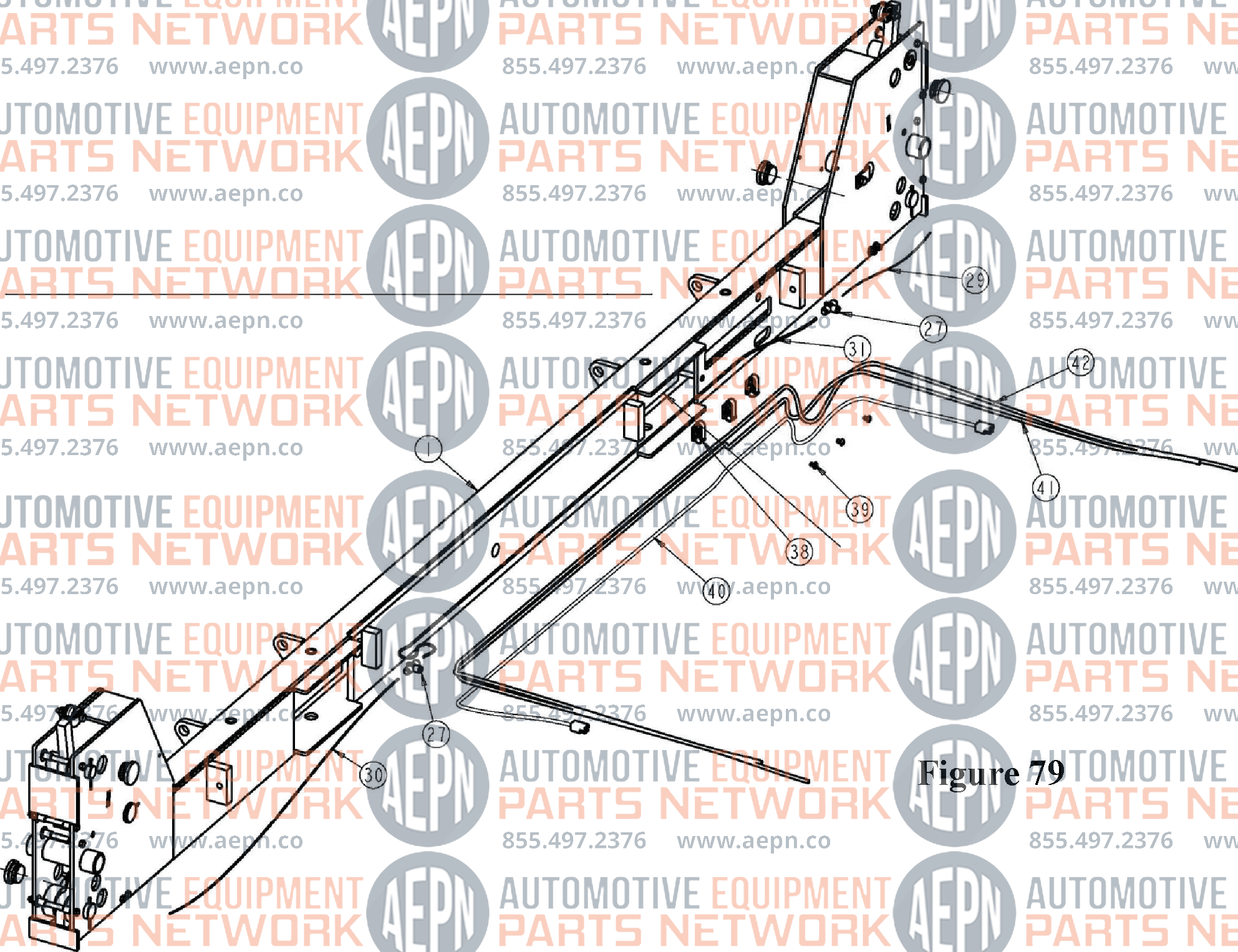

1 4-1424 Rear Crossmember Weldment
38 6-4125 Cable Holder
35 6-1353 Round Head Screw
45 6-4105 Light Cable Assembly
41 8-0372 Polytube Red, 1/4" D!A K 0.038w" * 1 Oft
42 8-0373 Polytube Blue, 1/4 Dia * 0-038w" * I0ft



Click on the part number for more information

ITEM PART NO DESCRIPTION
ITEM PART NO DESCRIPTION

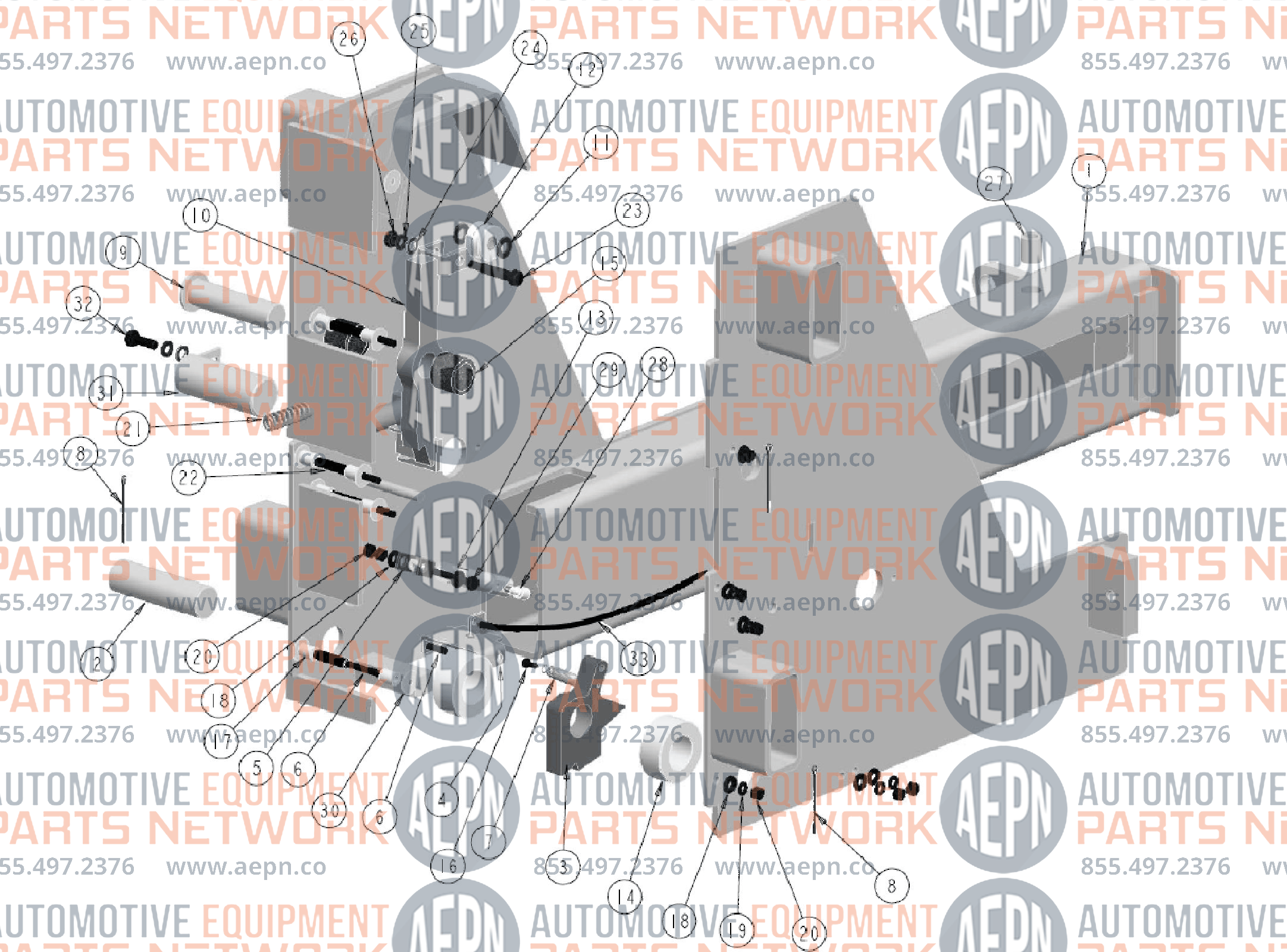

1 4-1324 Fr. Crossmember Weldment, Ls
2 1-3891 Lock Safety Pin
3 2-2847 Safety Dog
4 2-2898 Cylinder Mount, Welded
5 1-3935 Rod Clevis
6 6-3997 Hex Hd. Bolt
7 1-1115 Safety Spring
3 6-0115 Cotter Pin, 1/8 Dia X 2 Lg
9 1-3865 Lock Safety Pin
10 2-2845 Aux. Safety Weldment, Front
11 6-0062 Flat Washer
12 1-3953 Cable Roller Assembly
13 6-3989 Safety Cylinder
14 1-3798 Roller Retainer
15 1-3812 Safety Spacer
16 6-0169 Self-Tapping Screw
33 8-0141 Polytube, 1/4" Dia X .038 Wall, Blk. 40" Lg.
17 6-3990 Roller, Safety Ladder
18 6-0060 Flat Washer
19 6-0056 Lock Washer
20 6-0032 Hex Nut
21 6-4050 Safety Spring
22 1-3868 Polytube Spacer
23 6-0801 Shoulder Bolt
24 6-0295 Flat Washer
25 6-0674 Lock Washer
26 6-0294 Hex Nut
27 6-2432 Threaded Insert, 1/2-13 Unc, 215-112
28 6-4040 Elbow
29 6-0028 Hex Hd Cs,L/4 20uncxl 3/4"Lg
30 6-3882 Washer
31 1-3862 Crossmember Sheave Pin
32 6-0293 Hex Head Bolt



Click on the part number for more information

ITEM PART NO DESCRIPTION
ITEM PART NO DESCRIPTION

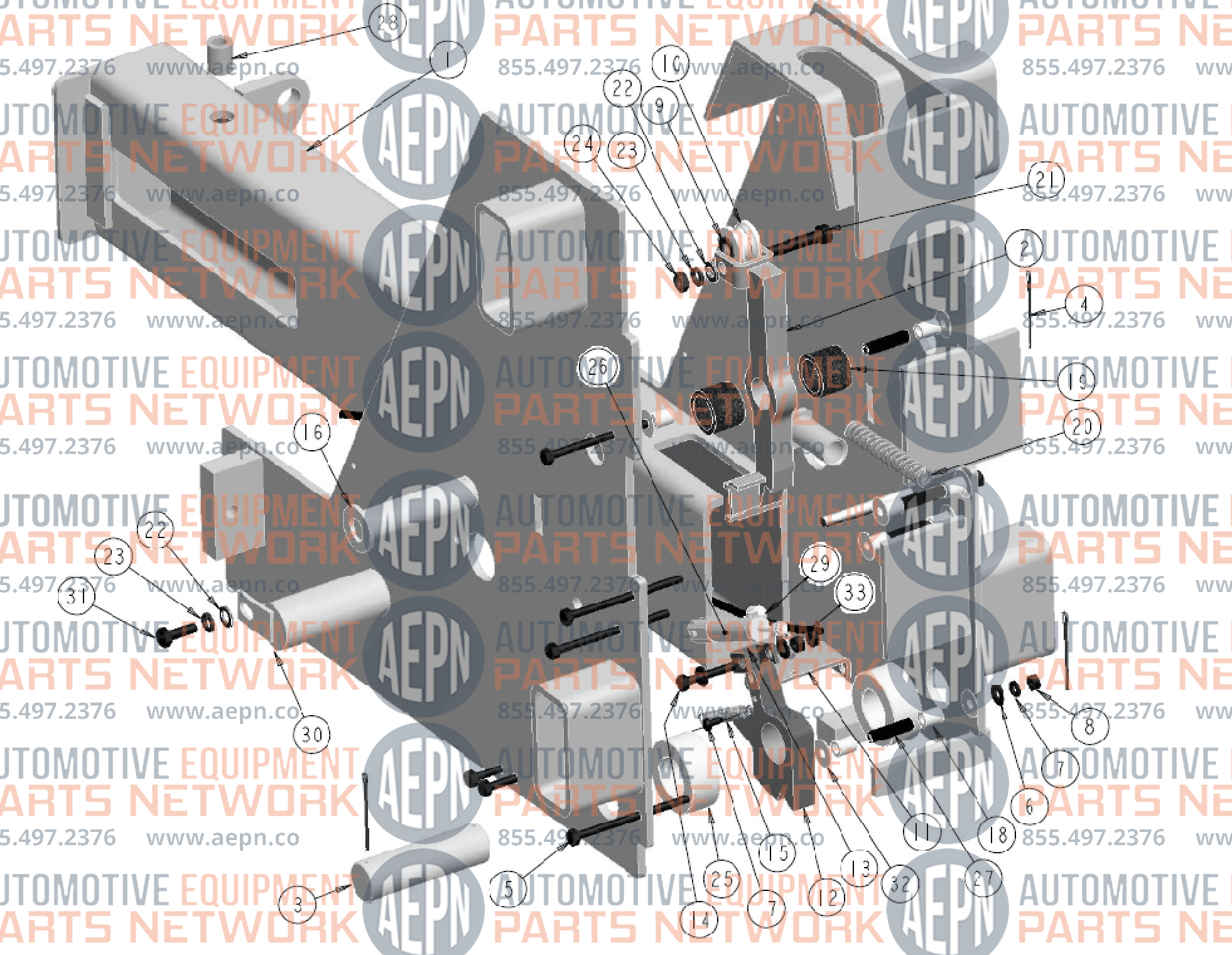

1 4-1325 Front Crossmember Weldment, Rs
2 2-2845 Aux. Safety Weldment, Front
3 1-3891 Lock Safety Pin
4 6-0115 Cotter Pin, 1/8 Dia X 2 Lg
5 6-3997 Hex Hd. Bolt
6 6-0060 Flat Washer
7 6-0056 Lock Washer
S 6-0032 Hex Nut
9 6-0062 Flat Washer
10 1-3953 Cable Roller Assembly
11 2-2898 Cylinder Mount, Welded
12 2-2847 Safety Dog
13 1-3935 Rod Clevis
14 6-0028 Hex Hd Cs,L/4 20uncxl 3/4"Lg
15 1-1115 Safety Spring
16 1-3865 Lock Safety Pin
33 8-0141 Polytube, 1/4 Dia X 0.038 Wall, Black, 40" Lg
17 6-0169 Self-Tapping Screw
18 6-3990 Roller, Safety Ladder
19 1-3812 Safety Spacer
20 6-4050 Safety Spring
21 6-0801 Shoulder Bolt
22 6-0295 Flat Washer
23 6-0674 Lock Washer
24 6-0294 Hex Nut
25 1-3798 Roller Retainer
26 6-3989 Safety Cylinder
27 1-3868 Polytube Spacer
28 6-2432 Threaded Insert, 1/2-13 Unc, 215-112
29 6-4040 Elbow
30 1-3862 Crossmember Sheave Pin
31 6-0293 Hex Head Bolt
32 6-3882 Washer



Click on the part number for more information

ITEM PART NO DESCRIPTION
ITEM PART NO DESCRIPTION

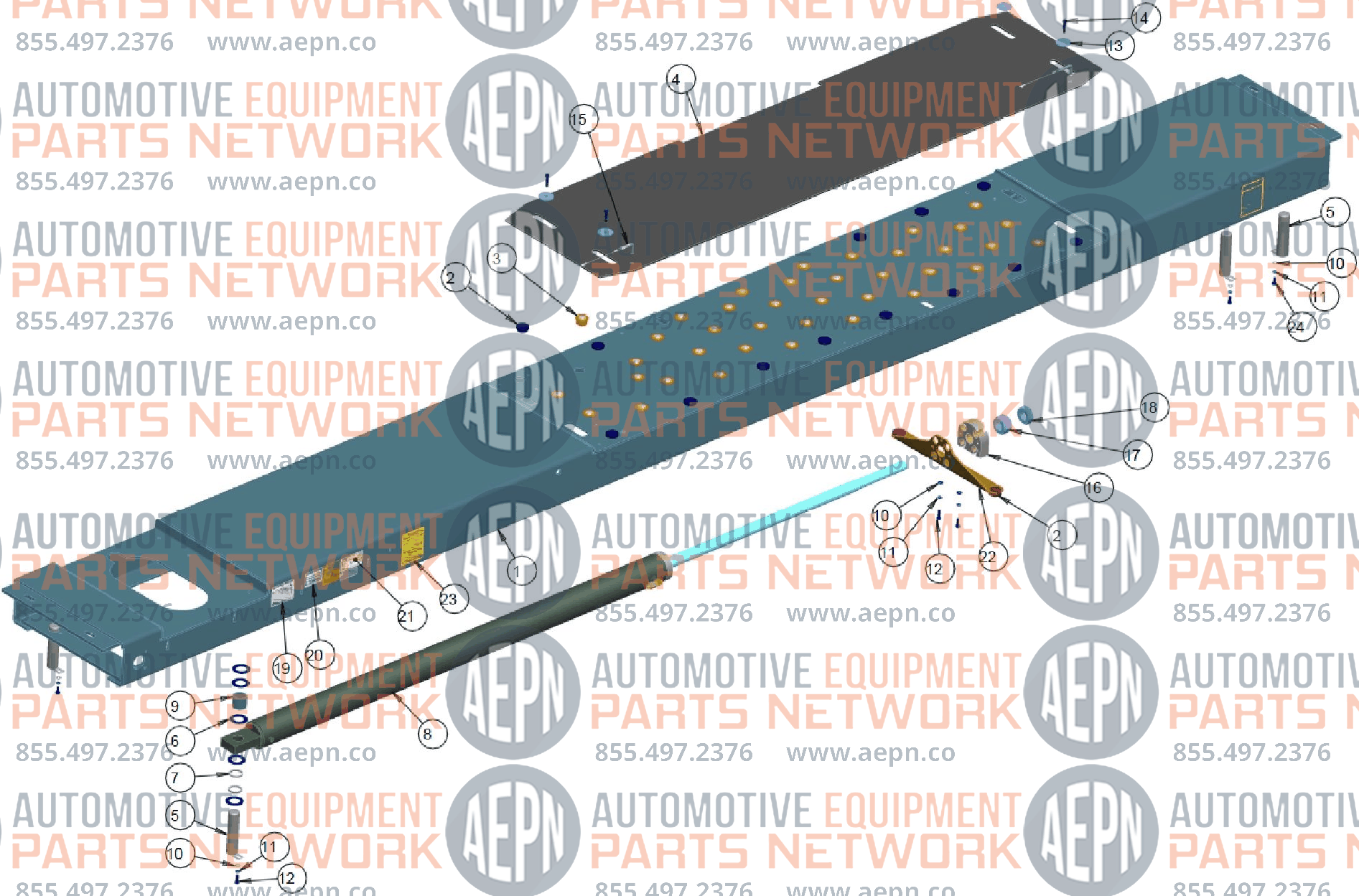

1 4-1322 Deck Weldment, L.S.
2 1-3762 Plastic Insert
3 6-3974 Ball Transfer
4 2-2857 Rear Sl1p Plate
3 2-0566 Deck Sheave Pin
6 1-0757 Nylon Thrust Washer
7 1-3875 Sheave Spacer
8 4-1353 Hydraulic Cylinder Kit
9 1-3876 Spacer, Front, Rs. Top
10 6-0295 Elat Washer
11 6-0674 Lock Washer
12 6-0293 Hex Head Bolt
13 6-0426 Flat Washer
14 6-0206 Shoulder Bolt
15 2-0637 Locking Pin Assembly
16 2-2866 Cable Flange
17 6-3991 Hex Nut
18 6-3992 Hex Jam Nut
19 6-1763 Capacity Decal, I2k Or I4k Lb
21 6-1637 Safety Decal
22 L-3887 Ant 1-Rotation Bar, Formed
24 6-0423 Hex Bolt



Click on the part number for more information

ITEM PART NO DESCRIPTION
ITEM PART NO DESCRIPTION

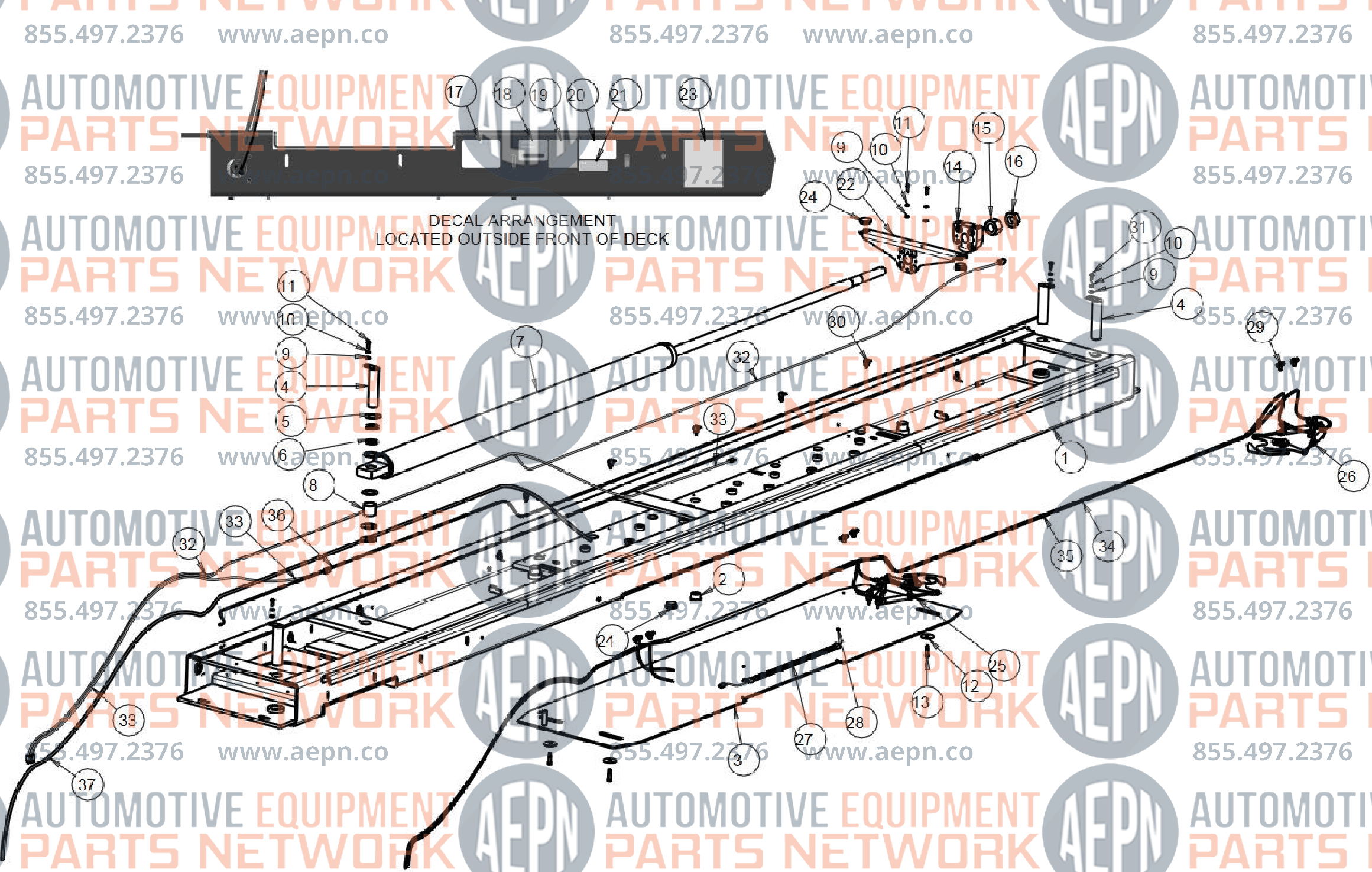

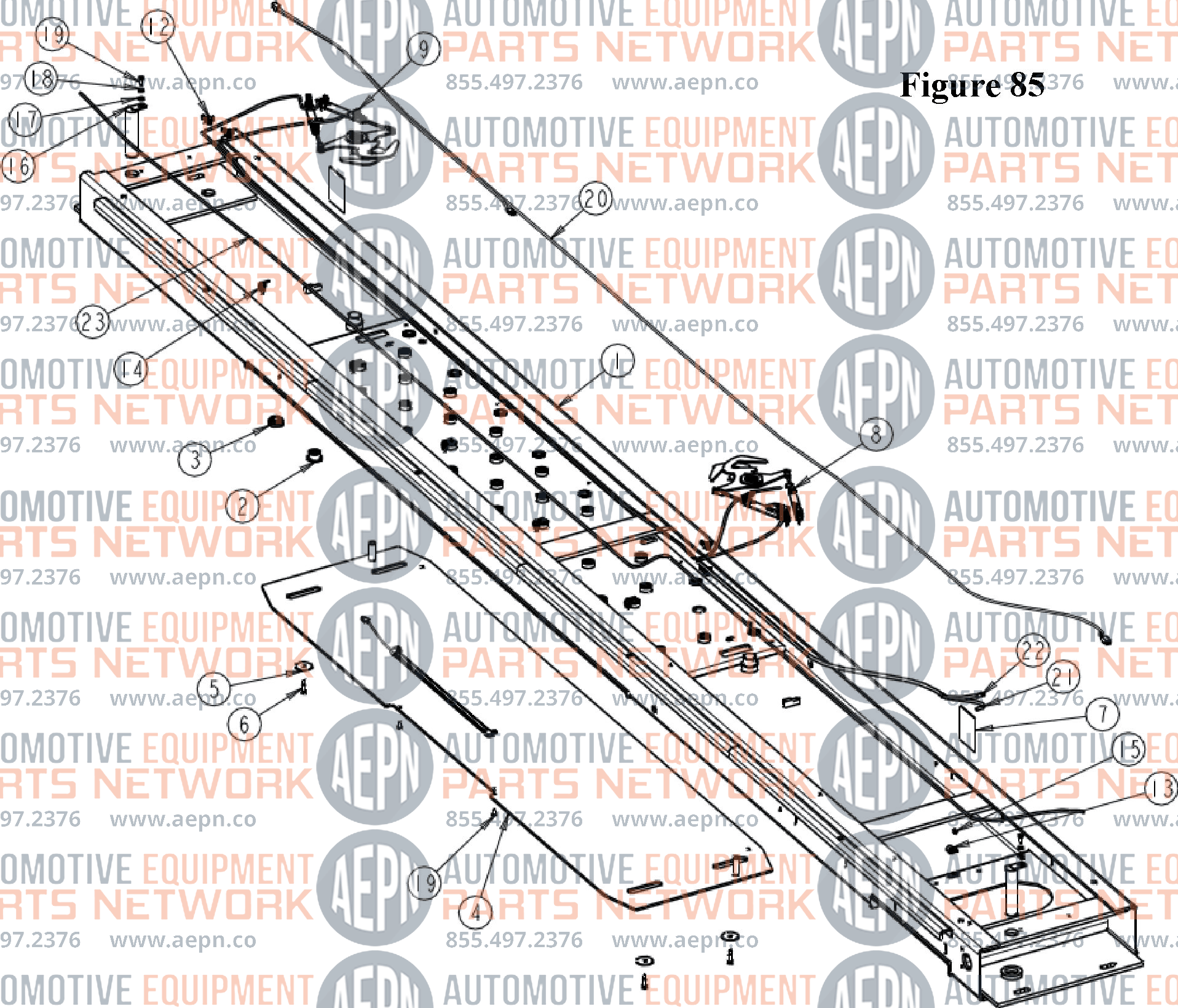

1 4-1336 Deck Weldment, L.S.
2 6-3974 Ball Transfer
3 2-2859 Slip Palte Weld, L&L
4 2-0556 Deck Sheave Pin
5 1-0757 Nylon Thrust Washer
6 1-3875 Sheave Spacer
7 4-1353 Hydraulic Cylinder Kit
8 1-3876 Spacer, Front, Rs, Top
9 6-0295 Flat Washer
10 6-0674 Lock Washer
11 6-0293 Hex Head Bolt
12 6-0426 Flat Washer
13 6-0206 Shoulder Bolt
14 2-2866 Cable Flange
15 6-3991 Hex Nut
16 6-3992 Hex Jam Nut
17 6-1763 Capacity Decal, 12k Or 14k Lb
19 6-2810 Ali Gold Decal
20 6-1637 Safety Decal
22 1-3887 Ant I-Rotation Bar, Formed
24 1-3762 Plastic Insert
25 2-2895 Locking Unit, Reversed
26 2-2713 Locking Unit
27 6-4092 Led Light Bar Assy, Ls
28 6-3936 Push Retainer, #6 Thread
29 6-2971 Fitting, Tee, 1/4" Polytube, Push-Lock
30 6-4196 Tree Mount Cable Tie, 8 Lg.
31 6-0423 Hex BoltR-18unc X 3/4" Lg.
32 6-4103 Light Extension Cable Assembly, Rs
33 6-4104 Light Cable Assembly, Ls
34 8-0372 Polytube Red, 1/4'Dia X: 0.038" Wall X 24ft
35 8-0373 Polytube Red, 1/4'Dia X: 0.038" W;All X 24ft
36 8-0141 Polytube Blk, 1/4'Dia X 0.038" Wall X 18.5ft
37 8-0142 Polytube Red, 3/8'Dia X: 0.062" W;All X 16ft



Click on the part number for more information

ITEM PART NO DESCRIPTION
ITEM PART NO DESCRIPTION

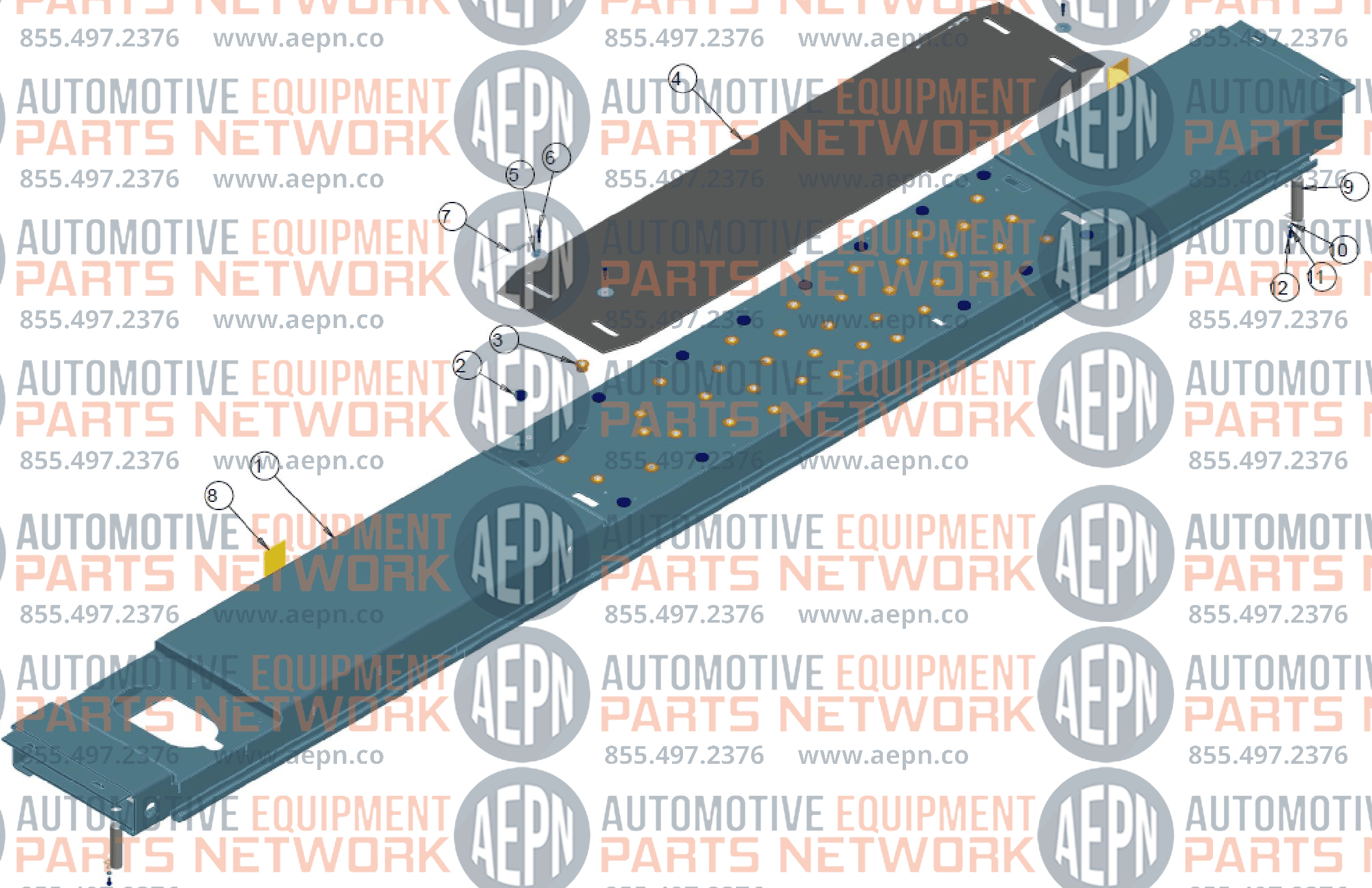

1 4-1323 Deck Weldment, R.S.
2 1-3762 Plastic Insert
3 6-3974 Ball Transfer
4 2-2857 Rear Slip Plate
5 6-0426 Flat Washer
6 6-0206 Shoulder Bolt
7 2-0637 Locking Pin Assembly
9 2-0566 Deck Sheave Pin
10 6-0295 Flat Washer
11 6-0674 Lock Washer
12 6-0423 Hex Bolt



Click on the part number for more information

ITEM PART NO DESCRIPTION
ITEM PART NO DESCRIPTION
1 4-1337 Deck Weldment. R.S.
2 6-3974 Ball Transfer
3 1-3762 Plastic Insert
4 2-2839 Slip Plate Weld
5 6-0426 Flat Washer
6 6-0206 Shoulder Bolt
8 2-2895 Locking Unit, Reversed
9 2-2713 Locking Unit
10 6-4216 Led Light Bar Assy, Ls
11 6-2971 Fitting, Tee,K
12 6-1547 Tube Clamp, 5/8"
13 6-4196 Tree Mount Cable Tie, 8'Lg.
14 6-1353 Round Head Screw
13 2-0566 Deck Sheave Pin
16 6-0295 Flat Washer
17 6-0674 Lock Washer
18 6-0421 Hex Bolt
19 6-4215 Rivet 1/4 * 3/4
20 6-4106 Light Cable Assembly, Rs
21 8-0372 Polytube Red
22 8-0373 Polytube Blue
23 80141 Polytube Black



Click on the part number for more information

ITEM PART NO DESCRIPTION
ITEM PART NO DESCRIPTION

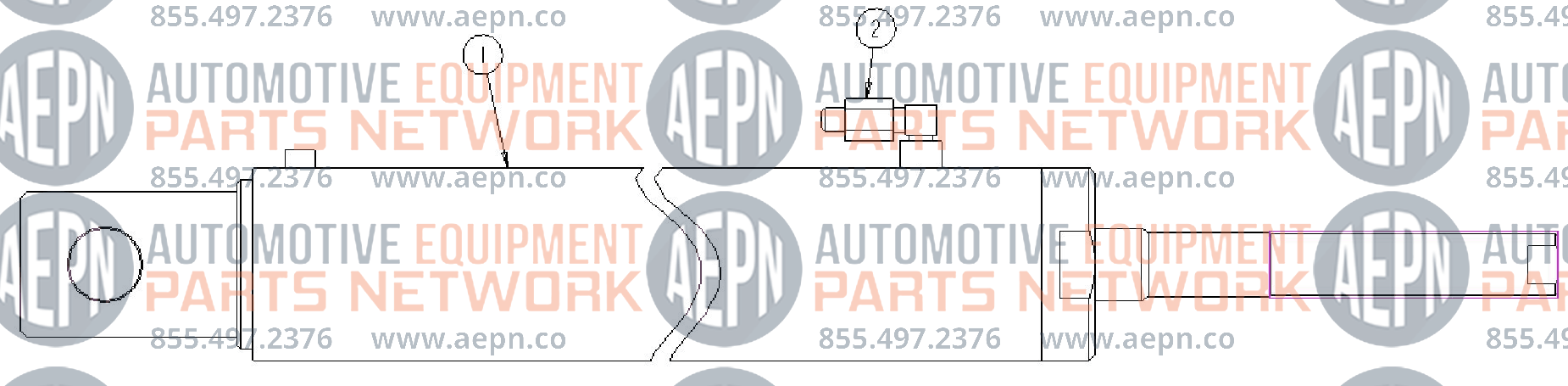

1 4-1352 Hydraulic Cylinder
2 6-2436 Flow Control 4p
  2-2914 Cable Assy. - Front Left
  2-2917 Cable Assy. - Front Right
  2-2933 Cable Assy. - Rear Left
  2-2916 Cable Assy. - Rear Right
  6-0724 Hex. Nut
  1-0800 Cable Spacer, 2 Lg (Optional)
  6-0725 Flat Washer
  1-0801 Cable Spacer, 1 Lg (Optional)



Click on the part number for more information

ITEM PART NO DESCRIPTION
ITEM PART NO DESCRIPTION
1 6-3989 Air Cylinder, Safety Release
2 6-4040 Elbow
3 8-0141 1/4" Polytube, Black
4 6-2436 Flow Control
5 6-3202 Fitting, Union, 1/4 Polytube, Push-Lock
6 6-0714 Hose Guard
7 6-2971 Union, Tee, 1/4" Polytube
8 6-1692 Hydraulic Hose, 16ft
9 6-1398 Power Unit, 208-230v, 1ph
10 6-0804 Elbow
17 8-0141 1/4" Polytube
18 8-0141 1/4" Polytube
19 8-0141 1/4" Polytube
20 8-0141 1/4" Polytube
21 8-0141 1/4" Polytube
22 8-0141 1/4" Polytube
23 8-0141 1/4" Polytube
24 6-3010 Elbow
25 6-0713 Terminal Bolt
26 6-3896 Tee Fitting, 1/4 Npt, F
27 8-0142 3/8 Polytube, Black



Click on the part number for more information

ITEM PART NO DESCRIPTION
ITEM PART NO DESCRIPTION

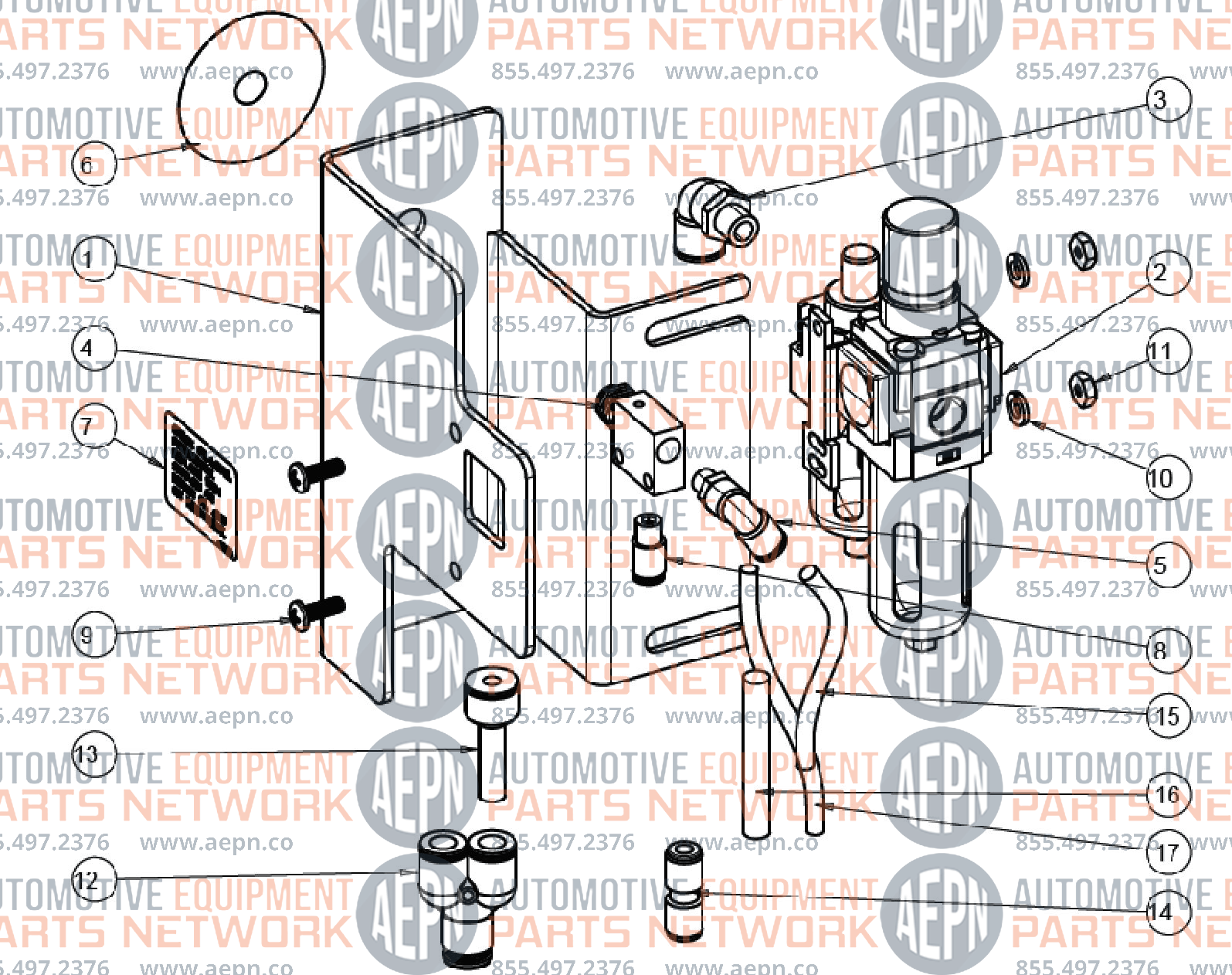

1 2-3004 Mount Bracket, Frl
2 6-4142 Filter/Regulator/Lubricator
3 6-3010 90 Deg Elbow
4 6-1055 Control Valve
5 6-0709 Swivel Elbow
E 6-3558 Decal, Safety Release
7 6-3696 Decal, Oil Level
8 6-0708 Adapter, 1/8" Npt -1/4 Poly
9 6-4145 Phms, #12-24 X 5/8 Lg. Plated
10 6-D056 Lock Washer
11 6-4146 Hex Nut
12 6-4214 Pushlock Union Y, 3/8 Poly
13 6-3731 Reducer, 3/8" Stem - 1/4 Poly
14 6-3202 Fitting, Union, 1/4 Push-Lock
15 8-0141 1/4" Polytube, 5" Long
16 8-0142 3/8" Polytube, 3" Long
17 8-0141 1/4" Polytube, 5" Long



Click on the part number for more information

ITEM PART NO DESCRIPTION
ITEM PART NO DESCRIPTION
1 6-0881 Micro Switch And Wiring Assembly
2 6-1084 Micro Switch Boot
3 6-1959 Motor. 230v Ac. 1 Phase, 60 Hertz. 3hp

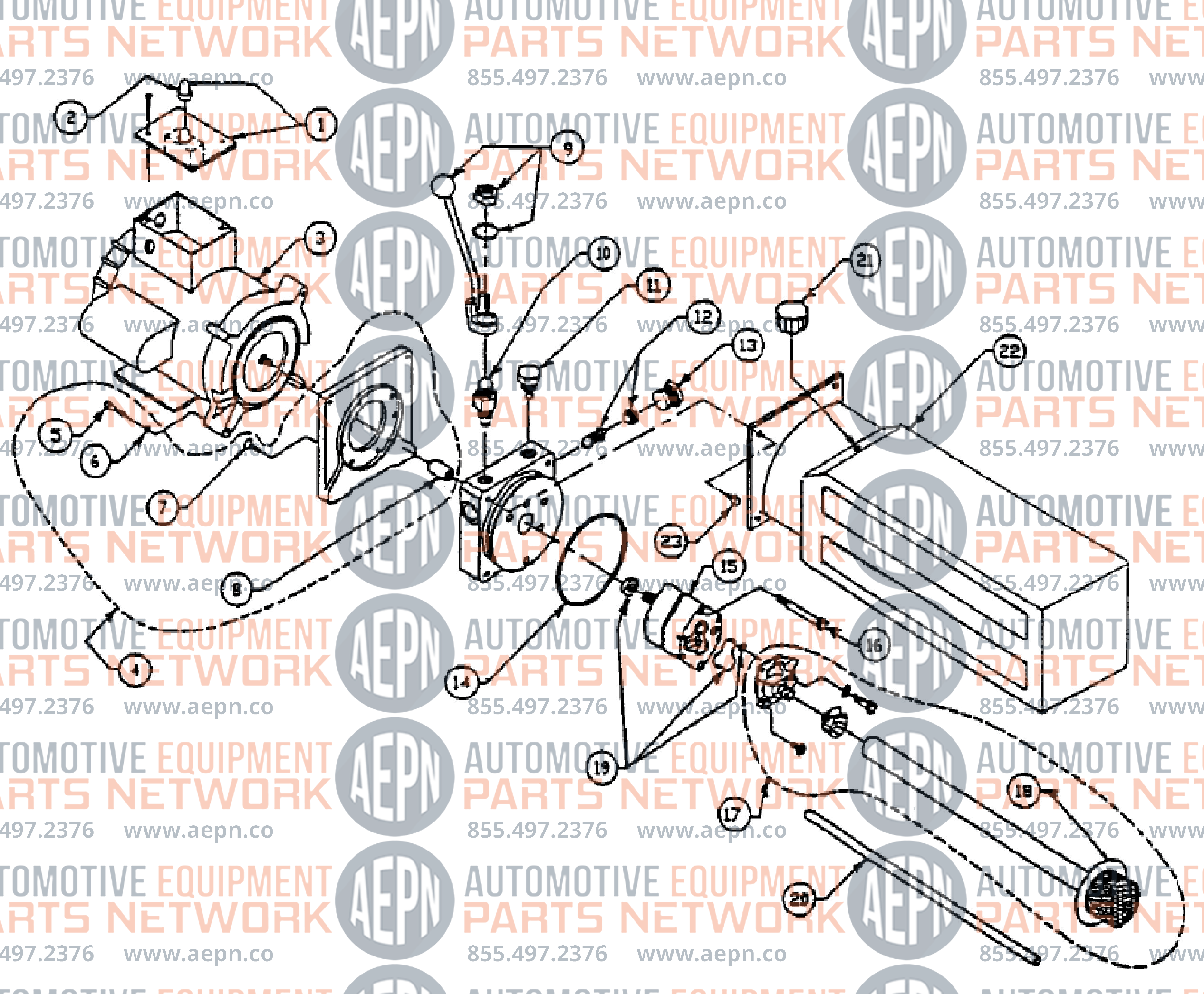

  6-1079 Motor. 230v Ac. 3 Phase. 60 Hertz
4 0-0197 Motor Adapter Kit
5 6-1085 Socket Hd.Cap Sow. 1 '4"-20uncx 1 5/S'lg.
6 6-0056 Lock Washer1 Id.
7 6-1086 Allen Plat Hd.Sow. 1 4"-20unc X 3 4 'Lg.
S 6-0774 Coupling
9 6-0776 Release Bracket & Handle Assembly
10 6-0880 Valve Cartridge Release
11 6-1087 Valve Cartridge Check
12 6-1323 Fixed Relief Valve Assembly (Rv 23)
13 6-1089 Relief Valve Cap
14 6-0375 Reservoir 'O' Ring
15 6-1958 Pump Assembly. 2.5cc.Rev
16 6-1090 Pump Mounting Bolt
17 0-0198 Inlet Plumbing Kii
Is 6-0786 Inlet Hose Filter Assembly
19 0-0199 Pump ''O'1 Ring Kit
20 6-0783 Return Tube
21 6-0784 Breather Filler Cap
22 6-0785 Reservoir
23 6-1091 Reservoir Screw



Click on the part number for more information

ITEM PART NO DESCRIPTION
ITEM PART NO DESCRIPTION
1 6-4115 Enclosure Weldment
2 6-3905 5 Port Mechanical Valve, Flip Toggle
3 6-1955 Control Valve
3 6-0109 Swivel Elbow
4 6-0708 Adapter, 1/8" Npt -1/4" Poly
6 6-4118 Spacer
7 6-4113 Back Panel; Enclosure
8 6-4119 Led Driver
9 6-3465 Lockwasher
10 6-4129 Standoff 6-32 X 1-1/2
11 6-4109 Power Relay, 240v
12 6-3595 Fuse Holder, 20a/250v
13 6-4147 Mdl Fuse, 250v, 1 Amp
14 6 4143 Quick Slide Disconnect
15 6-3577 Quick Slide Disconnect
16 6-3127 Wire Joint, Nylon Insulated
17 6-3593 #6-32*1/4 Ph Pan Hd T/C T-F K
18 6-1466 Pan Hd Mach. Screw
19 6-3574 Strain Relief, 1184
20 6-2126 Coil 24v
21 6-4121 Cable Ass'y, Cntrl Box
22 6-4122 Cable Ass'y, Cntrl Box
23 6-3729 Union Y, 1/4" Poly
24 6-3202 Fitting. Union, 1/4" Push-Lock
25 6 3977 Breather Vent - Npt Female
26 6-4120 Strain Re L1e F Bushing
27 6-3952 Check Valve, L74" Poly
28 6-3579 Uninsulated Star Ring Terminal
29 6-1095 Hex Nut
30 6-3074 U-Type Fastener
31 6-4114 Cover. Enslosure
32 6-4142 Filter/Regulator/Lubricator
33 6-4145 Phms, 412-24 X 5/8 Lg. Plated
34 6-0056 Lock Washer
35 6-3696 Decal, Oil Level
36 6-4146 Hex Nut
37 6-3730 Swivel Tee 3/8 Poly - 1/4 Npt M
38 6-3731 Reducer, 3/8" Stem - 1/4" Poly
39 6-3075 Screw
40 6-3873 Electric Shock. No Servicing
41 6-3872 Arcing And Sparking. Pendant
42 6-3574 Strain Relief, 1184
43 6-3465 Lockwasher
44 6-4108 Toggle Switch
45 6-4116 Adj. Roller Lever Switch
46 6-3583 Strain Rel Ief L/2"Npt
47 6-4119 Strain Relief, M20il.5
48 6-4130 Decal, Light System
49 6-4131 Decal. Rsp 4 Safety Lock
50 6-3711 Uninsulated Star Ring Terminal
45 8-0306 Electrical Cable,18/3 Sjoow
46 8-0306 Electrical Cable. 18/3 Sjoow



Click on the part number for more information

ITEM PART NO DESCRIPTION
ITEM PART NO DESCRIPTION

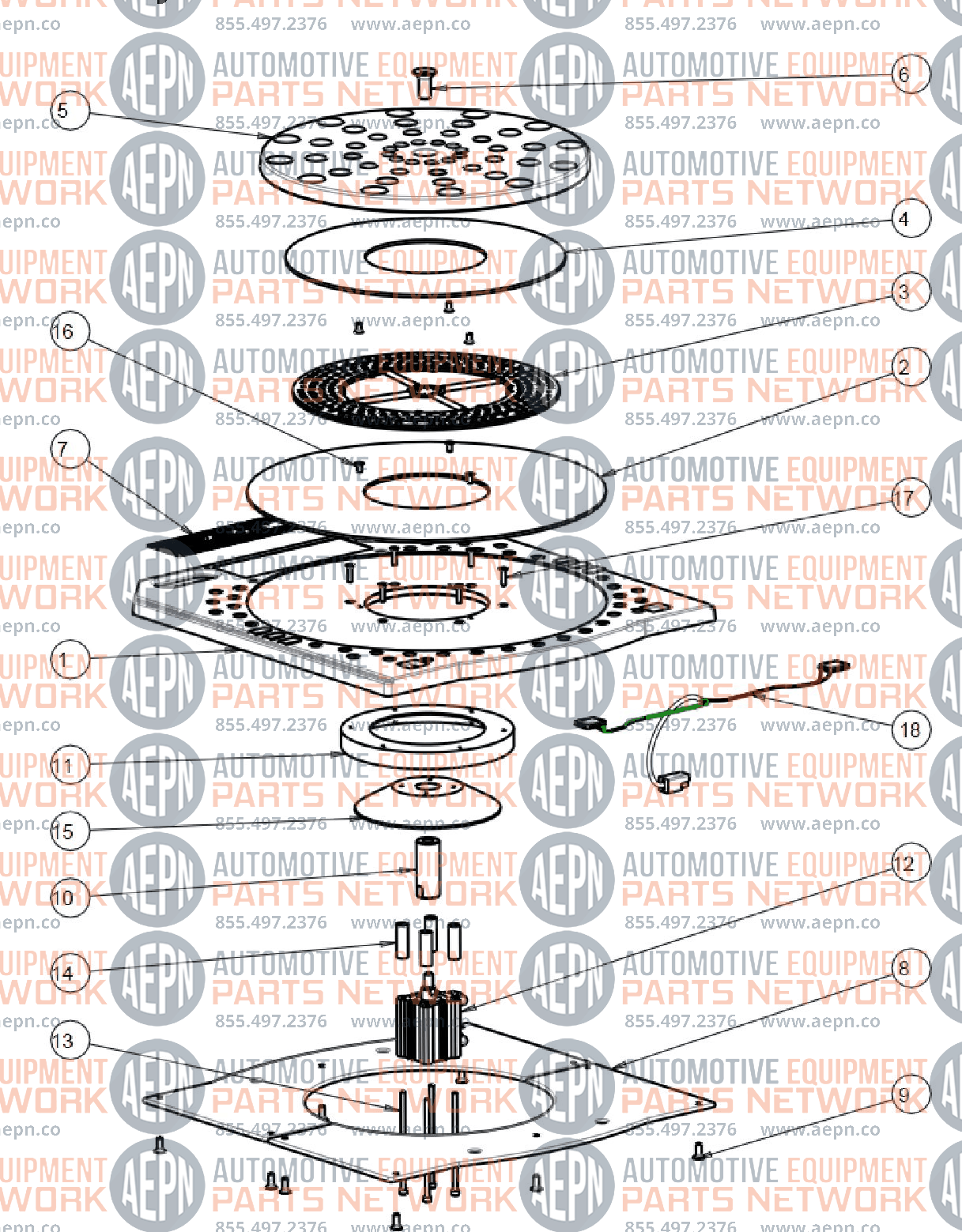

1 M2-2931 Tt Base Mach, Locks 3 Light
2 EAM0047J5SA Bottom Wear Plate
3 EAAQ333J59A Ball Plate Asm.
4 EAM0047J57A Wear Plate-Top
5 EAM0047J60A Top - Tt. Mach.
6 6-3956 Screw
7 1-3719 Label, Tt, Locking
8 EAMO047J52A Pad - Tt
9 6-3955 Fhms, Phil Screw
10 1-3678 Stub Shalt
11 2-2711 Centering Ring
12 6-3899 Locking Cyl 1 Nder Assembly
13 6-3902 Shcs, M5x0.8 L 120 Lg
14 1-3677 Cylinder Stand-Oll
15 2-2709 Centering Cone
16 6-3954 Screw
17 6-3904 Fhcs,#10-32 Inf X 3/4, Stainless Steel
18 6-4101 Led Light 8 Cable Ass'y
