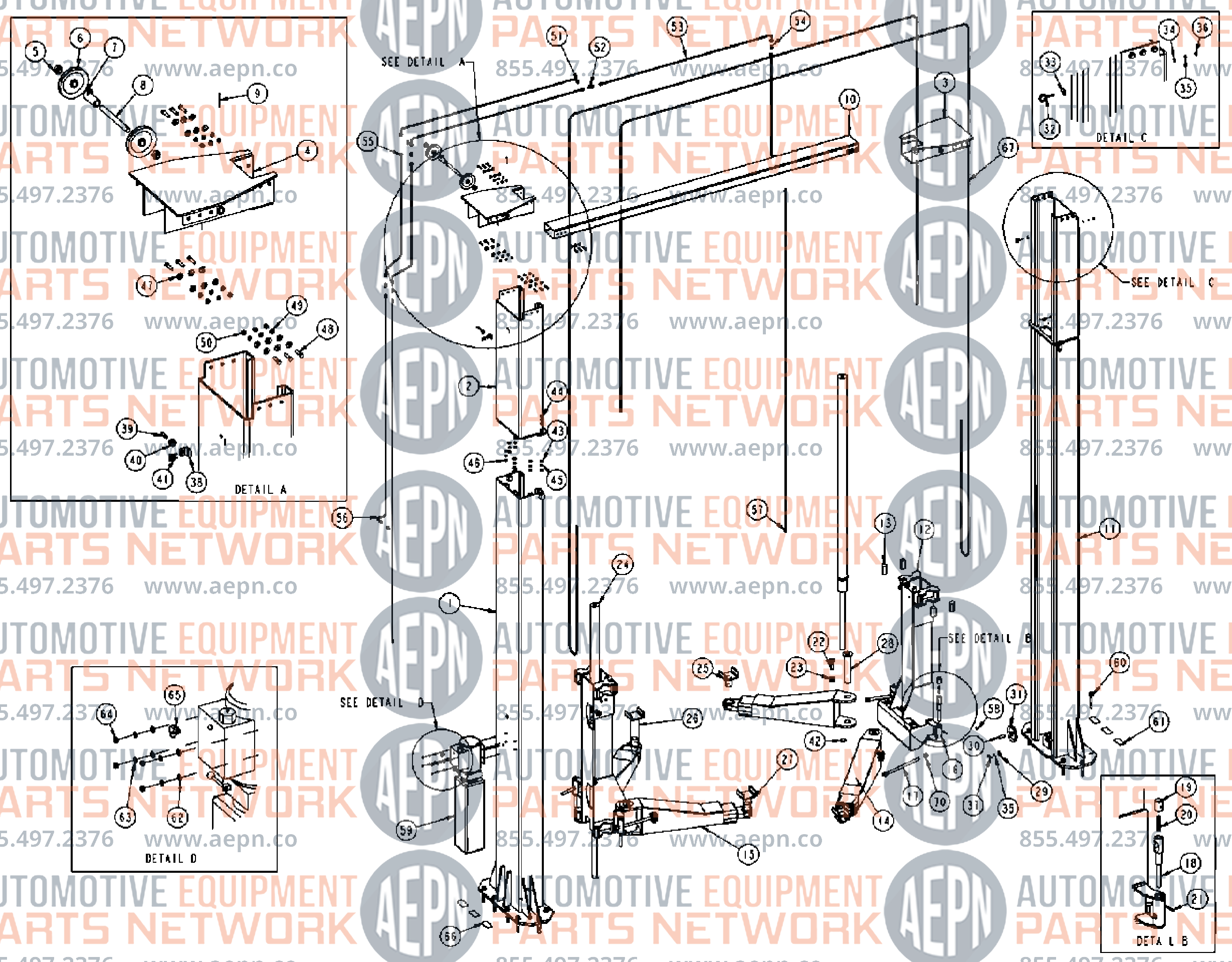

HOFMANN DLS18016 Parts Breakdown

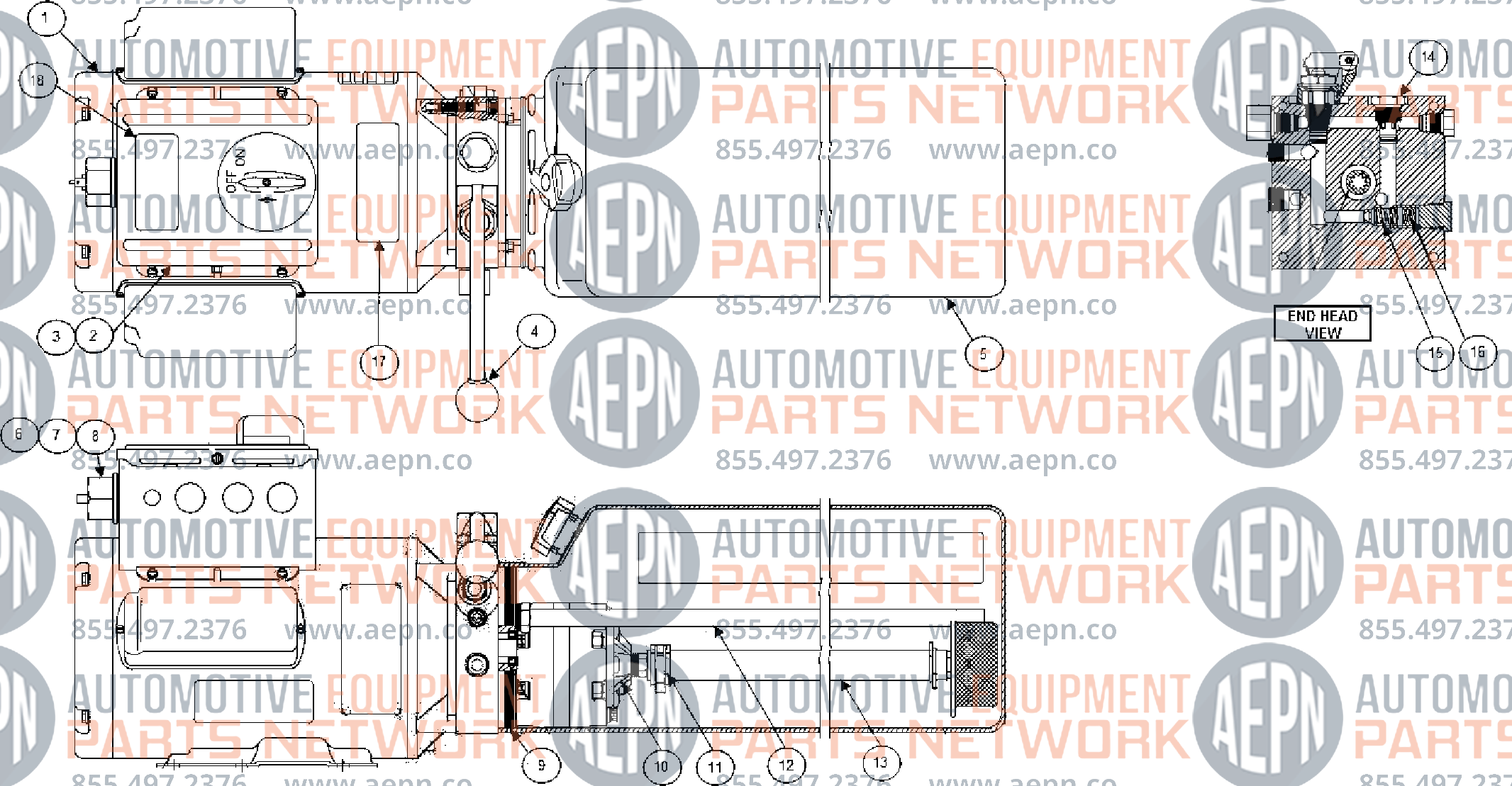

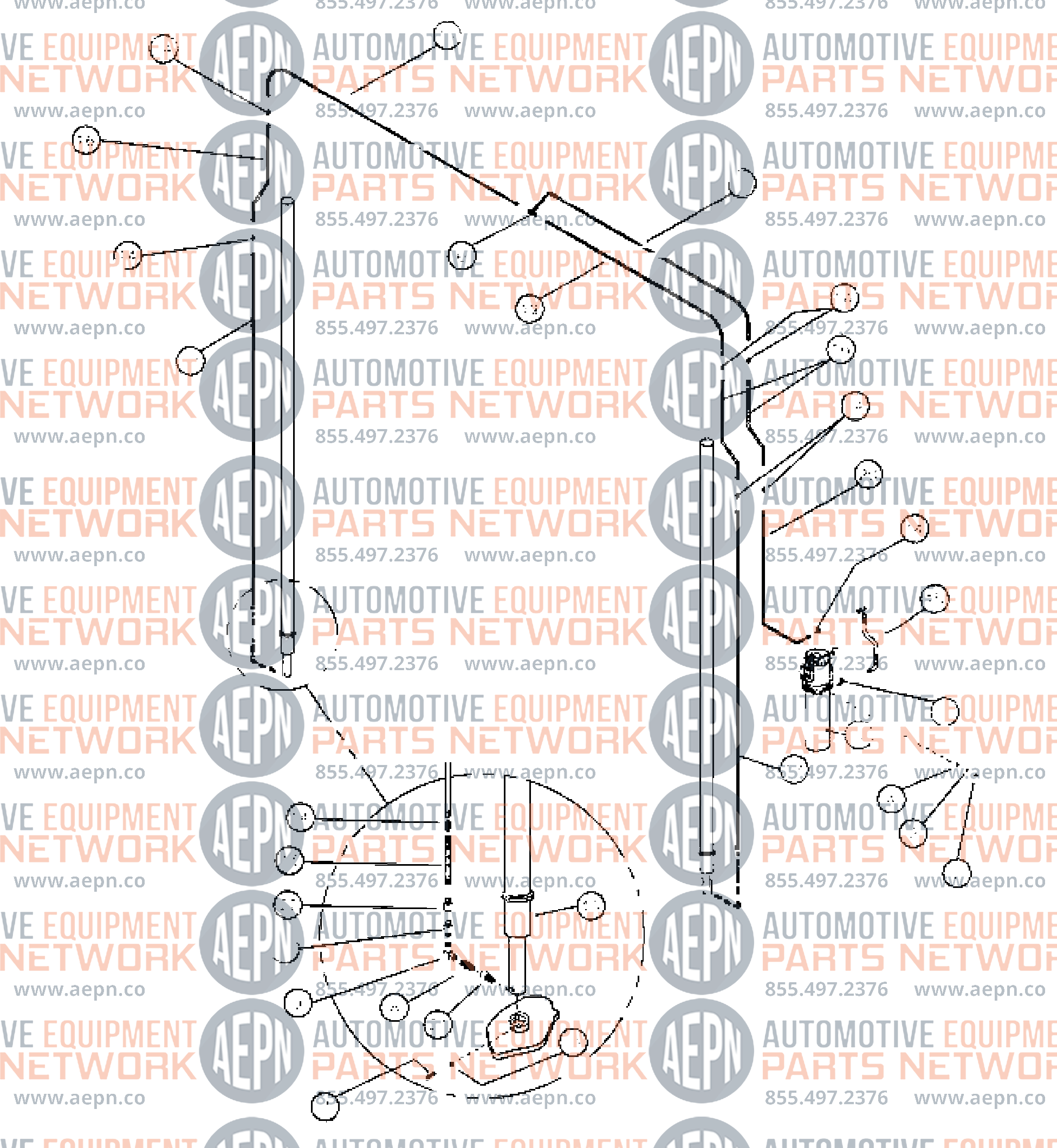

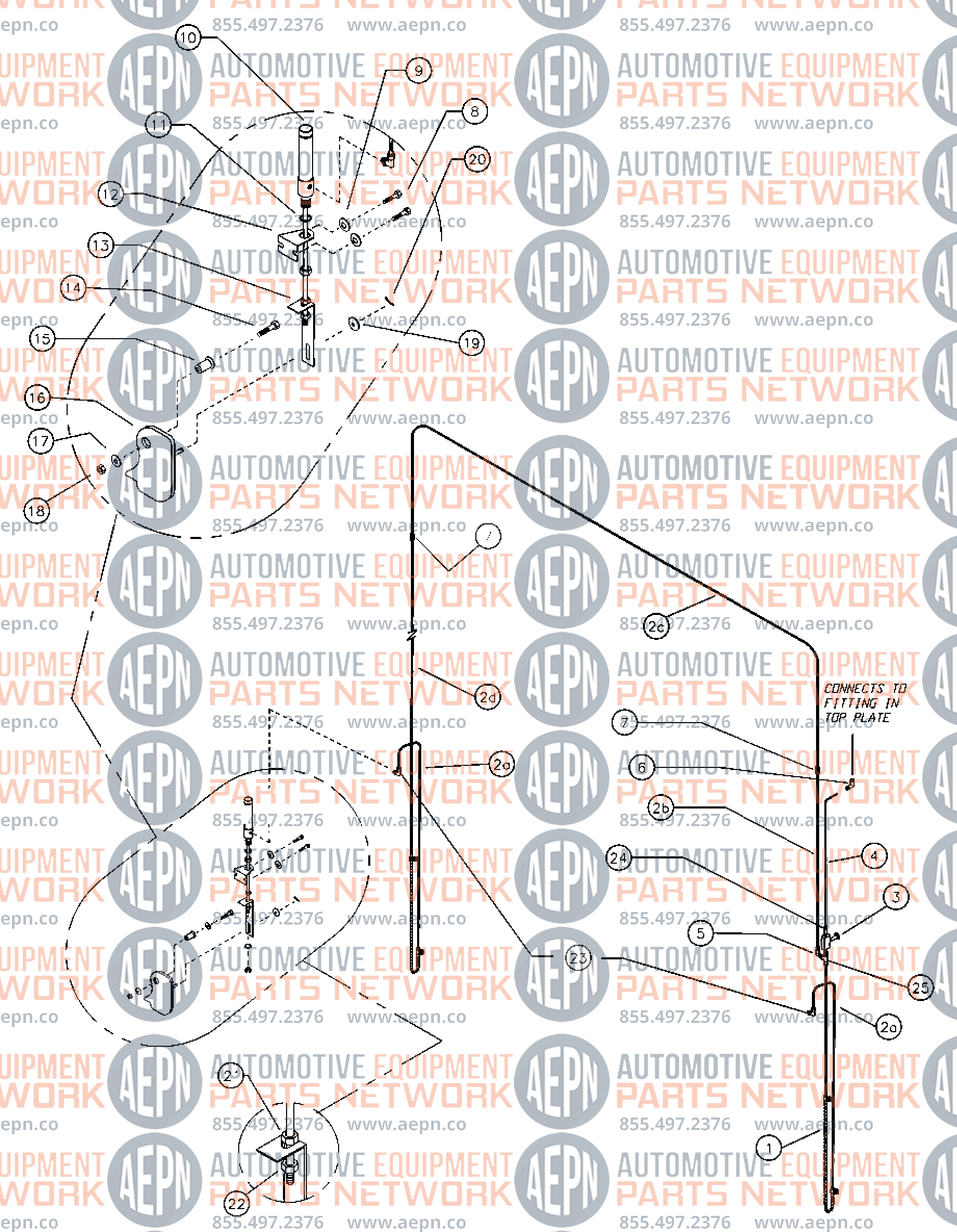

Click on the part number for more information
| ITEM | PART NO | DESCRIPTION |
|---|---|---|
| ITEM | PART NO | DESCRIPTION |
| 1 | 3-0946 | Driver Tower Weldment |
| 2 | 2-2460 | Tower Extension Weldment |
| 3 | 2-2954 | Crossember End Ass'y |
| 4 | 2-2955 | Crossmember End Wldm't |
| 5 | 1-4024 | Sheave Spacer |
| 6 | 1-2346 | Sheave Assembly |
| 7 | 1-4026 | Sheave Spacer |
| 8 | 1-4027 | Shaft Overhead Pulley |
| 9 | 6-3157 | Cotter Pin, 3/16" X 1-3/4" |
| 10 | 2-2258 | Crossmember Tube |
| 11 | 3-0945 | Idle Tower Weldment |
| 12 | 3-0943 | Carriage Weldment |
| 13 | 1-2966 | Bearing Block |
| 14 | 3-1125 | Symmetric Arm Assembly, Fl/Rr |
| 15 | 3-1126 | Symmetric Arm Assembly, Fr/Rl |
| 16 | 1-3015 | Arm Restraint Collar |
| 17 | 2-2273 | Arm Restraint Rod Weldment |
| 18 | 2-2274 | Plunger Weldment |
| 19 | 1-2965 | Arm Restraint Cap |
| 20 | 6-3112 | Arm Lock Spring |
| 21 | 6-3127 | Roll Pin 1/4" Dia. 1 3/4" Lg. |
| 22 | 6-1101 | 3/4"-10 X 3" Lg. Hex Hd. Bolt |
| 23 | 6-3123 | Locknut |
| 24 | 2-2518 | Hydraulic Cylinder |
| 25 | 2-2283 | Pad Adapter |
| 26 | 2-2285 | Arm Pad Extension Ass'y 10 Inch |
| 27 | 2-2284 | Arm Pad Extension Ass'y 5 Inch |
| 28 | 1-2989 | Arm Pin |
| 29 | 1-2976 | Keeper Plate |
| 30 | 1-2975 | Sheave Pin |
| 31 | 1-3019 | Sheave, 3/8" Rope 4-1/2" Pd |
| 32 | 6-0904 | Bent Eye Bolt |
| 33 | 6-0626 | 1/4" Id. Fendewasher |
| 34 | 6-0060 | Flat Washer |
| 35 | 6-0056 | Lock Washer |
| 36 | 6-0032 | Hex Nut |
| 37 | 6-0126 | Hex Hd. Bolt |
| 38 | 1-3216 | Bracket, Safety Pulley |
| 39 | 6-0069 | Shoulder Bolt |
| 40 | 1-1116 | Safety Cable Pulley |
| 41 | 6-0008 | Hex Hd. Bolt |
| 42 | 6-3168 | Retaining Ring 1 3/4" |
| 43 | 6-0248 | Flat Washer |
| 44 | 6-1381 | Hex Hd. Bolt |
| 45 | 6-0059 | Lock Washer |
| 46 | 6-0035 | Nut |
| 47 | 6-0625 | 3/8" Id. Uss Flut Pltd. Washer |
| 48 | 6-0203 | Hex Bolt |
| 49 | 6-0058 | Lock Washer |
| 50 | 6-0034 | Hex Nut |
| 51 | 6-3114 | Hydraulic Tubing |
| 52 | 6-1372 | 3/8" Union Tee M Jic |
| 53 | 6-3152 | Hydraulic Tubing |
| 54 | 6-0286 | Adaptor 3/8" M Jic - 3/8" M Jic |
| 55 | 6-3151 | Hydraulic Tubing |
| 56 | 6-3149 | Hydraulic Tubing |
| 57 | 6-3153 | Hydraulic Tubing |
| 58 | 6-3285 | Set Screw |
| 59 | 6-3150 | Power Pack, 208-230 V, 1 Ph |
| 60 | 6-1379 | Wedge Anchor |
| 61 | 6-0739 | 1/16" Thk. Shim (Plastic) |
| 62 | 6-0295 | Flat Washer |
| 63 | 6-0674 | Lock Washer |
| 64 | 6-0294 | Hex Nut |
| 65 | 6-0804 | Elbow |
| 66 | 6-0740 | 1/8" Thk. Shim (Plastic) |
| 67 | 6-3118 | Equalizing Cable 464" Lg |
| 68 | 1-3517 | Cable Retainer Pin |
| 69 | 6-3613 | 1/4" Retaining Ring |
| 70 | 6-3123 | 3/4"-10 Unclock Nut |
Click on the part number for more information
| ITEM | PART NO | DESCRIPTION |
|---|---|---|
| ITEM | PART NO | DESCRIPTION |
| 1 | 6-0804 | Elbow |
| 2 | 6-0294 | Hex Nut |
| 3 | 6-0674 | Lockwasher |
| 4 | 6-0295 | Washer |
| 5 | 6-3150 | Power Unit |
| 6 | 6-1372 | 3/8 Union Tee M Jic |
| 7 | 6-3061 | Set Screw |
| 8 | 6-3876 | Adaptor 3/8 M Npt - 3/8 M Npt |
| 9 | 6-0006 | Coupling 3/8 F Npt 90 Deg Forged |
| 10 | 2-2518 | Hydraulic Cylinder |
| 11 | 6-3119 | Hex Nut |
| 12 | 6-0270 | Adapter, 1/4" M Npt - 3/8" M Npt |
| 13 | 2-2136 | Hydraulic Hose Assembly |
| 14 | 6-0286 | Adaptor 3/8 M Jic - 3/8 M Jic |
| 15 | 6-3148 | Hydraulic Hose Assembly |
| 16 | 6-3151 | Hydraulic Tubing Assembly |
| 17 | 6-3153 | Hydraulic Tubing Assembly |
| 18 | 6-3114 | Hydraulic Tubing Assembly |
| 19 | 6-3152 | Hydraulic Tubing Assembly |
| 20 | 6-3149 | Hydraulic Tubing Assembly |
| 21 | 6-3205 | 1/4" Npt M - 3/8" Npt F Adaptor |
| 22 | 6-4151 | Flow Control |
| * | 6-3975 | Seal Kit For Cylinder 22518 |
Click on the part number for more information
| ITEM | PART NO | DESCRIPTION |
|---|---|---|
| ITEM | PART NO | DESCRIPTION |
| 1 | 6-4171 | Motor, Elec. 230v / 1 Ph / 60hz |
| 2 | 6-4172 | Ac Wiring Assembly |
| 3 | 6-4173 | Wire Assy, 14awg Green/Yellow, 7 |
| 4 | 6-4174 | Bracket-Handle Release Assembly |
| 5 | 6-4175 | Plastic Tank 4 Gallon |
| 6 | 6-4176 | Electric Assembly Limit Switch |
| 7 | 6-4177 | Switch Momentary, On, 25a |
| 8 | 6-4186 | Wire Assy, 14awg Black, 10 |
| 9 | 6-1087 | Valve Cartridge Release Manual |
| 10 | 6-2165 | Cover Assy Suction |
| Ii | 6-4179 | Plumbing Clamp Hose Inlet |
| 12 | 6-4180 | Return Hose |
| 13 | 6-3706 | Plumbing Assy Inlet |
| 14 | 6-4181 | Valve, Cartridge Check |
| 15 | 6-4182 | Relief Assembly Fixed |
| 16 | 6-4183 | Compression Tube Sleeve |
| 17 | 6-2136 | Label, Installation Autohoist |
| 18 | 6-4182 | Decal, Installation Auto-Hoist |
Click on the part number for more information
| ITEM | PART NO | DESCRIPTION |
|---|---|---|
| ITEM | PART NO | DESCRIPTION |
| 1 | 1-3026 | Micro Cable Carrier Assembly |
| 2a | 80307 | Pneumatic Tubing 4mm 127 Lg |
| B | 80307 | Pneumatic Tubing 4mm 94 3/4 Lg |
| C | 80307 | Pneumatic Tubing 4mm 222 Lg |
| D | 80307 | Pneumatic Tubing 4mm 225 Lg |
| 3 | 6-3136 | Air Valve |
| 4 | 8-0141 | Pneumatic Tubing 1/4 Dia 100 Lg |
| 5 | 6-3131 | Plug |
| 6 | 6-3135 | Male Elbow |
| 7 | 6-3133 | Hose To Hose Coupling 5/32- 5/32 |
| 8 | 6-0027 | Hex Bolt |
| 9 | 6-0295 | Flat Washer |
| 10 | 6-3111 | Air Cylinder 3/4 Bx(1.00) Stroke |
| 11 | 6-0663 | Lockwasher |
| 12 | 6-3110 | Air Cylinder Mtg. Brkt 2 Post Air Release |
| 13 | 2-2249 | Safety Release Brkt 2 Post Air Release |
| 14 | 6-1643 | Hex Bolt |
| 15 | 1-2996 | Safety Block Spacer |
| 16 | 1-3022 | Safety Dog Assy & Weldment |
| 17 | 6-0725 | Washer |
| 18 | 6-3124 | Locknut |
| 19 | 6-0625 | Washer |
| 20 | 6-3145 | Cotter Pin 3/32 X 1 |
| 21 | 6-3144 | Hex Jam Nut |
| 22 | 6-1563 | Locknut |
| 23 | 6-3129 | Male Elbow |
| 24 | 6-3130 | Male Connector 1/4- 1/8 Npt |
| 25 | 6-3132 | Male Run'g Tee 5/32- 5/32- 1/8 |
