HOFMANN DLS10VB Parts Breakdownhofmann-fpa14210

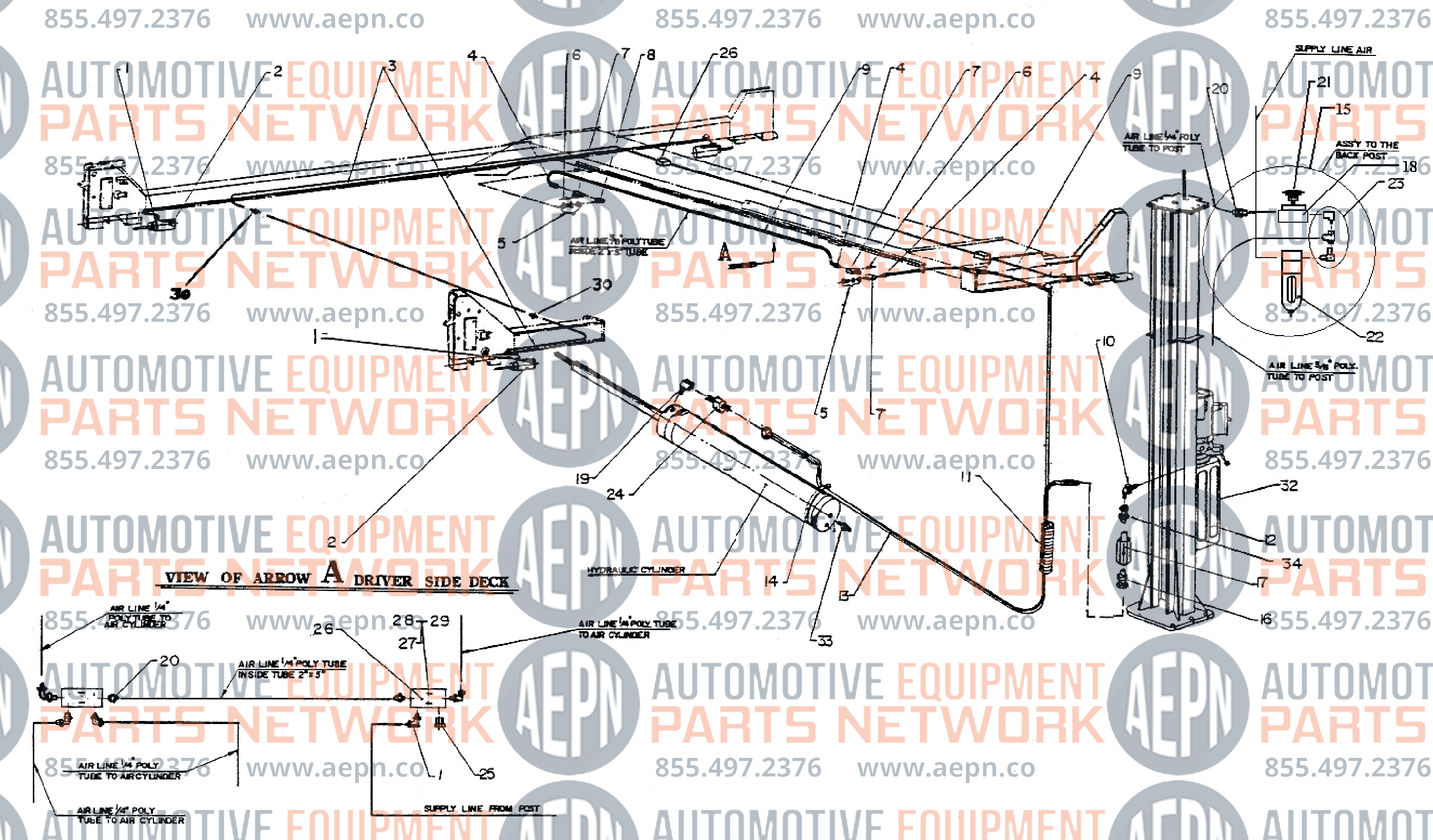

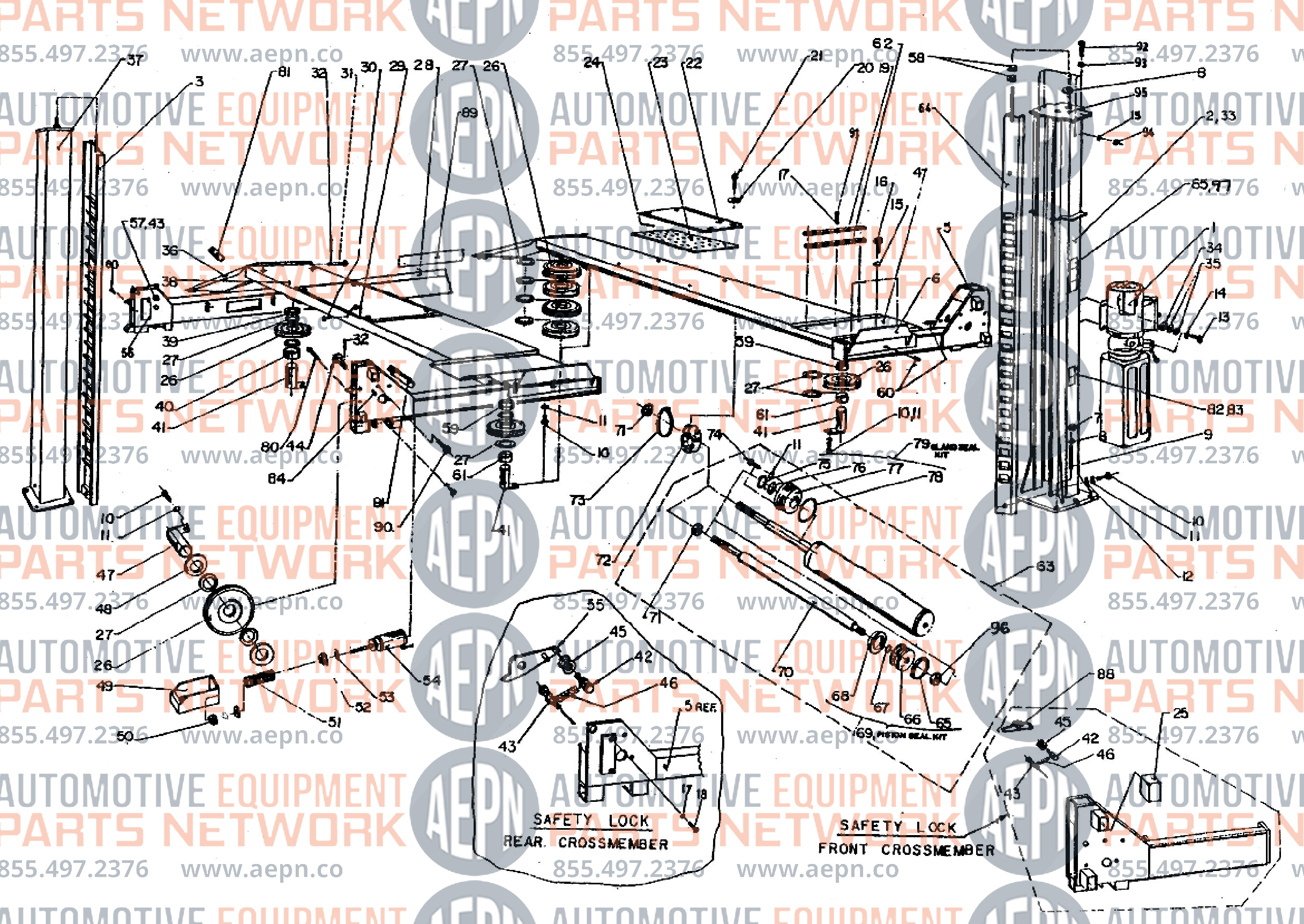

Click on the part number for more information
| ITEM | PART NO | DESCRIPTION |
|---|---|---|
| ITEM | PART NO | DESCRIPTION |
| 1 | 6-1398 | Power Pack, 230v/1ph/3hp |
| 2 | 4-0429 | Power Post Welding (L.S.) |
| 3 | 3-0487 | Safety Rack Weldment (Rear) |
| 4 | 4-0679 | Alignment Deck Weldment (Left Side) |
| 5 | 4-0366 | Front Crossmember Weldment (Left Side) |
| 6 | 2-0998 | Front Wheel Stop Weldment |
| 7 | 6-0737 | Hex Nut |
| 8 | 6-0738 | Flat Washer |
| 9 | 6-1379 | Wedge Anchor |
| 10 | 6-0668 | Hex Hd. Bolt |
| 11 | 6-0058 | Lockwasher |
| 12 | 6-0625 | Flat Washer |
| 13 | 6-0293 | Hex Hd. Bolt |
| 14 | 6-0674 | Lockwasher |
| 15 | 6-0059 | Lockwasher |
| 16 | 6-0045 | Hex Hd. Bolt |
| 17 | 6-0056 | Lockwasher |
| 18 | 6-0178 | Hex Hd. Bolt |
| 19 | 2-0635 | Retaining Bar |
| 20 | 6-0426 | Flat Washer |
| 21 | 6-0069 | Shoulder Bolt |
| 22 | 3-0197 | Rear Slip Plate (Full Floating) |
| 23 | 3-0196 | Bearing Cage |
| 24 | 6-0829 | 1/4" Ball Bearing |
| 25 | 2-0772 | Glide Bearing |
| 26 | 2-0557 | Sheave Assembly |
| 27 | 1-0757 | Nylon Thrust Washer |
| 28 | 4-0371 | Rear Crossmember (Welding) |
| 29 | 2-0637 | Locking Pin Assembly |
| 30 | 6-0505 | Self Tap Screw |
| 31 | 1-1887 | Ramp Pin |
| 32 | 6-0978 | Cotter Pin, 1/8" X 1 1/2" Lg. |
| 33 | 4-0430 | Post Welding (Front - R.S) |
| 34 | 6-0294 | Hex Nut |
| 35 | 6-0295 | Flat Washer |
| 36 | 3-0285 | Approach Ramp |
| 37 | 3-0347 | Rear Post Welding |
| 38 | 4-0680 | Alignment Deck Weldment, (Right Side) |
| 39 | 1-0798 | Sheave-Spacer 2 1/2"Lg. |
| 40 | 1-0788 | Sheave-Spacer 1 1/4"Lg. |
| 41 | 2-1008 | Deck Sheave Pin |
| 42 | 6-0206 | Shoulder Bolt |
| 43 | 6-0069 | Shoulder Bolt |
| 44 | 1-1234 | Lock Safety Pin (Welding) |
| 45 | 1-0766 | Cable Roller |
| 46 | 1-0768 | Tension Spring |
| 47 | 1-0771 | Crossmember Sheave Pin |
| 48 | 1-0768 | Sheave Spacer, 3/8 Lg |
| 49 | 2-0990 | Safety Shoe Weldment |
| 50 | 6-1563 | Hex. Nylon Locknut |
| 51 | 1-0767 | Compression Spring |
| 52 | 6-0662 | Hex. Nut |
| 53 | 6-0663 | Internal Tooth Lockwasher |
| 54 | 6-0651 | Air Cylinder (Clippard #Srr-12-2-Sp; 5 1/2" Rod Ext.) |
| 55 | 2-0567 | Lock-Safety Ls |
| 2-1475 | Lock Safety Rs | |
| 56 | 1-0775 | Plastic Bracket |
| 57 | 1-0776 | Plastic Guide |
| 58 | 6-0673 | Hex Nut |
| 59 | 1-0799 | Sheave-Spacer 1 3/4"Lg. |
| 60 | 6-0726 | Set Screw |
| 61 | 1-0943 | Sheave-Spacer 2 "Lg. |
| 62 | 2-0636 | Spacer Bar |
| 63 | 4-0393 | Hydraulic Cylinder 3.5" |
| 64 | 3-0581 | Safety Rack Weldment |
| 65 | 6-0004 | Wear Ring 3/8" Wide X 1/8"Thk. X 3 1/2"O.D. |
| 66 | 2-1035 | Piston |
| 67 | 6-1585 | "O" Ring 1 1/4"O.D. X 1"I.D. X 1/8" C/S |
| 68 | 6-0003 | Piston Seal 3 1/2"O.D. X 3"I.D. X 3/8" |
| 69 | 0-0241 | Piston Seal Kit |
| 70 | 2-1036 | Piston Rod (Machined) |
| 71 | 6-1454 | Hex Nut |
| 72 | 2-1037 | Cable Flange |
| 73 | 6-0665 | Hose Clamp 4 1/2"Dia. |
| 74 | 6-0666 | Hex. Bolt |
| 75 | 6-0001 | Rod Wiper 1 1/2" X 1 7/8" |
| 76 | 6-1304 | Rod Seal 1 1/2"I.D. X 1 7/8"O.D. X 5/16" |
| 77 | 3-0522 | Gland |
| 78 | 6-0655 | "O" Ring 3 1/2"O.D. X 1/8" C/S |
| 79 | 0-0242 | Gland Seal Kit |
| 80 | 6-1386 | Hex Hd. Bolt |
| 81 | 2-0997 | Sheave Cover |
| 82 | 6-1306 | Serial Tag |
| 83 | 6-0988 | "Ali" Plate |
| 84 | 4-0368 | Front Crossmember Weldment (Right Side) |
| 85 | 6-0988 | Decal Set, Ali/Wl 200 |
| 88 | 2-0980 | Lock Safety Ls |
| 2-1427 | Lock Safety Rs | |
| 89 | 6-1125 | "Caution" Tape, (40" Lg.) |
| 90 | 6-1381 | Hex Hd. Bolt |
| 91 | 6-0027 | Hex Hd. Bolt |
| 92 | 6-0769 | Hex Hd. Bolt |
| 93 | 6-0248 | Flat Washer |
| 94 | 6-0035 | Hex Nut |
| 95 | 2-1125 | Top Plate |
| 96 | 6-1453 | Lock Nut |
| 97 | 6-1637 | Attention Decal |
| 98 | 1-1766 | Keeper Washer |
Click on the part number for more information
| ITEM | PART NO | DESCRIPTION |
|---|---|---|
| ITEM | PART NO | DESCRIPTION |
| 1 | 6-0709 | 90 Elbow |
| 2 | 6-0651 | Air Cylinder |
| 3 | 6-0706 | 1/4" Dia. Poly Tube (50 Lg.) |
| 4 | 6-0710 | Adapter, 3/8" Poly Tube X 1/4"Npt |
| 5 | 6-0713 | Terminal Bolt |
| 6 | 6-0282 | Plug |
| 7 | 6-0014 | 1/4" Npt Street Tee |
| 8 | 6-0015 | 1/4" Npt Street Elbow |
| 9 | 6-0707 | 3/8" Dia. Poly Tube (25 Lg.) |
| 10 | 6-0804 | 90 Elbow |
| 11 | 6-0714 | Hose Guard (4 Lg.) |
| 12 | 6-1398 | Power Pack 230v/1 Ph/3 Hp |
| 13 | 6-1692 | Hyd.Hose Ass'y, 3/8"Jic-F, 16ft Lg. |
| 14 | 6-0731 | Cable Tie |
| 15 | 2-1394 | Air Valve & Filter AssY |
| 16 | 6-0345 | Adapter, 3/8"Npt M X 3/8"Jic M |
| 17 | 6-0090 | Flow Control |
| 18 | 6-1775 | 3-Way Air Valve |
| 19 | 6-0796 | 90 Elbow |
| 20 | 6-0708 | Adapter, 1/4" Poly Tube X 1/8"Npt |
| 21 | 6-1777 | Air Valve Pushbutton Kit |
| 22 | 6-0772 | Air Filter Assembly |
| 6-0180 | Air Filter Element, (Replacement) | |
| 23 | 0-0405 | Air Valve Fitting Kit |
| 24 | 6-0025 | Velocity Fuse |
| 25 | 6-0182 | Plug |
| 26 | 1-1057 | Manifold |
| 27 | 6-0177 | Hex Hd.Cap Screw |
| 28 | 6-0032 | Hex Nut |
| 29 | 6-0056 | Lockwasher |
| 30 | 6-0747 | 1/4 Polytube Adapter |
| 32 | 6-0593 | "Lift Operation" Decal |
| 33 | 6-0280 | Adapter, 1/8"Npt M X 1/4"Jic M |
| 34 | 6-0797 | Adapter, 3/8"Npt M X 3/8"Jic F, Swivel |
Click on the part number for more information
| ITEM | PART NO | DESCRIPTION |
|---|---|---|
| ITEM | PART NO | DESCRIPTION |
| 1 | 2-1504 | Cable Assembly, 404.5lg. (Left-Front) |
| 2 | 2-1505 | Cable Assembly, 157.75"Lg. (Left-Rear) |
| 3 | 2-1506 | Cable Assembly, 213.75"Lg. (Right-Rear) |
| 4 | 2-1507 | Cable Assembly, 459.5lg. (Right-Front) |
| 5 | 6-0724 | Hex Nut |
| 6 | 1-0800 | Cable Spacer, 2"Lg. |
| 7 | 6-0725 | Flat Washer |
| 8 | 1-0801 | Cable Spacer, 1"Lg. |
Click on the part number for more information
| ITEM | PART NO | DESCRIPTION |
|---|---|---|
| ITEM | PART NO | DESCRIPTION |
| 1 | 6-0881 | Microswitch And Wiring Assembly |
| 2 | 6-1084 | Microswitch Boot |
| 3 | 6-1959 | Motor, 230v Ac, 1 Phase, 50/60 Hz, 3hp |
| 4 | 0-0197 | Motor Adapter Kit |
| 5 | 6-1085 | Socket Hd.Cap Scw. 1/4"-20unc X 1 5/8"Lg. |
| 6 | 6-0056 | Lock Washer |
| 7 | 6-1086 | Allen Flat Hd.Scw. 1/4"-20unc X 3/4"Lg. |
| 8 | 6-0774 | Coupling |
| 9 | 6-0776 | Release Bracket & Handle Assembly |
| 10 | 6-0880 | Valve Cartridge Release |
| 11 | 6-1087 | Valve Cartridge Check |
| 12 | 6-1323 | Fixed Relief Valve Assembly (Rv 23) |
| 13 | 6-1089 | Relief Valve Cap |
| 14 | 6-0875 | Reservoir "O" Ring |
| 15 | 6-1958 | Pump Assembly, 2.5cc/Rev |
| 16 | 6-1090 | Pump Mounting Bolt |
| 17 | 0-0198 | Inlet Plumbing Kit |
| 18 | 6-0786 | Inlet Hose / Filter Assembly |
| 19 | 0-0199 | Pump "O" Ring Kit |
| 20 | 6-0783 | Return Tube |
| 21 | 6-0784 | Breather Filler Cap |
| 22 | 6-0785 | Reservoir |
| 23 | 6-1091 | Reservoir Screw |
Click on the part number for more information
| ITEM | PART NO | DESCRIPTION |
|---|---|---|
| ITEM | PART NO | DESCRIPTION |
| 1 | 4-1010 | Tower Weldment, Power Side |
| 2 | 2-2304 | Symmetric Crossmember Brkt |
| 3 | 2-2323 | Crossmember |
| 4 | 4-1011 | Tower Weldment, Slave Side |
| 5 | 4-1163 | Carriage Weldment |
| 6 | 2-0772 | Slider Block |
| 7 | 3-0979 | Outer Arm Weldment |
| 8 | 6-0030 | Hex Bolt |
| 9 | 3-0980 | Inner Arm Weldment |
| 10 | 1-2618 | Arm Restraint Gear |
| 11 | 2-1594 | Arm Pin |
| 12 | 6-0295 | Flat Washer |
| 13 | 6-0423 | Hex Bolt |
| 14 | 6-2059 | Hex Hd. Bolt |
| 15 | 1-1887 | Headed Pin |
| 16 | 1-1898 | Pulley Assembly |
| 17 | 6-1841 | Hitch Pin, 1/8 Dia. |
| 18 | 6-0248 | Flat Washer |
| 19 | 6-0059 | Lock Washer |
| 20 | 6-0035 | Nut |
| 21 | 6-0291 | Hex Bolt |
| 22 | 6-0808 | 3/4 Flat Washer |
| 23 | 2-1901 | Safety Dog Weldment, Power Side |
| 24 | 2-0872 | Safety Dog, Slave Side |
| 25 | 6-0169 | Self-Tapping Screw |
| 26 | 6-0206 | Shoulder Bolt |
| 27 | 1-0415 | Safety Cable Pulley |
| 28 | 2-1251 | Crossmember Pulley Shaft |
| 29 | 6-0978 | Cotter Pin, 1/8 Dia. X 1 7 Lg. |
| 30 | 1-1626 | Crossmember Pulley Pipe, 1 Lg. |
| 31 | 6-0738 | Flat Washer |
| 32 | 1-1623 | Crossmember Pulley Pipe, 7 Lg. |
| 33 | 1-1116 | Safety Cable Pulley |
| 34 | 6-0801 | Shoulder Bolt |
| 35 | 1-1113 | Safety Release Handle |
| 36 | 6-1135 | Plastic Knob |
| 37 | 1-1115 | Safety Spring |
| 38 | 1-2914 | Arm Lock Handle Weldment |
| 39 | 1-1378 | Actuator Mounting Bracket |
| 40 | 2-1143 | Limit Switch Mounting Bracket |
| 41 | 1-1439 | Actuator Bar |
| 42 | 6-0178 | Hex Bolt |
| 43 | 6-0056 | Lock Washer |
| 44 | 6-0032 | Hex Nut |
| 45 | 6-0205 | Hex Hd. Bolt |
| 46 | 1-1379 | Actuator Extension |
| 47 | 6-0027 | Hex Hd. Bolt |
| 48 | 6-0741 | Hex Hd. Bolt |
| 49 | 6-1404 | Foam Guard |
| 50 | 6-0069 | Shoulder Bolt |
| 51 | 6-0674 | Lock Washer |
| 52 | 6-0294 | Hex Nut |
| 53 | 6-0062 | Flat Washer |
| 54 | 0-0203 | Safety Cover C/W Decals, Slave Side |
| 55 | 0-0204 | Safety Cover C/W Decals, Power Side |
| 56 | 6-1379 | Wedge Anchor |
| 57 | 6-0737 | Hex Nut |
| 58 | 6-1134 | Self Tapping Screw |
| 59 | 6-1403 | Electrical Utility Box |
| 60 | 6-0916 | Microswitch |
| 61 | 6-1466 | 6/32 Screw |
| 63 | 6-0045 | Hex Bolt |
| 64 | 3-0621 | Hydraulic Cylinder Assembly |
| 65 | 1-2942 | Handle Spring |
| 66 | 6-3086 | Spring Retainer Cap |
| 67 | 6-2074 | Thimble, 5/32 |
| 68 | 6-2060 | Wire Rope Clip, 1/16 |
| 69 | 6-2055 | Power Pack, 208-230 V, 1 Ph |
| 70 | 6-1506 | Branch Tee |
| 71 | 6-0293 | Hex Bolt |
| 72 | 6-1547 | Tube Clamp, 5/8" |
| 73 | 6-1353 | Round Hd. Mach. Screw |
| 74 | 6-2095 | Male Nipple, Npt |
| 75 | 6-1510 | Flow Control |
| 76 | 6-0280 | 1/8 Npt To Npt |
| 77 | 6-1884 | 1/4" Jic Cap |
| 78 | 6-1173 | Elec. Cable 12/3 X 117" Lg. |
| 79 | 1-3276 | Adapter Pin |
| 80 | 3-0582 | High Position Adapter |
| 81 | 3-0583 | Low Position Adapter |
| 82 | 1-1099 | Center Pin |
| 83 | 6-0267 | Cotter Pin, 1/8" Dia. X 1" Lg. |
| 84 | 1-2337 | Safety Lock Pin |
| 85 | 6-2445 | Snap Ring Ext |
| 86 | 6-1759 | Electrical Cable Clip, 5/8 I.D. |
| 87 | 1-1473 | Equalizing Cable |
| 88 | 1-2058 | Safety Release Cable |
| 89 | 1-2040 | Hydraulic Hose (Long) |
| 90 | 2-1230 | Hydraulic Hose (Short) |
| 91 | 6-2094 | Operations Decal |
| 92 | 6-1767 | Capacity Decal |
| 93 | 6-1111 | Serial Number Plate |
| 94 | 6-0008 | Hex Bolt |
| 95 | 1-3483 | Cable Retainer |
| * | 4-1187-6 | Straight Arm Assembly |
Click on the part number for more information
| ITEM | PART NO | DESCRIPTION |
|---|---|---|
| ITEM | PART NO | DESCRIPTION |
| 1 | 6-2055 | Power Pack, 208-230v, 1 Ph |
| 6-2665 | Power Pack, 208-230v, 3 Ph | |
| 2 | 6-2094 | Lift Operation Decal |
| 3 | 6-0294 | Hex Nut |
| 4 | 6-0674 | Lock Washer |
| 5 | 2-1254 | Piston Rod |
| 6 | 2-125501 | Cylinder Tube |
| 7 | 6-2095 | Male Nipple, Npt |
| 8 | 6-3666 | Bleeder Valve |
| 9 | 6-1510 | Flow Control |
| 10 | 1-1467 | Piston |
| 11 | 0-0337 | Piston Seal Kit |
| 12 | 6-0295 | Flat Washer |
| 13 | 6-0293 | Hex Bolt |
| 14 | 6-1506 | Branch Tee |
| 15 | 1-2040 | Hydraulic Hose (Long) |
| 16 | 2-1230 | Hydraulic Hose (Short) |
| 17 | 0-0338 | Gland Kit |
| 3-062101 | Cylinder Assembly (Not Incl. Flow Control) | |
| * | 6-1575 | Contactor Box |
| * | 2-1130 | Contactor Bracket |
| * | 1-1369 | Cover Plate |
| * | 6-0008 | Hex Bolt |
| * | 6-0056 | Lock Washer |
| * | 6-0032 | Hex Nut |
| * | 6-0094 | Strain Relief |
| * | 8-0287 | Cable, 14/4 |
Click on the part number for more information
| ITEM | PART NO | DESCRIPTION |
|---|---|---|
| ITEM | PART NO | DESCRIPTION |
| I | 6-3442 | Pump 6.7g, 17 Gear |
| 2 | 6-3443 | Suction Pipe 3/8 |
| 3 | 6-3444 | Suction Filter 3/8 Female 15 L/Min |
| 4 | 6-3445 | Return Pipe |
| 5 | 6-3446 | Plastic Tank 12l |
| 6 | 6-3447 | Motor Shaft Coupling Pump |
| 7 | 6-3448 | Manual Valve |
| 8 | 6-3452 | Start Up Valve |
| 9 | 6-3449 | Tank Bracket With Screw |
| 10 | 6-3450 | Motor Brackets |
| 11 | 6-3451 | Push Button With Microswitch |
Click on the part number for more information
| ITEM | PART NO | DESCRIPTION |
|---|---|---|
| ITEM | PART NO | DESCRIPTION |
| 1 | 6-1087 | Valve Cartridge Check |
| 2 | 6-2136 | Label Installation Autohoist |
| 4 | 6-1376 | Breather Cap & Bladder |
| 6 | 6-2139 | Motor Ac 208-230v. 2hp/1ph/60hz, Blk |
| 6-1079 | Motor Ac 208-230v. 2hp/3ph/60hz, Blk | |
| 7 | 6-2149 | Label Warning Autohoist |
| 9 | 6-2151 | Spring 0.480 X 0.063 X 0.42 Comp |
| 10 | 6-2152 | Return Hose 3/8 Od X 21.5 |
| 11 | 6-2153 | Compression Tube Nut |
| 12 | 6-2154 | Compression Tube Sleeve |
| 13 | 6-2155 | Endhead Universal Autohoist |
| 14 | 6-1958 | Pump Ass'y 2.5 Cc/Rev. Short Sline |
| 15 | 6-1319 | Relief Assembly Fixed 190 Bar |
| 16 | 6-0880 | Valve Cartridge Release Manual |
| 17 | 6-2156 | Wiring Assembly Ac 1ph Fenner |
| 18 | 6-1090 | Bolt |
| 19 | 6-0774 | Coupling Sae 9t-20/40 1.260 |
| 20 | 6-2157 | Plumbing Plug |
| 21 | 6-2158 | Seal Shaft 0.500 X 1.00 X 0.25 |
| 22 | 6-2159 | Washer |
| 24 | 6-2161 | Plumbing Plug |
| 25 | 6-2162 | Plumbing Magnet |
| 27 | 6-2164 | Screw |
| 28 | 6-2165 | Cover Ass'y Suction |
| 29 | 6-2166 | Plumbing Clamp Hose Adj. Inlet |
| 30 | 6-1392 | Bolt |
| 31 | 6-2167 | Nut |
| 32 | 6-2168 | Washer |
| 33 | 6-0776 | Bracket - Handle Ass'y Rel Black |
| 34 | 6-2169 | Bolt |
| 35 | 6-2170 | Washer |
| 37 | 6-1091 | Bolt |
| 38 | 6-0786 | Plumbing Ass'y Inlet 17.24 (3) |
| 39 | 6-1089 | Relief Valve Cap Assembly |
| 40 | 6-1399 | Tank Plastic 6.7 Os 22.50 Blk |
| 41 | 6-1846 | Cable Tie 8 Long White |
| 42 | 6-0875 | O-Ring 2-348 Buna |
Validate your login
