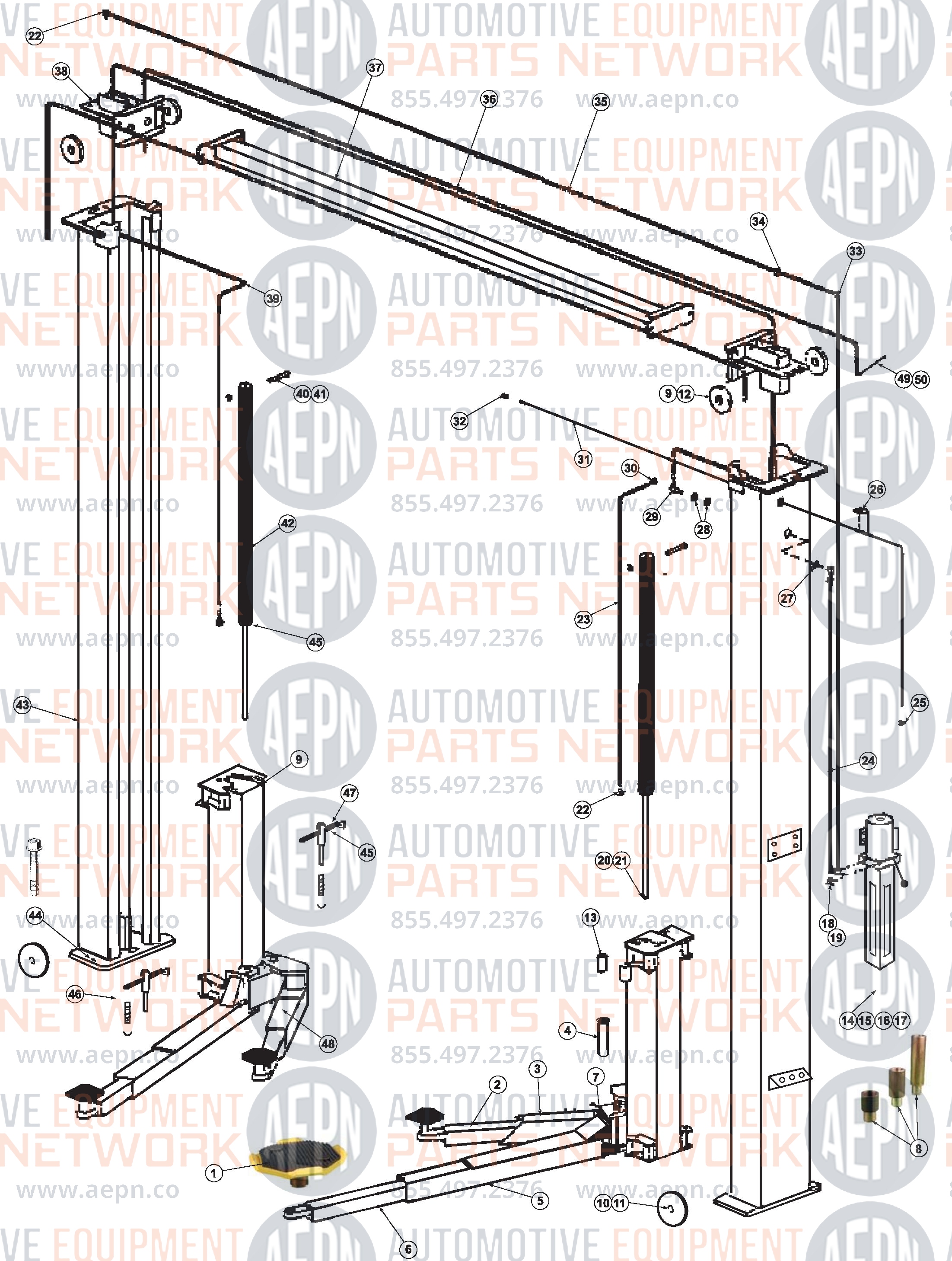

Forward DPO7A Parts Breakdown



Click on the part number for more information

ITEM PART NO DESCRIPTION
ITEM PART NO DESCRIPTION
1 BH-7089-97 Adapter Base and Pad 1-1/4" Pin
2 BH-7239-29 Inner Arm Short
3 BH-7239-27 Outer Swing Arm Tube Short RH
4 BH-7235-34 Swing Arm Pin 8"
5 BH-7237-15 Outer Swing Arm Long RH
  BH-7239-30 Outer Swing Arm Long LH
6 Call For Details Inner Arm Long
7 BH-7235-91 Bumper Strip, 4-5/8" Long
8 BH-7089-99B 6" Nesting Pad Extension
  BH-7089-99A 5" Nesting Pad Extension
  BH-7089-98 3" Nesting Pad Extension
  BH-7235-72 1-1/2" Nesting Pad Extension
9 BH-7239-34 Carriage Weldment
10 BH-7203-041 Top Rail Snap Ring
11 BH-7235-66 Cable Sheave 6-1/8"
12 BH-7235-00 Cable Sheave 4-3/4"
13 BH-7235-27 Carriage Slider Block
14 BH-7006-01 Power Unit
  BH-7006-01LS Power Unit (prewired for an overhead limit switch)
15 F-HN-0312-18 5/16"-18 Hex Nut
16 F-NL-0312-18 5/16"-18 Nylock Nut
17 F-HC-0312-18-1000 5/16"-18 x 1" Hex Head Capscrew
18 BH-7511-05 3/8" O-Ring to 3/8" Male JIC
19 BH-7235-67 3/8" JIC 90 Swivel Nut
20 F-HN-0750-16 3/4"-16 Hex Nut
21 F-JN-0750-16 3/4"-16 Jam Nut
22 BH-7236-99 Elbow
23 BH-7236-42 Hydraulic Hose 56"
24 BH-7236-39 Hydraulic Hose 62"
25 BH-7239-88 1/8" Cable Clamp
26 BH-7239-89 Overhead Limit Cable Ring Weldment
27 F-JN-0562-18 3/8" Bulkhead Nut
28 F-FW-0562-SAE 9/16" SAE Washer, Bulkhead Mount
29 BH-7239-92 3/8" JIC Bulkhead Run Tee
30 BH-7000-03 3/8" JIC 45 Swivel Nut
31 BH-7235-09C Limit Switch Cable 1/16" x 16'
32 BH-7239-90 1/16" Cable Clamp
33 BH-7236-32 3/8" Hose x 86" High Press
34 BH-7239-93 3/8" JIC Branch T to 3/8" MNPT
35 BH-7236-33 Hydraulic Hose 101"
36 BH-7235-03 Equalizer Cable 32' 4-1/2"
37 BH-7239-91 Overhead Weldment 99-1/4"
38 BH-7235-17 Cylinder Mount Weldment
39 BH-7237-53 Hydraulic Hose 195"
40 F-NL-0500-13 1/2"-13 Nylock Nut
41 F-HC-0500-13-5000 1/2"-13 x 5" Hex Head Capscrew
42 BH-7236-02 Hydraulic Cylinder
43 Call For Details Seal Kit
44 BH-7075-03 3/4" x 5-1/2", Anchor Bolt
45 BH-7235-53 Arm Restraint Plunger 10.4"
46 BH-7235-51 Arm Restraint Slider 8" Front
  BH-7235-52 Arm Restraint Slider 8" Rear
47 BH-7235-36 Arm Restraint Kit (entire lift) (4)
48 BH-7239-28 Outer Swing Arm Tube Short LH
49 F-FW-0375-SAE 3/4" SAE Washer
50 F-NL-0750-10 3/4"-10 Nylock Nut

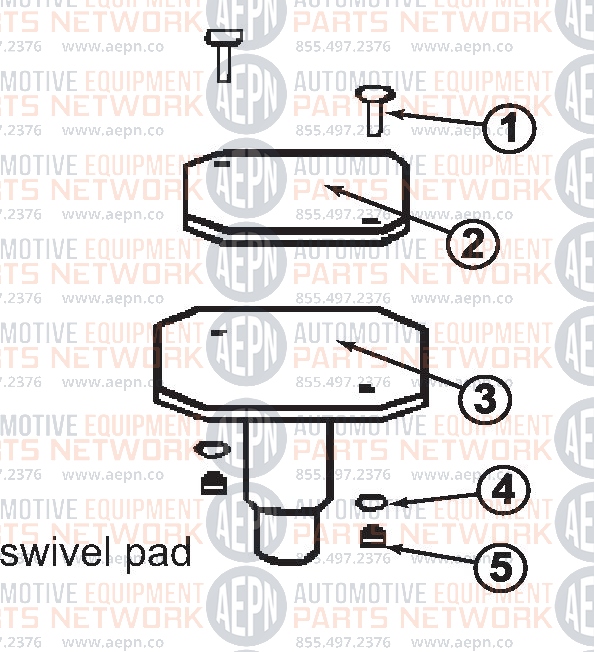

Click on the part number for more information

ITEM PART NO DESCRIPTION
ITEM PART NO DESCRIPTION
1 F-EB-0250-20-1000 1/4" x 1" Elevator Bolt
2 BH-7235-90A Rubber Pad - standard duty
  BH-7235-90 Rubber Pad Kit - standard duty
  BH-7235-90AX Rubber Pad - heavy duty
  BH-7235-90K Rubber Pad Kit - heavy duty
3 BH-7089-97 Adapter Base and Pad 1-1/4" Pin
4 F-FW-0250-USS 1/4" Flat Washer
5 F-HN-0250-20 1/4"-20 Hex Nut

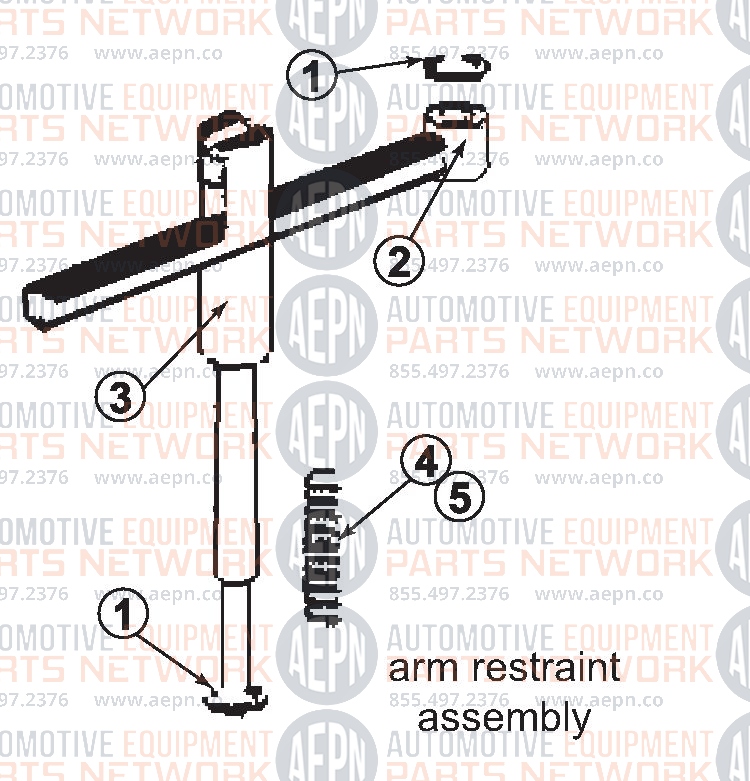

Click on the part number for more information

ITEM PART NO DESCRIPTION
ITEM PART NO DESCRIPTION
KIT BH-7235-36 Arm Restraint Kit (all four arms)
1 BH-7235-24E Arm Restraint E-Clip 5/8"
2 BH-7235-51 Arm Restraint Slider 8" Front
  BH-7235-52 Arm Restraint Slider 8" Rear
3 BH-7235-53 Arm Restraint Plunger 10.4"
4 BH-7235-23D Arm Restraint Spring
5 F-FW-0625-SAE 5/8" Arm Restraint Washer

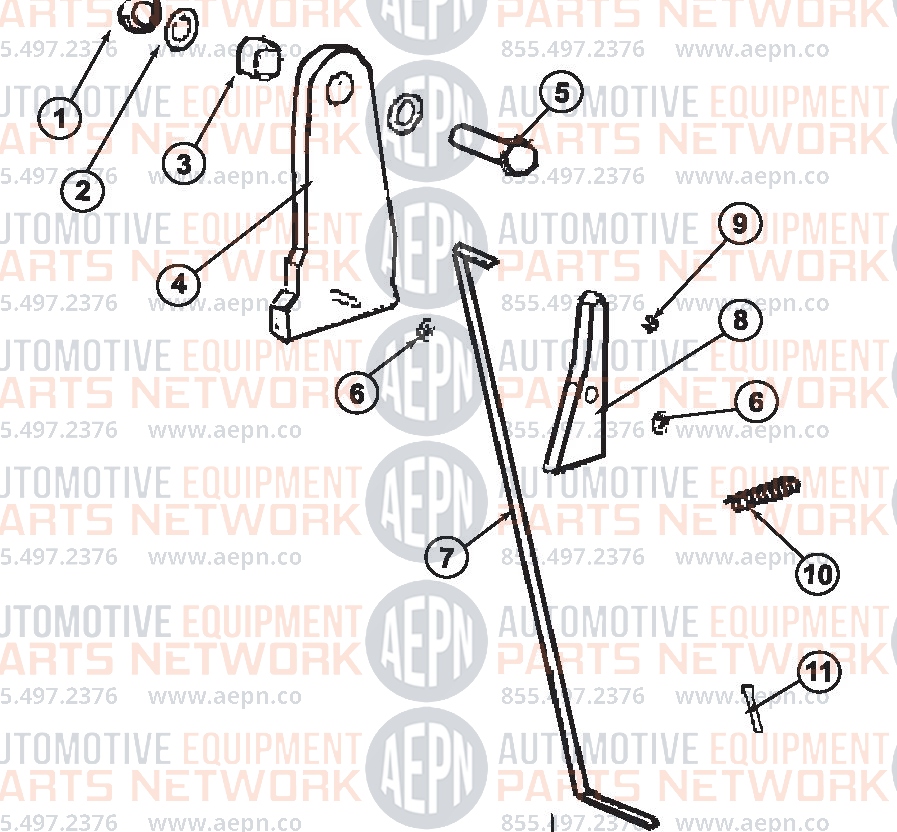

Click on the part number for more information

ITEM PART NO DESCRIPTION
ITEM PART NO DESCRIPTION
1 F-NL-0750-16 Nylok Jam Nut 3/4"
2 F-FW-0750-SAE 3/4" Flatwasher
3 BH-7239-95 Latch Pivot
4 BH-7239-94 Lock Latch
5 F-HC-0750-16-2000 3/4-16 x 2 Hex Head Capscrew
6 F-FW-0375-SAE 3/8" Flat Washer
7 BH-7237-19 Lock Release Rod 17"
8 BH-7235-63 Latch Release Pivot
9 BH-7235-65 Cap Nut
10 BH-7237-86 Spring Latch
11 F-CP-094-1500 Cotter Pin
