BENWIL TP-55 Parts Breakdown

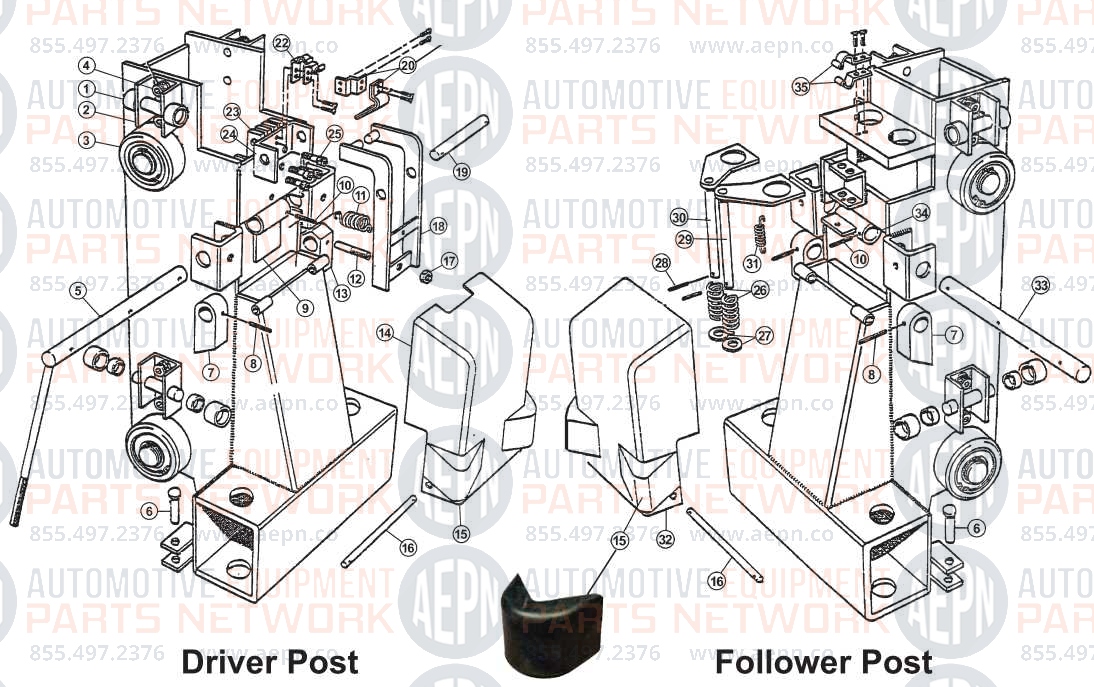

Click on the part number for more information

ITEM PART NO DESCRIPTION
ITEM PART NO DESCRIPTION
1 BH-7200-25 Side Roller Assembly
2 BH-7200-26 Side Roller Bracket
3 BH-7201-80 Roller Assembly
4 BH-7200-49 Socket Head Cap Bolt
5 BH-7204-025 Complete Safety Assembly
6 BH-7201-67 Lock Fitting Pin
7 BH-7204-025 Complete Safety Assembly
8 F-RP-125-1125 Roll Pin
9 BH-7200-46 Shaft Lever
10 F-RP-125-1500 Roll Pin
11 BH-7209-23 Spring (Driver Post)
12 BH-7209-22 Safety Bolt
13 BH-7204-025 Complete Safety Assembly
14 BH-7209-18 Cover (Driver Post)
15 BH-7204-051 Rubber Door Bumper
16 BH-7215-07 Hinge Pin
17 F-HN-0250-11 Hex Nut
18 BH-7209-21 Safety Arm
19 BH-7209-27 Safety Shaft
20 BH-7214-01 Return Spring (1 Piece)
22 BH-7200-35 Cover Spring
23 BH-7209-49 Chain Fitting Plate
24 BH-7209-24 Safety Bracket
25 BH-7200-78 Socket Head Cap Bolt
26 BH-7209-32 Slave Post Safety Spring
27 F-FW-0500-SAE Flat Washer
28 F-RP-125-0750 Roll Pin
29 BH-7209-31 Right Safety Arm
30 BH-7209-29 Left Safety Arm
31 BH-7209-30 Hook Return Spring
32 BH-7209-19 Slave Post Cover
33 BH-7204-026 Hook Shaft with Lever
34 BH-7204-026 Shaft Lever with Shaft
35 BH-7209-25 Cover Spring

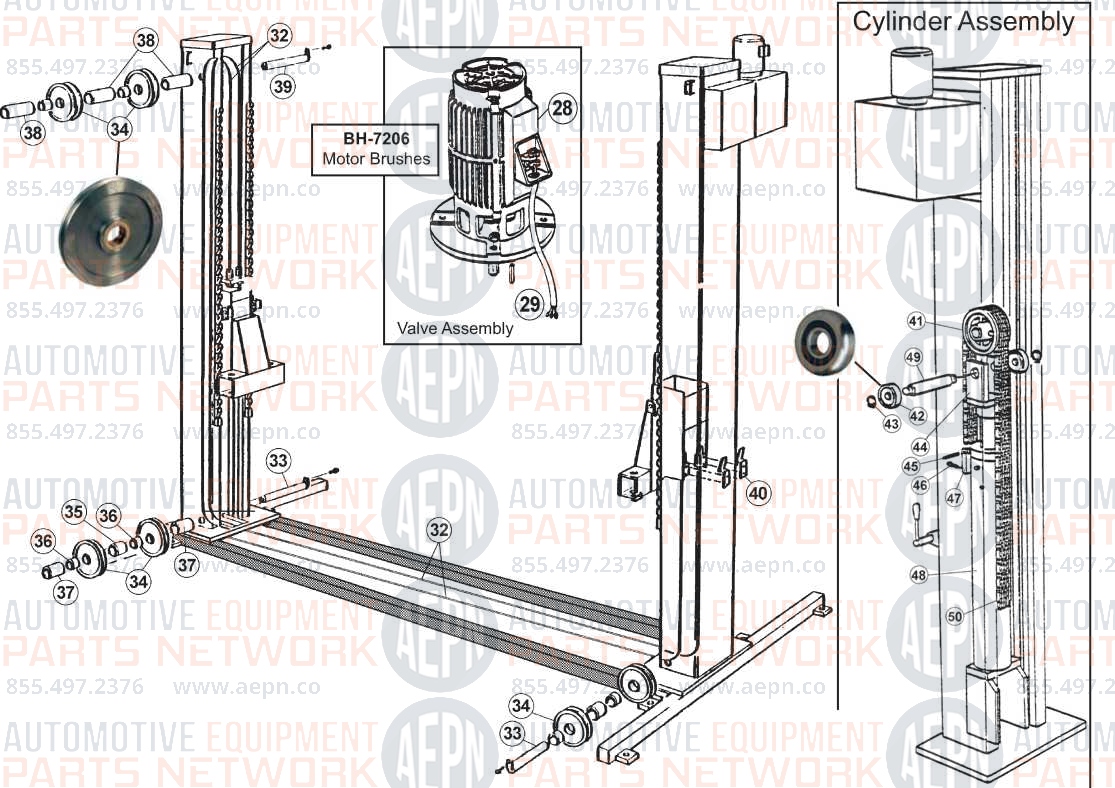

Click on the part number for more information

ITEM PART NO DESCRIPTION
ITEM PART NO DESCRIPTION
28 BH-7200-76 Single Phase Motor
28 BH-7206 Motor Brushes (for 1PH only)
28 BH-7200-76T Three Phase Motor
29 BH-7200-77 Release Valve
31 BH-7207-16 Adjusting Nut, 1 set of 2
32 BH-7200-07 Cable for TP-55, 26' 4"
33 BH-7204-019 Sheave Shaft (Bottom)
34 BH-7204-015 Cable Sheave
35 BH-7204-017 Cable Sheave Spacer
36 BH-7204-016 Oilite Bearing
37 BH-7204-017A Sub Sheave Spacer
38 BH-7204-014 Cable Sheave Spacer
  BH-7215-01 Microswitch
39 BH-7204-018 Sheave Shaft (Top)
40 BH-7204-021 Spring
41 BH-7200-79 Chain Wheel
42 BH-7606-21 Roller Assembly
43 F-RR-1500 Snap Ring
44 BH-7200-80 Chain Bracket/Yoke
45 BH-7209-50 Chain Fitting Pin
46 BH-7200-78 Socket Head Cap Bolt
47 BH-7209-49 Chain Fitting Plate
48 Call For Details Cylinder Assembly
48 BH-7200-56 Cylinder Seal Kit
49 Call For Details Chain Wheel Shaft
50 Call for Details Leaf Chain 49 Pitches

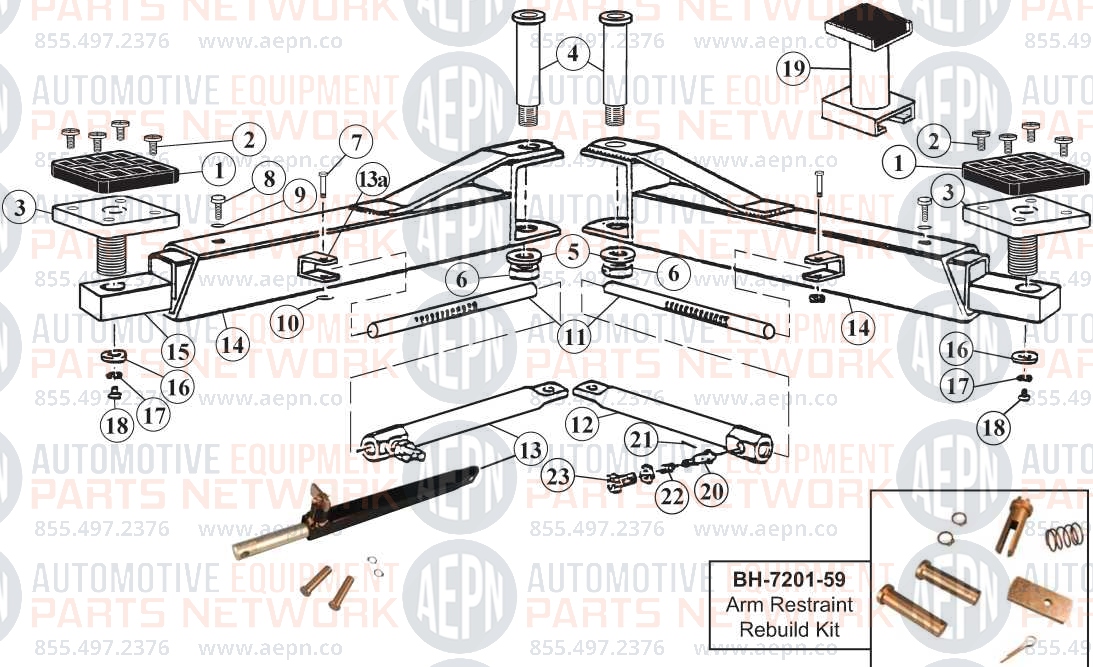

Click on the part number for more information

ITEM PART NO DESCRIPTION
ITEM PART NO DESCRIPTION
1 BH-7205 Rubber Arm Pad
2 BH-7205-01 Round Head Screw
3 BH-7205-02A Steel Support
3 BH-7205-02OV Steel Support Original Version
4 BH-7204-002 Lift Arm Pin
5 BH-7204-052 Washer
6 BH-7204-006 Arm Pin Nut
7 BH-7201-67 Arm Lock Fitting Pin
8 BH-7204-053 Hex Bolt
9 BH-7203-343 Lock Washer
10 BH-7204-054 Snap Ring
11 BH-7200-10 Inner Bar - Restraint
12 BH-7200-11 Outer Pipe - Restraint
13 BH-7200-10A Complete Arm Rest. 12-5/8" Long
13 BH-7200-10B Arm Restraint Mount Bracket
14 BH-7204-008S Arm (Right - Short)
14 BH-7204-008L Arm (Right - Long)
14 BH-7204-009S Arm (Left - Short)
14 BH-7204-009L Arm (Left - Long)
15 BH-7204-007S Slide Arm
15  BH-7204-010 Swing Arm Assembly (Right)
15 BH-7204-011 Swing Arm Assembly (Left)
16 BH-7204-003 Screw Stopped
17 BH-7204-004 Serrated Washer
18 BH-7204-005 Screw
19 BH-7200-12 5-1/2" Height Extension
19 BH-7200-12L 9" Slip-On Height Ext.
20 BH-7201-69 Lock Pin (OEM Style)
21 BH-7201-72 Roll Pin (OEM Style)
22 BH-7201-70 Lock Spring (OEM Style)
23 BH-7201-73 Lock Handle (OEM Style)
