BENWIL BW-9 Parts Breakdown
Click on the part number for more information

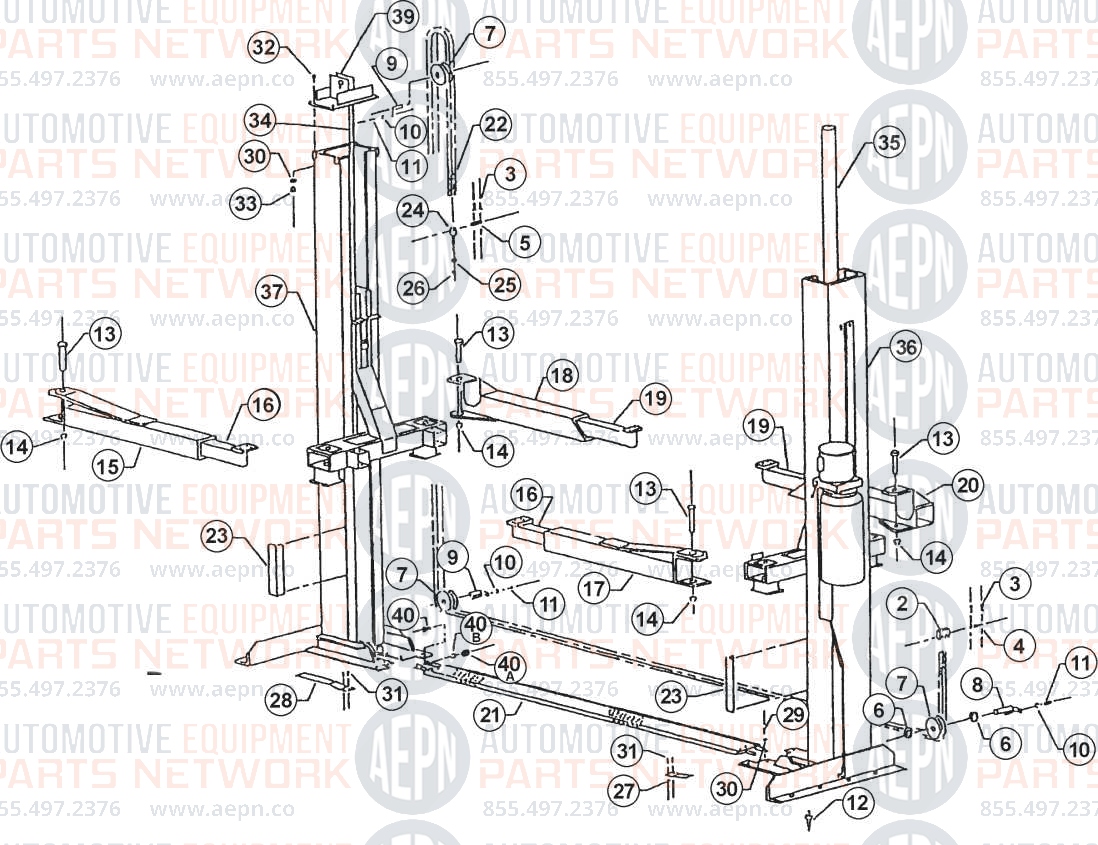

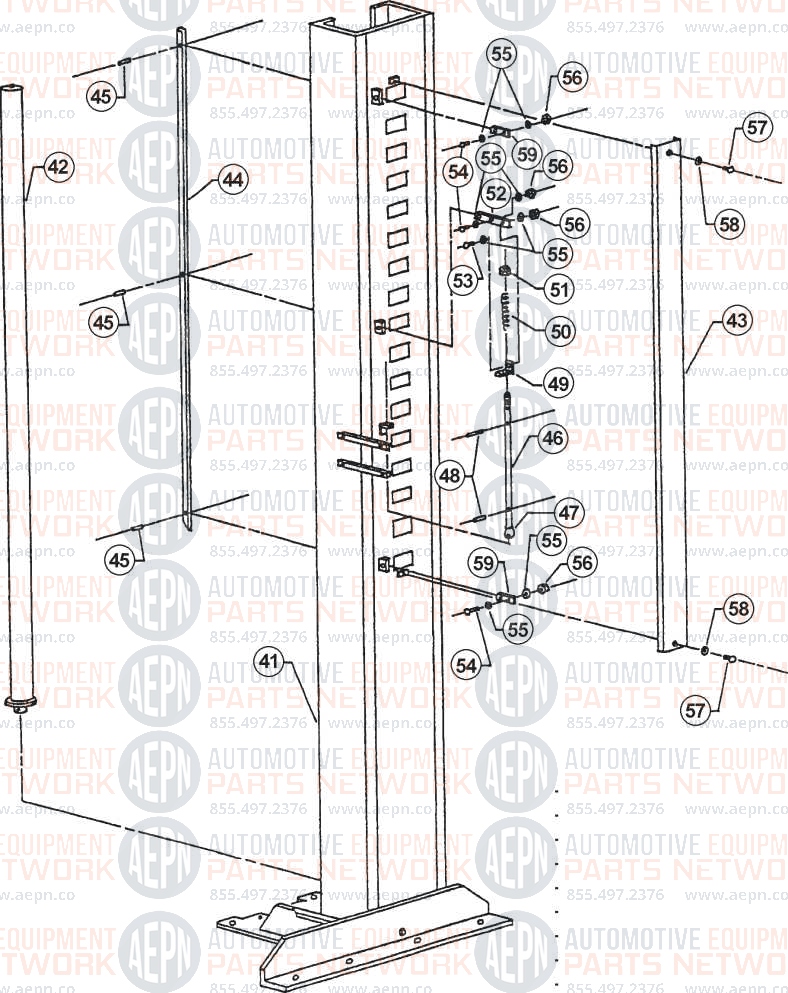

| ITEM | PART NO | DESCRIPTION |
|---|---|---|
| ITEM | PART NO | DESCRIPTION |
| 2 | BH-7210-56 | Anchor-Chain |
| 3 | F-CP-125-0875 | 1/8" x 7/8" Cotter Pin |
| 4 | BH-7210-52 | Pin, Chain Anchor |
| 5 | BH-7207-71 | Pin, Clevis |
| 6 | BH-7224-179 | Spacer-Sheave |
| 7 | BH-7208-46 | Sheave |
| 8 | BH-7208-47 | Shaft Assy.-Drive Side |
| 9 | BH-7210-57 | Shaft Assy.-Driven Side |
| 10 | F-LW-0250 | 1/4" Split Lock Washer |
| 11 | F-HC-0250-20-0375 | 1/4"-20 x 3/8" Hex Bolt |
| 12 | BH-7224-131 | Anchor Bolt Assembly |
| 13 | BH-7211-01 | Pin-Arm Fnt./Rear |
| 14 | BH-7211-02 | Snap Ring |
| 15 | BH-7207-63 | Arm Weld-Rear (LH) |
| 16 | BH-7207-03 | Arm-Weld Ext.-Rear |
| 17 | BH-7207-64 | Arm Weld-Rear (RH) |
| 18 | BH-7224-180 | Arm Weld-Asym.Frnt. (LH) |
| 19 | BH-7211-11 | Arm Weld Ext.-Frnt. |
| 20 | BH-7224-181 | Arm Weld-Asym. Frnt. (RH) |
| 21 | BH-7224-182 | Floor Plate |
| 22 | BH-7208-95 | Leaf Chain-447 Links |
| 23 | BH-7202-70 | Bumper Door |
| 24 | BH-7207-70 | Clevis-Chain |
| 25 | F-HN-0625-18 | 5/8"-18 Hex Nut |
| 26 | F-JN-0625-18 | 5/8"-18 Hex Jam Nut |
| 27 | BH-7224-143 | Chain Cvr. Drive-Side |
| 28 | BH-7207-61 | Chain Cvr. Driven-Side |
| 29 | F-HC-0375-16-0750 | 3/8"-16 x 3/4" Hex Bolt |
| 30 | F-LW-0375 | 3/8" Split Lock Washer |
| 31 | F-MS-0010-32-0500 | 10-32 x 1/2"Phil. Hd. Screw |
| 32 | F-HC-0500-13-2500 | 1/2"-13 x 2-1/2" Hex Bolt |
| 33 | F-HN-0500-13 | 1/2"-13 Hex Nut |
| 34 | BH-7202-95 | Rod Assy.-Restraint |
| 35 | BH-7224-183 | Hydraulic Cylinder |
| 35 | BH-7224-206 | Use for BW-9L |
| 36 | BH-7224-184 | Column-Drive Side |
| 37 | BH-7224-185 | Column-Driven Side |
| 38 | F-LW-0500 | 1/2" Split Lock Washer |
| 39 | BH-7224-186 | Upper Sheave Bracket |
| 40 | F-HC-0375-16-1000 | 3/8"-16 x 1" Hex Head Bolt |
| 40A | F-HN-0375-16 | 3/8"-16 Hex Head Nut |
| 40B | F-LW-0375 | 3/8" Spring Lock Washer |
| 41 | BH-7224-187 | Column-Drive Side |
| 42 | BH-7224-188 | Hyd. Cyl. |
| 43 | BH-7224-189 | Cover-Lock |
| 44 | BH-7202-90 | Channel-Lock Rel. |
| 45 | F-RP-0187-0437 | 3/16" x 7/16" Roll Pin |
| 46 | BH-7202-98 | Rod-Lock Release |
| 47 | BH-7208-36 | Knob |
| 48 | F-RP-156-0750 | 5/32" x 3/4" Roll Pin |
| 49 | BH-7208-64 | Angle-Lock Rel. |
| 50 | BH-7208-09 | Spring-Lock Rel. |
| 51 | F-HN-0375-16 | Hex Nut |
| 52 | BH-7208-21 | Link-Lock Rel. |
| 53 | F-MS-0010-32-0750 10-32 x 3/4" | Phil. Panhd. Screw |
| 54 | F-MS-0010-32-1000 10-32 x 1" | Phil. Panhd. Screw |
| 55 | F-FW-0187-SAE 3/16" | Flat Washer |
| 56 | F-NL-0010-32 | Nylon Insert Lock Nut |
| 57 | F-MS-0250-20-0375 1/4"-20 x 3/8" | Phil Panhd. Screw |
| 58 | F-FW-0250-SAE 1/4" | Flatwasher |
| 59 | BH-7202-99 | Link-Lock Rel. |

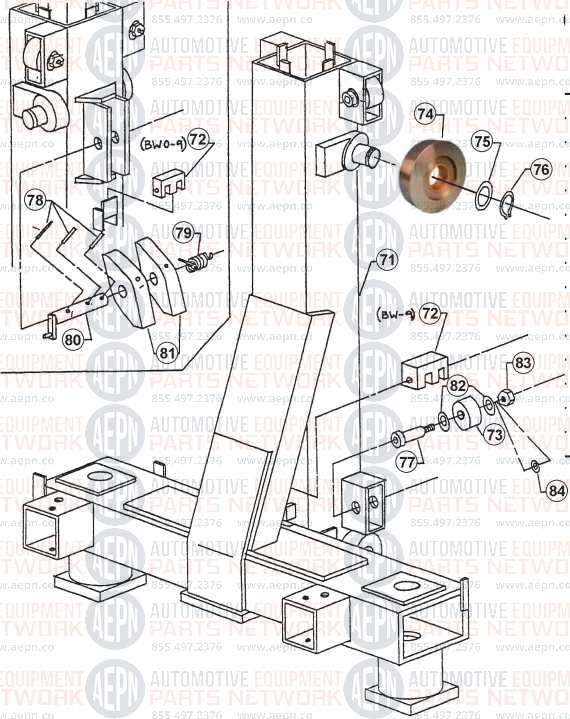

| 71 | BH-7224-190 | Carr. Weld-Drive Side |
| 72 | BH-7210-56 | Chain Anchor |
| 73 | BH-7208-38 | Roller Assembly-Side |
| 74 | BH-7208-37 | Roller-Flange |
| 75 | BH-7202-005 | Thrust Washer |
| 76 | BH-7202-006 | Snap Ring |
| 77 | F-SB-0625-11-1500 | 5/8" x 1-1/2" Socket Shoulder Screw |
| 78 | F-RP-156-1500 | 5/32" x 1-1/2" Roll Pin |
| 79 | BH-7202-93 | 300269 Spring-Safety Lock |
| 80 | BH-7202-91 | Pin Assembly |
| 81 | BH-7202-92 | Lock-Carriage |
| 82 | Call for Details | 5/8" x 1-1/4" Machine Bushing |
| 83 | F-NL-0500-13 | 1/2"-13 Insert Lock Nut |
| 84 | F-FW-0500-USS | 1/2" Flat Washer |

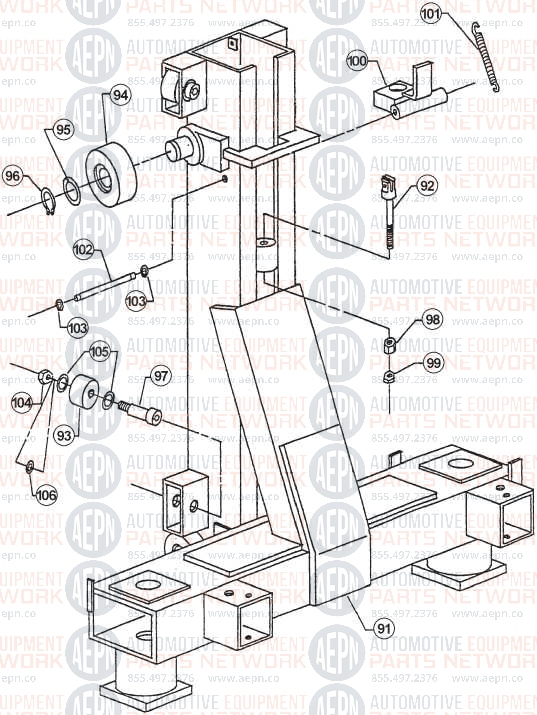

| 91 | BH-7224-192 | Carriage Weld-Driven |
| 92 | BH-7207-70 | Clevis-Chain |
| 93 | BH-7208-38 | Roller Assembly Side |
| 94 | BH-7208-37 | Roller-Flange |
| 95 | BH-7202-005 | Thrust Washer |
| 96 | BH-7202-006 | 300218-8 Snap Ring |
| 97 | F-SB-0625-11-1500 | 5/8" x 1-1/2" Socket Shoulder Screw |
| 98 | F-HN-0625-18 | Hex Nut |
| 99 | F-JN-0625-18 | Jam Nut |
| 100 | BH-7202-96 | Lk. Weld-Loose Chain |
| 101 | BH-7202-97 | Spr.-Loose Chain Lk. |
| 102 | BH-7207-69 | Pin-Loose Chain |
| 103 | BH-7210-47 | Snap Ring |
| 104 | F-NL-0500-13 | 1/2"-13 Nylon Insert Lock Nut |
| 105 | Call for Details | 5/8" x 1-1/4" Machine Bushing |
| 106 | F-FW-0500-SAE | 1/2" Flat Washer |

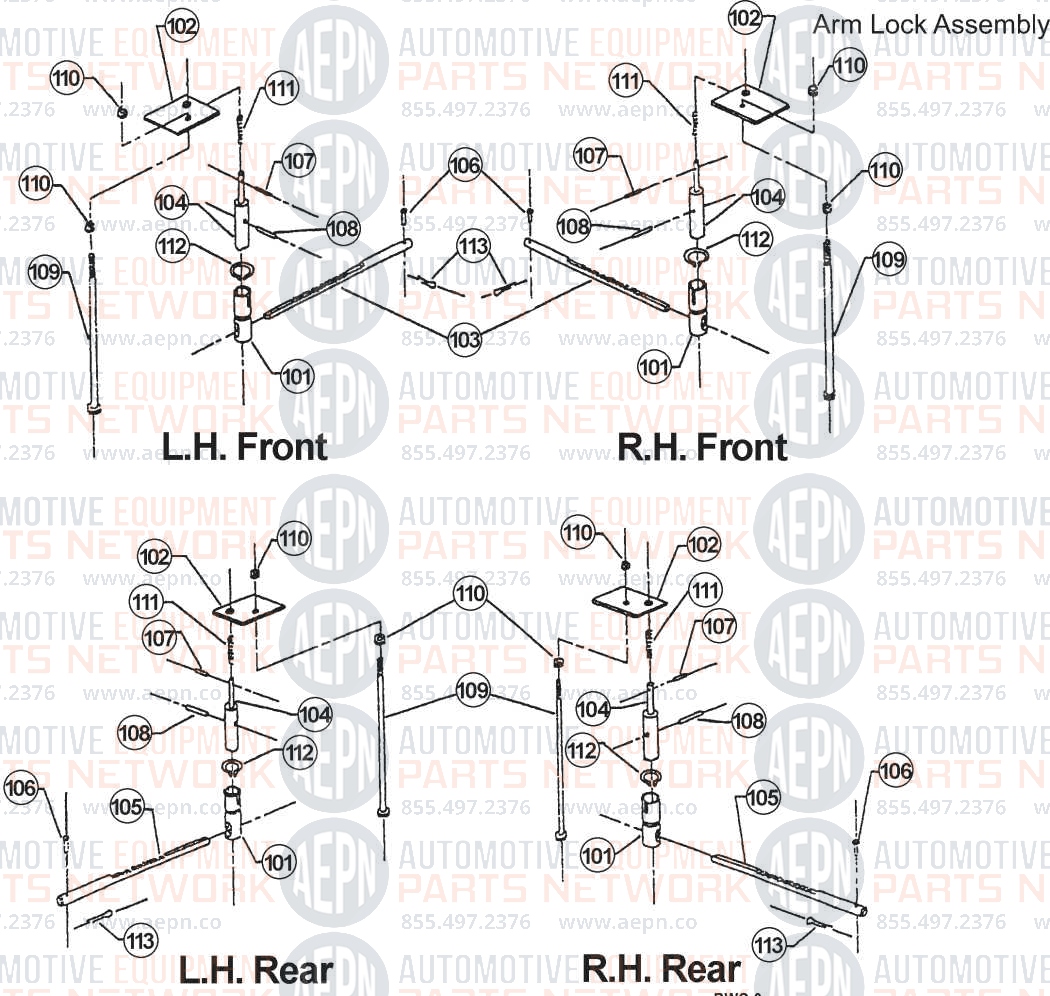

| 101 | BH-7208-01 | Supt. Tube-Lock Bar |
| 102 | BH-7208-27 | Link Arm Restraint |
| 103 | BH-7208-23 | Rest. Bar-Front Arm |
| 104 | BH-7208-02 | Rest. Pin-Arm |
| 105 | BH-7208-28 | Rest. Bar-Rear Arm |
| 106 | BH-7208-06 | Clevis Pin |
| 107 | F-RP-125-0750 | 1/8"x3/4" Roll Pin |
| 108 | F-RP-187-1125 | 3/16"x1-1/8" Roll Pin |
| 109 | F-HC-0375-16-8500 | 3/8"-16x8-1/2" Hex Bolt |
| 110 | F-JN-0375-16 | 3/8"-16 Jam Nut |
| 111 | BH-7208-08 | Spring-Arm Lock |
| 112 | BH-7208-05 | Snap Ring |
| 113 | F-CP-125-1000 | 1/8" x 1" Cotter Pin |
| 114 | BH-7208-00 | Set of 4 Arm Restraint Assy. |

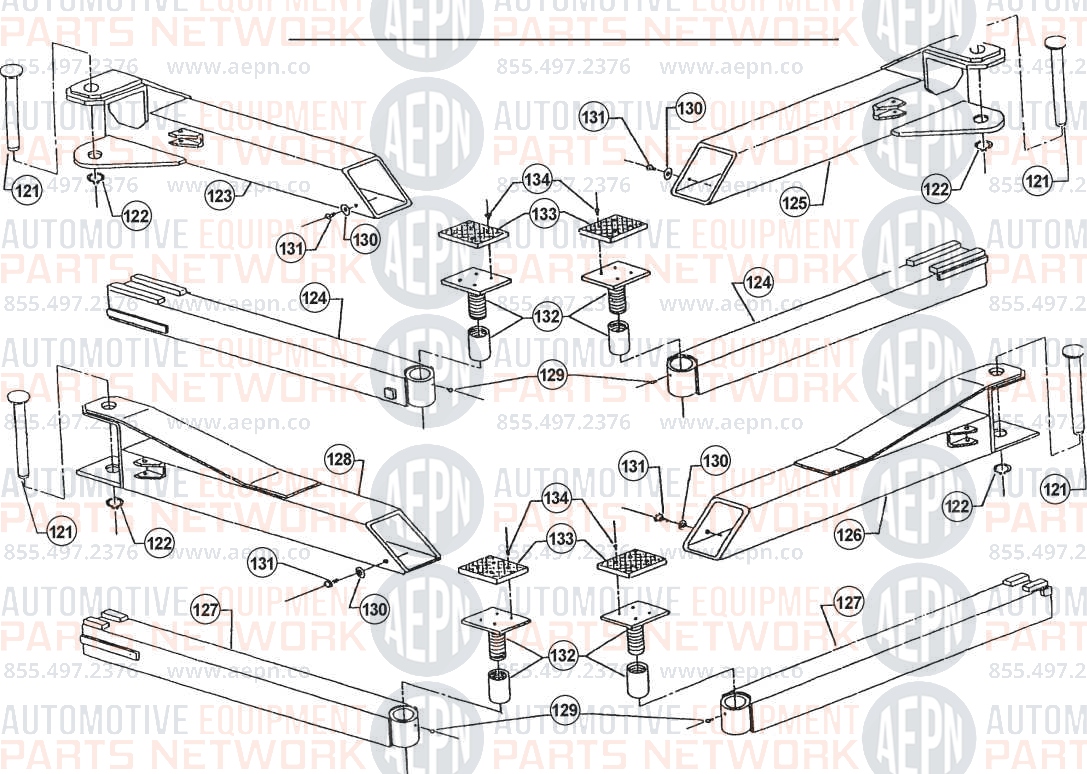

| 121 | BH-7211-01 | Pin-Arm |
| 122 | BH-7211-02 | Snap Ring |
| 123 | BH-7224-180 | Arm Weld-Asym. Front (LH) |
| 124 | BH-7211-01 | Arm Ext. Weld-Front |
| 125 | BH-7224-181 | Arm Weld-Asym. Front (RH) |
| 126 | BH-7207-63 | Arm Weld-Rear (LH) |
| 127 | BH-7207-03 | Arm Ext. Weld-Rear |
| 128 | BH-7207-64 | Arm-Weld-Rear (RH) |
| 129 | F-HC-0312-18-0500 | 5/16"-18x1/2" Hex Bolt |
| 130 | Call for Details | 3/8" x 1/32" Aluminum Washer |
| 131 | F-HC-0375-16-0500 | 3/8"-16x1/2" Hex Bolt |
| 132 | BH-7208-66B | Lift Adapter Assembly |
| 133 | BH-7205 | Rubber Pad |
| 135 | BH-7207-01 | Height Extension, OE Style |
