AMMCO BEN PEARSON NDF 7 Parts Breakdown
Click on the part number for more information
| ITEM | PART NO | DESCRIPTION |
|---|---|---|
| ITEM | PART NO | DESCRIPTION |

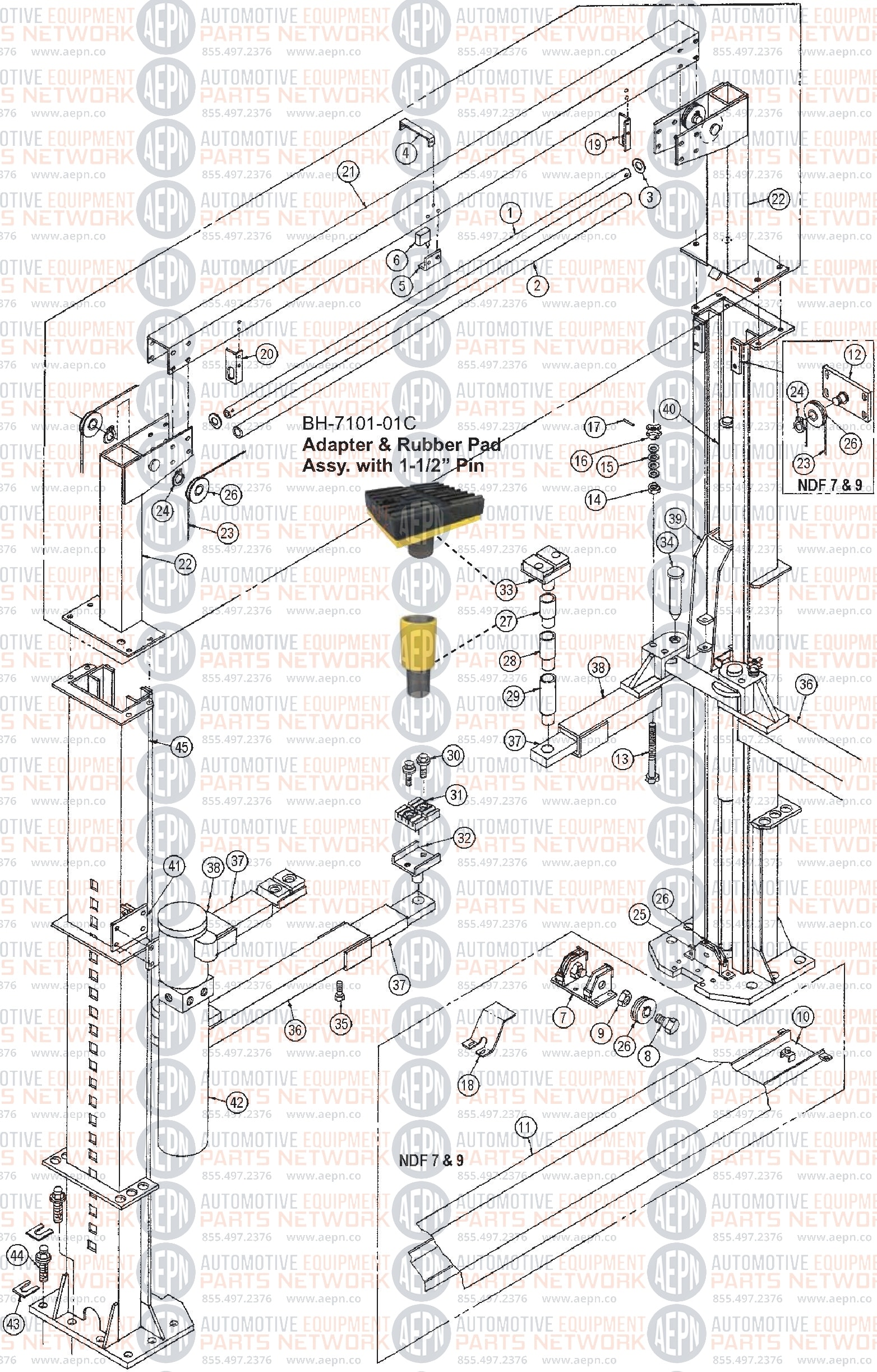

| 1 | BH-7110-41 | Pipe Bumper |
| 2 | BH-7110-42 | Tubing Bumper |
| 3 | BH-7113-67 | Flat Washer |
| 3 | BH-7101-55 | Hex Screw |
| 3 | BH-7112-24 | Lock Washer |
| 3 | BH-7112-23 | Hex Nut |
| 4 | BH-7113-80 | Cable Support Strap |
| 5 | BH-7111-13 | Switch Support Angle |
| 5 | BH-7110-73 | HFHSL Screw |
| 5 | BH-7110-75 | HFHSL Nut |
| 6 | BH-7004-19 | Micro Switch |
| 6 | BH-7113-69 | Micro Switch Cover |
| 7 | BH-7113-81 | Idler Support Struct. Bottom |
| 8 | BH-7113-82 | Shoulder Screw |
| 9 | BH-7113-83 | Nylock Nut |
| 9 | BH-7112-36 | HFHSL Screw (Support) |
| 10 | BH-7101-44 | Trough Structure |
| 10 | BH-7112-36 | HFHSL Screw (Trough to Base) |
| 11 | BH-7112-46 | Cover Structure Trough |
| 11 | BH-7110-76 | HFHSL Nut (Cover to Trough) |
| 12 | BH-7113-84 | Idler Support Struct Top |
| 13 | BH-7113-85 | Adjusting Screw |
| 14 | BH-7113-86 | Nut Wedge |
| 15 | BH-7112-29 | Flat Washer |
| 16 | BH-7113-87 | Hand Knob |
| 17 | BH-7113-88 | Roll Pin |
| 18 | BH-7113-89 | Shield, Bottom Idlers |
| 18 | BH-7112-35 | HDHSL Screw (Shield Cover) |
| 19 | BH-7110-33 | Angle RH NDO |
| 19 | BH-7110-73 | HFHSL Screw |
| 19 | BH-7110-75 | HFHSL Nut |
| 20 | BH-7110-40 | Angle LH NDO |
| 21 | BH-7113-99 | Top Channel Cross Over |
| 21 | BH-7110-74 | HFHSL Screw (Ext to Channel) |
| 21 | BH-7110-76 | HFHSL Nut |
| 22 | BH-7102-86 | Post Extension Struct. |
| 22 | BH-7112-63 | HFHSL Screw (Ext to Post) |
| 22 | BH-7110-82 | HFHSL Nut |
| 23 | BH-7100-08 | Cable Assy |
| 24 | BH-7100-00C | Retaining Ring |
| 25 | BH-7100-00A | Idler Support Struct Bottom |
| 25 | BH-7100-00B | Idler Pin |
| 25 | BH-7100-00C | Retaining Ring |
| 25 | BH-7112-36 | HFHSL Screw |
| 26 | BH-7100-00 | Cable Sheave (Nylon) |
| 26 | BH-7100-00S | Cable Sheave (Steel) |
| 27 | BH-7101-02 | 2-5/8 Height Adapter |
| 28 | BH-7101-04 | 3-1/2 Height Adapter |
| 29 | BH-7101-03 | 5 Height Adapter |
| 30 | F-HC-0312-18-0750 | HFHSL Screw |
| 30 | F-FW-0375-SAE | Flat Washer |
| 31 | BH-7101-00 | Rubber Arm Pad |
| 31 | BH-7101-00-4 | Rubber Arm Pad Kit |
| 32 | BH-7101-01 | Steel Adapter |
| 33 | BH-7101-01C | Adapter Base & Pad Assy. |
| 34 | BH-7102-37 | Arm Pin |
| 35 | BH-7113-07 | Hex Screw |
| 36 | BH-7113-98 | Lift Arm Structure Long |
| 37 | BH-7113-97 | Arm Extension Structure |
| 38 | BH-7103-01 | Lift Arm Structure Short |
| 39 | BH-7113-96 | Carriage Assy |
| 40 | BH-7113-94 | Hydraulic Cylinder |
| 40 | BH-7100-98 | Cap Screw |
| 40 | BH-7113-95 | Hex Nylock Nut |
| 41 | BH-7113-93 | Power Unit Bracket Structure |
| 41 | BH-7112-20 | Hex Screw |
| 41 | BH-7112-24 | Lock Washer |
| 41 | BH-7112-23 | Hex Nut |
| 41 | BH-7110-74 | HFHSL Screw |
| 41 | BH-7110-76 | HFHSL Nut |
| 42 | BH-7006-01 | Power Unit 1 PH, 2 HP |
| 43 | BH-7512-92 | Shim Kit 150 pcs, 3 sizes |
| 44 | BH-7075-03 | 3/4 x 5-1/2 Wedge Anchor |
| 45 | BH-7113-90 | Post Structure |
| 46 | BH-7113-96 | Carriage Assembly |
| 46 | BH-7114-00 | Carriage Structure |
| 47 | BH-7110-01 | Carriage Slider Block |
| 48 | BH-7113-79 | Bumper Pad |
| 49 | BH-7102-34 | Latch Assy. |
| BH-7113-46 | Grease Fitting | |
| 50 | BH-7102-10 | Carriage Lock Shaft |
| 51 | BH-7100-84 | Torsion Spring |
| 52 | BH-7100-85 | Retaining Ring |
| 53 | BH-7102-27 | Cam Structure |
| 54 | BH-7102-12 | Nylock Nut |
| 55 | F-CP-093-1000 | Cotter Pin |
| 56 | BH-7102-36 | Cam Lever |
| 57 | BH-7102-92 | Female Adapter |
| 58 | BH-7102-94 | Pipe Nipple |
| 59 | BH-7102-93 | 90 Elbow |
| 60 | BH-7114-01 | Main Tube Assembly |
| 61 | BH-7111-72 | Union Tee |
| 62 | BH-7114-02 | Hose Assy 3/8 ID |
| 63 | BH-7110-63 | 90 Elbow |
| 64 | BH-7110-66 | Hex Head Plug |
| 65 | BH-7111-74 | Union Connector |
| 66 | BH-7114-02 | Hose Assy 3/8 ID |
| 67 | BH-7111-77 | Hose Clamp |
| 68 | BH-7101-61 | Dry Pressure Gauge |
| 69 | BH-7111-65 | Coupling (MTE Only) |
| 70 | BH-7111-71 | Hex Nipple (MTE) |
| 71 | BH-7113-94 | Hydraulic Cylinder |
| 72 | BH-7006-01 | Power Unit 1 PH, 2 HP |
| 73 | BH-7102-92 | Female Adapter |
| 74 | BH-7102-94 | Pipe Nipple |
| 75 | BH-7102-93 | 90 Elbow |
| 76 | BH-7114-01 | Main Tube Assembly |
| 77 | BH-7111-68 | 90 Elbow |
| 78 | BH-7114-02 | Hose Assy |
| 79 | BH-7110-63 | 90 Elbow |
| 80 | BH-7110-66 | Hex Headlug |
| 81 | BH-7111-69 | Tube Union |
| 82 | BH-7114-04 | Hose Assy 3/8 ID |
| 83 | BH-7111-77 | Clamp |
| 84 | BH-7101-61 | Dry Pressure Gauge |
| 85 | BH-7111-65 | Coupling (MTE Only) |
| 86 | BH-7111-71 | Hex Nipple (MTE) |
| 87 | BH-7113-94 | Hydraulic Cylinder |
| 88 | BH-7006-01 | Power Unit 1 PH, 2 HP |
