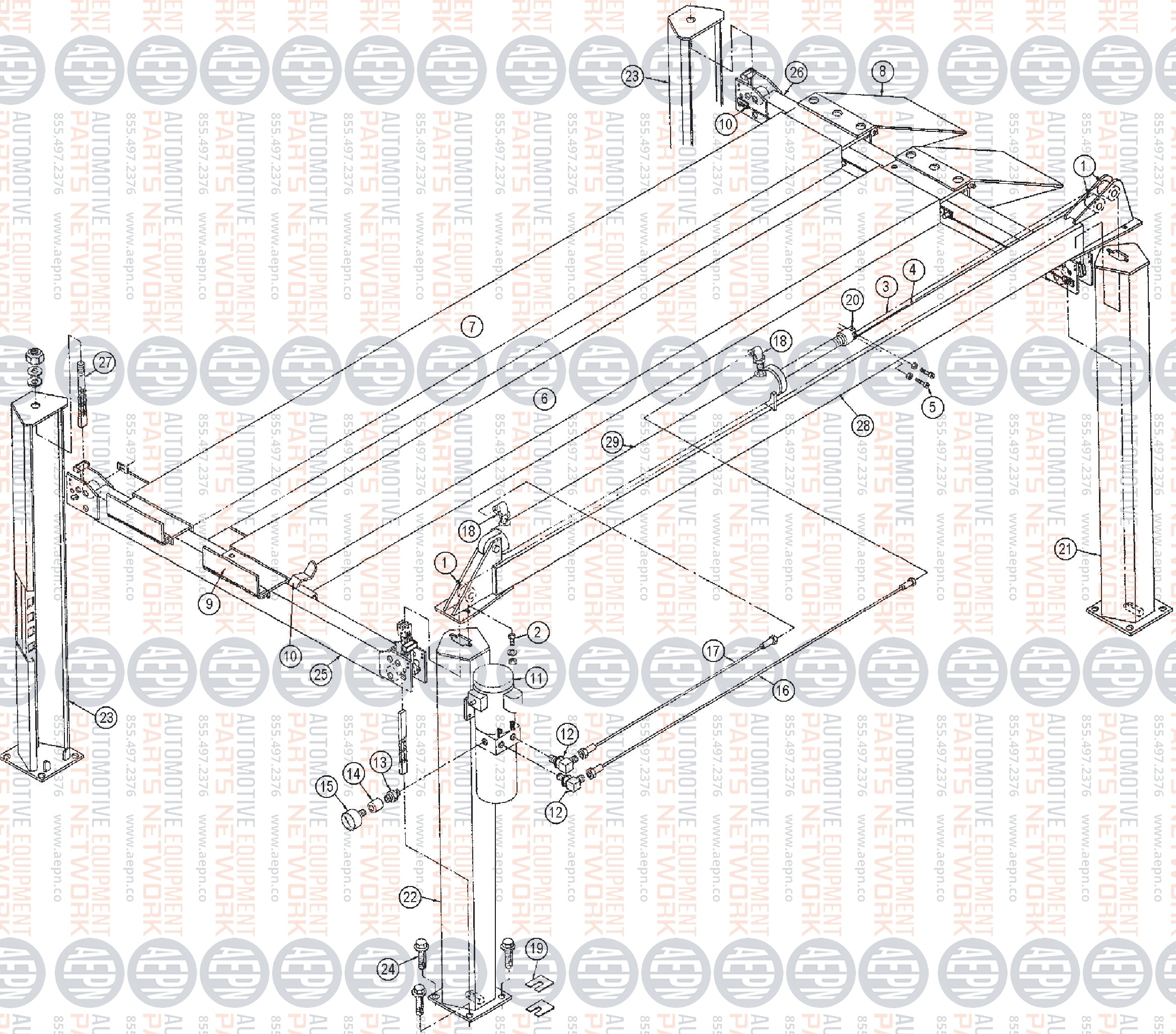

AMMCO BEN PEARSON LMT 12 Parts Breakdown
Click on the part number for more information
| ITEM | PART NO | DESCRIPTION |
|---|---|---|
| ITEM | PART NO | DESCRIPTION |
| 1 | BH-7102-40 | Roller |
| 2 | BH-7110-78 | Hex Screw |
| 3 | BH-7111-82 | Leaf Chain Short |
| 4 | BH-7111-83 | Leaf Chain Long |
| 5 | BH-7100-98 | Cap Screw |
| 6 | BH-7100-59 | LH Track Structure |
| 7 | BH-7100-58 | RH Track Structure |
| 8 | BH-7100-54 | Ramp Assy |
| 8 | BH-7100-55 | Ramp Structure |
| 8 | BH-7100-56 | Rod (Ramp to Pivot) |
| 8 | BH-7100-57 | Ramp Pivot Structure |
| 9 | BH-7100-52 | Track Stop Angle |
| 9 | BH-7100-53 | Angle Retainer |
| 10 | Call for Details | Handle Pivot Tube Linkage |
| 11 | BH-7006-01 | Power Unit 1PH, 2 HP |
| 12 | BH-7110-63 | 90 Male Elbow |
| 13 | BH-7111-71 | Hex Nipple |
| 14 | BH-7111-65 | Coupling |
| 15 | BH-7101-61 | Dry Pressure Gauge |
| 16 | BH-7101-60 | Hose Assy 1/2 ID Long |
| 17 | BH-7100-93 | Hose Assy 1/2 ID Short |
| 18 | BH-7101-59 | 90 Male Elbow |
| 19 | BH-7512-92 | Shim Kit 150 pcs, 3 Sizes |
| 20 | BH-7101-25 | Cylinder End Connnector |
| 21 | BH-7101-58 | Post Structure Main |
| 22 | BH-7101-57 | Post Structure Main Pwr. Unit Mount |
| 23 | BH-7110-23 | Post Structure Offside |
| 24 | BH-7075-03 | 3/4 x 5-1/2 Wedge Anchor |
| 25 | BH-7101-56 | Front Cross Tube Assy |
| 26 | BH-7100-99 | Rear Cross Tube Assy |
| 27 | BH-7111-81 | Cross Chain Assy |
| 27 | BH-7101-80 | Chain |
| 27 | BH-7101-49 | Chain Retainer Bolt |
| 27 | BH-7101-51 | Connectng Link |
| 28 | BH-7100-95 | Upper Horizontal Tube |
| 29 | BH-7100-68 | Hydraulic Cylinder |
| 29 | BH-7100-83 | Seal Kit serial less than 22316 |
| 29 | BH-7100-73 | Seal Kit serial higher than 22316 |
| BH-7114-49 | Free Wheeler Device Assy | |
| BH-7112-73 | Narrow Side Assy | |
| BH-7114-50 | Muffler Guard Kit | |

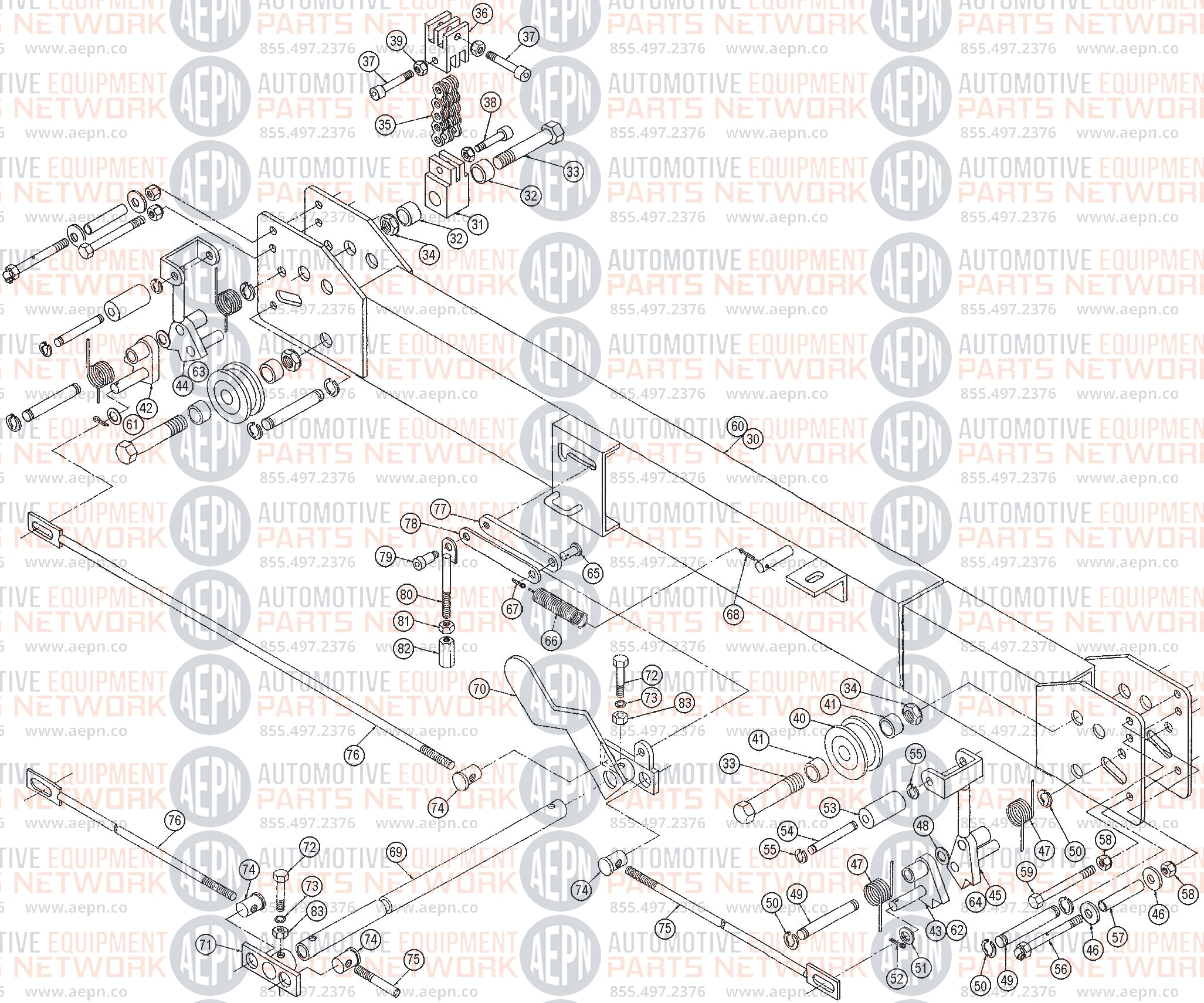

| 30 | BH-7101-56 | Front Cross Tube Assy |
| 30 | BH-7101-71 | Front Cross Tube Structure |
| 31 | BH-7101-70 | Lower Chain Retainer |
| 32 | BH-7101-69 | Spacer |
| 33 | BH-7102-41 | Hex Screw |
| 34 | BH-7102-00 | Nylock Thin Nut |
| 35 | BH-7101-68 | Chain Extension |
| 36 | BH-7101-45 | Upper Chain Retainer |
| 37 | F-SC-0312-18-2000 | Cap Screw |
| 38 | F-SC-0312-18-1750 | Cap Screw |
| 39 | BH-7113-95 | Nylock Hex Nut |
| 40 | BH-7102-40 | Roller |
| 41 | BH-7102-42 | Spacer |
| 42 | BH-7110-12 | Latch Catch LH |
| 43 | BH-7110-11 | Latch Catch RH |
| 44 | BH-7110-17 | Slack Cable Latch |
| 45 | BH-7110-24 | Slack Cable Latch |
| 46 | BH-7102-11 | Flat Washer |
| 47 | BH-7110-13 | Torsion Spring |
| 48 | BH-7102-30 | Flat Washer |
| 49 | BH-7100-89 | Shaft |
| 50 | BH-7100-88 | Retaining Ring |
| 51 | BH-7110-26 | Flat Washer |
| 52 | F-CP-125-0750 | Cotter Pin |
| 53 | BH-7102-38 | Roller |
| 54 | BH-7102-39 | Shaft |
| 55 | BH-7100-86 | Retaining Ring |
| 56 | BH-7110-18 | Hex Screw w/Grease Fitting |
| 57 | BH-7102-31 | Tube Spacer |
| 58 | F-NL-0375-16 | Nylock Hex Nut |
| 59 | F-HC-0375-16-4000 | Hex Screw |
| 60 | BH-7100-99 | Rear Cross Tube Assy |
| 60 | BH-7101-76 | Rear Cross Tube Str. |
| 61 | BH-7110-11 | Latch Catch RH |
| 62 | BH-7110-12 | Latch Catch LH |
| 63 | BH-7110-24 | Slack Cable Latch |
| 64 | BH-7110-17 | Slack Cable Latch |
| 65 | BH-7101-19 | Pin |
| 66 | BH-7110-14 | Spring |
| 67 | F-CP-125-0750 | Cotter Pin |
| 68 | F-CP-125-1000 | Cotter Pin |
| 69 | BH-7101-74 | Tube Structure Pivot |
| 70 | BH-7101-54 | Trip Release Handle Structure |
| 71 | BH-7101-72 | Trip Release Pivot Structure |
| 72 | BH-7101-55 | Hex Screw |
| 73 | BH-7112-24 | Lock Washer |
| 74 | BH-7110-20 | Pivot Pin |
| 75 | BH-7110-21 | Adjusting Rod Str Short |
| 76 | BH-7110-22 | Adj. Rod Str, Long |
| 77 | BH-7101-220 | Bar Tapped |
| 78 | BH-7101-22 | Bar |
| 79 | BH-7101-24 | Bolt |
| 80 | BH-7101-23 | Rod Structure |
| 81 | BH-7105-08 | Hex Nut |
| 82 | BH-7105-09 | Nut |
| 83 | BH-7112-23 | Hex Nut |
