AMMCO BEN PEARSON AL-7 OLD STYLE Parts Breakdown
Click on the part number for more information
| ITEM | PART NO | DESCRIPTION |
|---|---|---|
| ITEM | PART NO | DESCRIPTION |

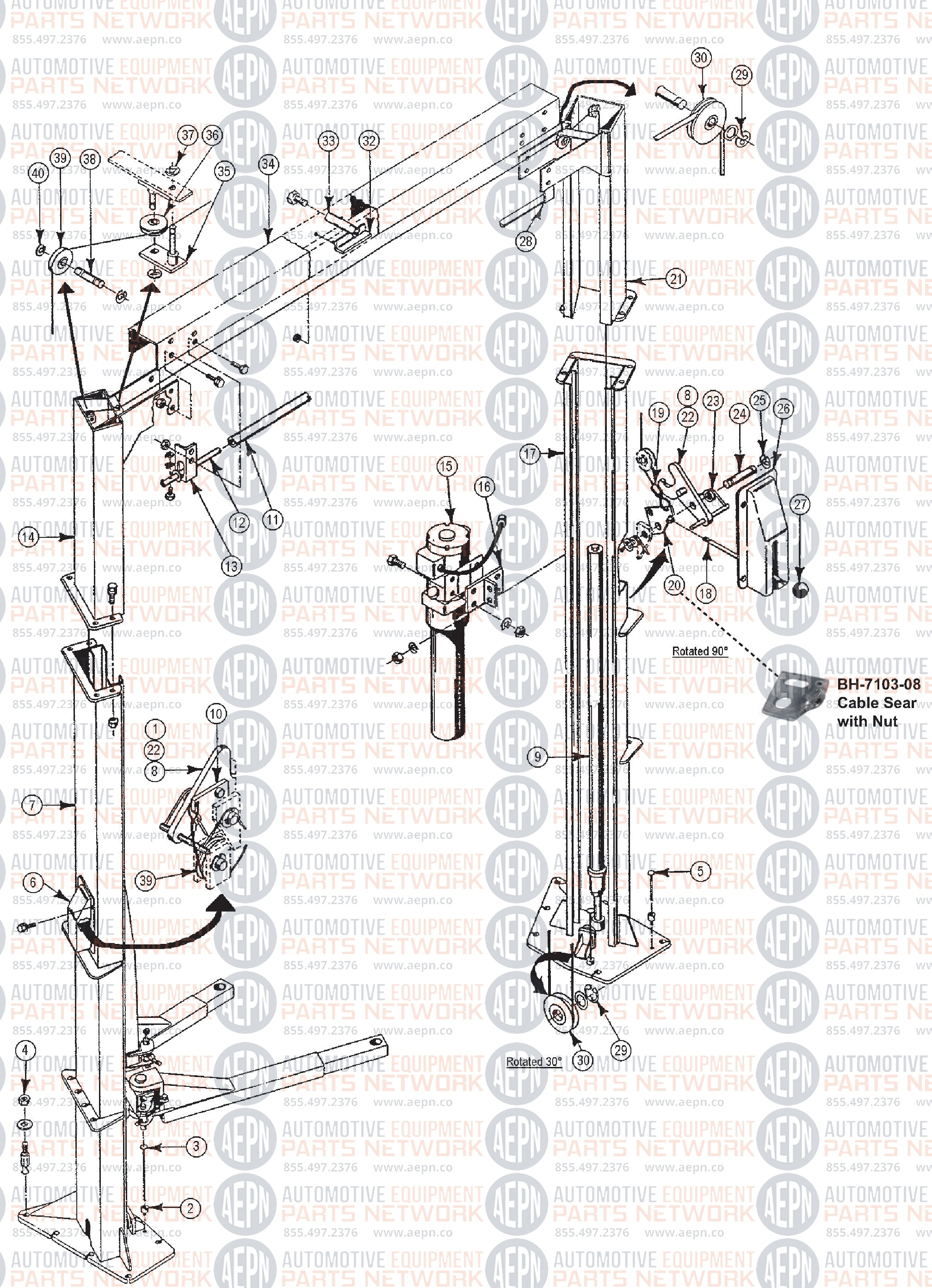

| 1 | BH-7104-05 | Lock Latch |
| 2 | BH-7100-44 | Rubber Mount |
| 3 | BH-7101-31 | Long Release Rod |
| 4 | BH-7075-03 | 3/4 x 5-/12 Anchor Bolt |
| 5 | BH-7101-30 | Short Release Rod |
| 6 | BH-7101-36 | Cover Slave Side |
| 7 | BH-7110-44 | Post Off Side |
| 8 | BH-7101-46 | Latch Assembly |
| 9 | BH-7100-62 | Cylinder |
| 10 | BH-7100-40 | Safety Release Cable |
| 11 | BH-7110-42 | Tubing, Bumper |
| 12 | BH-7110-41 | Pipe, Bumper |
| 13 | BH-7110-40 | LH Angle |
| 14 | BH-7110-39 | Extension, Post Off Side |
| 15 | BH-7006-01 | Power Unit 1PH, 2HP |
| 15 | BH-7006-03 | Power Unit 3PH, 2HP |
| 16 | BH-7110-38 | Mounting Bracket |
| 17 | BH-7110-37 | Post Pump Side |
| 18 | BH-7100-41 | Release Handle |
| 19 | BH-7101-47 | Clamp for Lock Release Cable |
| 20 | BH-7103-08 | Cable Sear |
| 21 | BH-7110-36 | Extension, Post Pump Side |
| 22 | BH-7103-13 | Rod Spring |
| 23 | BH-7110-15 | Torsion Spring |
| 24 | BH-7103-14 | Latch Shaft |
| 25 | BH-7100-88 | Retaining Ring |
| 26 | BH-7101-35 | Cover Pump Side |
| 27 | BH-7100-42 | Safety Release Ball for Lever |
| 28 | BH-7110-33 | RH Angle |
| 29 | BH-7104-10 | Retaining Ring |
| 30 | BH-7104-04 | Pulley |
| 32 | BH-7110-32 | Microswitch Bracket |
| 33 | BH-7110-31 | Cable Support |
| 34 | BH-7103-23 | Overhead Beam |
| 35 | BH-7110-30 | Retainer Idler |
| 36 | BH-7106-06 | Horizontal Pulley |
| 37 | Call for details | E-Ring |
| 38 | BH-7104-09 | Pulley Shaft |
| 39 | BH-7104-08 | Lock Release Pulley |
| 40 | BH-7104-07 | E-Ring |

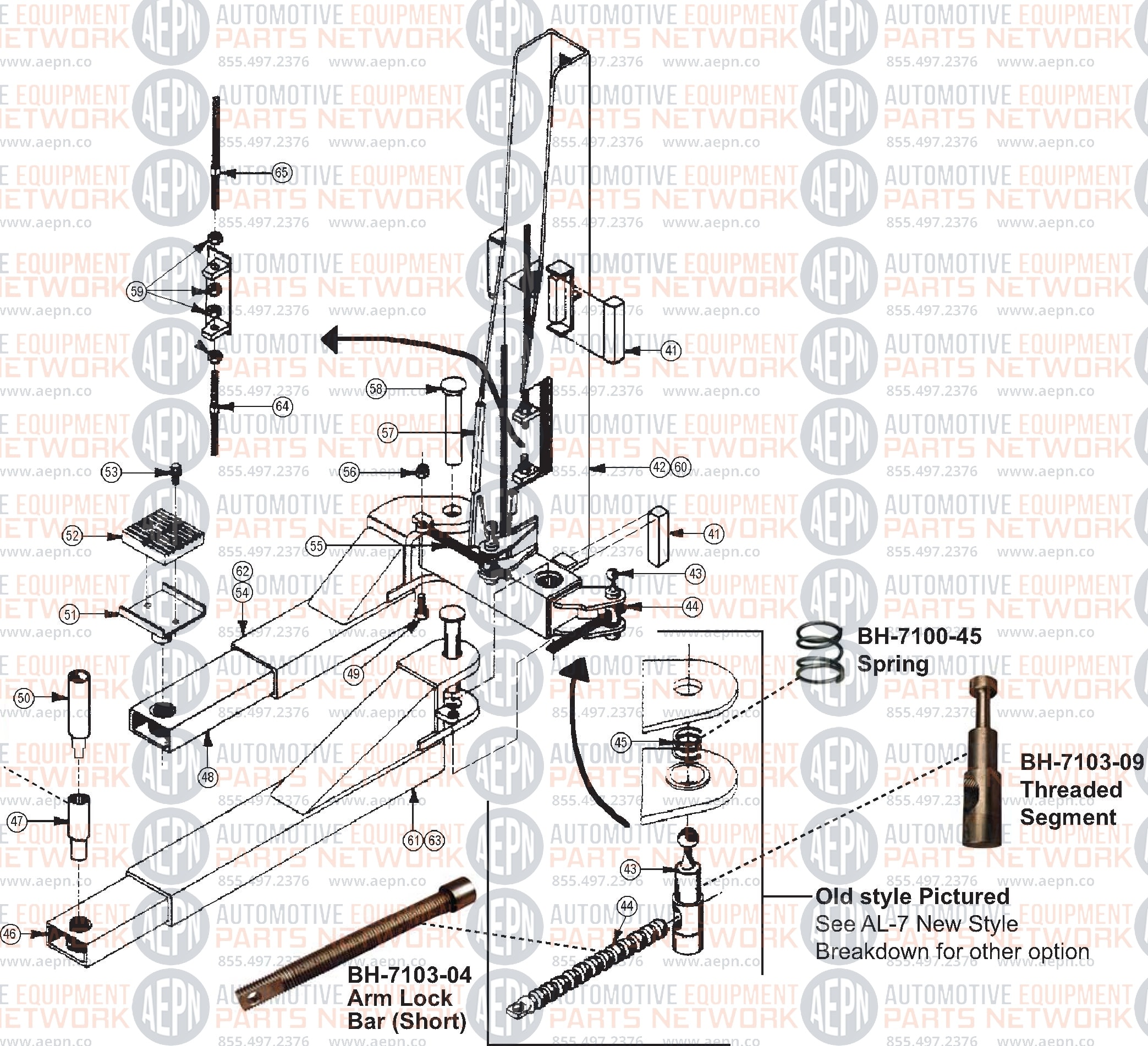

| 41 | BH-7110-01 | Carriage Slider Block Square |
| 42 | BH-7110-45 | Carriage Passenger Side |
| 43 | BH-7103-09 | Threaded Segment |
| 44 | BH-7103-04 | Arm Lock Bar Short |
| 45 | BH-7100-45 | Spring |
| 46 | BH-7110-46 | Arm Extension Rear |
| 47 | BH-7101-02 | Extension 2-5/8 |
| 48 | BH-7110-47 | Arm Extension Front |
| 49 | BH-7110-48 | Hex Screw 3/8 x 1-3/8 |
| 50 | BH-7101-03 | Extension 5 |
| 51 | BH-7110-49 | Holder Pad |
| 51 | BH-7101-01 | Adapter |
| 52 | BH-7101-00 | Rubber Arm Pad |
| 52 | BH-7101-00-4 | Rubber Arm Pad Kit (set of 4) |
| 53 | F-HC-0312-18-0750 | Capscrew, 5/16 x 3/4 |
| 54 | BH-7110-51 | Arm Front Passenger Side |
| 55 | BH-7103-03 | Arm Lock Bar Long |
| 56 | BH-7110-52 | Nylock 3/8 |
| 57 | BH-7102-76 | Guard Door |
| 58 | BH-7110-53 | Pin |
| 59 | BH-7110-54 | Nut |
| 60 | BH-7110-55 | Carriage Driver Side |
| 61 | BH-7110-56 | Arm Rear |
| 62 | BH-7110-57 | Arm Front Driver Side |
| 63 | BH-7110-58 | Arm Rear Driver Side |
| 64 | BH-7106-01 | Cable, Short |
| 65 | BH-7106-02 | Cable, Long |
| 66 | BH-7110-68 | Grommet |

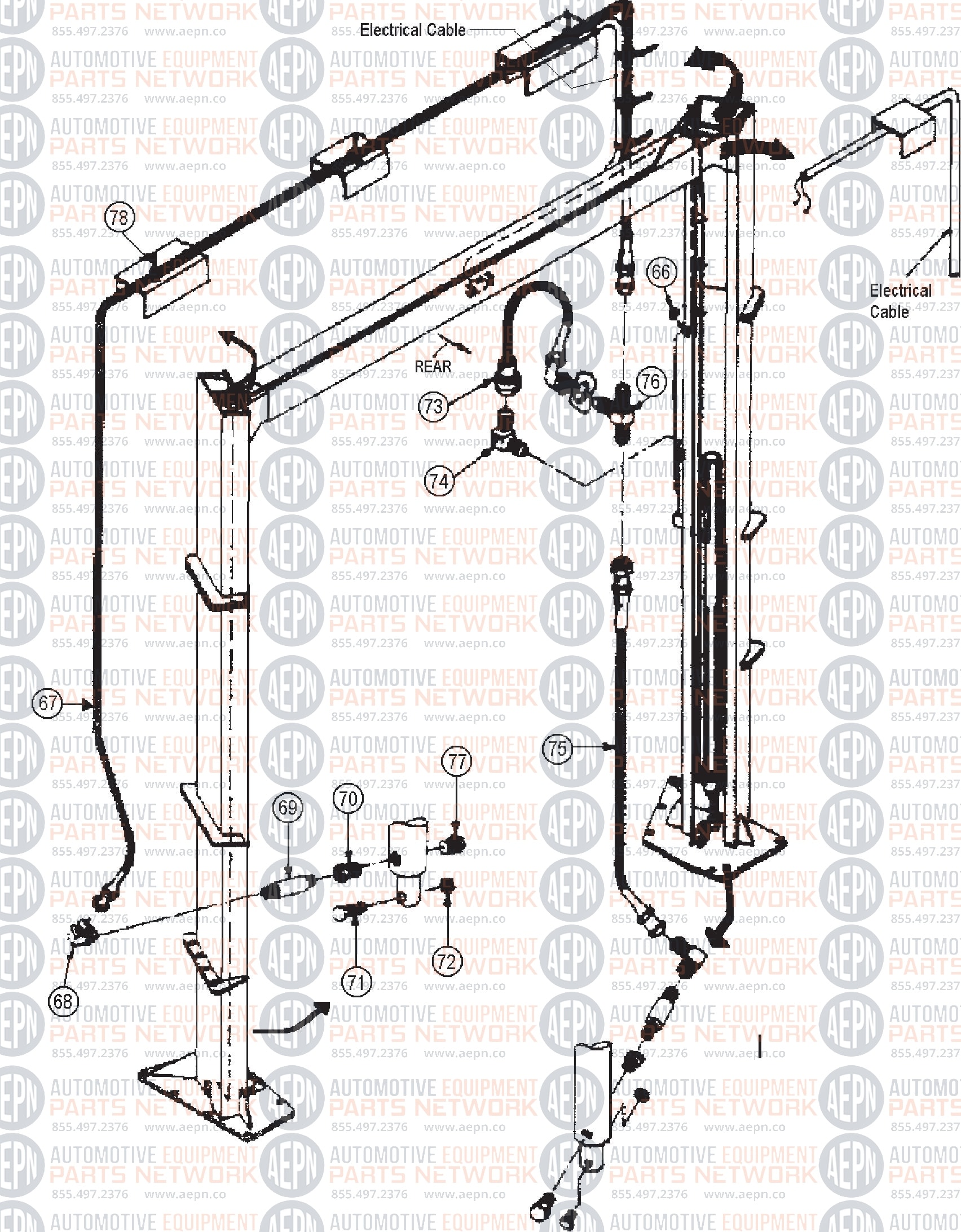

| 67 | BH-7110-59 | Hose Assembly |
| 68 | BH-7102-93 | Elbow |
| 69 | BH-7102-94 | Pipe Nipple |
| 70 | BH-7102-92 | Female Adapter |
| 71 | BH-7110-60 | Hex Screw |
| 72 | BH-7110-61 | Locknut |
| 73 | BH-7110-62 | Hose Assembly |
| 74 | BH-7110-63 | Elbow Adapter |
| 75 | BH-7110-64 | Hose Assembly |
| 76 | BH-7110-65 | Tee Bulkhead w/Nut |
| 77 | BH-7110-66 | Plug |
| 78 | BH-7110-67 | Ty-Wrap |
