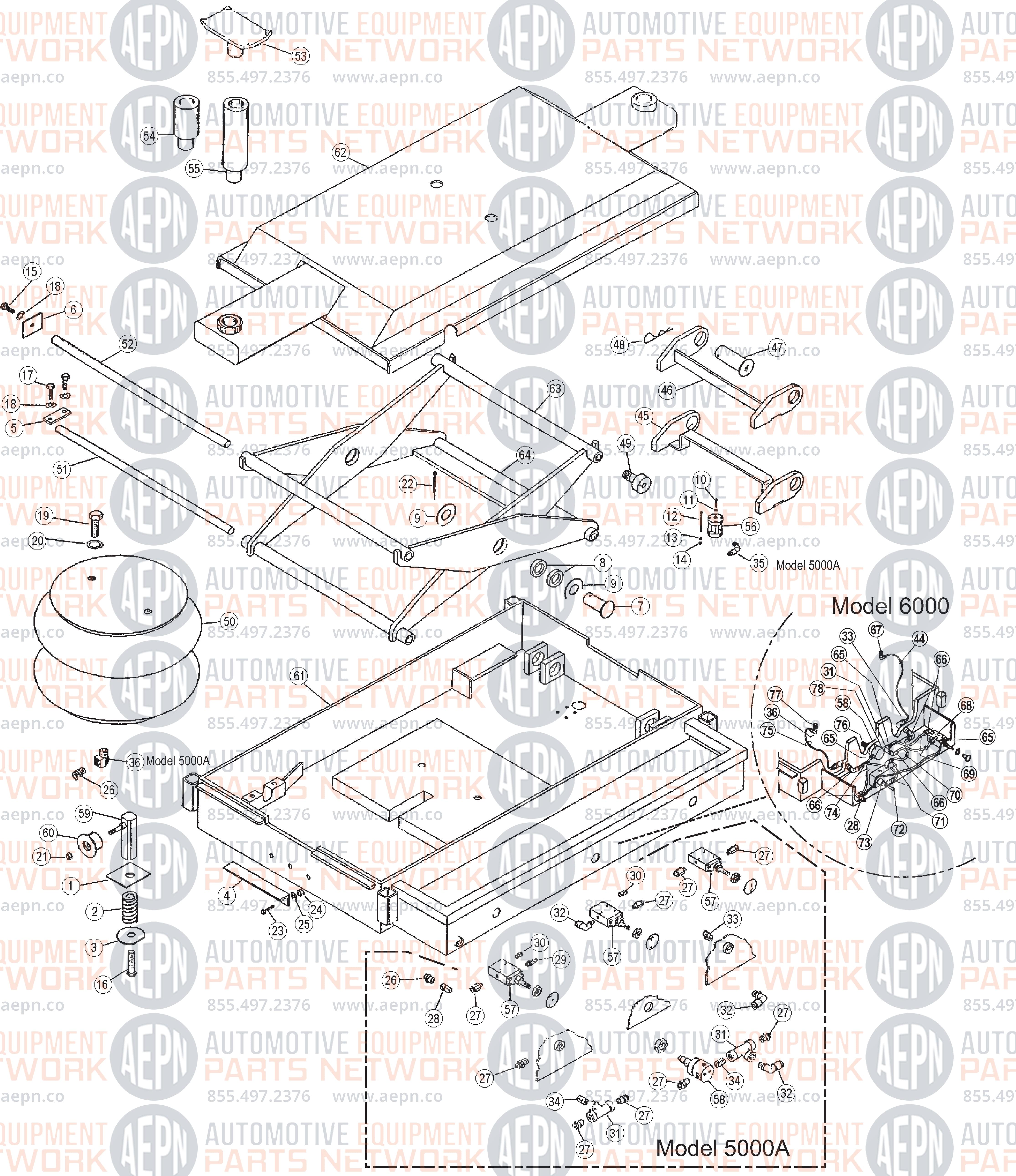

ALM ROLLING BRIDGE 5000A Parts Breakdown
Click on the part number for more information
| ITEM | PART NO | DESCRIPTION |
|---|---|---|
| ITEM | PART NO | DESCRIPTION |
| 1 | BH-7150-78 | Spring Washer |
| 2 | BH-7150-79 | Compression Spring |
| 3 | BH-7150-80 | 1/2 Plain Washer |
| 4 | BH-7156-81 | Anti Kick Up Bracket |
| 5 | BH-7156-82 | Scissor Lock Plate |
| 6 | BH-7156-83 | Rod Lock Plate |
| 7 | BH-7156-84 | Scissor Pin Weldment |
| 8 | BH-7156-85 | Bushing |
| 9 | F-FW-1000-USS | 1 Plain Washer |
| 10 | F-MS-0010-32-0250 | Machine Screw 10-32 x 1/4 |
| 11 | F-JN-0010-32 | Hex Jam Nut 10-32 |
| 12 | F-HC-0006-32-0750 | Cap Screw 6-32 x 3/4 |
| 13 | F-LW-0006 | Split Lockwasher |
| 14 | F-HN-0006-32 | Hex Nut 6-32 |
| 15 | F-HC-0250-20-0500 | Hex Bolt 1/4-20 x 1/2 |
| 16 | F-HC-0500-13-2250 | Hex Bolt 1/2-13 x 2-1/4 |
| 17 | F-HC-0250-20-0875 | Hex Bolt 1/4-20 x 7/8 |
| 18 | F-LW-0250 | 1/4 Split Lockwasher |
| 19 | F-HC-0375-16-0875 | Hex Bolt 3/8-16 x 7/8 |
| 20 | F-LW-0375 | 3/8 Split Lockwasher |
| 21 | BH-7156-88 | Thin Security Locknut 5/16-18 |
| 22 | F-CP-187-1750 | Cotter Pin 3/16 x 1-3/4 |
| 23 | F-HC-0312-18-1000 | Hex Bolt 5/16-18 x 1 |
| 24 | F-HN-0312-18 | Hex Nut 5/16-18 |
| 25 | F-LW-0312 | 5/16 Split Lockwasher |
| 26 | BH-7156-90 | Tube Fitting 5/16 x 1/4 NPT |
| 27 | BH-7156-91 | Tube Fitting 5/16 x 1/8 NPT |
| 28 | BH-7156-92 | Pipe Plug 1/4 NPT |
| 29 | BH-7156-93 | Muffler1/8NPT |
| 30 | BH-7156-94 | Pipe Plug 1/8 NPT |
| 31 | BH-7156-30 | Female Tee 1/8 NPT |
| 32 | BH-7156-61 | Male Elbow 5/16 x 1/8 |
| 33 | BH-7154-01 | Male Air Hose Fitting 5/32 x 1/8 MNPT |
| 34 | BH-7156-28 | Close Nipple 1/8 NPT |
| 35 | BH-7156-11 | Tube Elbow 5/32 Tube x 10/32 NPT |
| 36 | BH-7156-62 | Street Elbow 1/4 NPT |
| 37 | BH-7156-53 | Pneumatic Tubing 5/16 x 13 |
| 38 | BH-7156-54 | Pneumatic Tubing 5/16 x 16 |
| 39 | BH-7156-55 | Pneumatic Tubing 5/16 x 23-1/4 |
| 40 | BH-7156-56 | Pneumatic Tubing 5/16 x 23-1/4 |
| 41 | BH-7156-57 | Pneumatic Tubing 5/16 x 12-1/2 |
| 42 | BH-7156-58 | Pneumatic Tubing 5/16 x 17 |
| 43 | BH-7156-59 | Pneumatic Tubing 5/16 x 27-1/2 |
| 44 | BH-7156-60 | Pneumatic Tubing 5/32 x 17 |
| 45 | BH-7156-67 | Safety Dog Assy |
| 46 | BH-7156-68 | Safety Dog Assy |
| 47 | BH-7156-69 | Safety Dog Mounting Pin Assy |
| 48 | BH-7156-70 | Hair Pin Cotter 1-5/8 |
| 49 | BH-7156-71 | Cam Follower Bearing |
| 50 | BH-7156-72 | Air Spring |
| 51 | BH-7156-73 | Lower Scissor Rod |
| 52 | BH-7156-74 | Upper Scissor Rod |
| 53 | BH-7156-75 | Lift Pad Assy |
| 54 | BH-7156-76 | Extension Pin 4-5/8 x 3 |
| 55 | BH-7156-77 | Extension Pin 7-5/8 x 6 |
| 56 | BH-7156-78 | Air Cylinder |
| 57 | BH-7156-79 | 1/8 NPT 3-Way Valve |
| 58 | BH-7156-80 | 110 PSI Regulator |
| 59 | BH-7150-60 | Axle Lock Assy |
| 60 | BH-7150-60A | 2 Wheel |
| 61 | BH-7156-63 | Lower Frame Weldment |
| 62 | BH-7156-64 | Upper Housing & Arm Assy |
| 63 | BH-7156-65 | Inner Scissor Assy |
| 64 | BH-7156-66 | Outer Scissor Assy |
| 65 | BH-7153-96 | Male Connector 1/4 to 1/8 NPT |
| 66 | BH-7156-31 | Male Elbow 1/4 to 1/8 NPT |
| 67 | BH-7156-11 | Tube Elbow 65/32 x 10/32 |
