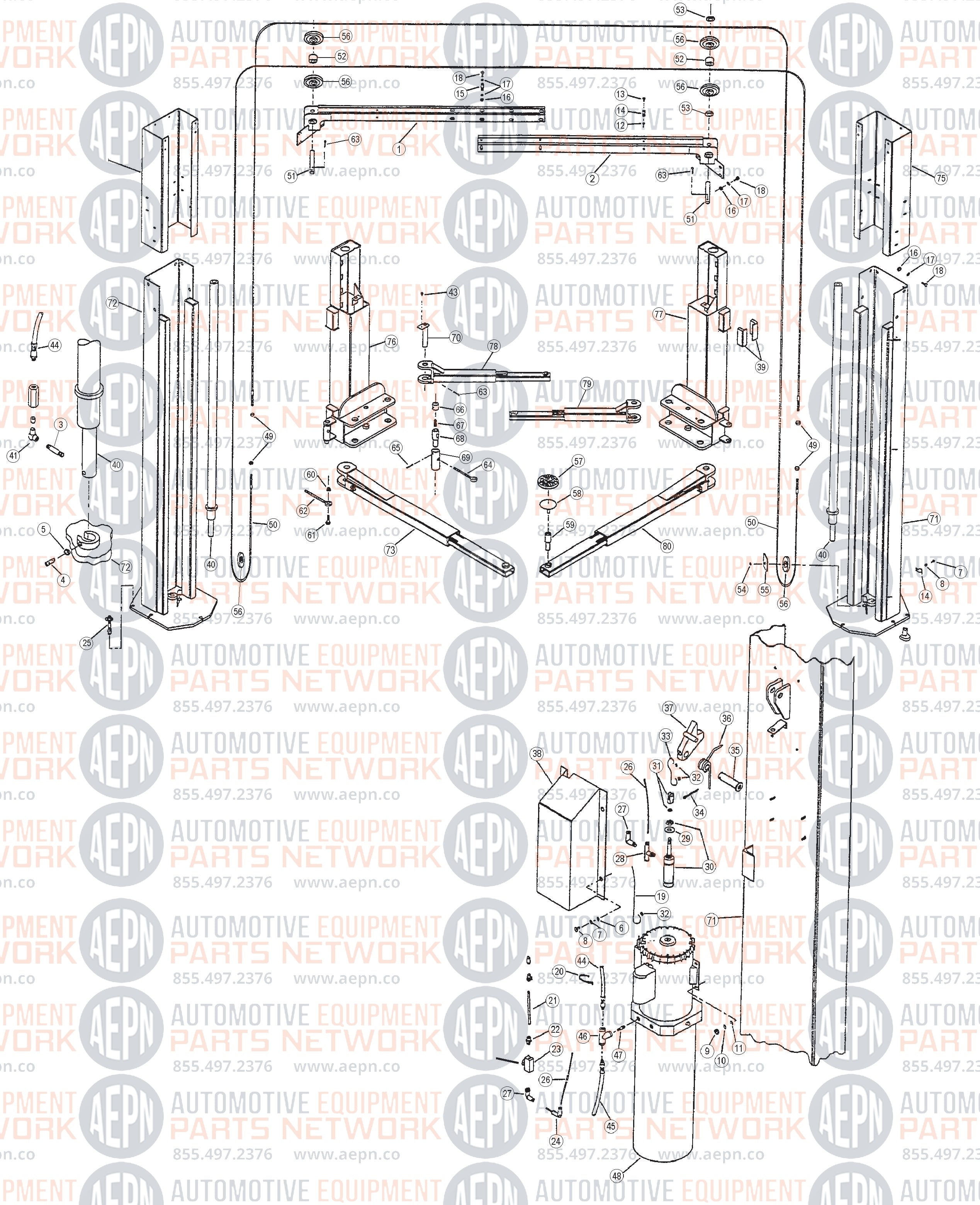

ALM 7002A Parts Breakdown
Click on the part number for more information
| ITEM | PART NO | DESCRIPTION |
|---|---|---|
| ITEM | PART NO | DESCRIPTION |
| 1 | BH-7157-11 | Inner Profile Top Member |
| 2 | BH-7150-59 | Drive Profile Top Member |
| 3 | BH-7157-43 | 1/4 NPT x 2-1/2 Nipple |
| 4 | BH-7157-42 | Dog Point Set Screw |
| 5 | BH-7157-41 | Hex Jam Nut 3/8-16 |
| 6 | F-FW-0250-SAE | 1/4 Plain Washer |
| 7 | F-LW-0250 | 1/4 Split Washer |
| 8 | F-HC-0250-20-0500 | Hex Head Screw 1/4-20 x 1/2 |
| 9 | F-HN-0312-18 | Hex Nut 5/16-18 |
| 10 | F-LW-0312 | 5/16 Split Lockwasher |
| 11 | F-FW-0312-SAE | 5/16 Plain Washer |
| 12 | BH-7153-70 | Security Locknut 1/4-20 |
| 13 | F-HC-0250-20-0500 | Hex Bolt 1/4-20 x 1/2 |
| 14 | BH-7157-39 | Hose Clip |
| 15 | BH-7157-38 | Hose Mounting Clip |
| 16 | BH-7154-63 | Security Locknut 3/8-16 |
| 17 | F-FW-0375-SAE | 3/8 Plain Washer |
| 18 | F-HC-0375-16-1250 | Hex Bolt 3/8-16 x 1-1/4 |
| 19 | BH-7157-36 | Cable 1/16 x 210 |
| 20 | BH-7153-90 | Wire Tire 5-1/2 |
| 21 | BH-7157-35 | Air Hose 1/4 (Sold in 50' Roll) |
| 22 | BH-7153-96 | Male Connector 1/4 to 1/8 NPT |
| 23 | BH-7152-05 | Air Release Valve |
| 24 | BH-7153-99 | Plug In Elbow 5/32 to 5/32 |
| 25 | BH-7075-03L | 3/4 X 5-1/2 Wedge Anchor |
| 26 | BH-7157-34 | Air Hose 5/32 x 312 |
| 27 | BH-7152-25 | Male Elbow |
| 28 | BH-7155-54 | Branch Tee 5/32 Hose x 1/8 NPT |
| 29 | BH-7151-26 | Internal Tooth Lockwasher 5/8 |
| 30 | BH-7152-06 | Air Cylinder 3/4 x 1 |
| 31 | BH-7157-33 | Air Cylinder Clevis |
| 32 | BH-7153-84 | Cable Clamp 1/16 |
| 33 | BH-7157-32 | Cable 1/16 x 5.7 |
| 34 | F-CP-187-1500 | Cotter Pin 3/16 x 1-1/2 |
| 35 | BH-7157-30 | Safety Dog Axle |
| 36 | BH-7152-26 | Safety Torsion Spring 3x2-1/2 |
| 37 | BH-7157-29 | Safety Dog |
| 38 | BH-7151-60 | Lock Cover |
| 39 | BH-7157-49 | Slider Block |
| 40 | BH-7150-62 | Hydraulic Cylinder |
| 40 | BH-7151-52 | Seal Kit |
| 41 | BH-7151-36 | 90 Elbow |
| 43 | BH-7157-12 | Self Tap Screw 1/4-20 x 3/4 |
| 44 | BH-7157-26 | Hydraulic Hose Assy 3/8 x 30 |
| 45 | BH-7157-25 | Hydraulic Hose Assy 3/8 x 44 |
| 46 | BH-7157-24 | Female Tee 3/8 NPT |
| 47 | BH-7157-23 | Nipple 3/8 NPT x 1-1/2 |
| 48 | BH-7006-01 | Hyd. Power Unit 1PH |
| 48 | BH-7006-03 | Hyd. Power Unit 3PH |
| 49 | BH-7157-21 | Nylock Nut 1/2-13 |
| 50 | BH-7157-20 | Cable Assy 364-1/2 |
| 51 | BH-7157-19 | Sheave Pin |
| 52 | BH-7157-18 | Spacer Tube |
| 53 | BH-7157-17 | Spacer Tube |
| 54 | BH-7157-16 | Retaining Ring 3/4 |
| 55 | BH-7157-15 | Sheave Guard |
| 56 | BH-7150-20 | Cable Sheave 4 |
| 57 | BH-7153-76 | Rubber Lift Pad |
| 58 | BH-7150-21 | Arm Pick-Up Pad |
| 58 | BH-7150-02 | Rubber Pad |
| 59 | BH-7090-14 | Arm Pad Ext. Nesting Style 3 |
| 60 | F-LN-0750-10 | 3/4-10 Nylock Locknut |
| 61 | BH-7153-80 | Hex Bolt 3/4-10 x 3 |
| 62 | BH-7157-13 | Long Arm - Arm Restraint Rod |
| 63 | BH-7154-60 | Cotter Pin 3/16 x 1-3/4 |
| 81 | BH-7151-19 | Arm Restraint Assembly Short |
| 81 | BH-7151-19A | Arm Restraint Assembly Long |
| 64 | BH-7152-13 | Short Arm - Arm Restraint Rod |
| 65 | F-RP-250-1750 | Roll Pin 1/4 x 1-3/4 |

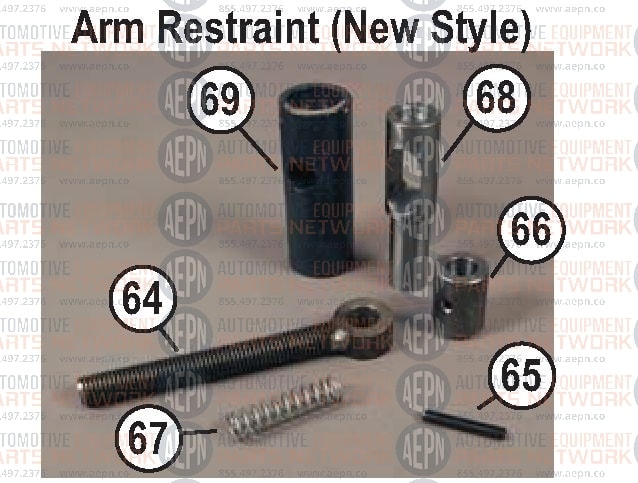

| 66 | BH-7151-11 | Arm Restraint End Cap |
| 67 | BH-7151-12 | Arm Restraint Spring |
| 68 | BH-7151-13 | Arm Restraint Plunger |
| 69 | BH-7151-14 | Arm Restraint Housing |
| 70 | BH-7151-57 | Arm Pins |
| 71 | BH-7157-01 | Drive Side Column |
| 72 | BH-7157-02 | Final Column |
| 73 | BH-7157-03 | Idle Side Long Arm Assy |
| 74 | BH-7157-10 | Idle Side Column Extension |
| 75 | BH-7157-09 | Drive Side Column Extension |
| 76 | BH-7157-08 | Idle Side Carriage Assy |
| 77 | BH-7157-07 | Drive Carriage |
| 78 | BH-7157-06 | Idle Side Short Arm Assy |
| 79 | BH-7157-05 | Drive Side Short Arm Assy |
| 80 | BH-7157-04 | Drive Side Long Arm Assy |
