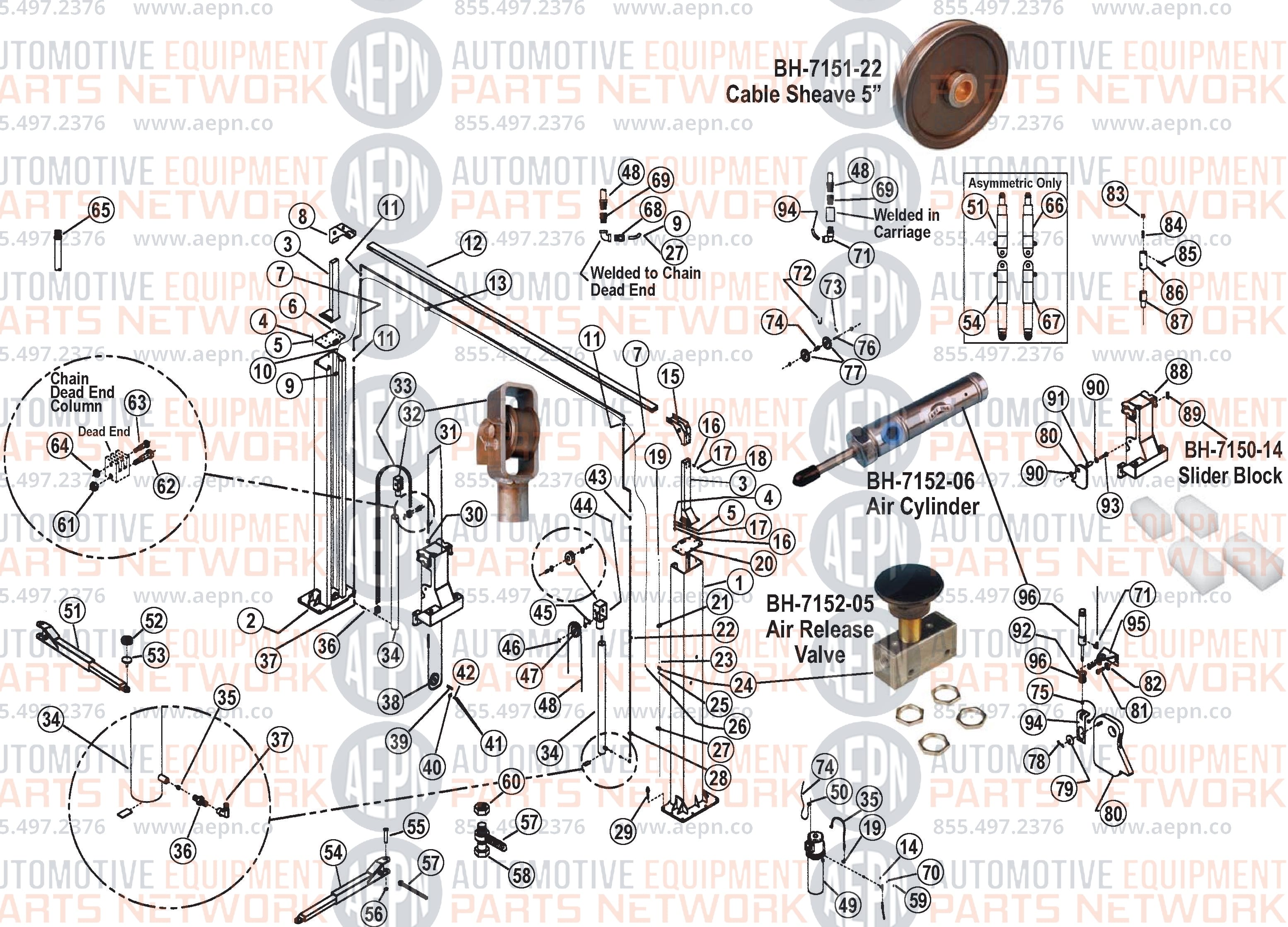

ALM 10001 Parts Breakdown

Click on the part number for more information

ITEM PART NO DESCRIPTION
ITEM PART NO DESCRIPTION
1 Call For Details Column
2 Call For Details Column
3 BH-7154-20 Pedestal Weldment
4 F-HC-0375-16-1250 Hex Bolt 3/8-16 x 1-1/4
5 F-FW-0375-SAE Washer 3/8
6 BH-7153-43 Top Plate Assembly, Idle Column
7 BH-7154-15 Hydraulic Tubing 3/8 x 54
8 Call For Details Corner Assembly
9 BH-7154-10 Pneumatic Tubing 5/32 x 104
10 BH-7153-91 Air Hose Coupling 5/32 to 5/32
11 BH-7151-40 Union
12 BH-7154-08 Overhead Tube
13 BH-7153-93 Tubing 5/32 x 287
14 F-FW-0312-SAE Washer 5/16
15 Call For Details Corner Assembly
16 F-HN-0375-16 Hex Nut 3/8-16
17 F-LW-0375 3/8 Split Washer
18 F-HC-0375-16-1000 Hex Bolt 3/8-16 x 1
19 BH-7153-35 Male Elbow 3/8 x 3/8 NPT
20 BH-7153-41 Column Top Plate Assembly
21 BH-7154-11 Pneumatic Tubing 1/4 x 51
22 BH-7153-36 Tee Union 3/8 x 3/8 x 3/8
23 BH-7153-96 Male Connector 1/4 to 1/8 NPT
24 BH-7152-05 Air Release Valve
25 BH-7153-97 Male Running Tee 5/32 x 5/32 x 1/8
26 BH-7153-99 Plug-In Elbow 5/32 to 5/32
27 BH-7154-00 Tubing 5/32 x 55-14
28 BH-7153-31 Hydraulic Tube 64-3/8
29 BH-7075-03 3/4 x 5-1/2 Wedge Anchor
30 F-LN-0750-10 Locknut 3/4-10
31 BH-7150-13 Equalizer Cable
32 BH-7150-61 Yoke Bracket
33 BH-7153-68 3/4 Pitch Leaf Chain
34 BH-7150-19 Cylinder
35 BH-7150-91 Hose
36 BH-7151-34 Adapter
37 BH-7153-37 Female Elbow 3/8 x 1/4
38 BH-7151-22 Cable Sheave 5
39 BH-7151-23 Sheave Axle
40 BH-7153-51 Keeper Plate
41 BH-7153-85 Hex Bolt 1/4-20 x 1/2
42 F-LW-0250 Split Lockwasher 1/4
43 BH-7151-40 Union
44 BH-7150-98 Chain Sheave Bracket Enclosed Style
45 BH-7153-49 Washer 3/8
46 BH-7151-17 Cotter Key
47 BH-7151-65 Pulley
48 BH-7150-71 Carriage Air Line with Fitting
49 BH-7006-01 Hyd. Power Unit 1PH
49 BH-7006-03 Hyd. Power Unit 3PH
50 BH-7153-84 Cable Clamp 1/16
51 BH-7154-06 LH Arm Assembly
52 BH-7150-02 Rubber Pad
53 BH-7154-07 Lift Pad Assy (does not include pad)
54 BH-7151-63 Left Front Arm Assembly
55 BH-7154-03 Arm Pin
56 BH-7153-77 1-1/2 Snap Ring
57 BH-7151-06 Arm Lock Rod
58 F-HC-0375-10-3000 Hex Bolt 3/4-10 x 3
59 F-HN-0312-18 Hex Nut 5/16-18
60 F-LN-0750-10 Locknut 3/4-10
61 BH-7153-72 Locknut
62 Call For Details Shoulder Bolt
63 F-SB-0312-1500 Shoulder Bolt
64 BH-7153-70 Security Locknut
65 BH-7153-40 Ferrulok Ferrule 3/8
66 Call For Details RH Short Arm Assembly
67 Call For Details RH Long Arm Assembly
68 BH-7154-01 Male Air Hose Fitting 5/32 x 1/8 MNPT
69 BH-7153-86 Pipe Swivel Adapter 1/8 NPT/JIC
70 F-LW-0312 Split Lockwasher 5/16
71 BH-7152-25 Male Elbow
72 BH-7153-90 Wire Tie 5-1/2
73 F-CP-187-1750 Cotter Pin 3/16 x 1-3/4
74 BH-7154-09 Wire Cable 1/16 x 220
75 BH-7151-15 Nut
76 BH-7151-21 Sheave Axle
77 BH-7151-22 Cable Sheave 5
78 BH-7151-17 Cotter Key
79 BH-7151-18 Washer
80 BH-7151-27 Safety Weldment
81 F-HC-0250-20-1500 Hex Bolt 1/4-20 x 1-1/2
82 F-FW-0250-SAE Washer 1/4
83 BH-7151-11 End Cap
84 BH-7151-12 Spring
85 F-RP-0250-1750 Roll Pin 1/4 x 1-3/4
86 BH-7151-14 Housing
87 BH-7151-13 Arm Restraint Plunger
88 BH-7154-21 Carriage Weldment
89 BH-7150-14 Slider Block
90 BH-7153-65 3/4 Washer
91 BH-7153-64 Safety Block Spacer
92 BH-7151-26 Lockwasher
93 F-HC-0375-10-3000 Hex Bolt 3/4-10 x 3
94 BH-7151-16 Bracket
95 BH-7152-07 Bracket
96 BH-7152-06 Air Cylinder
